Product Overview

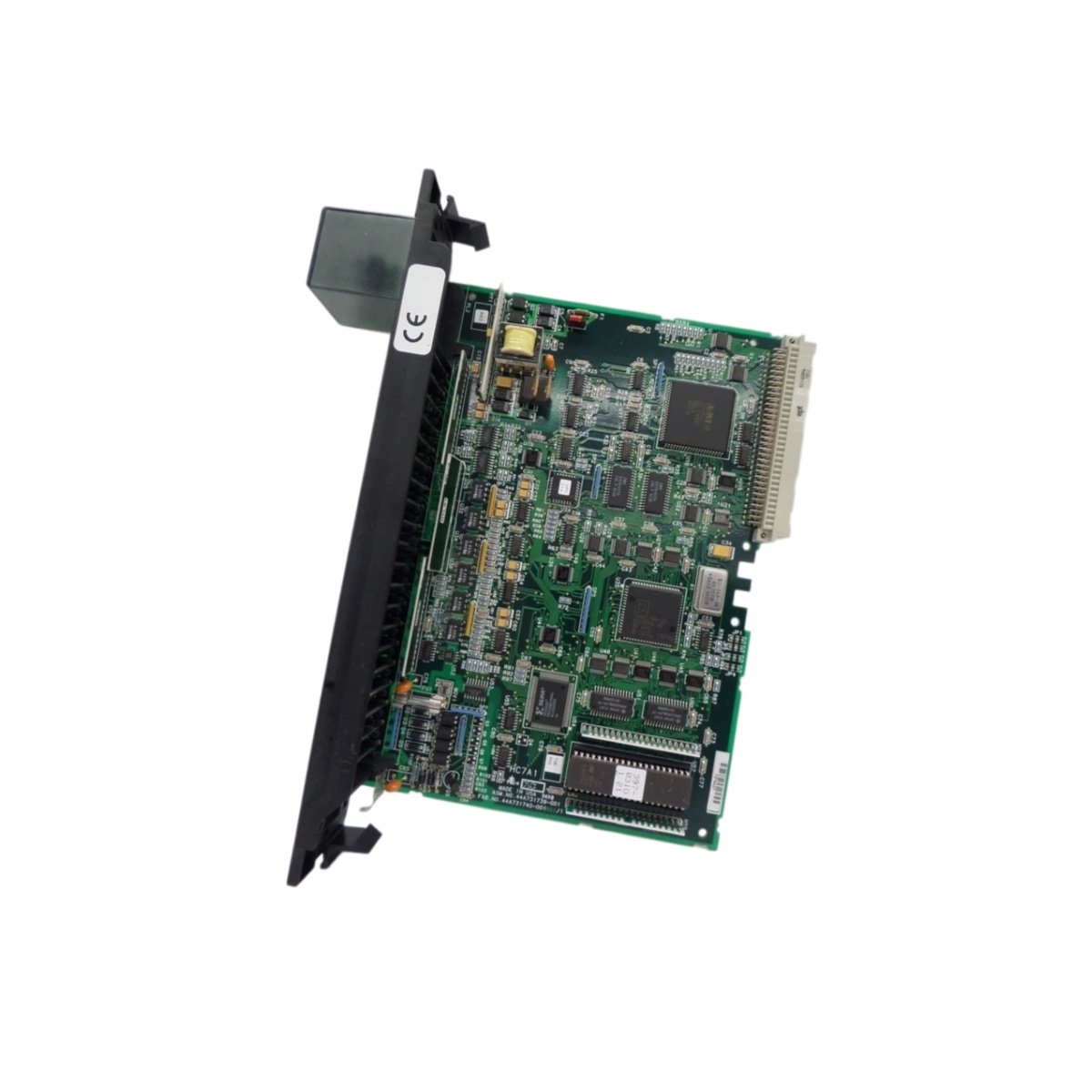

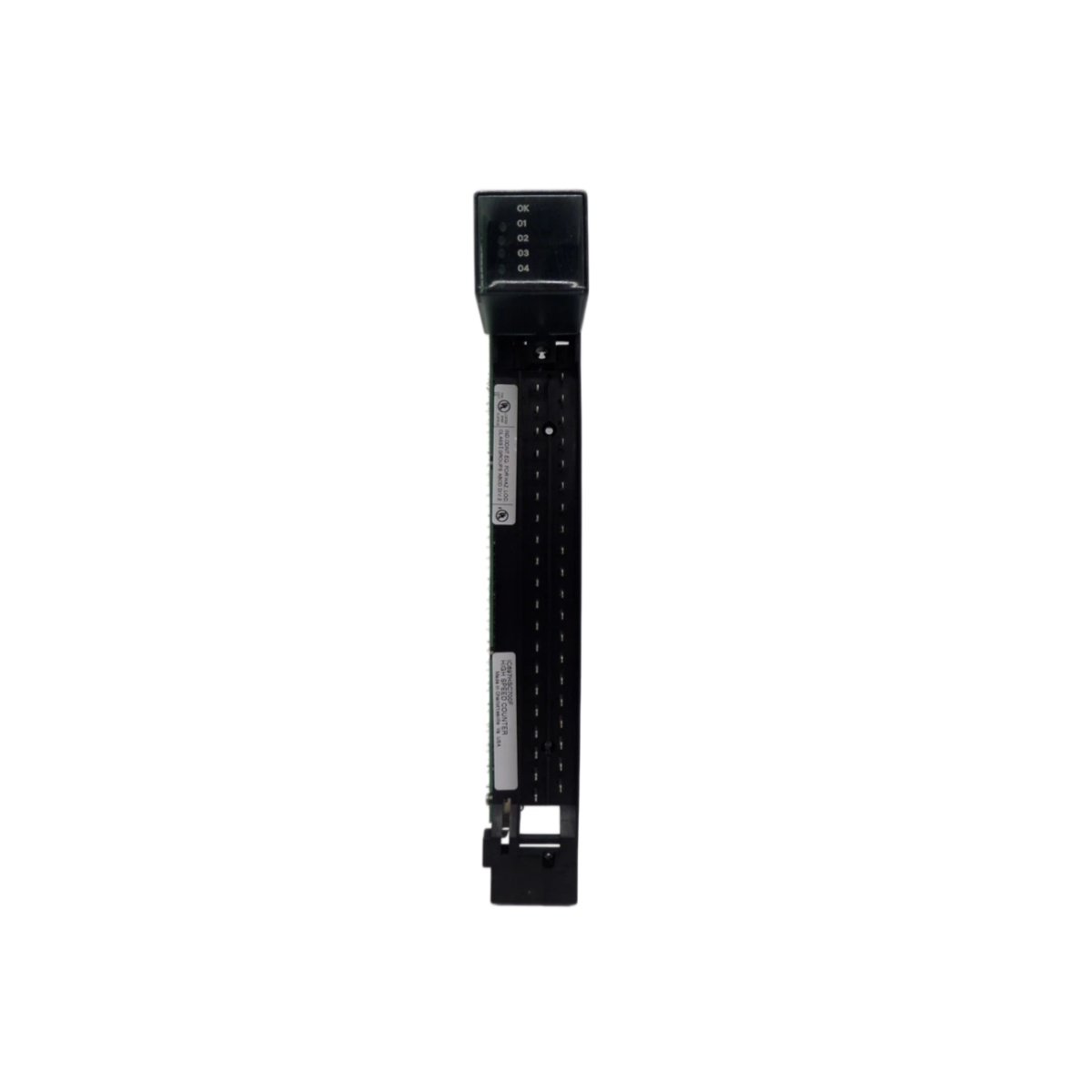

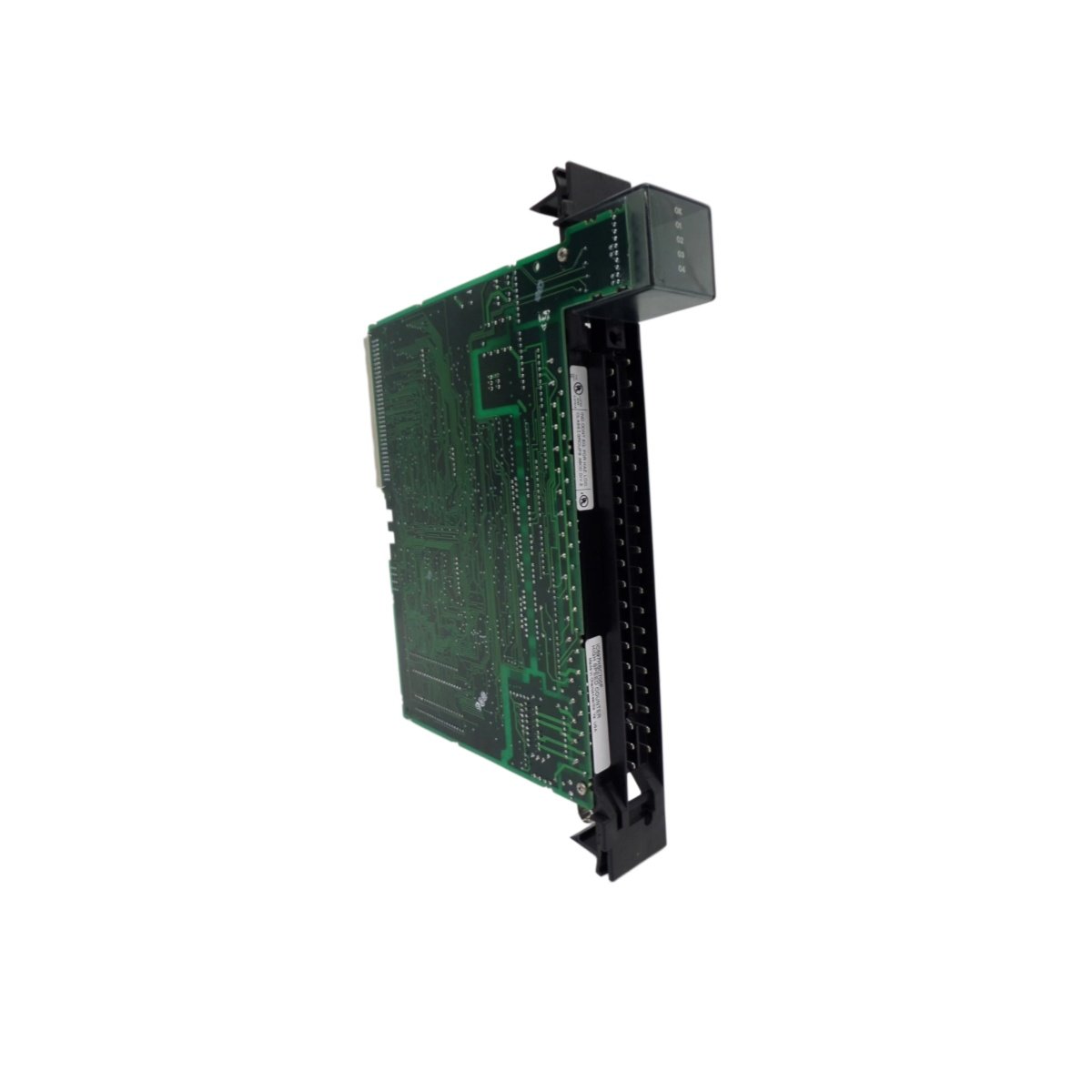

The GE IC697HSC700 captures high-frequency pulse signals for the GE 90-70 PLC system. This counter module measures encoder pulses, flow meter outputs, and frequency signals accurately. High-speed automation applications depend on this unit for precise position and speed monitoring. The module’s dedicated hardware processes counts without burdening the main CPU.
Technical Specifications
This high-speed counter module features four independent 32-bit counter channels. The GE IC697HSC700 supports multiple counting modes for versatile application. Its differential inputs reject common-mode noise for reliable signal acquisition. The module provides isolated outputs for alarm and control actions.
| Parameter | Specification |
|---|---|
| Product Type | High Speed Counter Module |
| Series Compatibility | GE 90-70 PLC Series |
| Number of Counters | 4 independent 32-bit counters |
| Maximum Count Frequency | 500 kHz per channel |
| Input Types | Differential (RS-422) or single-ended |
| Input Voltage | 5 V DC or 24 V DC (selectable) |
| Count Modes | Up/down, quadrature, pulse/direction, frequency |
| Counter Resolution | 32-bit (0 to 4,294,967,295) |
| Gate Inputs | 4 gate inputs (one per channel) |
| Outputs | 4 isolated outputs (24 V DC, 0.5 A each) |
| Output Functions | Pre-set compare, over/under limit alarms |
| Encoder Support | Incremental encoders with A/B/Z signals |
| Input Response Time | < 2 µs |
| Electrical Isolation | 500 V AC between field and backplane |
| Power Supply | 5 V DC from backplane; 24 V DC external for outputs |
| Current Consumption (5V) | Maximum 0.45 A |
| Dimensions (W x H x D) | 25 mm x 130 mm x 110 mm |
| Weight | Approximately 0.35 kg |
| Connector Type | 24-pin terminal block (removable) |
| Energy Storage | None (counter values update in real time) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
Counting Capabilities
The GE IC697HSC700 handles high-speed pulse trains up to 500 kHz per channel. Its quadrature decoder interprets A/B signals for precise position tracking. The module’s count modes accommodate various encoder and sensor types. Each counter operates independently with its own configuration settings.
Input Signal Conditioning
This module accepts both differential and single-ended input signals. The GE IC697HSC700 includes programmable input filters for noise rejection. Its input circuits handle 5 V and 24 V logic levels. The module’s high-speed optocouplers provide reliable isolation without compromising speed.
Output and Control Functions
The GE IC697HSC700 includes four isolated outputs for high-speed control actions. Its pre-set compare function triggers outputs when counts reach specified values. The module also provides over-range and under-range limit alarms. Users configure these functions through the programming software.
Application Scenarios
Machine builders deploy this module for web length measurement and cut-to-length control. It also serves in motor speed monitoring and conveyor tracking. The GE IC697HSC700 provides high-speed counting for demanding automation applications.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 25 × 130 × 110 mm |
