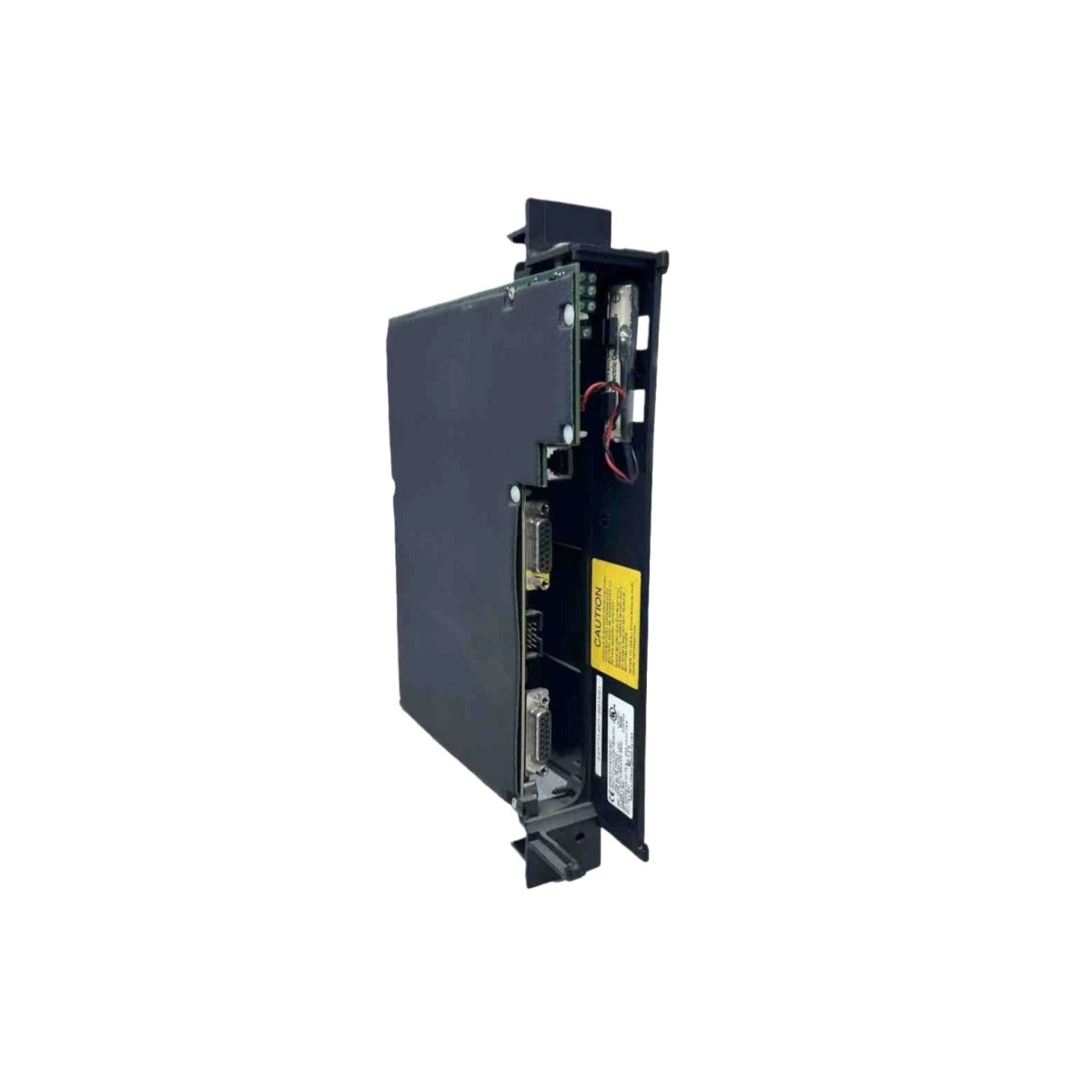

This high-performance CPU module serves as the central processing unit for GE Fanuc 90-70 control systems. The IC697CPX935-FD executes complex logic, motion control, and data processing tasks efficiently. It supports both ladder logic and structured text programming languages for versatile automation. Control engineers select this module for demanding applications like material handling and packaging. Its robust floating-point capabilities handle sophisticated mathematical operations without performance degradation.

Technical Specifications Summary

Processing Performance and Execution Speed

The module integrates a 96 MHz Intel 486-based processor for exceptional processing power. This processor executes 1000 Boolean instructions in only 0.4 milliseconds. The IC697CPX935-FD performs hardware-assisted floating-point calculations for precision math operations. It handles 32-bit IEEE format arithmetic efficiently for process control algorithms. The CPU executes ladder logic, structured text, and C programs seamlessly. Its multitasking architecture manages multiple program blocks simultaneously without scan delays. Consequently, the module suits high-speed machine control and time-sensitive applications effectively.

Memory Architecture and Data Retention

The module offers robust memory resources for user applications and system data. User program memory reaches 256 KB of battery-backed RAM for application storage. Firmware resides in 1 MB of flash memory for easy field upgrades. Data memory provides 128 KB for registers, tables, and system variables. A 3.6 V lithium battery maintains all memory contents during power outages. This battery provides a minimum of 3 years of retention without external power. The IC697CPX935-FD includes a low-battery indicator for timely replacement reminders. Users can upgrade firmware without replacing hardware or losing application code.

Programming Languages and Application Flexibility

The CPU supports multiple programming languages for diverse automation requirements. Ladder logic suits discrete control and relay replacement applications effectively. Structured text handles complex algorithms and data manipulation tasks efficiently. The module also executes C programs for specialized routines and custom functions. Users can mix languages within the same program for optimal implementation. The development environment includes powerful debugging and simulation features. These tools accelerate program development and reduce commissioning times significantly. The IC697CPX935-FD adapts to different engineer preferences and application needs.

Communication Interfaces and Connectivity

The module provides multiple communication ports for system integration. One RS-232 port connects to programming terminals and operator interfaces easily. An RS-485 port supports multidrop networks with multiple devices on one link. An optional Ethernet interface integrates the controller into plant-wide networks. The IC697CPX935-FD supports standard protocols like MODBUS and SNP-X. These protocols ensure compatibility with HMIs, SCADA systems, and third-party devices. Front-panel LEDs indicate communication activity and system status at a glance. This connectivity simplifies integration into both new and existing automation systems.

I/O Capacity and System Scalability

The CPU manages extensive I/O configurations for large-scale automation systems. It supports up to 8192 digital input/output points for discrete control. Analog capacity reaches 4096 channels for process measurement and regulation. The module interfaces with all GE 90-70 I/O modules and remote racks. Users can distribute I/O across multiple expansion chassis as needed. The IC697CPX935-FD maintains deterministic scan performance regardless of I/O count. This scalability accommodates system growth without requiring a controller change. Consequently, it protects the investment for future plant expansions and upgrades.

Physical Design and Environmental Specifications

This single-slot CPU module features a compact footprint for efficient cabinet space. It measures 310 millimeters high, 35 millimeters wide, and 220 millimeters deep. The unit weighs 1.4 kilograms with its sturdy metal housing. Power consumption reaches 12 watts from the +5 V DC backplane supply. Operating temperature spans 0 °C to 60 °C for control room applications. Storage temperatures from -40 °C to 85 °C protect the unit during shipping. Humidity tolerance covers 5% to 95% without condensation issues. The module’s robust design ensures long-term reliability in diverse industrial environments.
