Technical Overview

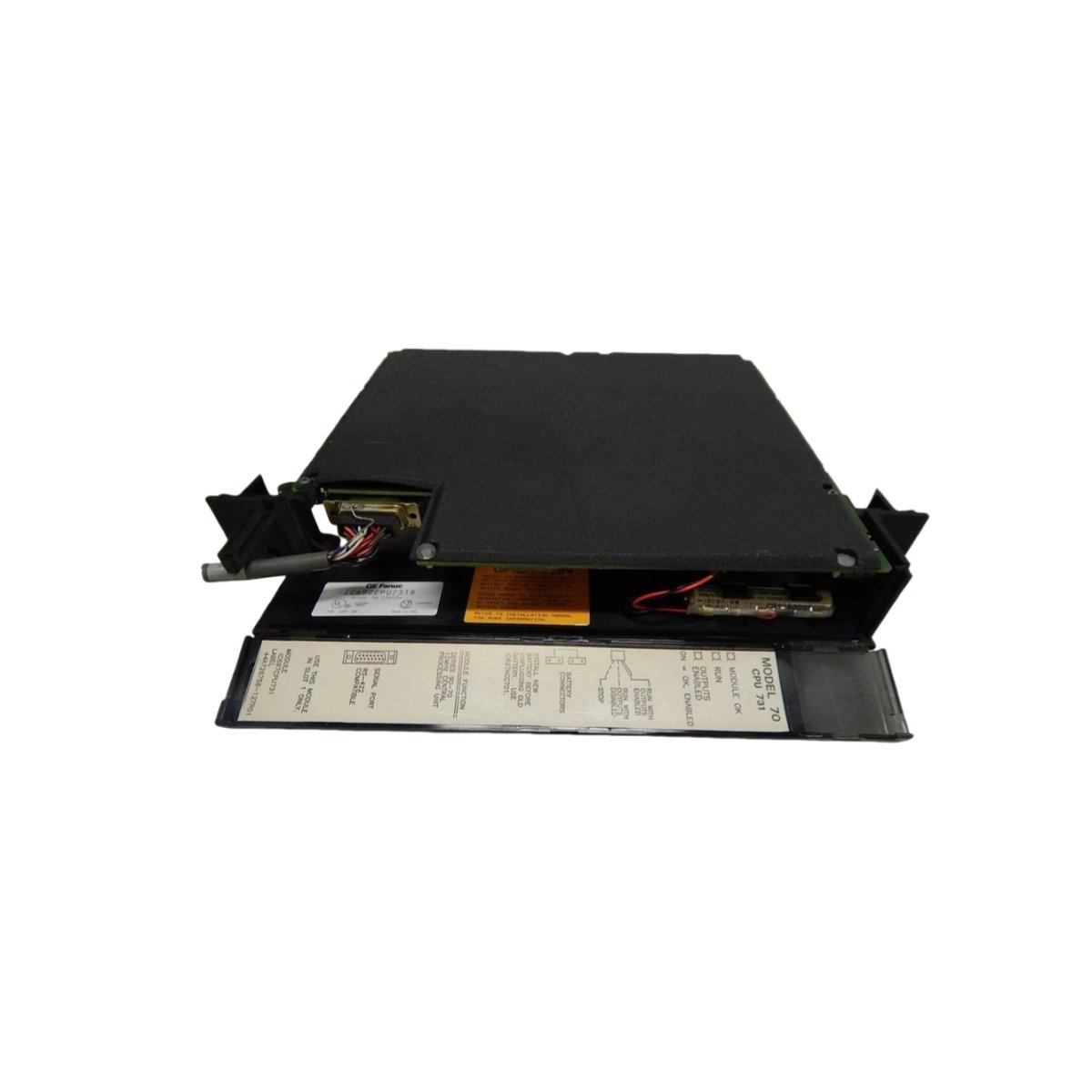

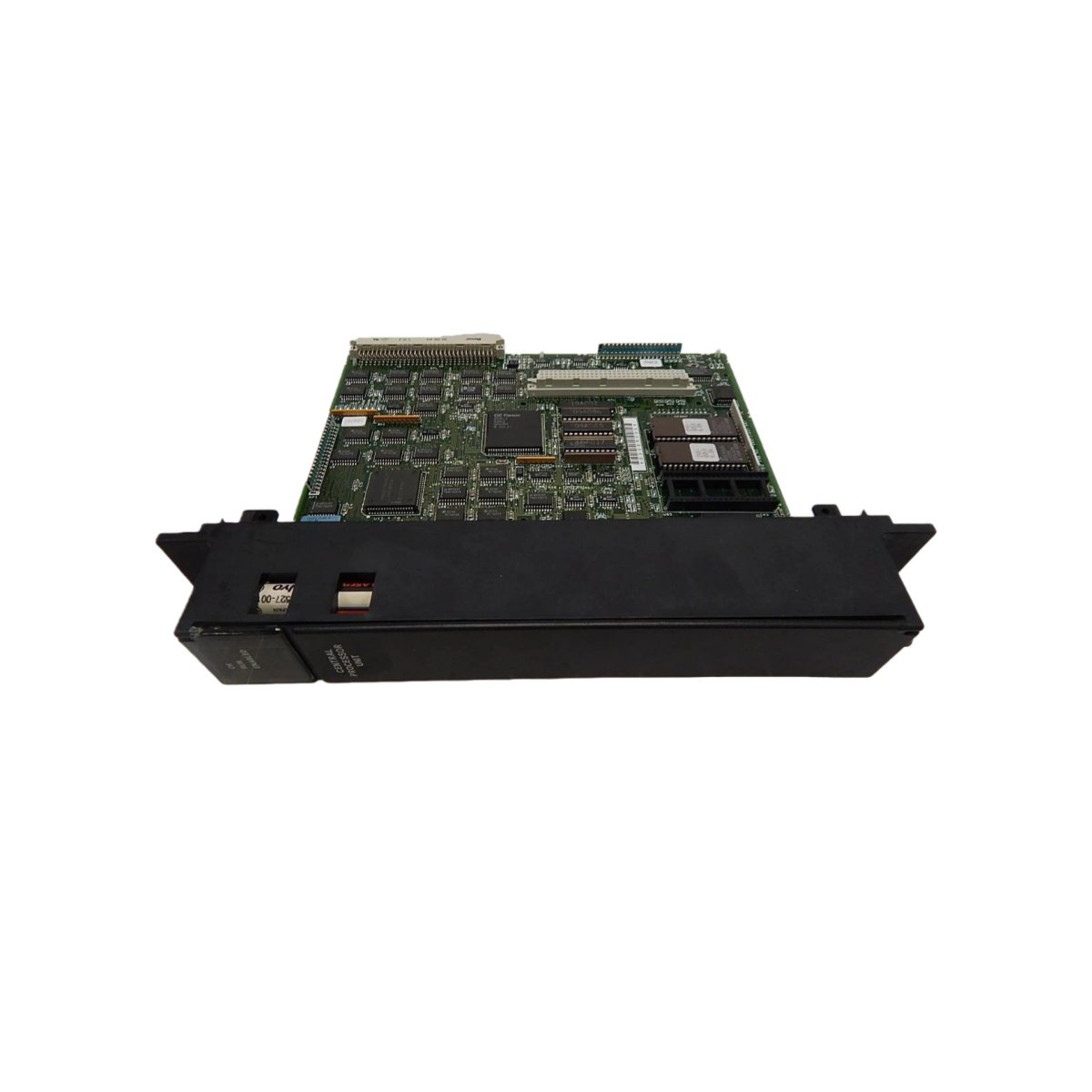

The GE IC697CPU731 is a single-slot central processing unit for the GE Fanuc Series 90-70 programmable logic controller platform. This module executes real-time control logic for machines, processes, and material handling systems. It houses an 80C186 microprocessor running at 12 MHz . The CPU provides 32 KB of battery-backed CMOS memory with a fixed allocation for user programs . A three-position mode switch on the front panel allows operators to control module operation . Three green LEDs indicate the CPU status, simplifying diagnostics . The module also includes a battery-backed calendar clock for time-stamping events and scheduling tasks .
This CPU communicates with I/O and smart option modules over the rack-mounted backplane using the VME C.1 Standard format . It supports up to 512 discrete I/O points in any mix and accommodates up to 8K analog I/O modules . The unit also includes one RS422/485-compatible serial port for programmer attachment, which you can connect to a PC via an appropriate converter .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Model Number | IC697CPU731 |
| Product Type | Central Processing Unit |
| System Compatibility | Series 90-70 |
| Processor Type | 80C186 Microprocessor |
| Processor Speed | 12 MHz |
| User Memory | 32 KB (battery-backed CMOS) |
| Discrete I/O Capacity | 512 points (any mix) |
| Analog I/O Capacity | Up to 8K modules |
| Backplane Current Draw | 1.0 A @ +5V |
| Memory Retention | 6 months nominal without power |
| Time-of-Day Clock Accuracy | ± 3.5 seconds per day |
| Serial Port | 1x RS422/485-compatible |
| Battery | Lithium IC697ACC701 |
| Dimensions (L x W x H) | 18.0 x 5.0 x 10.5 cm |
| Weight | 0.48 – 0.6 kg |
| Slot Width | Single-slot |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| Country of Origin | USA |
Key Features
Real-Time Control Processing – The GE IC697CPU731 executes Boolean functions with a speed of 0.4 microseconds per function, ensuring responsive control for demanding applications .
Battery-Backed Memory – The lithium battery retains user programs, configuration data, and calendar clock settings for up to six months without applied power .
Software Configuration – The CPU eliminates the need for DIP switches or jumpers; configuration occurs entirely through MS-DOS or Windows-based programming software, simplifying setup .
Flexible I/O Support – This CPU accommodates both IC697 discrete and analog I/O modules, as well as IC660/IC661 I/O products, providing versatility for various system designs .
Diagnostic and Alarm Functions – The module performs automatic configuration verification at power-up and uses its alarm function to report deviations between actual and programmed configurations .
Applications
The GE IC697CPU731 suits manufacturing automation, process control, and material handling systems. It delivers reliable performance for machine control, conveyor systems, and general-purpose industrial control applications within the Series 90-70 platform.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
