Core Technical Specifications

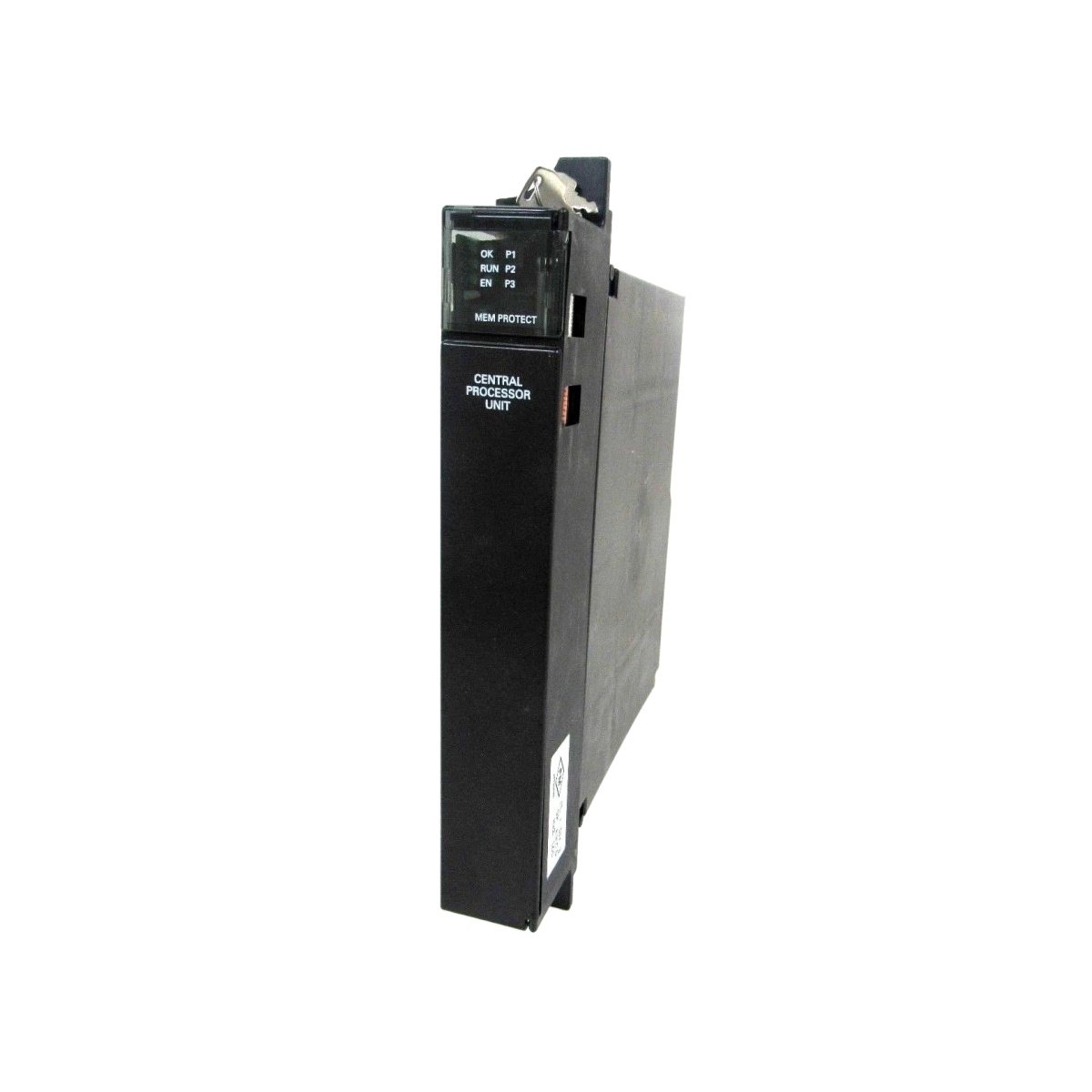

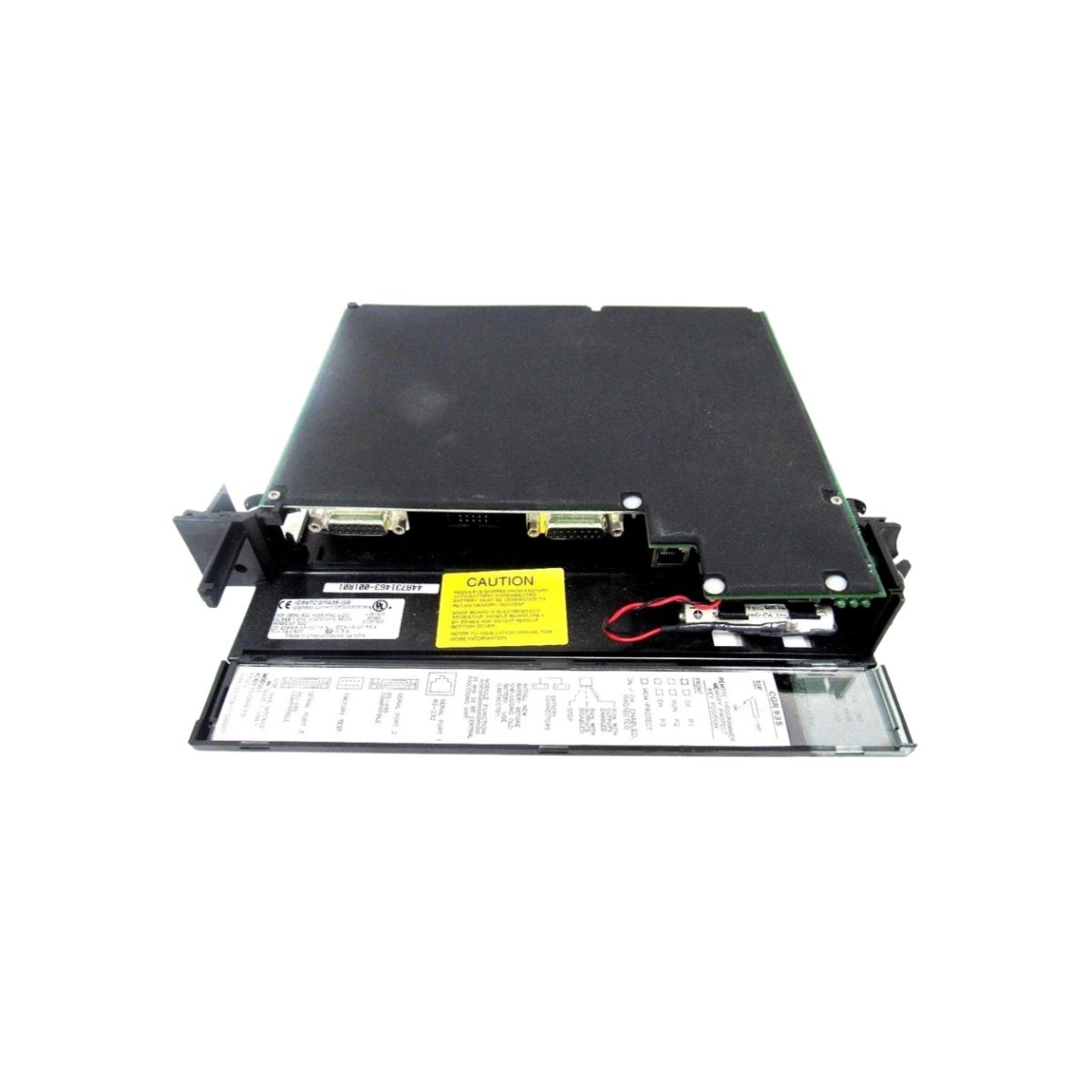

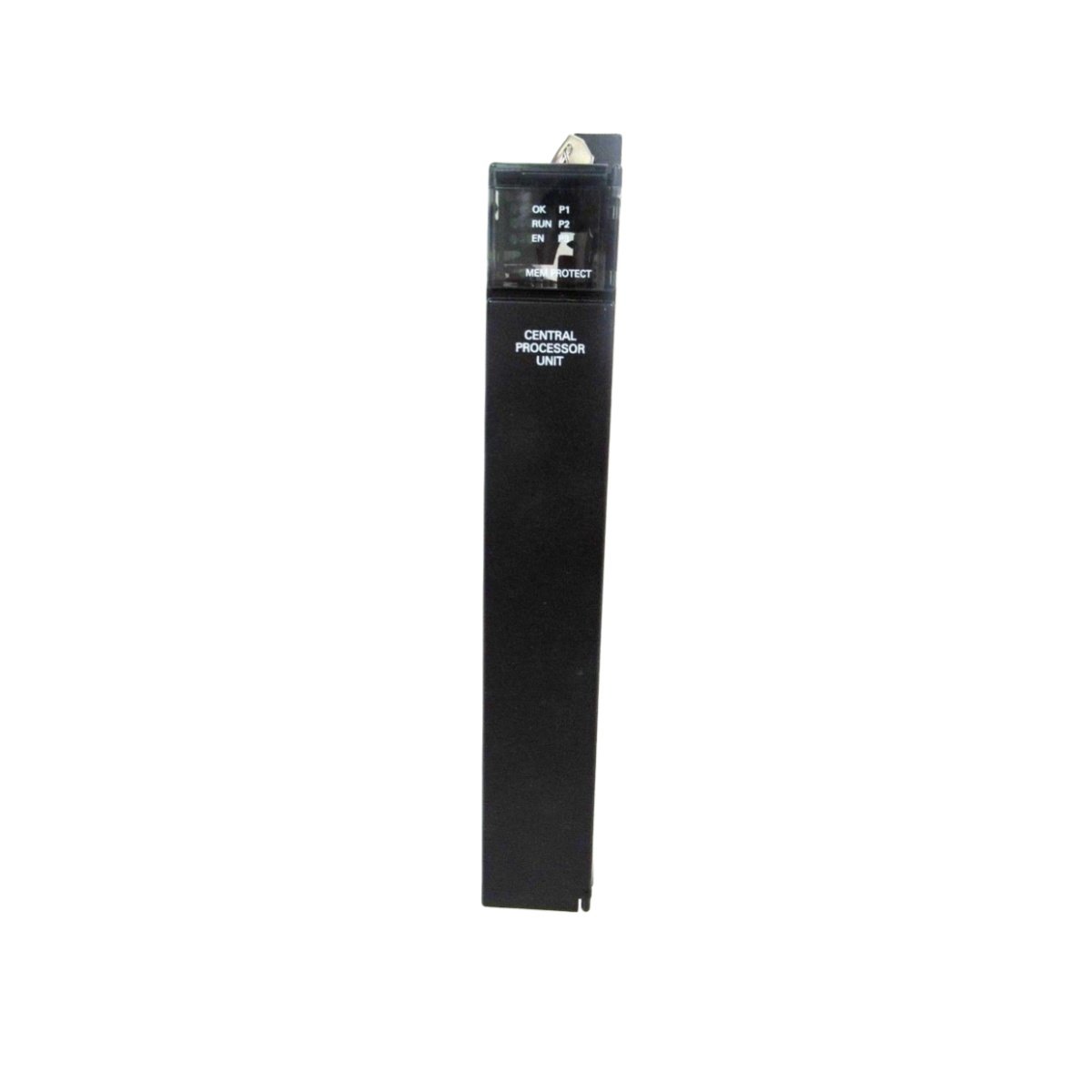

This central processor unit delivers powerful computing for demanding automation applications. We engineered the IC697CGR935-GB to execute complex control logic with exceptional speed and reliability.
| Parameter | Specification |
|---|---|
| Product Type | Central Processor Unit Module |
| Dimensions | 220 mm x 160 mm x 30 mm (L x W x H) |
| Weight | 0.55 kg |
| Supply Voltage | 5 V DC (from backplane) |
| Power Consumption | 8 W typical |
| Processor | 32-bit RISC microcontroller |
| User Memory | 512 KB battery-backed RAM |
| Program Storage | 1 MB Flash EPROM |
| Processing Speed | 0.2 ms per 1K Boolean instructions |
| Data Registers | 4,096 internal words |
| Timers/Counters | 1,024 each, 32-bit resolution |
| Built-In I/O | 16 digital inputs (24 V DC), 8 digital outputs (24 V DC, 0.5 A) |
| Communication Ports | 2 x RS-232 (programming and HMI), 1 x RS-485 (Modbus) |
| Backup Battery | 3.6 V lithium battery, retains RAM for 6 months |
| Floating-Point Math | Hardware-supported for advanced process control |
| Operating Temp. | 0 °C to 60 °C |
| Mounting | Rack-mounted via backplane connector |
| Certifications | CE, UL, and CSA approved |
Exceptional Processing Power
The IC697CGR935-GB features a 32-bit RISC microcontroller that executes Boolean logic in just 0.2 ms per 1K instructions. This speed ensures rapid scan cycles for time-critical control applications. The hardware floating-point unit supports advanced process control algorithms seamlessly. Consequently, this CPU module handles everything from discrete logic to complex analog processing with equal efficiency.
Extensive Memory Resources
This processor unit provides 512 KB of battery-backed RAM for user programs and process data. The 1 MB Flash EPROM stores the operating system and firmware permanently. The lithium battery retains all RAM contents for up to six months during power loss. Furthermore, the module includes 4,096 internal data registers and 1,024 timers and counters for sophisticated control strategies.
Integrated I/O and Communication
The IC697CGR935-GB features 16 digital inputs and 8 digital outputs directly on the module. These onboard points handle monitoring and control tasks without requiring additional I/O modules. The processor also offers three communication ports for versatile connectivity. Two RS-232 ports connect to programming terminals and HMI panels, while the RS-485 port supports Modbus networking.
Robust Data Retention and Protection
This CPU module incorporates a replaceable 3.6 V lithium battery for long-term data retention. The battery provides a low-voltage warning LED for proactive replacement scheduling. The module also features write-protect functionality to prevent accidental program modifications. This robust data protection ensures reliable operation and reduces the risk of costly system downtime.
Durable Construction for Industrial Environments
The IC697CGR935-GB operates reliably across a 0 °C to 60 °C temperature range for versatile deployment. Its compact 220 x 160 mm form factor and 0.55 kg weight simplify rack mounting. The rugged construction resists vibration, humidity, and electrical noise common in factory settings. This durability ensures consistent performance and long service life in your automation system.
