Product Overview

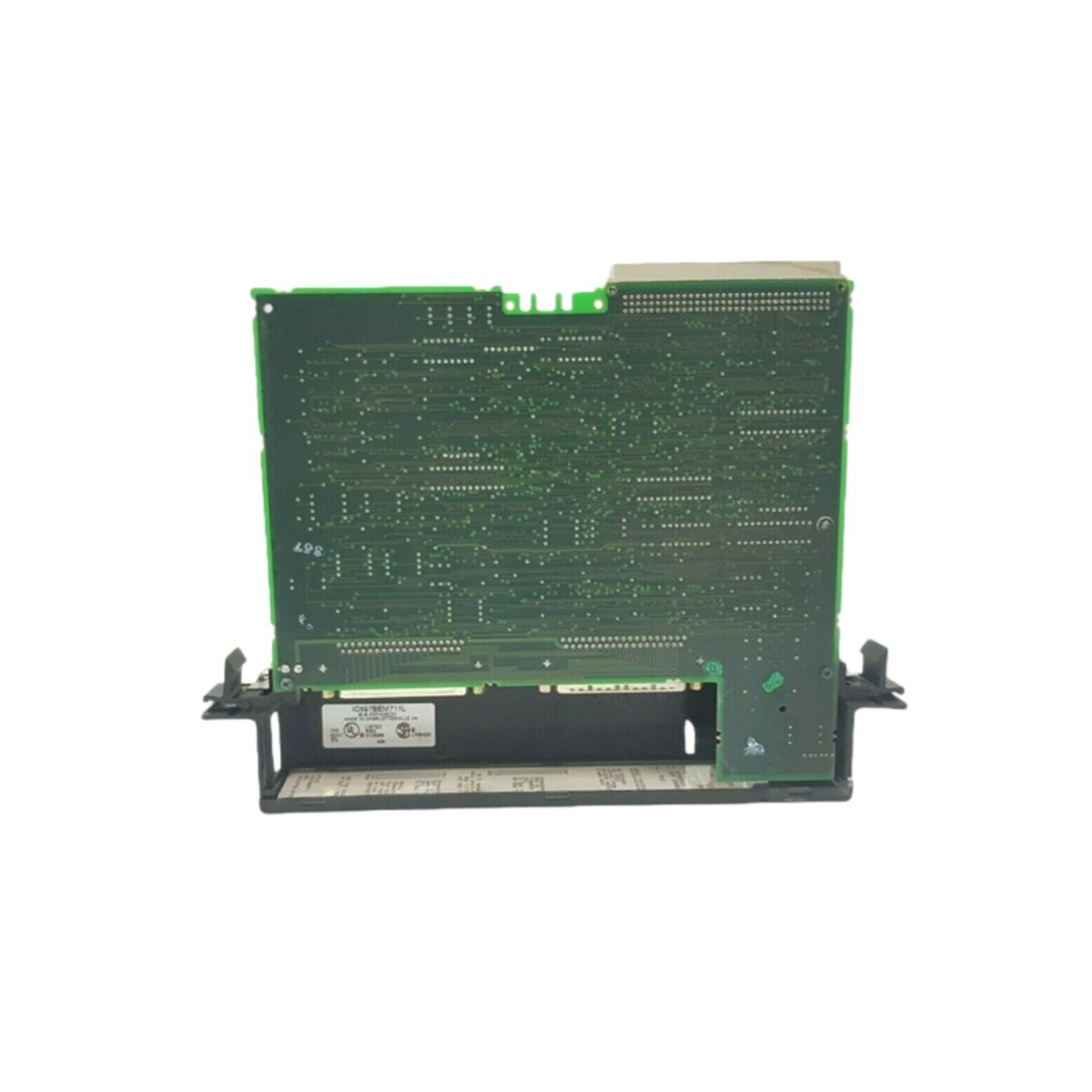

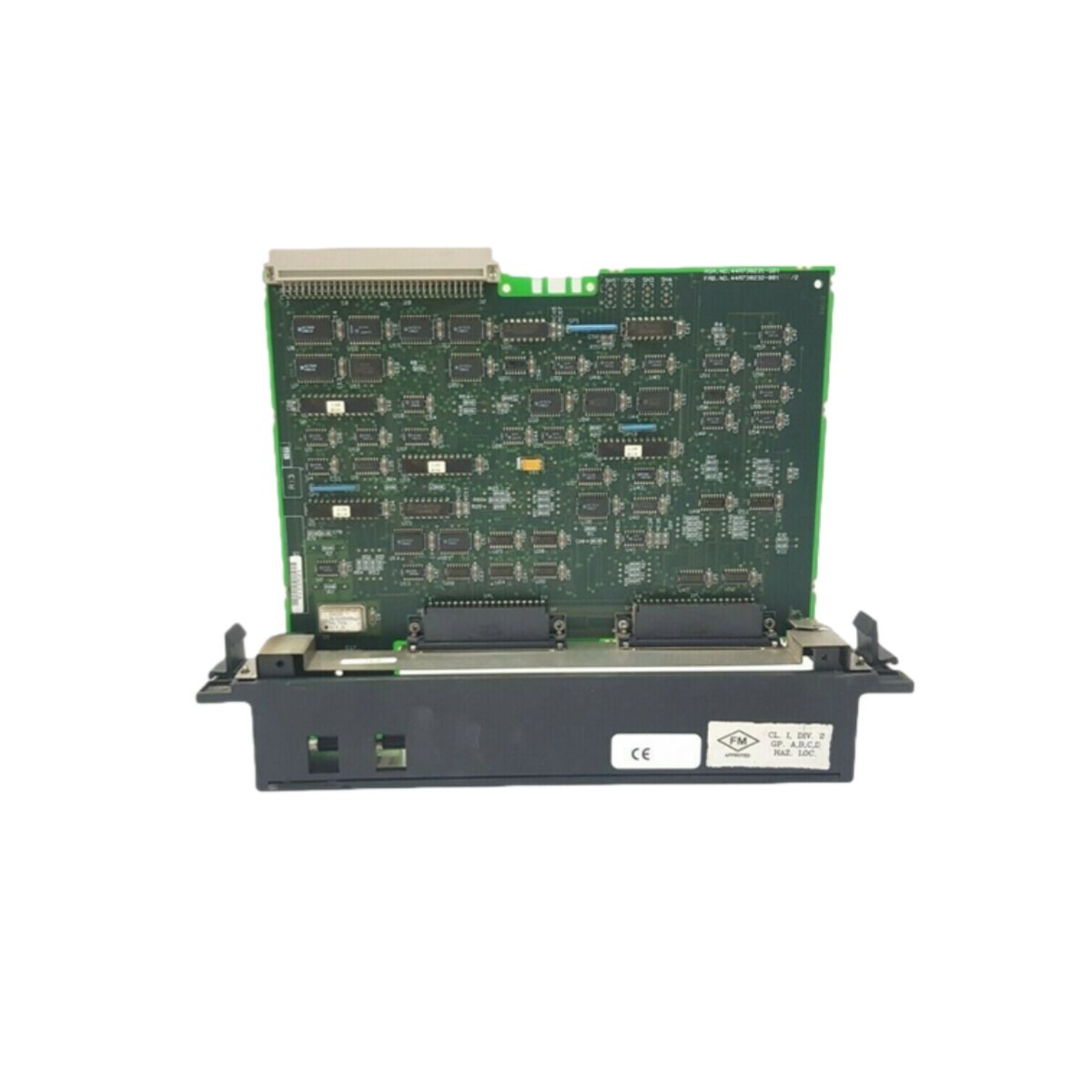

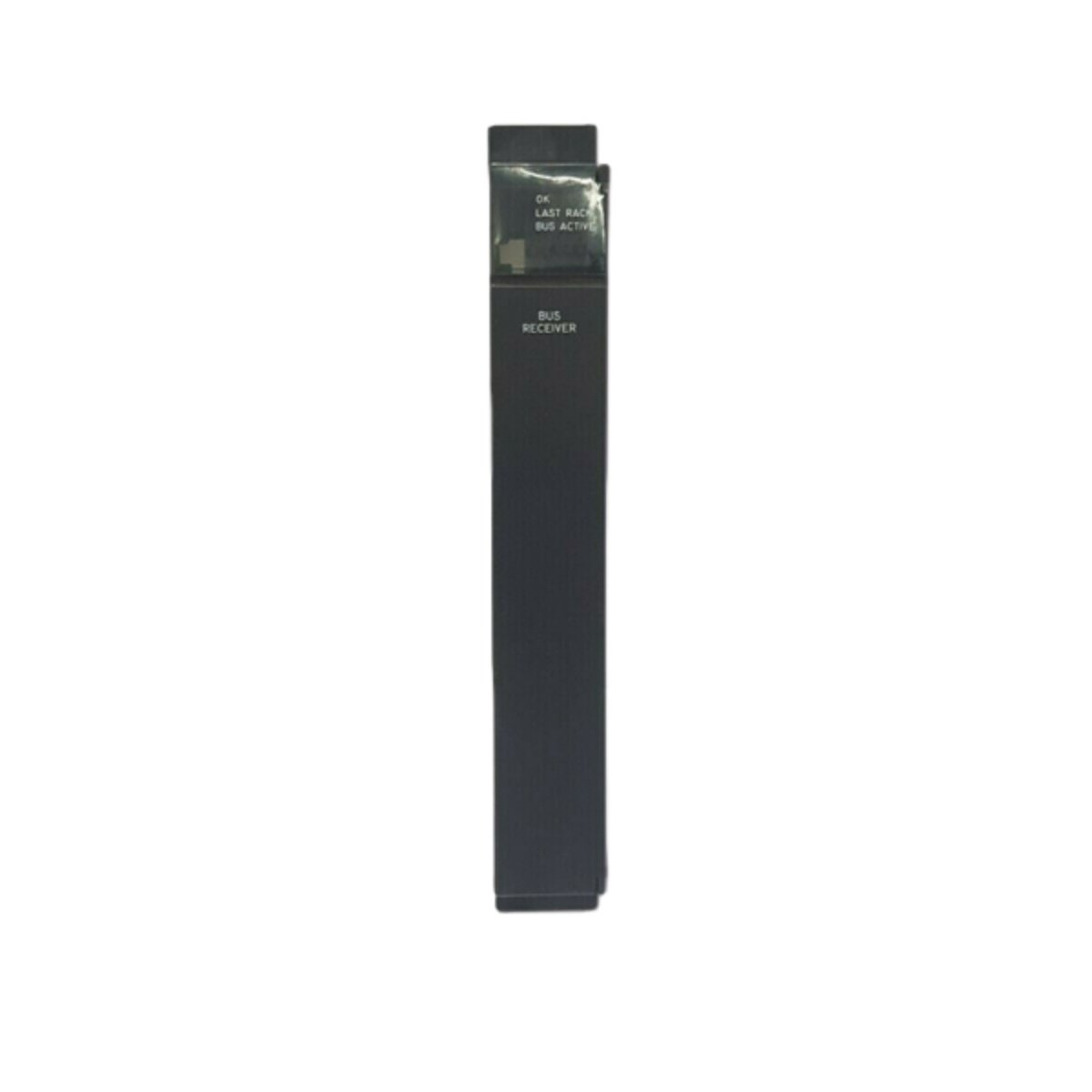

The GE IC697BEM711 bus receiver module extends the I/O capacity of Series 90-70 PLC systems through remote drops. This module receives data from the main controller over the Genius bus. It interfaces directly with the Series 90-70 backplane. The unit ensures reliable communication for distributed I/O configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC697BEM711 |
| Product Type | Bus Receiver Module |
| Brand | GE Fanuc |
| Category | PLC Bus Interface Modules |
| Compatibility | Series 90-70 |
| Network Type | Genius Bus |
| Communication Rate | 153.6 kbps (selectable) |
| Remote Drop Support | Yes |
| Backplane Current Draw | 5V DC, 350 mA |
| Weight | Approximately 0.30 kg |
| Dimensions | Standard Series 90-70 module |
| Operating Temperature | 0°C to 60°C |
| Protection Class | IP20 |
Key Features and Benefits
Reliable Remote I/O Connectivity
The IC697BEM711 establishes a dependable link between the main controller and remote drops. This extends I/O coverage across large facilities. As a result, system designers gain flexibility in equipment placement.
Efficient Data Exchange
This bus receiver module handles high-speed data transfer over the Genius bus. It maintains data integrity for critical control signals. Consequently, the system responds promptly to field events.
Easy Integration
The module plugs directly into Series 90-70 racks for straightforward installation. Configuration requires minimal engineering effort. Users can expand I/O capacity without significant system redesign.
Application and Use Cases
The GE IC697BEM711 serves distributed I/O applications in large-scale manufacturing and processing plants. It also supports remote monitoring of geographically spread equipment. Maintenance teams will find this module essential for expanding I/O systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
