Input Architecture and Signal Conversion

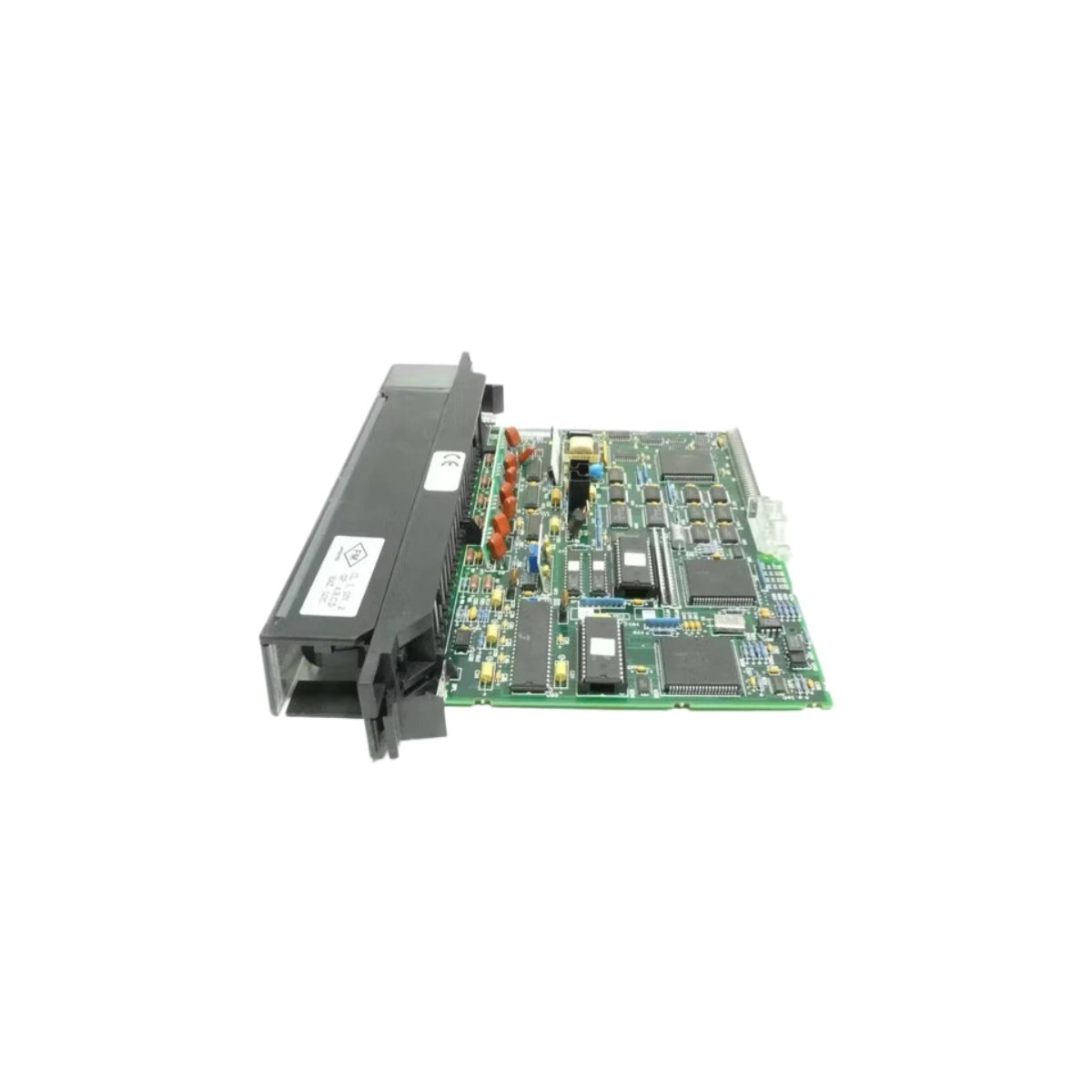

This analog input module provides high-resolution measurement for up to 16 single-ended channels. It accepts 0–10 VDC and 4–20 mA signals directly from field transmitters. The module features a 16-bit analog-to-digital converter for precise data acquisition. Each channel includes programmable scaling for engineering unit conversion. Consequently, this unit suits GE Series 90-70 PLC systems requiring accurate analog processing.

Technical Specifications

Signal Acquisition and Conversion Accuracy

The IC697ALG230 captures analog signals with 16-bit resolution for fine process detail. Its built-in ADC converts each channel sequentially with 50 ms update time. The module automatically performs zero and gain calibration for each channel. This calibration compensates for temperature drift over the operating range. Consequently, the module delivers stable readings in changing environmental conditions.

Input Configuration and Scaling Options

Each input channel accepts either 0–10 VDC or 4–20 mA signals without hardware changes. Software configuration tools allow users to set input types individually. The module supports engineering unit scaling for direct process value readings. Users can also configure alarm limits for each input channel. This flexibility simplifies integration with various field sensors.

Field Wiring and Termination Details

A 40-pin ribbon cable connects the module to the field termination assembly. Each single-ended input requires a signal wire and a common return connection. All 16 channels share a single common return terminal. Use shielded twisted-pair cables to minimize noise pickup. Connect cable shields to the designated ground terminal for best results.

Power Architecture and Energy Consumption

The module draws 300 mA from the 5 VDC system backplane supply. Internal capacitors filter the power supply for stable ADC performance. Total power dissipation reaches 6.0 W under full input load. This moderate consumption suits standard cabinet installations. Provide adequate spacing for proper heat dissipation.

Installation and Mounting Procedure

Insert the module into any available Series 90-70 I/O slot. Press firmly until the backplane connector engages properly. Secure the module using the retaining screws provided. Connect the field wiring harness after module installation. Verify the power LED illuminates after system energization.

Environmental Tolerance and Durability

This module operates reliably in 0°C to 60°C ambient conditions. It withstands non-condensing humidity from 5% to 95%. The PCB includes conformal coating for contaminant protection. This construction ensures long service life in industrial settings. The module meets all relevant GE quality standards.

Diagnostics and Troubleshooting

The module’s status LED indicates power and communication health. The system software provides diagnostic data for each input channel. Replace the module if readings become inaccurate. Perform calibration verification using a precision signal source.
