High-Speed Industrial Network Connectivity

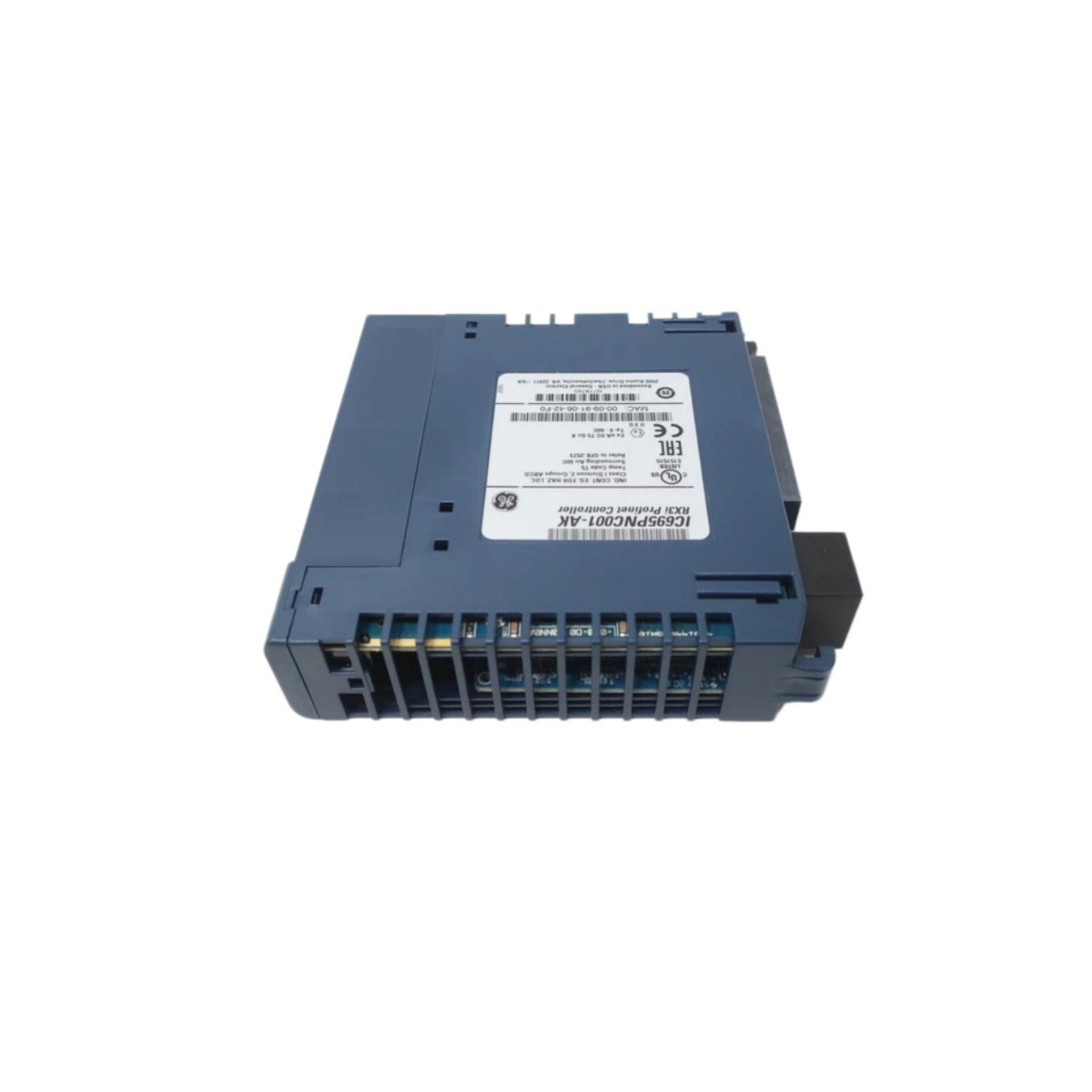

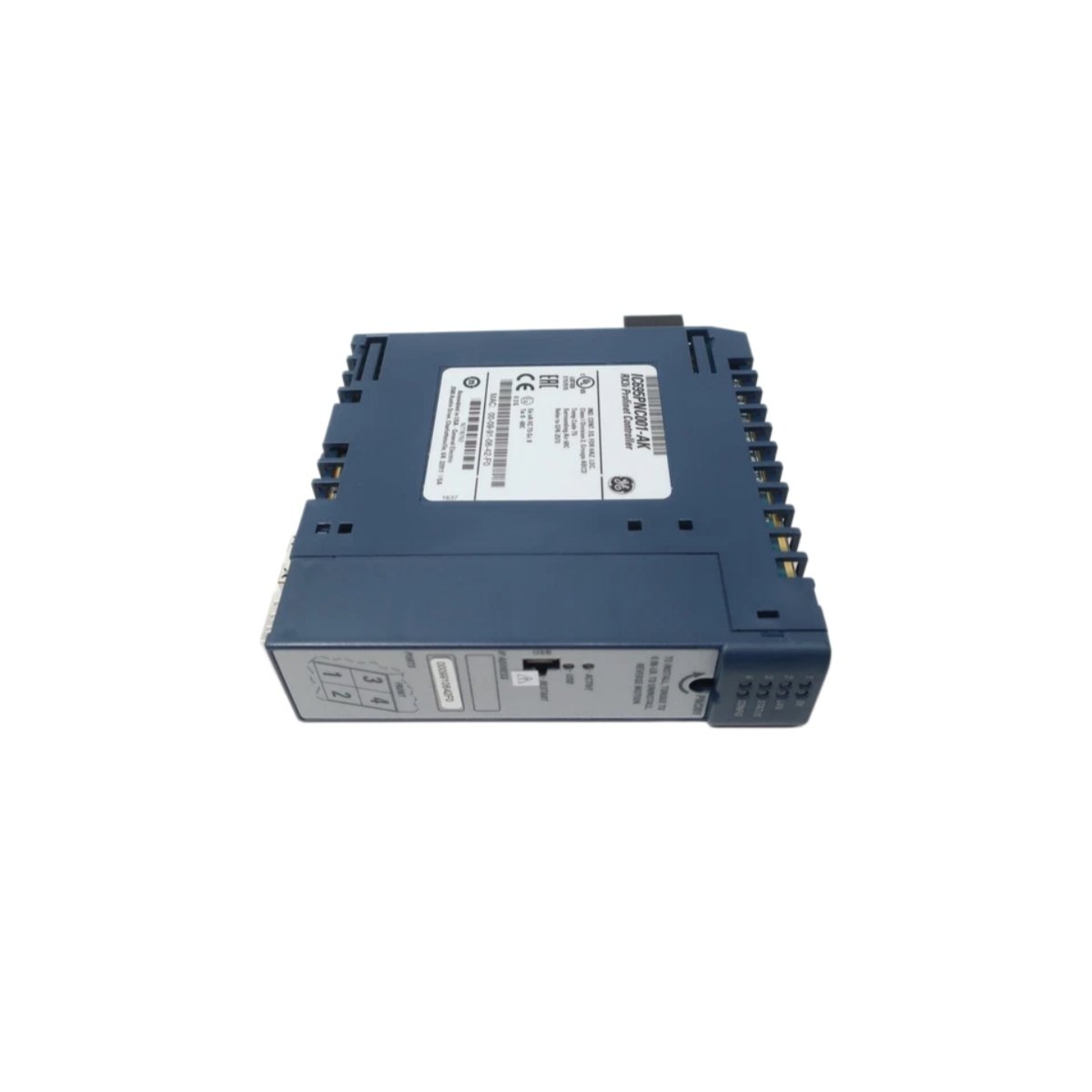

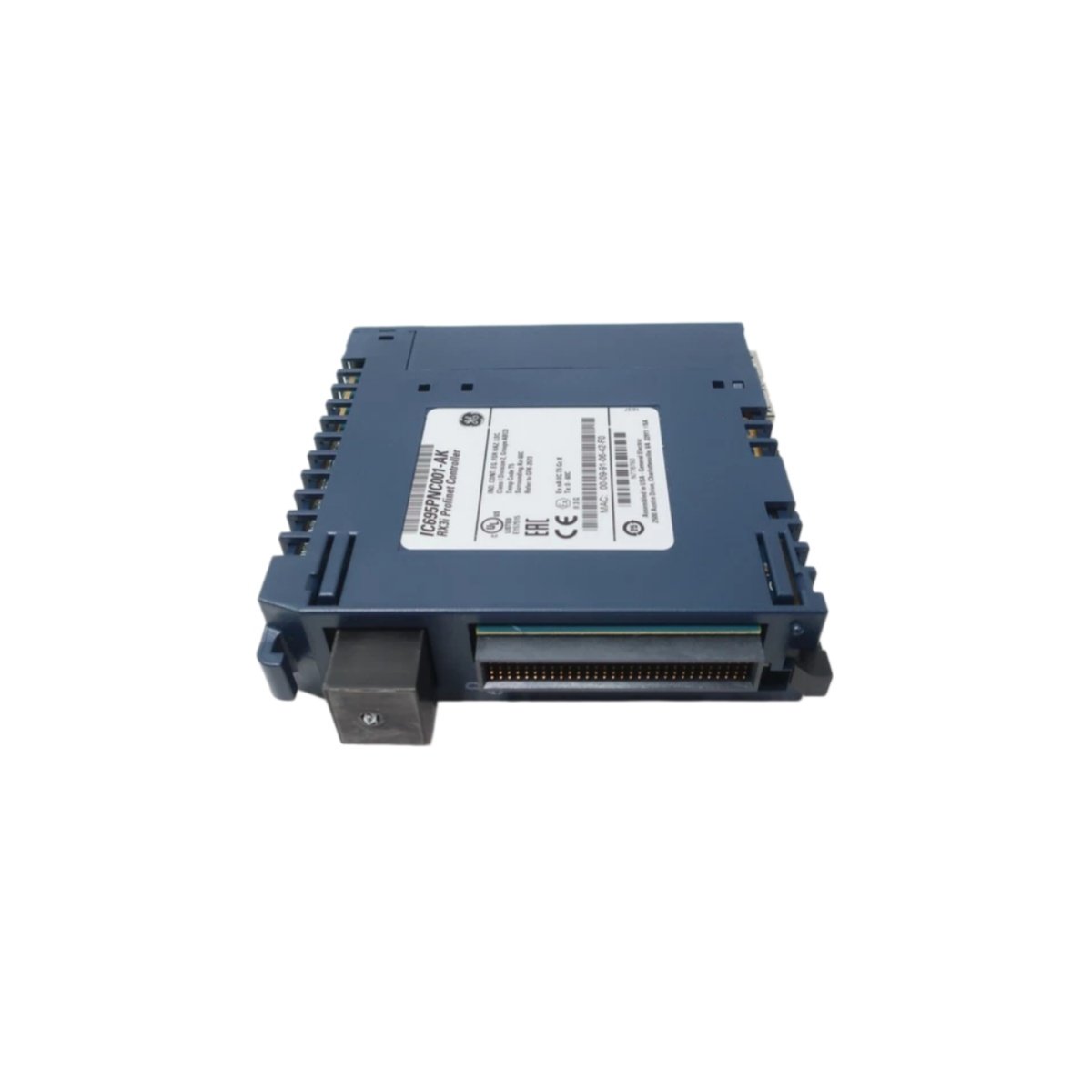

The GE IC695PNC001 serves as a PROFINET controller for the PACSystems RX3i platform. This module enables high-speed communication between the RX3i controller and PROFINET I/O devices . It supports up to 128 PROFINET devices with a total of 2048 bytes of input and 2048 bytes of output data . Furthermore, the IC695PNC001 provides seamless integration with third-party devices from Siemens, Phoenix Contact, and other vendors . The module supports both RT (Real-Time) and IRT (Isochronous Real-Time) communication classes for deterministic control .
Integrated Switch and Network Topologies
The module features a built-in two-port switch that supports line, star, and ring network topologies . This integrated switch eliminates the need for external switches in many applications, reducing hardware costs . The IC695PNC001 supports a data rate of 100 Mbps full-duplex for fast data exchange . It uses standard RJ45 connectors with auto-crossover and auto-negotiation for simple wiring . The module also supports PROFINET device replacement without a programming tool .
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC695PNC001 |
| Manufacturer | GE Fanuc / Emerson |
| Product Type | PROFINET Controller Module |
| Supported Devices | Up to 128 PROFINET I/O devices |
| I/O Data Capacity | 2048 bytes input / 2048 bytes output |
| Communication Classes | RT and IRT |
| Data Rate | 100 Mbps full-duplex |
| Integrated Switch | 2-port (RJ45) |
| Network Topologies | Line, star, ring |
| Cable Type | Standard Ethernet (Cat5e or better) |
| PROFINET Conformance | Class B |
| Backplane Current | 1.2 A @ 5 VDC |
| Power Dissipation | 6 W typical |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95%, non-condensing |
| LED Indicators | PWR, OK, RUN, I/O, ENET, LINK |
| Dimensions | 125.5 x 33 x 103 mm |
| Weight | 0.25 kg |
| Certifications | CE, UL, cUL, RoHS |
| Country of Origin | USA |
System Integration and Diagnostics
The IC695PNC001 integrates directly into the RX3i backplane and supports hot-swapping . The module provides extensive diagnostics through the PROFINET alarm system, simplifying troubleshooting . It supports device naming via DCP (Discovery and Configuration Protocol) for easy network setup . This module also works with the PACSystems Machine Edition programming software for configuration . Consequently, the IC695PNC001 delivers reliable industrial Ethernet networking for automotive, material handling, water/wastewater, and packaging automation systems .
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 125.5 × 33 × 103 mm |
