I/O modules

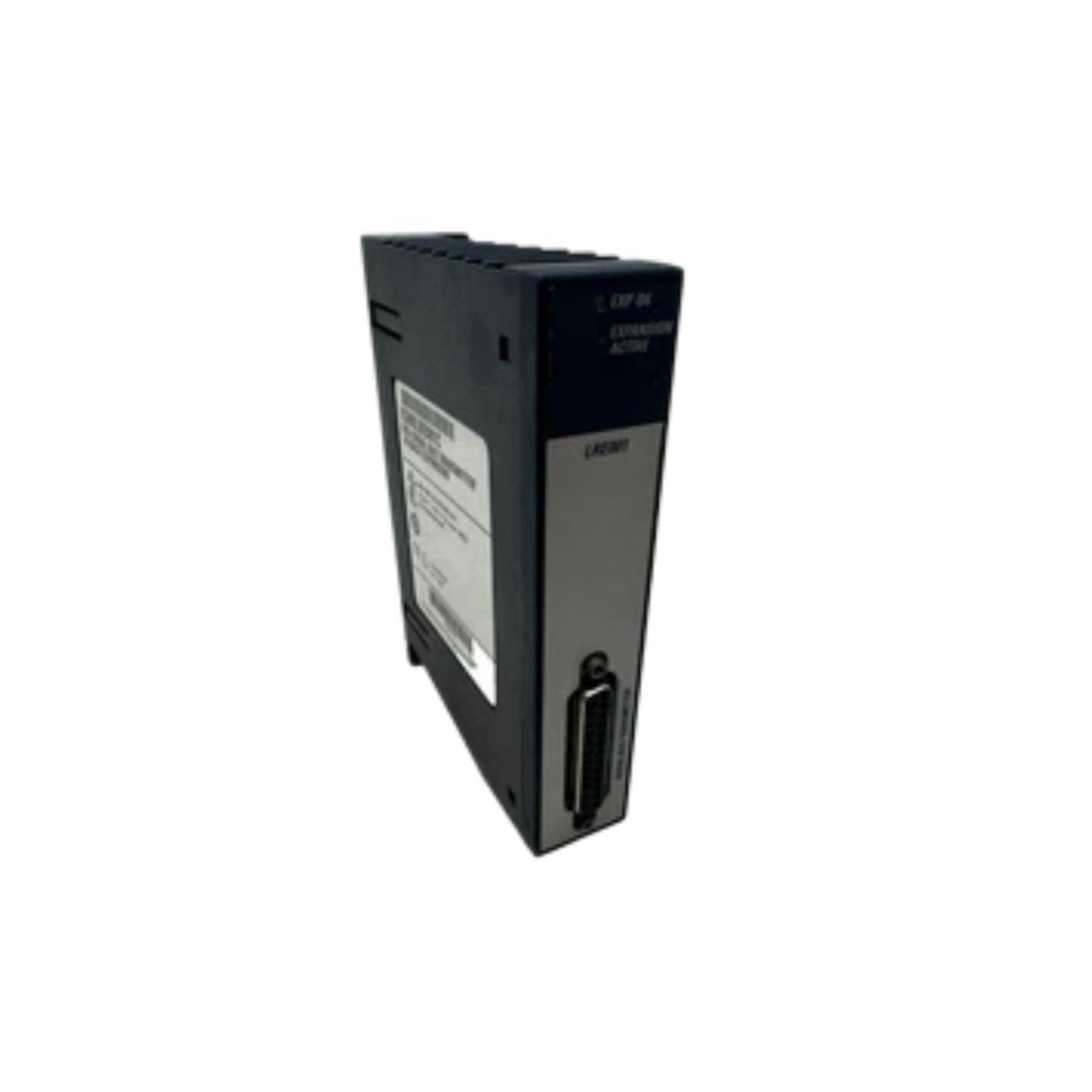

The IC695LRE001C extends I/O capacity inside GE Fanuc’s RX3i automation platform as a serial bus transmitter module. This unit measures roughly 4.9 inches tall, 1.7 inches wide, and 5.5 inches deep. Moreover, it weighs about 0.6 pounds, which suits standard rack installation. Engineers deploy the IC695LRE001C when they need remote rack expansion over a dependable serial link.

Technical Specifications and Interface Details

The module transmits high-speed serial data between the main rack and remote I/O racks. Specifically, it supports cable runs that extend well beyond a single cabinet. Additionally, front connectors accept twisted-pair wiring for the expansion bus. Status LEDs reveal link activity and fault conditions during service.

Energy Storage and Link Stability

Internal capacitors on the IC695LRE001C provide local energy storage for stable bus signaling. Consequently, the module tolerates brief voltage dips without dropping remote data frames. This buffering keeps expansion traffic intact during transient plant disturbances. The design therefore supports consistent throughput across extended cable runs.

Installation and Compatibility Notes

Because the IC695LRE001C fits directly into RX3i racks, technicians complete installation quickly. They should verify cable termination before they power the expansion link. Furthermore, the module integrates smoothly with existing RX3i control hardware. Always store spare units in anti-static packaging to protect sensitive circuitry.
