Core Processing Engine for PACSystems RX3i

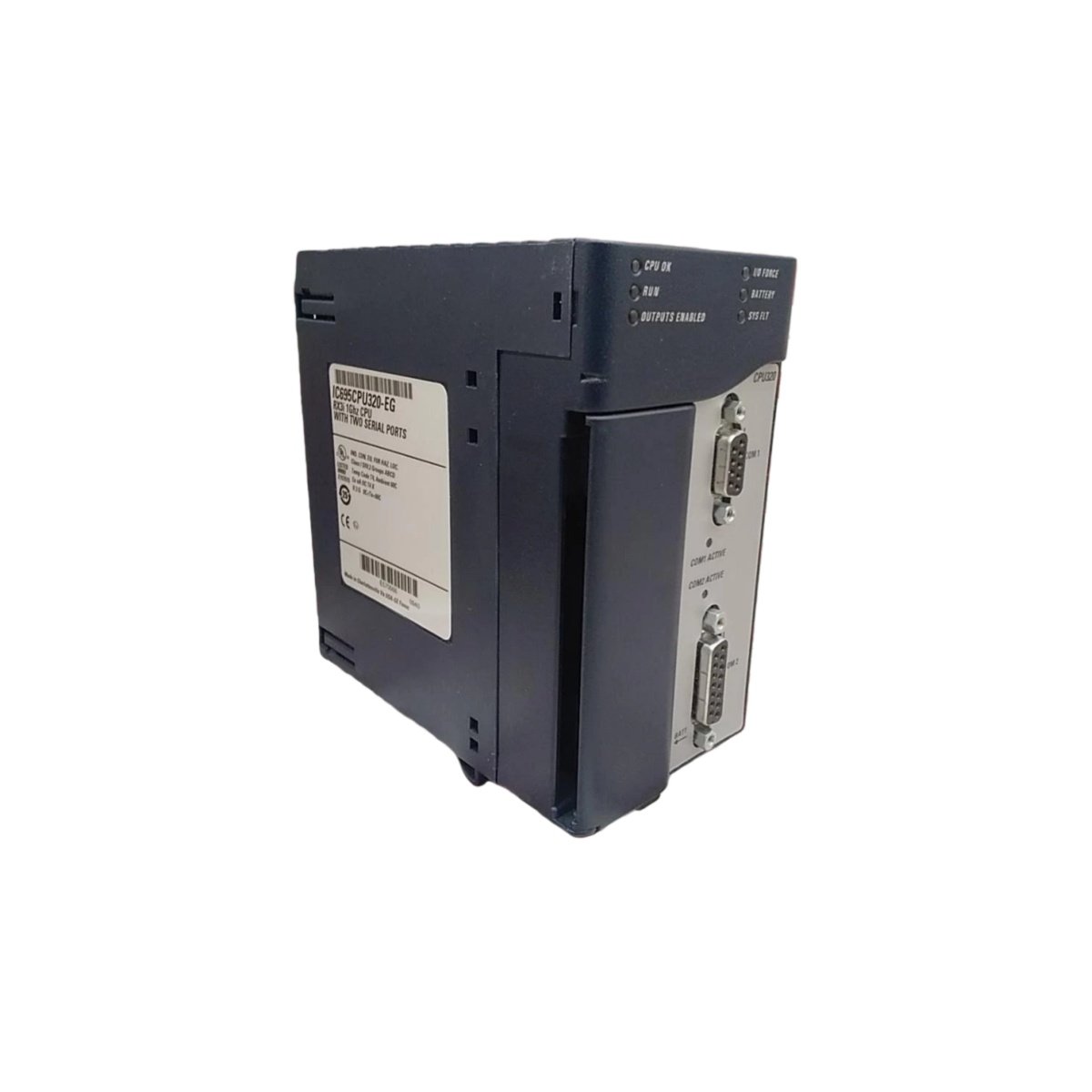

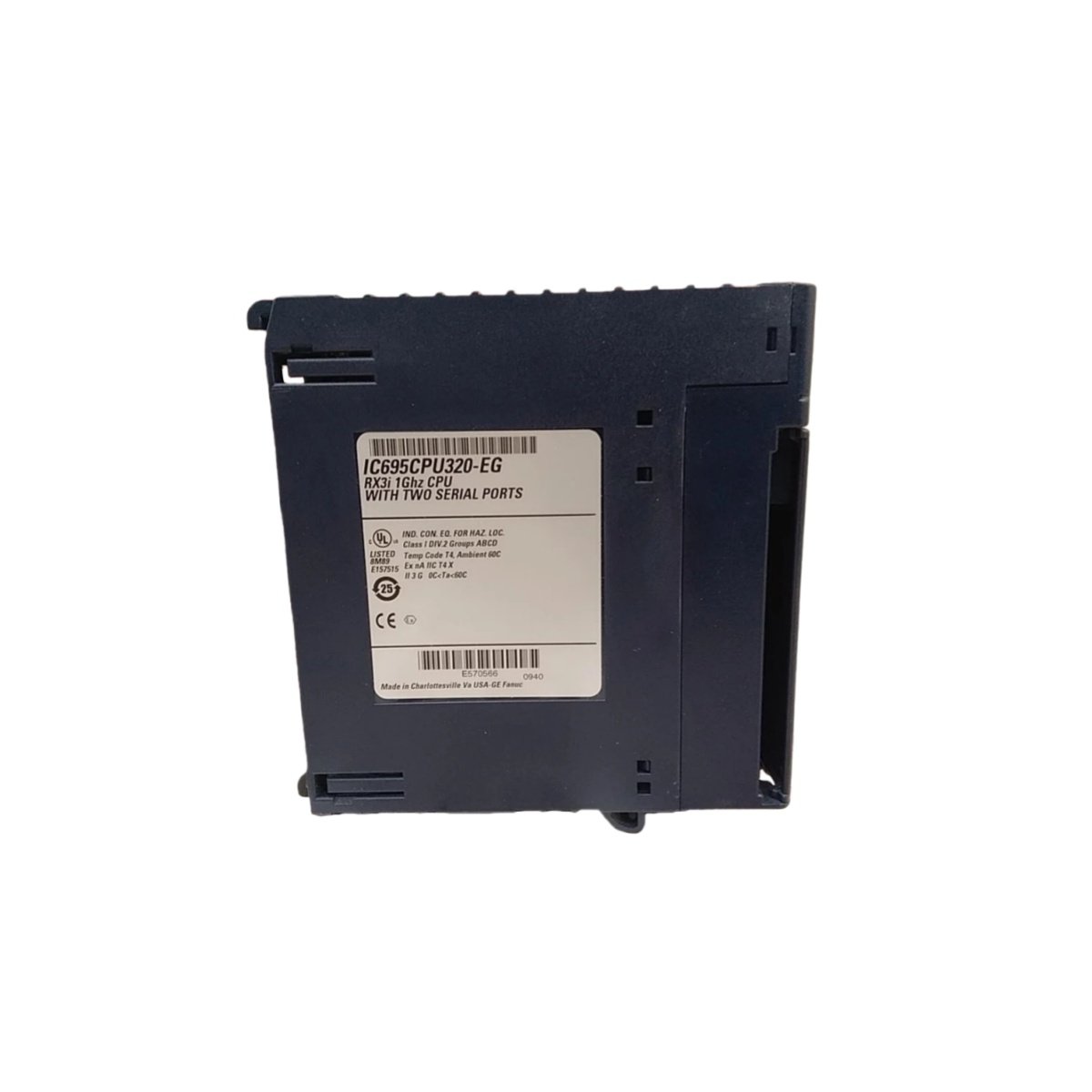

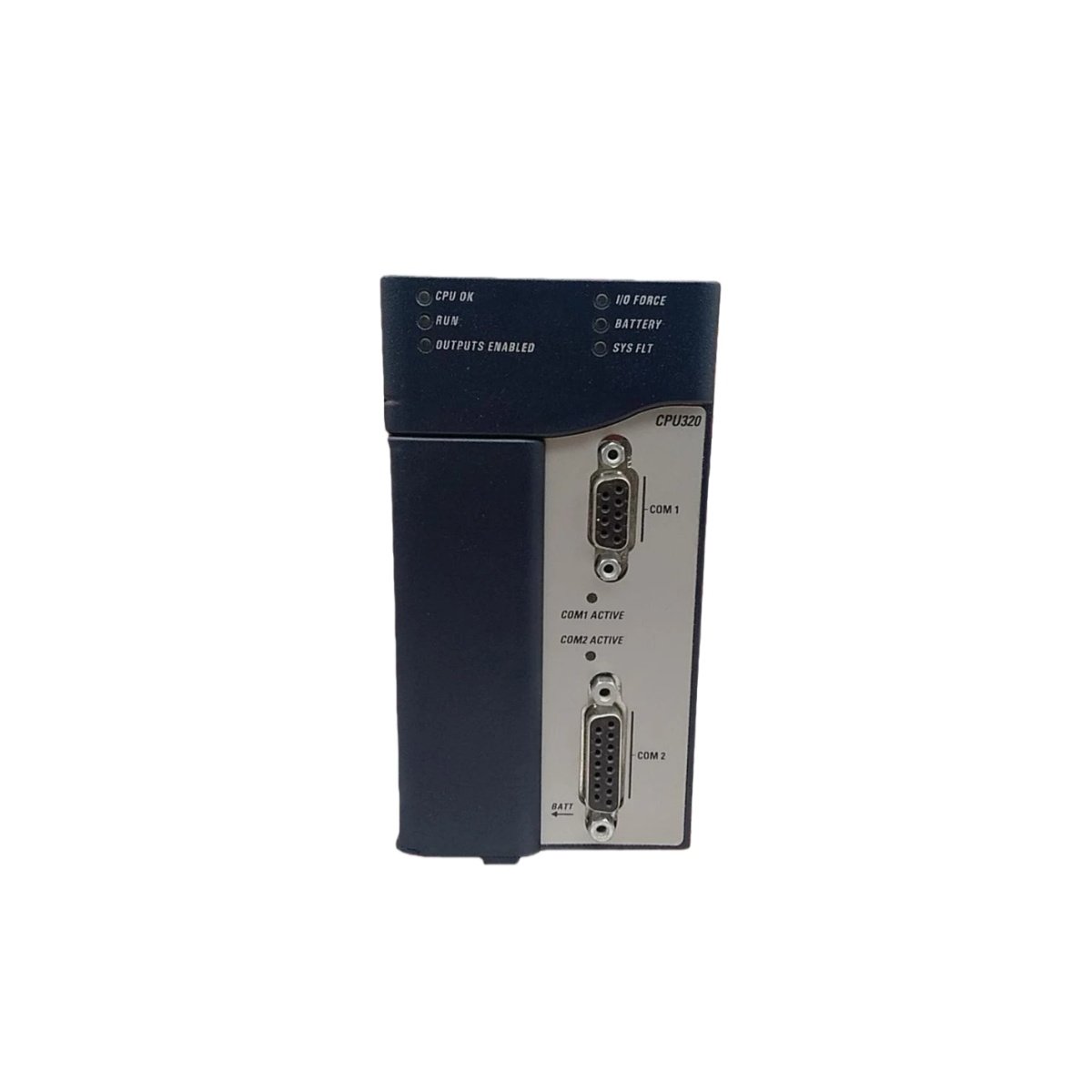

The GE IC695CPU320 is a central processing unit for the PACSystems RX3i programmable automation controller platform. This CPU executes the user’s control logic, processes I/O data, and manages system communications. It supports a maximum user logic memory of 20 MB and provides 20 MB of data memory for variable storage [citation:9]. Consequently, it serves as the computational backbone for demanding industrial automation applications.

Designed for High Performance and Communication

This CPU module supports a wide range of I/O modules and communication protocols through the RX3i backplane. It features a built-in Ethernet port and serial port for connectivity to programming devices and external systems. The IC695CPU320 stores user programs in non-volatile memory using flash technology, protecting data from power loss. Furthermore, its modular design integrates seamlessly with the PACSystems RX3i chassis for scalable control solutions.

Technical Specifications and Integration

Engineers designed this CPU for reliable operation within the RX3i environmental specifications. Its processing power, combined with ample memory, makes it suitable for complex automation tasks.

Application in Industrial Control

System integrators use this CPU to execute control strategies for manufacturing, process, and material handling systems. It can manage complex logic, high-speed I/O, and data exchange with other automation devices. The GE IC695CPU320 is a core component for building reliable and high-performance control systems.
