Product Overview

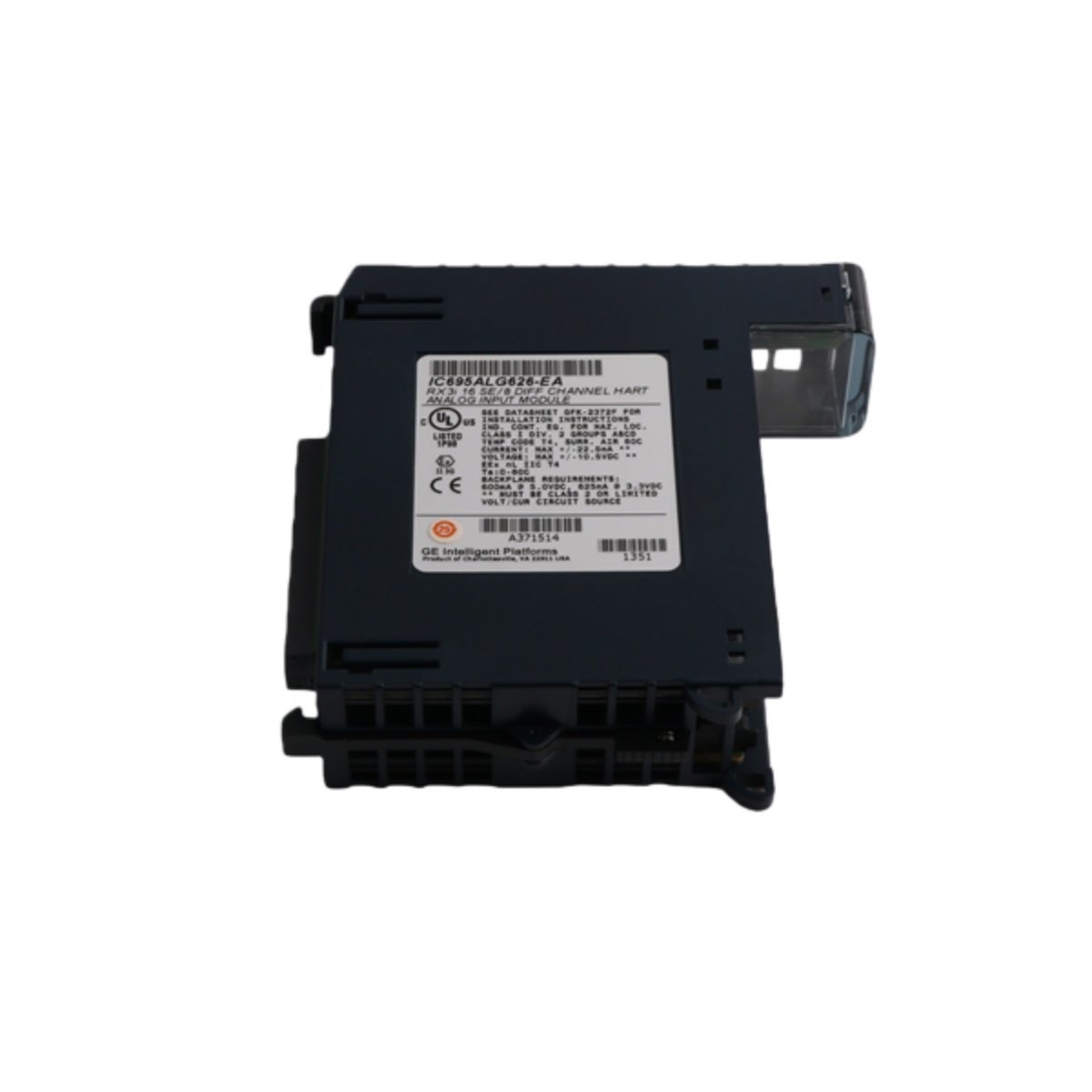

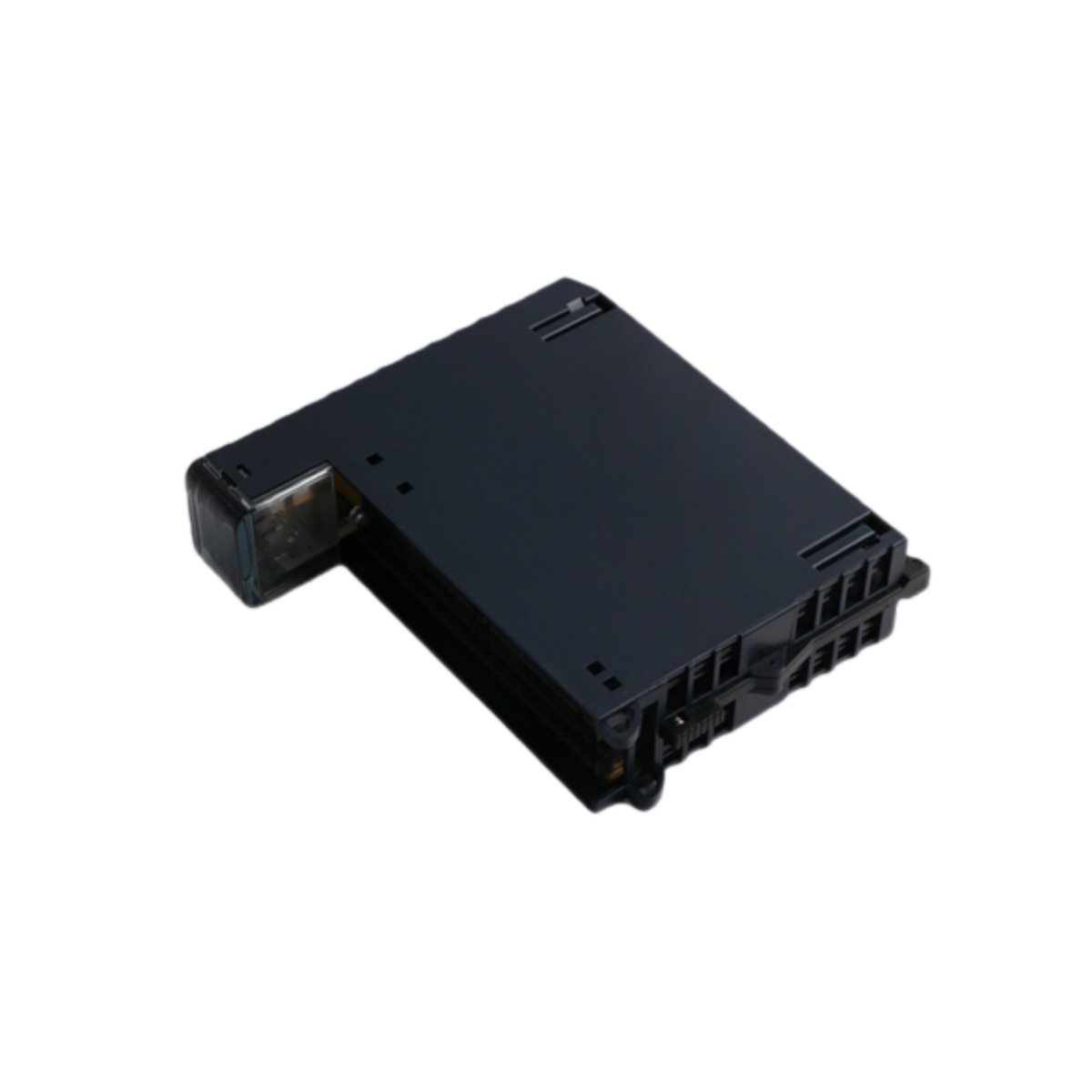

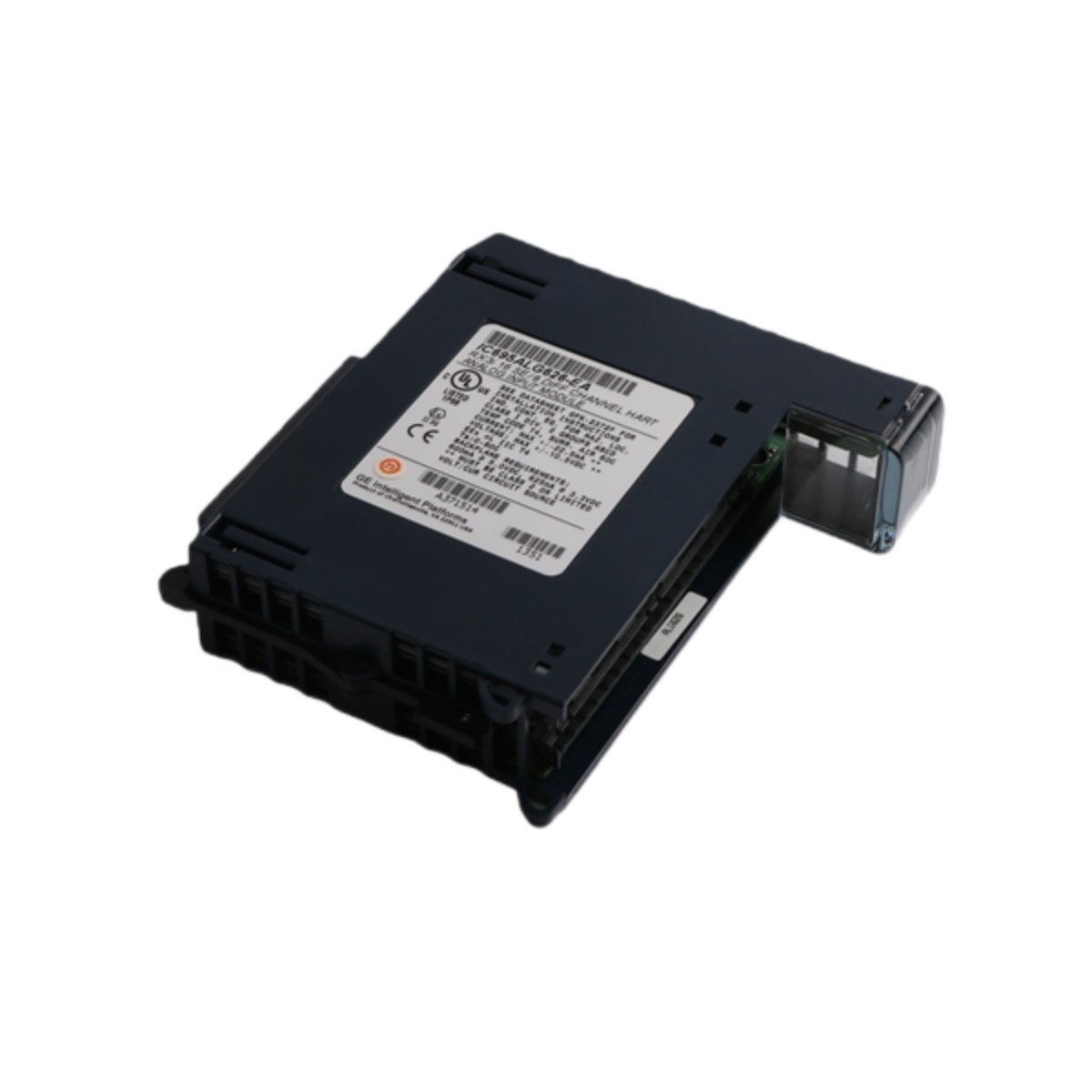

The GE IC695ALG626 analog input module captures voltage and current signals from field transmitters in PACSystems RX3i control systems. This module handles up to 8 differential analog inputs for precise process monitoring. It interfaces directly with the RX3i backplane. The unit provides high-resolution data acquisition for critical control applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC695ALG626 |
| Product Type | Analog Voltage/Current Input Module |
| Brand | GE Fanuc |
| Category | PLC Analog Input Modules |
| Number of Inputs | 8 differential channels |
| Input Voltage Range | ±10V, 0-5V, 1-5V |
| Input Current Range | 0-20mA, 4-20mA |
| Resolution | 16-bit |
| Conversion Time | 5 ms per channel (max) |
| Backplane Current Draw | 5V DC, 300 mA |
| Isolation | 1500V AC (field-to-backplane) |
| Weight | Approximately 0.25 kg |
| Dimensions | Standard RX3i module |
| Operating Temperature | 0°C to 60°C |
| Protection Class | IP20 |
Key Features and Benefits
Versatile Signal Support
The IC695ALG626 accepts both voltage and current inputs without configuration jumpers. Users can mix signal types across channels. This flexibility simplifies inventory and reduces spare parts requirements.
High-Precision Measurement
This module offers 16-bit resolution for accurate process variable representation. It ensures reliable monitoring of critical parameters. This precision improves overall system control quality.
Fast Conversion Performance
The module completes conversion within 5 ms per channel for responsive data updates. This speed supports time-critical control loops. Operators benefit from timely process information.
Application and Use Cases
The GE IC695ALG626 serves temperature, pressure, flow, and level monitoring applications. It also supports force and displacement measurement in industrial processes. Maintenance engineers will find this module a dependable replacement for failed analog input units.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
