Product Overview

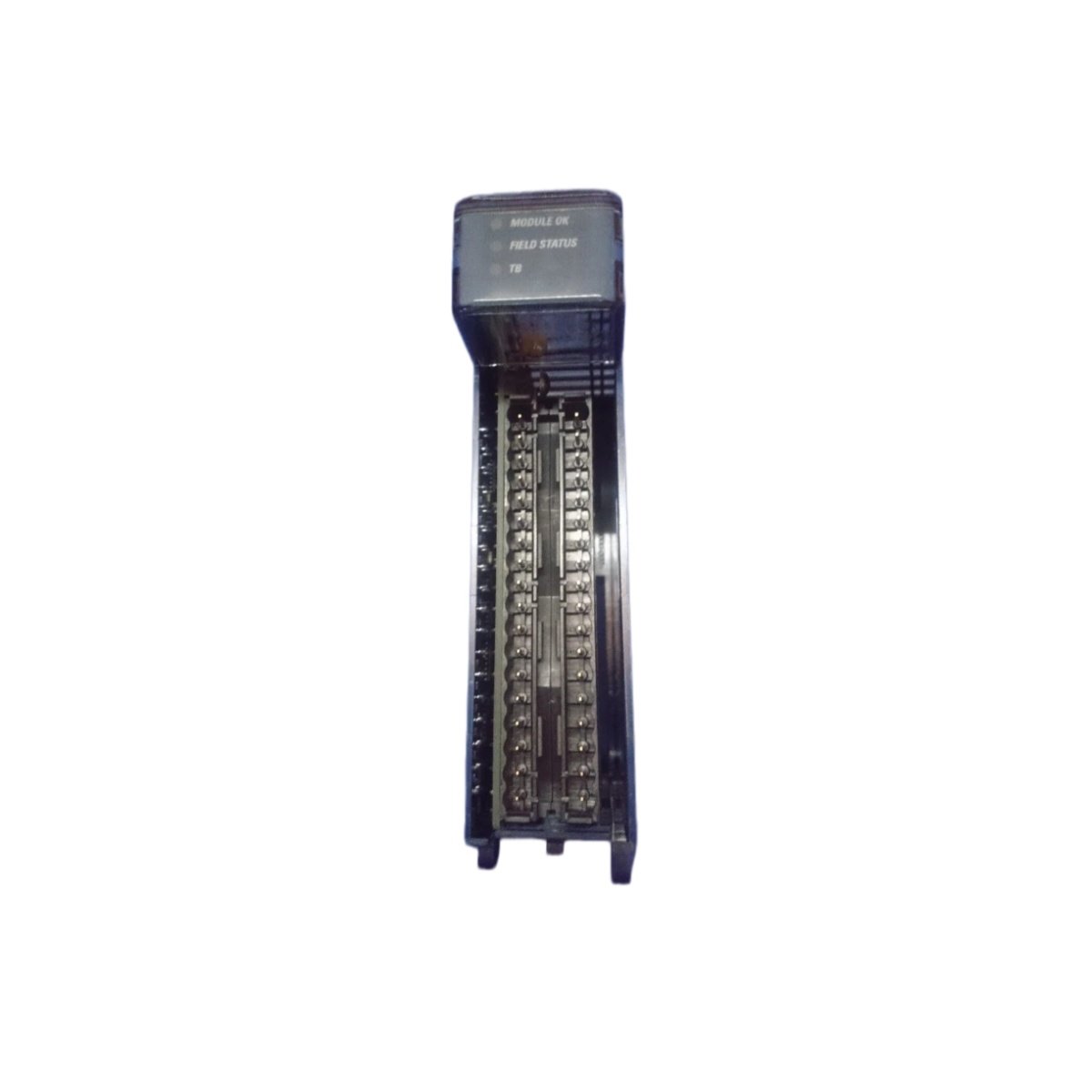

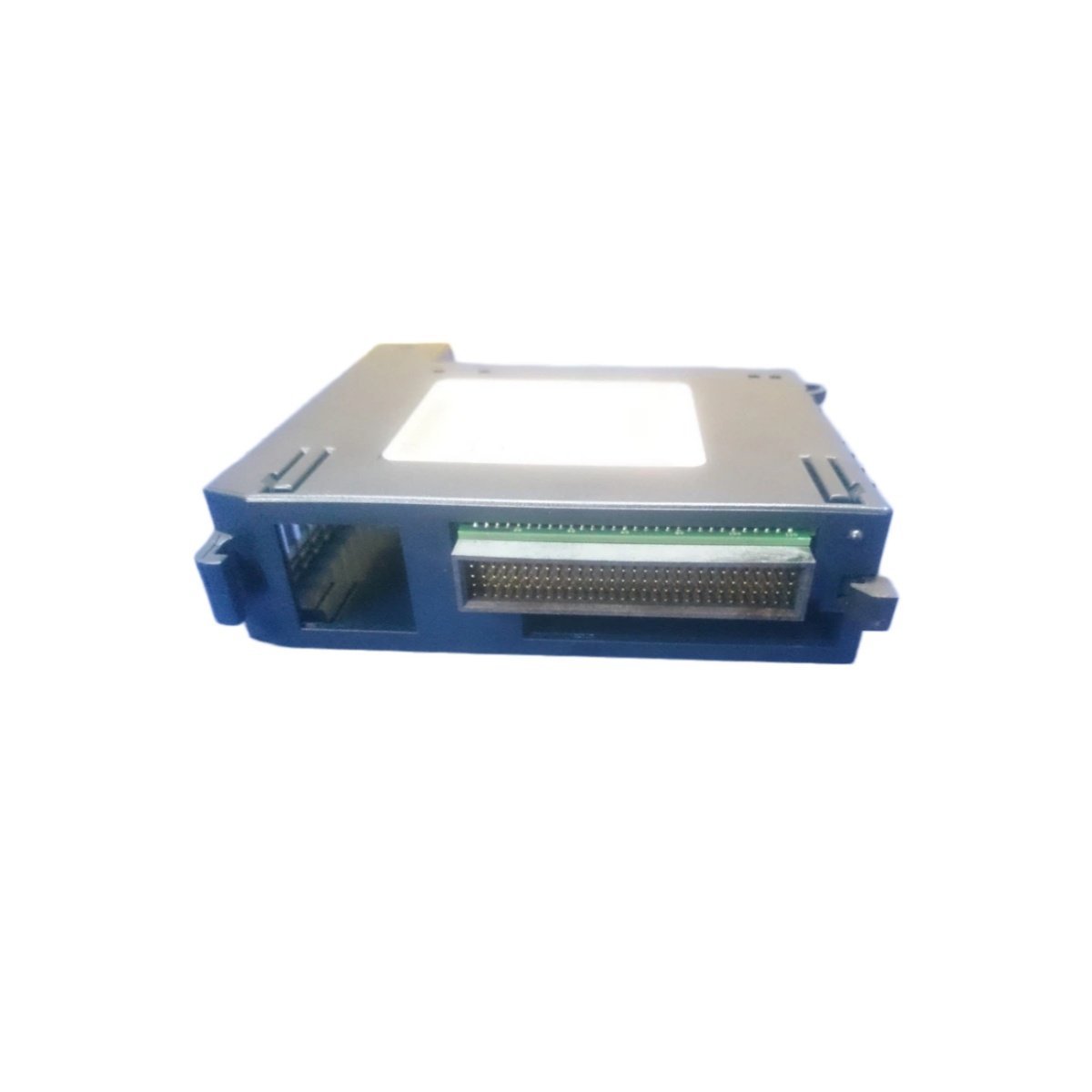

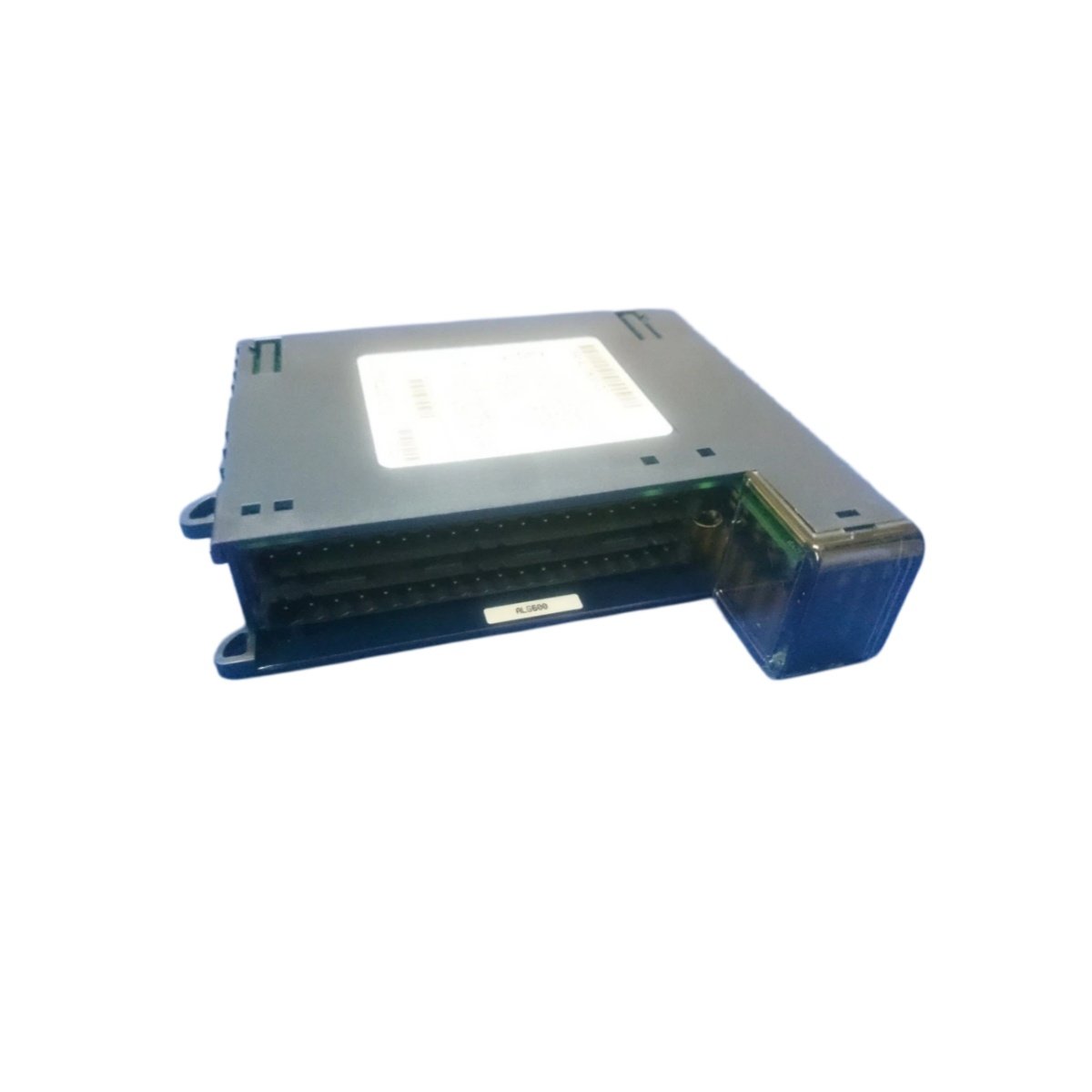

The GE Fanuc IC695ALG600-DD functions as a universal analog input module for the PACSystems RX3i platform . This module accepts a wide variety of signal types, including voltage, current, RTD, thermocouple, and resistance inputs . Moreover, the IC695ALG600-DD consolidates multiple measurement types into a single-slot module for simplified system design .
Technical Specifications
The IC695ALG600-DD provides eight differential input channels and organizes them into two groups of four each . This module includes two dedicated cold junction compensation (CJC) channels for accurate thermocouple temperature readings . Furthermore, the module draws 450 mA from the 3.3V backplane supply and 125 mA from the 5V supply . For power dissipation, the unit typically consumes 5.4 W maximum .
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Product Type | Universal Analog Input Module |
| System Platform | PACSystems RX3i |
| Input Channels | 8 differential (2 groups of 4) |
| Signal Types | Voltage, Current, RTD, Thermocouple, Resistance |
| Voltage Ranges | ±10V, 0-10V, ±5V, 0-5V, 1-5V |
| Current Ranges | 0-20mA, 4-20mA, ±20mA |
| Thermocouple Types | B, C, E, J, K, N, R, S, T |
| RTD Types | PT385/3916, N618/672, NiFe518, CU426 |
| Resolution | 11 to 16 bits (A/D filter dependent) |
| Configurable Filters | 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 1000Hz |
| Input Impedance (TC/V/RTD) | >1 MΩ |
| Current Input Resistance | 249 Ω ±1% |
| Backplane Power | 450mA @ 3.3V; 125mA @ 5V |
| Dimensions | 3.5 x 13.5 x 13.5 cm |
| Net Weight | 0.24 kg |
| Operating Temperature | 0°C to 60°C |
| Origin | USA |
Key Design Features
The IC695ALG600-DD features software-configurable channels that eliminate the need for physical jumpers or switches . This module provides advanced diagnostic capabilities, including open-circuit and out-of-range detection for fast troubleshooting . Additionally, the module supports hot-swap functionality, allowing replacement without powering down the backplane . The module’s sigma-delta conversion method ensures high-accuracy analog-to-digital conversion for demanding applications .
Application and Integration
The IC695ALG600-DD integrates seamlessly with RX3i systems and requires Proficy Machine Edition version 5.0 SP1A or later for configuration . This module works with compatible terminal blocks such as IC694TBB032, IC694TBS032, or IC694TBB132 . Consequently, process engineers deploy this module across chemical processing, power generation, and discrete manufacturing applications . The module’s universal input capability reduces spare parts inventory by replacing multiple dedicated modules .
Details
| Weight | 0.24 kg |
|---|---|
| Dimensions | 35 × 135 × 135 mm |
