Core Functionality and Application

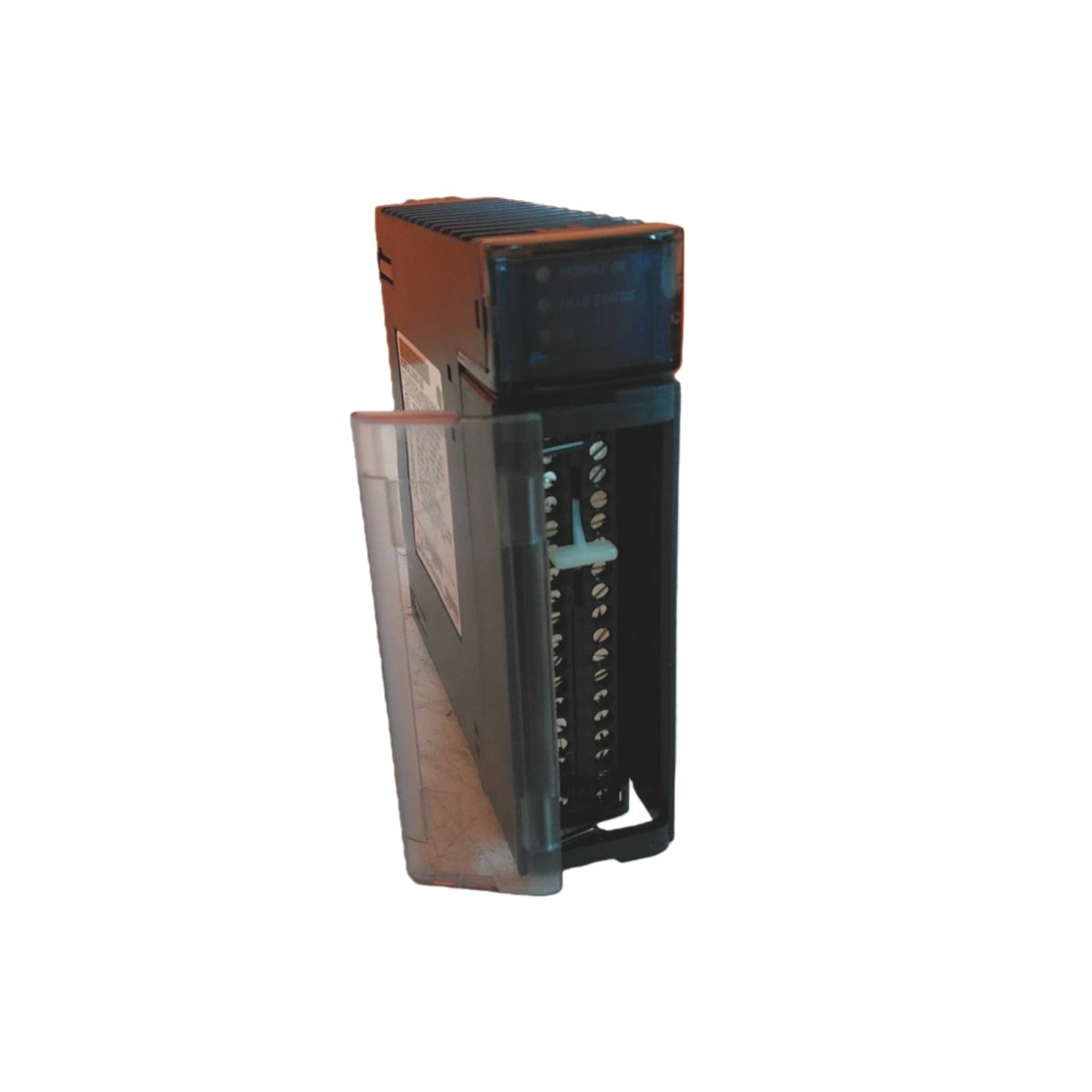

The GE IC695ALG600 analog input module belongs to the PACSystems RX3i platform and provides eight universal input channels for diverse signal types. This module handles voltage, current, thermocouple, and RTD signals, making it exceptionally versatile for process control applications. It features two groups of four configurable channels, and you can mix different input types within the same module.
Technical Specifications
The following table details the core technical parameters for the GE IC695ALG600:
| Parameter | Specification |
|---|---|
| Model Number | IC695ALG600 |
| Product Type | Universal Analog Input Module |
| Input Channels | 8 general-purpose inputs (2 groups of 4) |
| Input Resolution | 11 to 16 bits (range and filter dependent) |
| Dimensions (L × W × H) | 13.0 × 2.9 × 12.4 cm (5.12 × 1.14 × 4.88 in) |
| Weight | 0.1 kg (0.22 lbs) |
| Power Dissipation | 5.4 W maximum |
| Backplane Current Draw | 400 mA @ 5V; 350 mA @ 3.3V |
| RTD Cable Impedance | 25 ohms maximum |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Calibrated Accuracy | Better than 0.1% of range (at 25°C) |
Input Signal Compatibility
The GE IC695ALG600 supports an extensive array of input signals and sensor types:
Current Inputs: 0–20 mA, 4–20 mA, ±20 mA
Voltage Inputs: 0–5 V, 1–5 V, 0–10 V, ±10 V, ±50 mV, ±150 mV
Thermocouple Types: B, C, E, J, K, N, R, S, T
RTD Types: Platinum 385/3916 (100–1000Ω), Nickel 618/672, Nickel-Iron 518, Copper 426
Resistance Inputs: 0–250, 0–500, 0–1000, 0–2000, 0–3000, 0–4000Ω
Design and Integration Features
The GE IC695ALG600 offers six configurable A/D filter frequencies ranging from 8 Hz to 1000 Hz, and you can tailor each channel individually. Full auto-calibration and on-board error checking ensure measurement reliability, while open-circuit detection helps identify faulty sensors quickly. This module mounts in a single slot of the RX3i universal backplane and requires firmware version 2.80 or later. You will also need a compatible terminal block (IC694TBB032, IC694TBB132, IC694TBS032, or IC694TBS132) for signal termination
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
