Product Overview

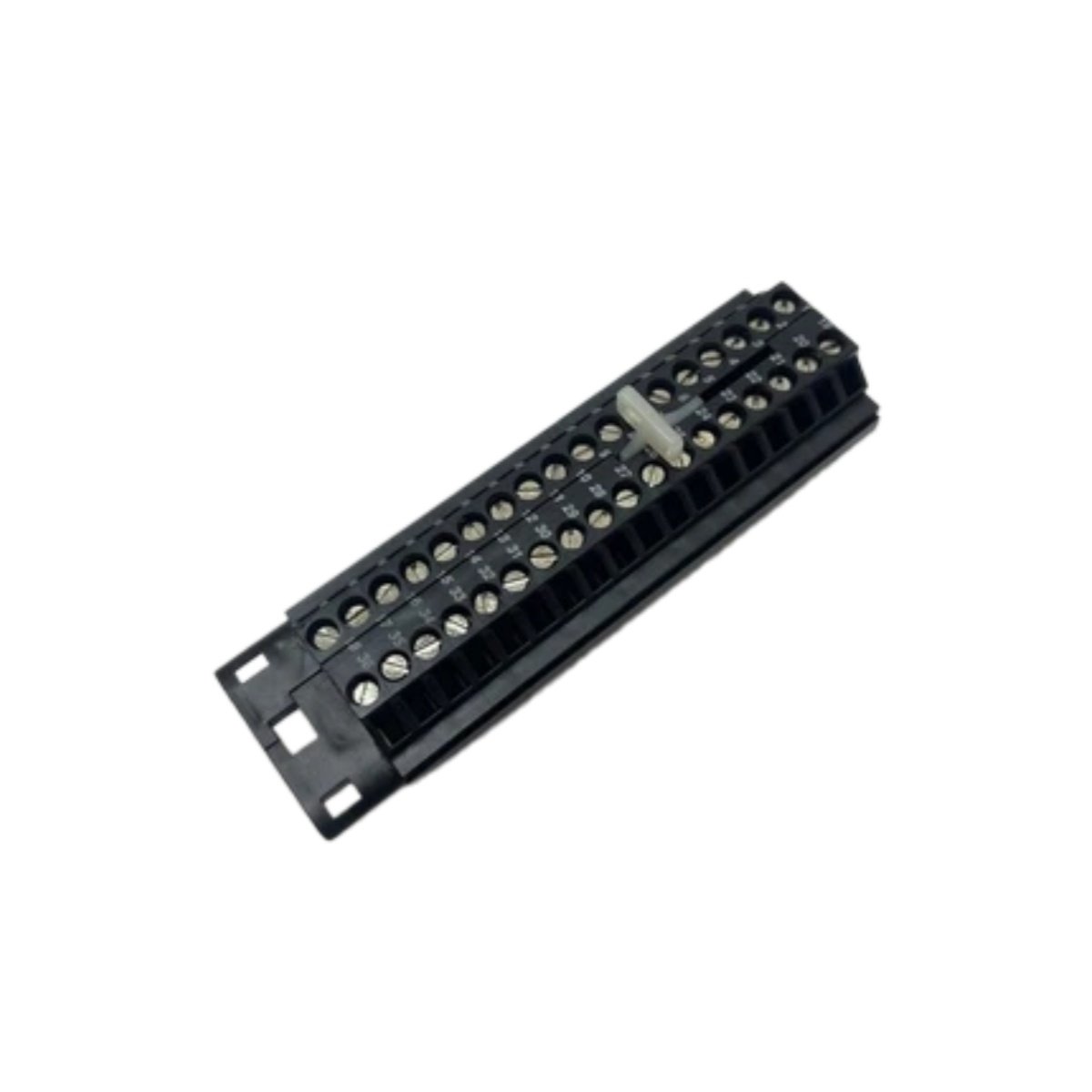

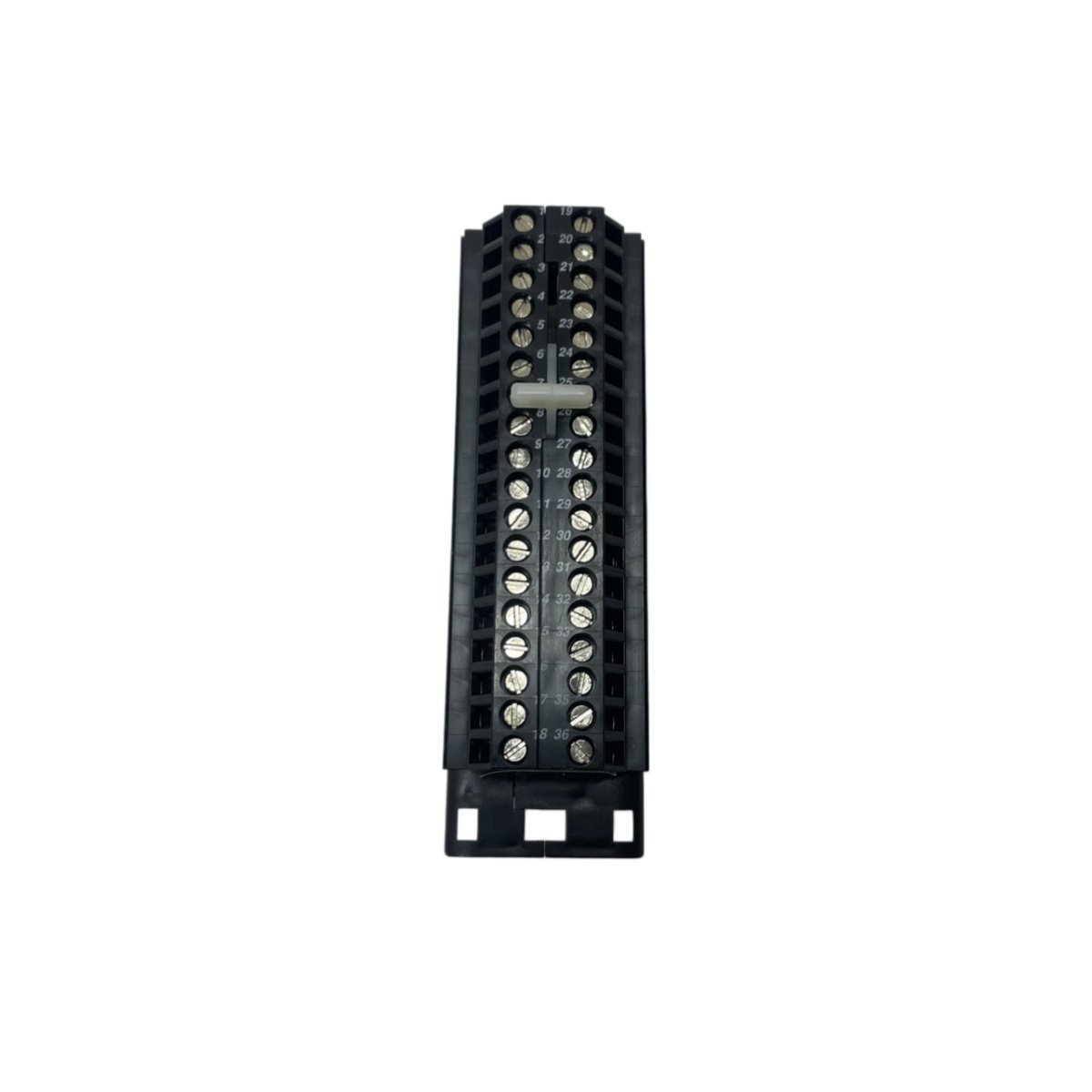

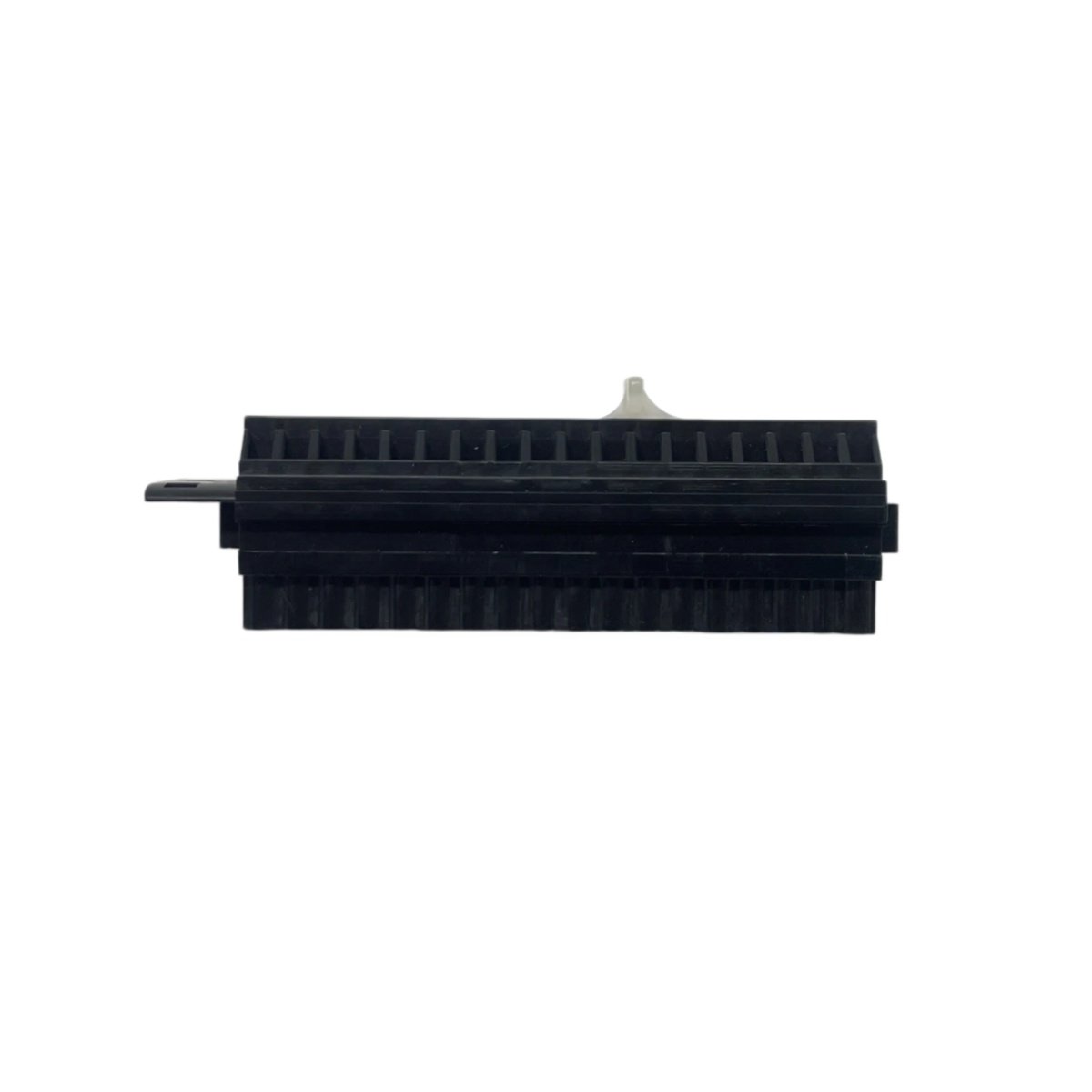

The GE Fanuc IC694TBB032 serves as a 32-point box-style terminal block for the Series 90-30 I/O module family . This termination unit provides a reliable connection point between field devices and the I/O modules . Moreover, the IC694TBB032 simplifies field wiring for high-density I/O applications .

Technical Specifications

The IC694TBB032 offers 32 termination points in a single compact housing for efficient space utilization . This terminal block accepts wires up to 1.5 mm² (16 AWG) and supports both solid and stranded conductors . Furthermore, the unit features screw-type clamping connections that ensure reliable electrical contact .

Key Design Features

The IC694TBB032 employs a box-style clamping mechanism that securely holds wires without requiring ferrules . This design significantly reduces installation time and simplifies field termination tasks . Furthermore, the terminal block’s keying feature prevents accidental insertion onto incompatible I/O modules, avoiding potential system damage . The compact 32-point configuration maximizes I/O density while maintaining ample space for field wiring connections .

Application and Integration

The IC694TBB032 integrates seamlessly with GE Fanuc Series 90-30 discrete and analog I/O modules . Field engineers frequently use this terminal block in manufacturing lines, packaging machines, and conveyor systems . Consequently, it provides a standardized, reliable termination interface across diverse industrial applications . Proper wire preparation and torque specifications ensure optimal electrical contact and long-term reliability .
