High-Capacity Power for PACSystems RX3i and Series 90-30

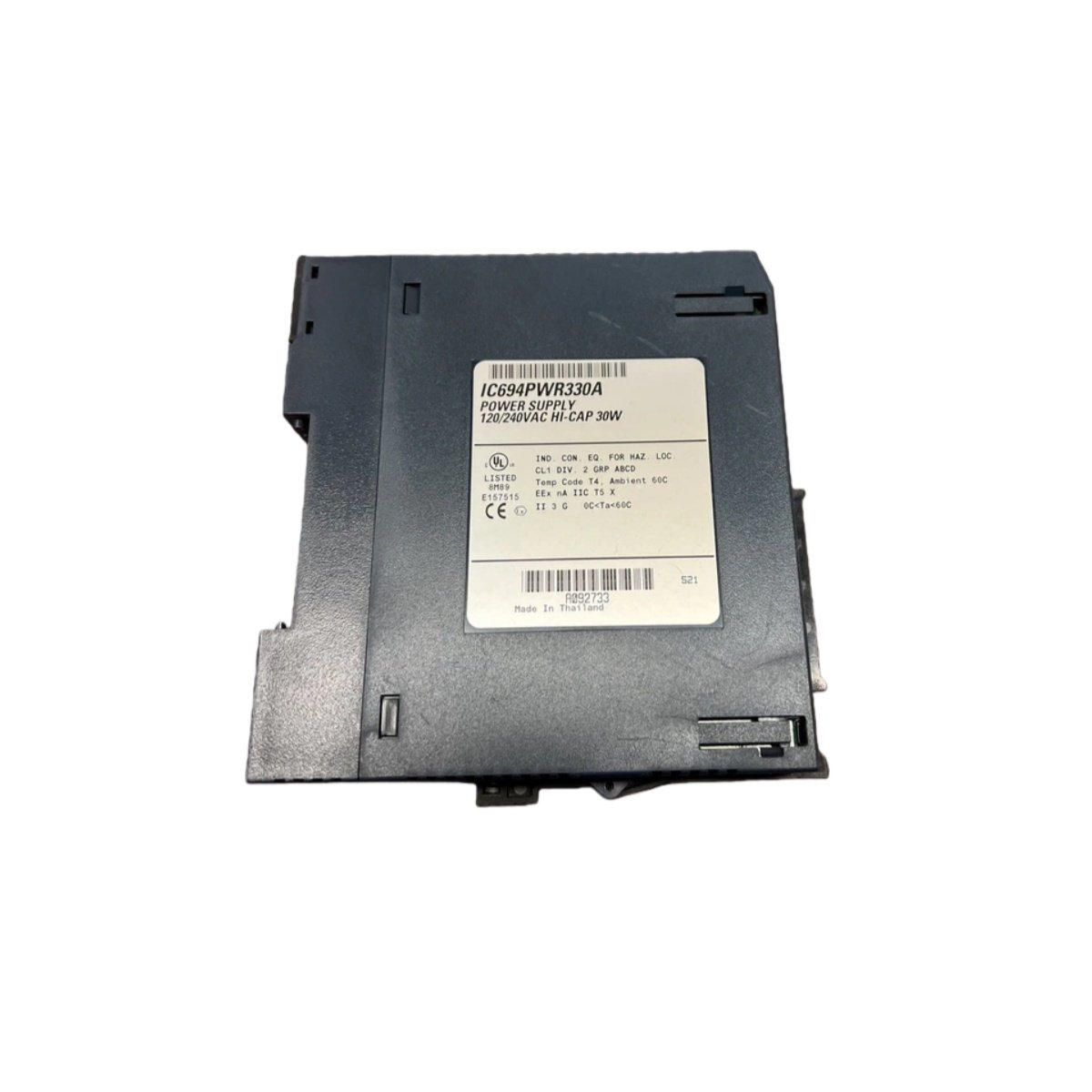

The GE IC694PWR330 power supply module delivers reliable, high-capacity power for GE Fanuc PACSystems RX3i and Series 90-30 PLC systems. This module provides stable DC voltage to the CPU, I/O modules, and other rack components. System integrators choose this unit for its auto-ranging input and built-in protection features.
Input and Output Specifications
This power supply module accepts a wide input voltage range of 85 to 264 VAC or 100 to 300 VDC without manual jumper settings . The module delivers a total output power of 30 watts, providing +5 VDC for backplane logic and +24 VDC for I/O and field devices . Furthermore, the unit includes an isolated 24 VDC output for powering relays and other auxiliary circuits .
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc / Emerson |
| Model | IC694PWR330 |
| Product Type | Power Supply Module |
| Series Compatibility | PACSystems RX3i, Series 90-30 |
| AC Input Range | 85–264 VAC (47–63 Hz) |
| DC Input Range | 100–300 VDC |
| +5 VDC Output | 30 W max (5.0–5.2 VDC, 7 A) |
| +24 VDC Output | 20 W max (21.5–28 VDC) |
| Total Output Power | 30 W |
| Ride-through Time | ≥20 ms |
| Slot Occupancy | 1 slot in expansion backplane |
| Weight | Approx. 1.2–1.55 kg |
| Operating Temperature | 0°C to 60°C |
Protection Features and Reliability
The GE IC694PWR330 incorporates comprehensive protection mechanisms to safeguard the PLC system. Overvoltage protection clamps the +5 VDC output at 6.4 to 7 VDC, preventing damage to sensitive electronics . Overcurrent protection limits the +5 VDC output to 7 amperes and automatically shuts down on overload with internal restart attempts . Additionally, the module includes 1500 VAC isolation between the input and backplane for safety . The front panel provides clear status LEDs, including PWR, OK, and RUN indicators .
Physical Design and Installation
You can install this power supply module in the dedicated power slot of an RX3i or Series 90-30 rack. The module features a compact design that occupies a single slot, maximizing available space for additional I/O modules . The unit connects to the backplane via a plug-in connector, simplifying installation and replacement. Furthermore, the module includes EMI/RFI filtering for stable operation in industrial environments .
System Integration and Applications
This power supply module supports a wide range of applications, including automotive manufacturing, water treatment, and food processing facilities . The module seamlessly integrates with RX3i and Series 90-30 systems, ensuring reliable power delivery for critical control processes . The module’s auto-ranging input supports global power grids, eliminating the need for manual voltage selection . However, note that this module does not support hot-swapping in standard configurations .
