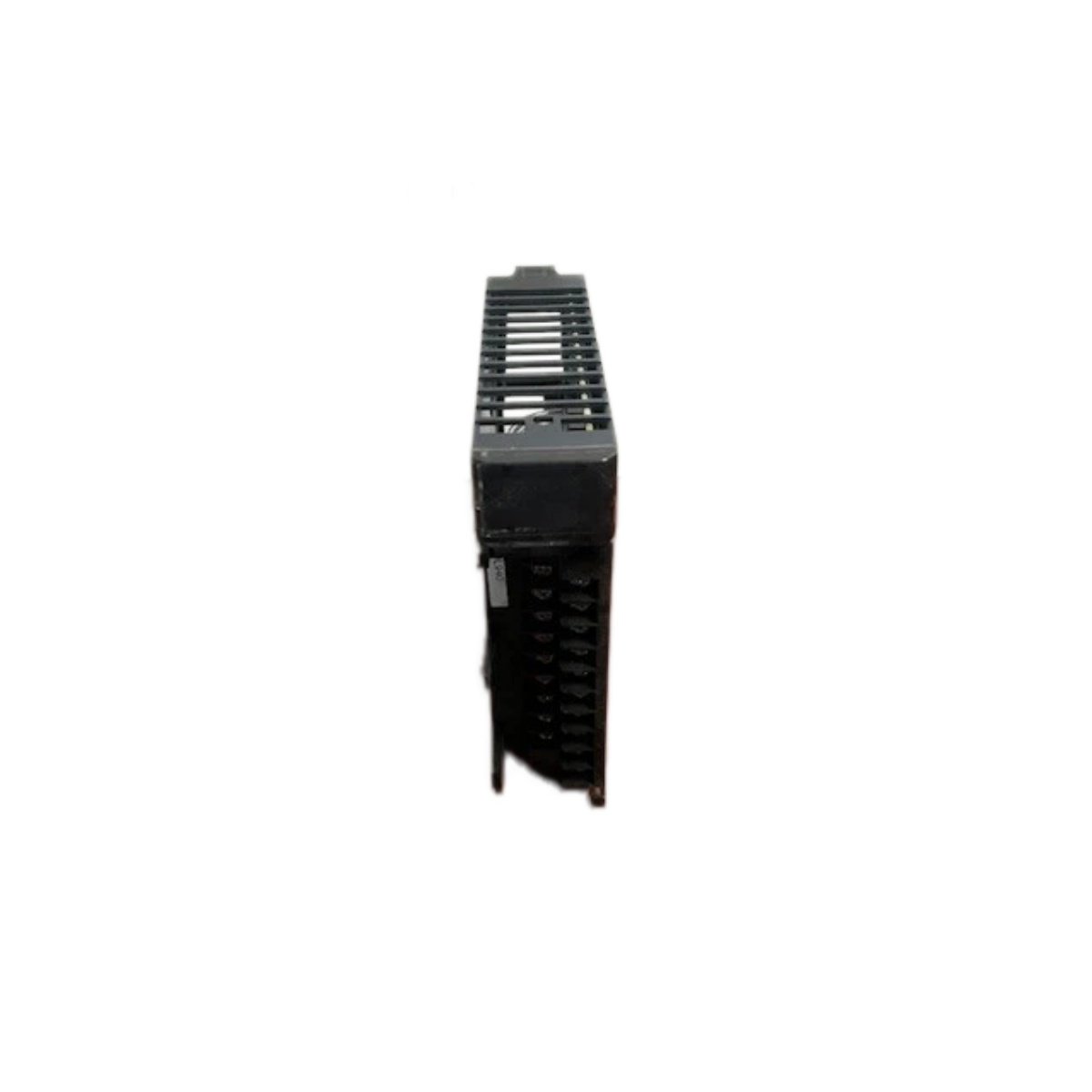

Reliable AC Input Acquisition for RX3i Systems
The GE IC694MDL240 provides eight isolated AC input channels for the PACSystems RX3i platform. This module accepts 100-240 VAC signals from field devices like limit switches, pushbuttons, and proximity sensors . Each channel offers optical isolation from the backplane for robust noise immunity . Furthermore, the IC694MDL240 supports operation over a wide frequency range of 47 to 63 Hz . Its compact design and reliable performance make it ideal for retrofit and new installations.
Electrical Specifications and Filtering
The module operates with a nominal input voltage of 120 VAC and accepts a range of 0 to 264 VAC . The on-state voltage ranges from 74 to 264 VAC, while the off-state voltage stays between 0 and 40 VAC . Input current averages 7.5 mA at 120 VAC or 12.5 mA at 240 VAC . The IC694MDL240 features a selectable input filter for enhanced noise rejection . You can also configure the filter time constant to meet specific application requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC694MDL240 |
| Manufacturer | GE Fanuc / Emerson |
| Product Type | AC Voltage Input Module |
| Input Points | 8 isolated channels |
| Input Voltage | 100-240 VAC (nominal 120 VAC) |
| Input Voltage Range | 0 to 264 VAC |
| On-State Voltage | 74 to 264 VAC |
| Off-State Voltage | 0 to 40 VAC |
| Input Current | 7.5 mA @ 120 VAC; 12.5 mA @ 240 VAC |
| Frequency Range | 47 to 63 Hz |
| Response Time (On/Off) | 30 ms typical (filter on) |
| Isolation (Channel to Backplane) | 2500 VAC |
| Backplane Current (5V) | 25 mA |
| Status Indicators | 8 green LEDs (one per channel) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95%, non-condensing |
| Certifications | UL 508, CSA, CE, Class I Div 2 |
| Country of Origin | USA |
Installation and Applications
You can install the IC694MDL240 in any I/O slot of an RX3i Universal Backplane . The module’s removable terminal strip simplifies field wiring and facilitates fast maintenance . Its built-in filtering effectively rejects electrical noise, making it suitable for industrial environments with heavy electrical interference . Typical applications include motor control centers, conveyor systems, packaging machinery, and pump monitoring . Consequently, engineers rely on this input module for reliable AC signal acquisition across diverse manufacturing facilities.
Details
| Weight | 0.9 kg |
|---|---|
| Dimensions | 130 × 110 × 80 mm |
