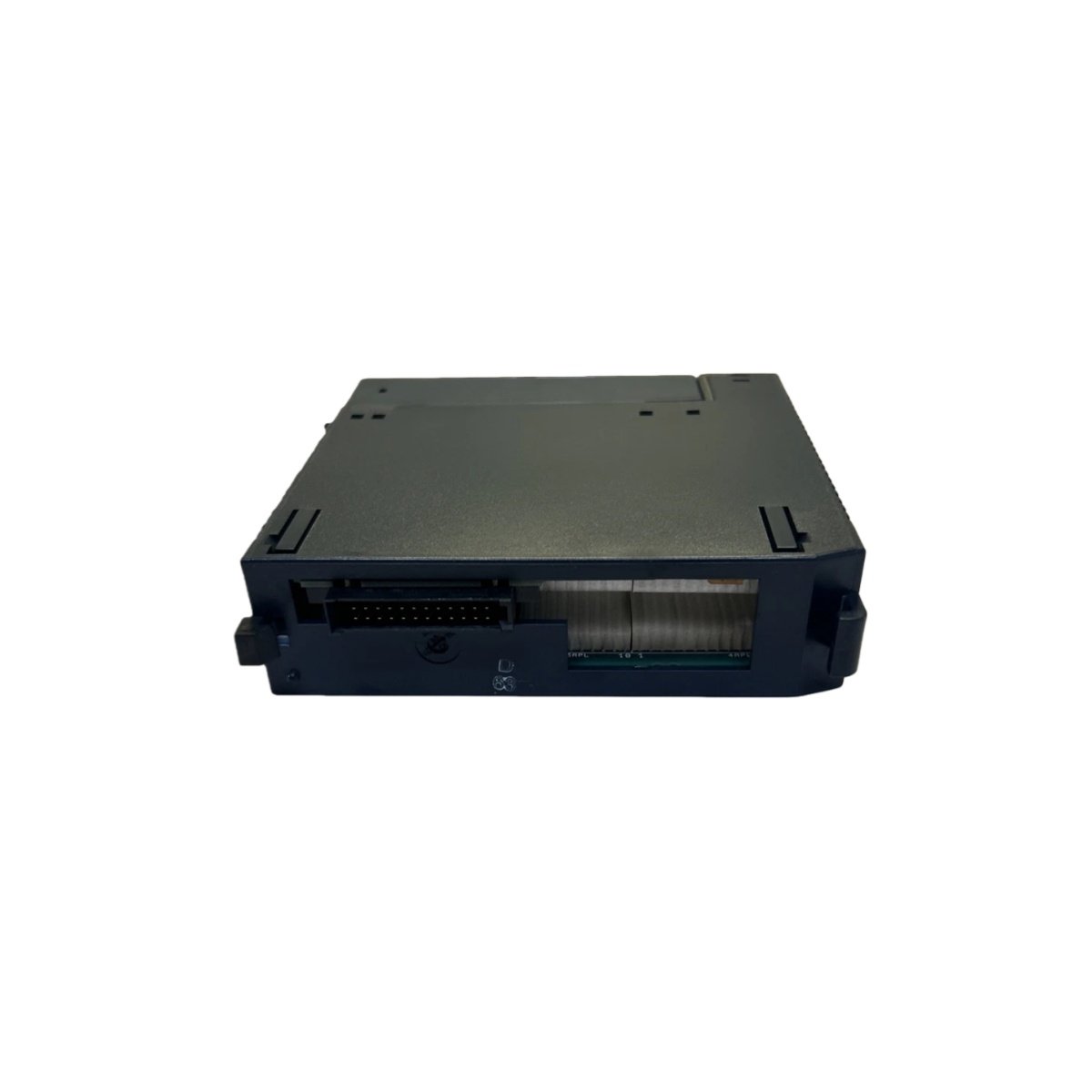

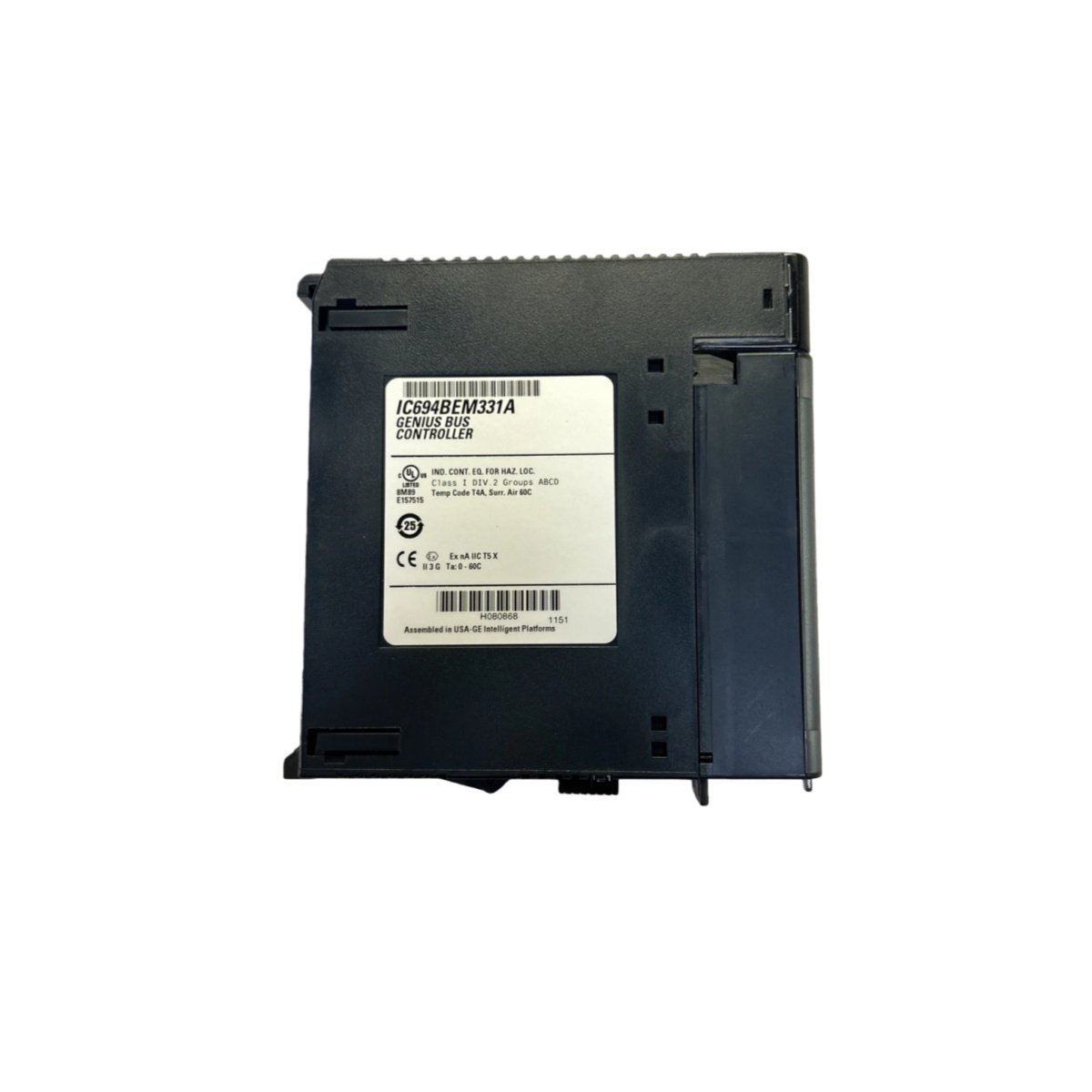

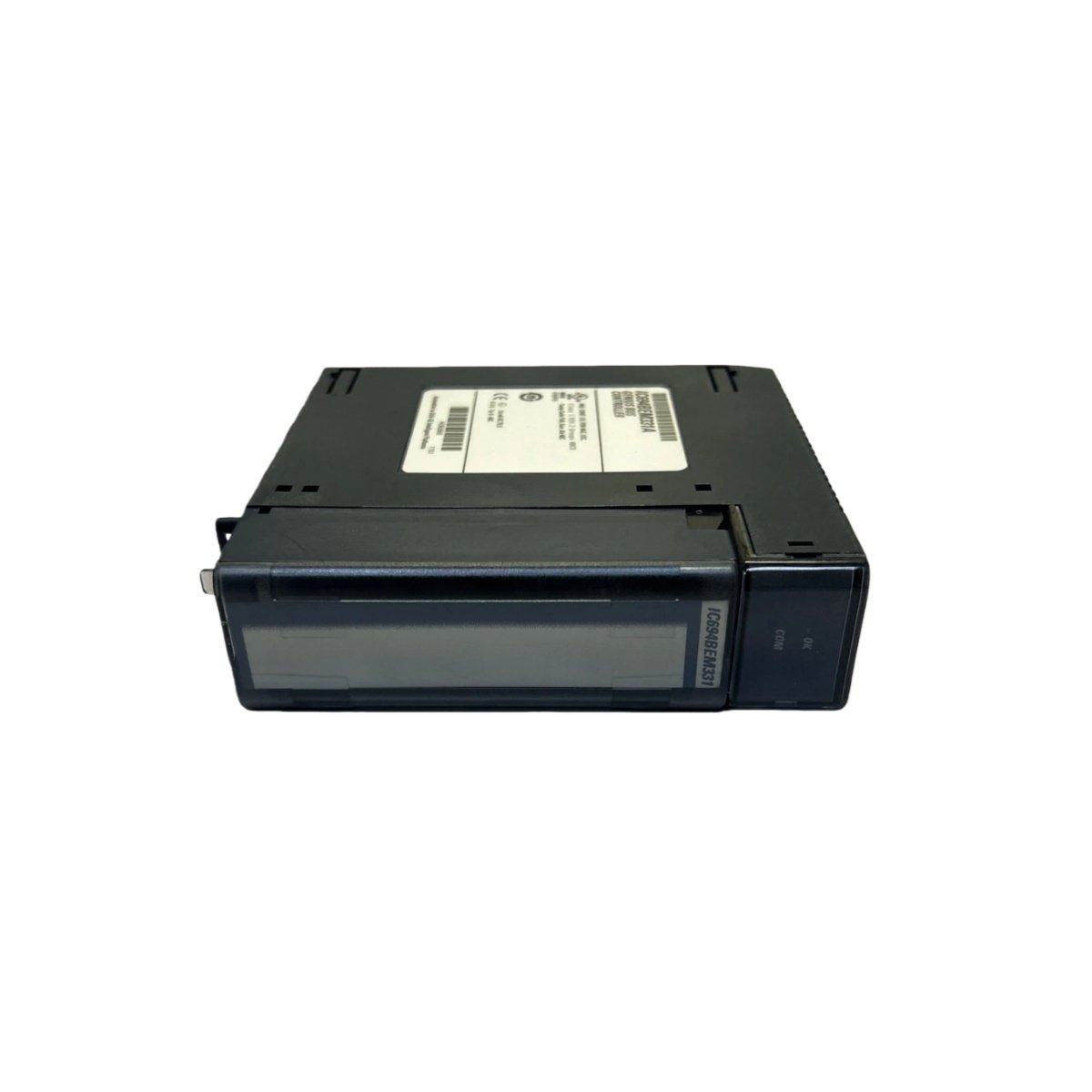

This Genius Bus controller module manages communication between GE Fanuc PLCs and field devices. The IC694BEM331 serves as the master interface for the Genius distributed I/O network. It coordinates data exchange with remote I/O blocks, drives, and intelligent instruments. System integrators choose this module for its robust performance and diagnostic capabilities. Its single-slot design fits seamlessly into the RX3i or Series 90-30 chassis.

Technical Specifications Summary

Network Architecture and Genius Bus Protocol

The module implements the Genius Bus protocol for deterministic industrial communication. This protocol supports both peer-to-peer and master-slave communication modes flexibly. The IC694BEM331 operates as a bus master for coordinating all network traffic. It polls each Genius device in sequence for input data and updates outputs accordingly. The bus operates at 153.6 kbps for balanced speed and noise immunity. This speed ensures responsive control while maintaining reliable data integrity. The module handles up to 32 nodes on a single bus segment effectively.

Data Exchange and Scan Performance

For efficient data handling, the module manages extensive I/O data across the network. It exchanges 128 bytes of input data and 128 bytes of output data per device. The module reports up to 256 input points and 256 output points to the host PLC. A complete bus scan with 32 devices takes approximately 5 milliseconds. This fast scan ensures real-time responsiveness for critical control loops. The IC694BEM331 maintains data consistency during network interruptions. It automatically retries failed communications without user intervention. Consequently, the system continues operating through temporary cable or node issues.

Physical Interfaces and Installation

The module provides straightforward connectivity for the Genius Bus network. Two RJ-45 connectors allow daisy-chaining multiple devices on the same cable. This IN/OUT arrangement simplifies wiring and reduces installation time. A dedicated RS-232 serial port supports configuration and diagnostic functions. Engineers connect a laptop to configure bus parameters and monitor network health. The IC694BEM331 includes LED indicators for bus activity and node status. These indicators help technicians verify network operation without special tools. All network ports include surge suppression for industrial electrical protection.

Diagnostic and Fault Management

The module offers extensive diagnostic features for network troubleshooting. It continuously monitors bus health, node presence, and communication integrity. The IC694BEM331 maintains a fault log for post-event analysis and root cause identification. It reports missing nodes, cable breaks, and device faults to the PLC. Users can retrieve diagnostic data through the serial port or PLC interface. The module also performs online configuration for replacing devices without system shutdown. These diagnostic capabilities reduce mean time to repair significantly.

Mechanical Construction and Power Requirements

This single-slot module features a compact design for space-efficient installations. It measures 110 millimeters high, 55 millimeters wide, and 110 millimeters deep. The unit weighs 0.25 kilograms for convenient handling and installation. Power consumption draws 500 milliamperes from the +5 V DC backplane supply. The module fits directly into the RX3i or Series 90-30 I/O carrier. No external power supply connections are necessary for operation. The robust metal housing protects the electronics from physical damage and EMI.

Environmental Resilience and Field Reliability

Industrial environments subject equipment to temperature extremes and electrical noise. The IC694BEM331 operates reliably from 0 °C to 60 °C ambient temperatures. Storage conditions range from -40 °C to 85 °C for shipping and logistics. Humidity tolerance covers 5% to 95% without condensation issues. The module includes transient suppression on all bus connections for surge protection. This protection safeguards against voltage spikes from switching loads. Conformal coating on circuit boards resists moisture and airborne contaminants effectively.
