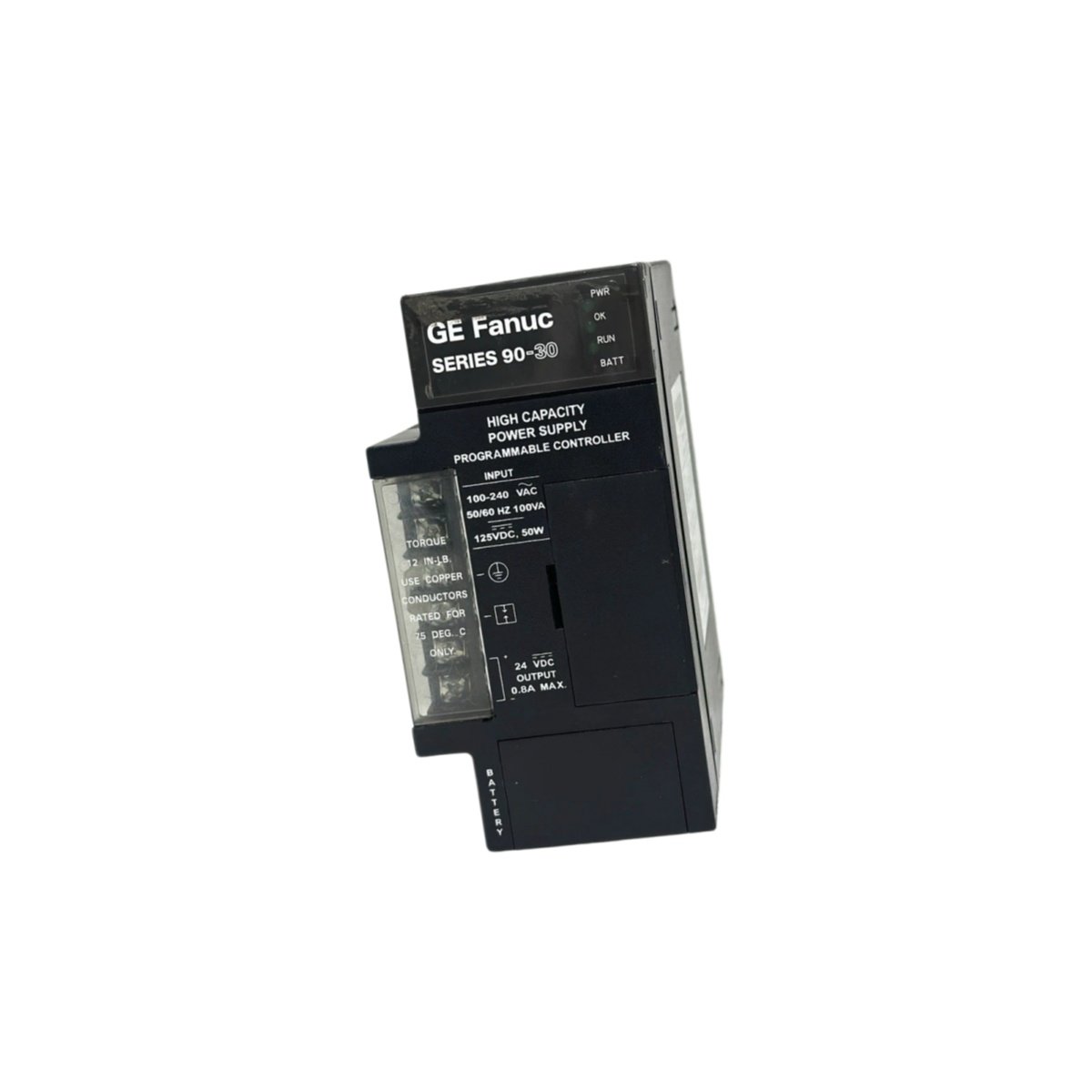

This power supply module delivers consistent DC power to the GE Fanuc Series 90-30 programmable logic controller (PLC) system. It converts a wide range of AC input voltages into the stable DC outputs required for backplane operation. The GE IC693PWR330H supports an input voltage range from 90 to 264 VAC, making it suitable for global industrial installations. It also accepts 100-300 VDC input for added flexibility in diverse power environments. This module provides two isolated DC output voltages: +5 VDC at 30 A and +24 VDC at 2 A. These outputs power the CPU, I/O modules, and other connected components on the PLC rack. The module’s compact design allows for direct mounting on the Series 90-30 baseplate.

Technical Specifications and Design Features

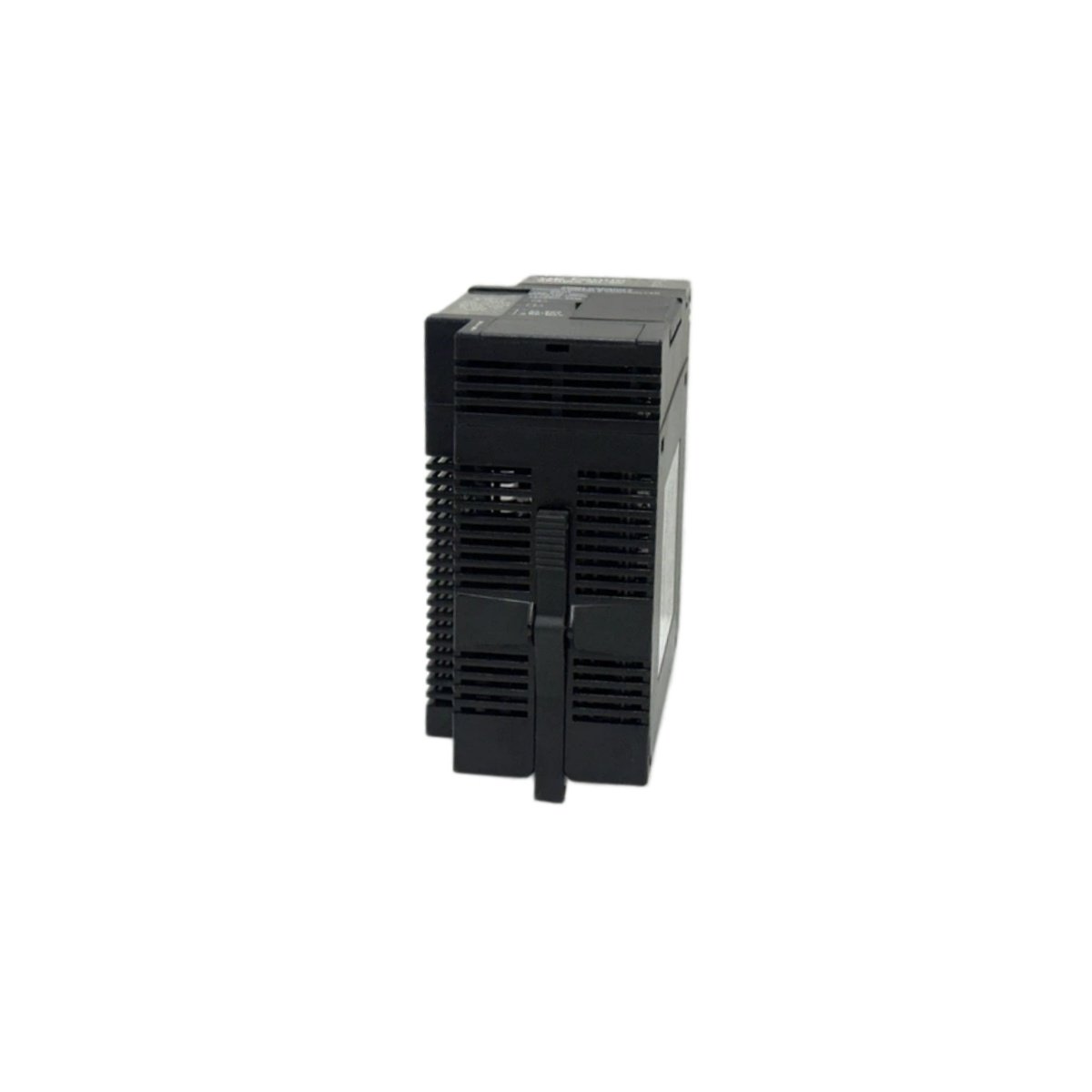

The GE IC693PWR330H power supply offers a total output power capacity of 200 watts. It includes built-in overtemperature and overcurrent protection to safeguard the PLC system. A front-mounted LED indicator provides clear visual status confirmation for normal operation. This module’s dimensions are 5.5 inches in height, 2.5 inches in width, and 4.5 inches in depth. It weighs approximately 2.5 pounds, facilitating easy handling during installation or replacement. The module features one 5-pin terminal block for AC input and ground connections. It also includes one 5-pin connector for DC output connections to the backplane. The internal design incorporates a single printed circuit board assembly with robust filtering capacitors. These capacitors store sufficient energy to sustain outputs for at least 20 milliseconds during a power interruption. This hold-up time ensures orderly system shutdown or seamless transfer to a backup supply.

Installation, Environmental Compliance, and Usage

This power supply has a typical efficiency rating of 85% at full load, minimizing heat generation within the control cabinet. The GE IC693PWR330H module operates reliably across a temperature range from 0 to 60 degrees Celsius. It also withstands relative humidity levels from 5% to 95% without condensation. This module complies with major industrial standards, including UL and CE certifications. Its straightforward design simplifies field replacement and reduces mean time to repair (MTTR). The module uses a single fan-less design, which promotes silent operation and reduces the risk of mechanical failure. This feature makes the IC693PWR330H particularly suitable for noise-sensitive environments. It does not require any external cooling, lowering the overall system complexity.

Key Parameters at a Glance

Conclusion

The GE IC693PWR330H provides essential power distribution for Series 90-30 PLC systems in manufacturing and process automation. Its broad input range and robust protection features ensure reliable operation in challenging industrial conditions. The compact footprint and simple installation make this module a practical choice for control panel upgrades. This power supply offers a direct replacement solution with proven performance for maintaining critical automation infrastructure.
