90-264 VAC Power Supply for Series 90-30 Systems

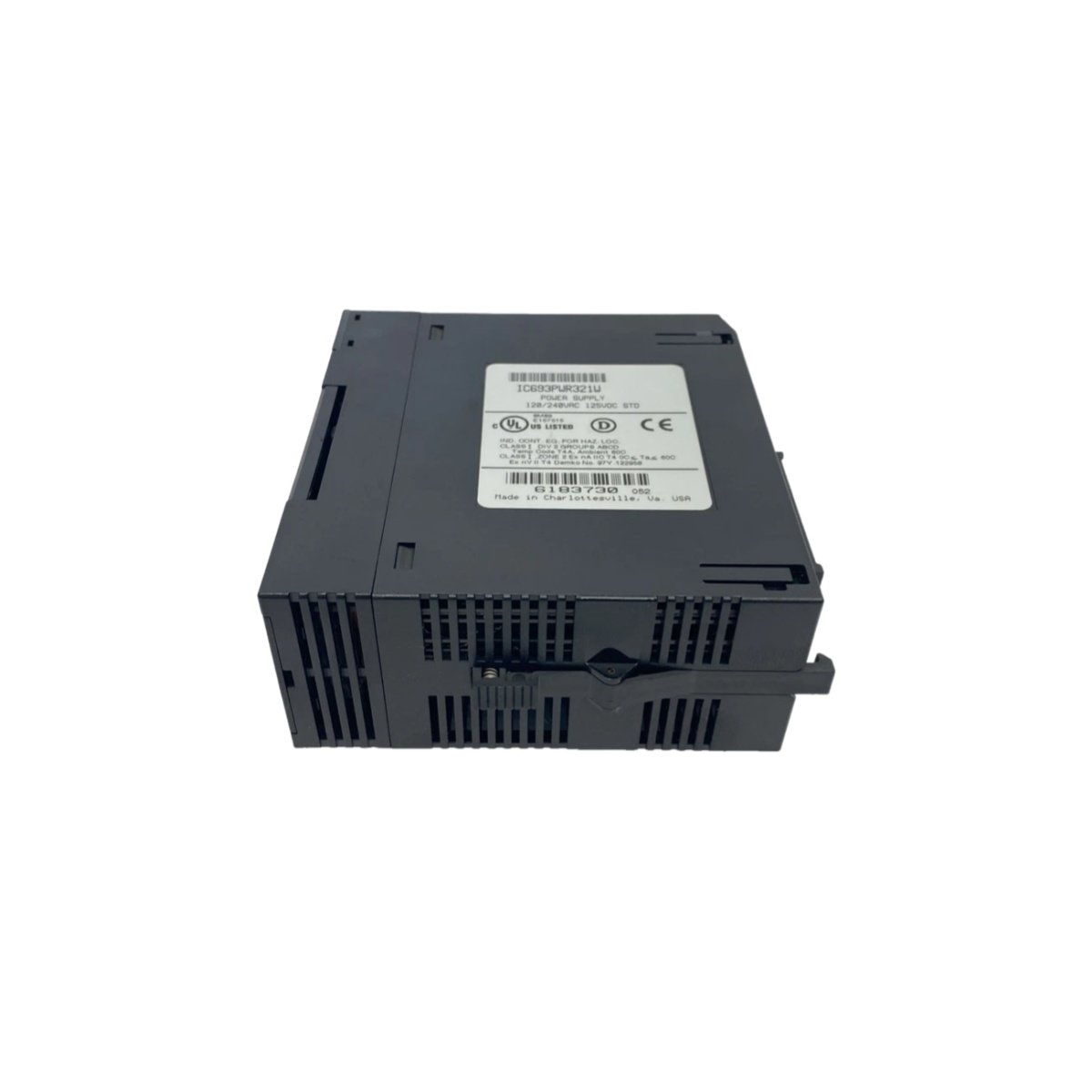

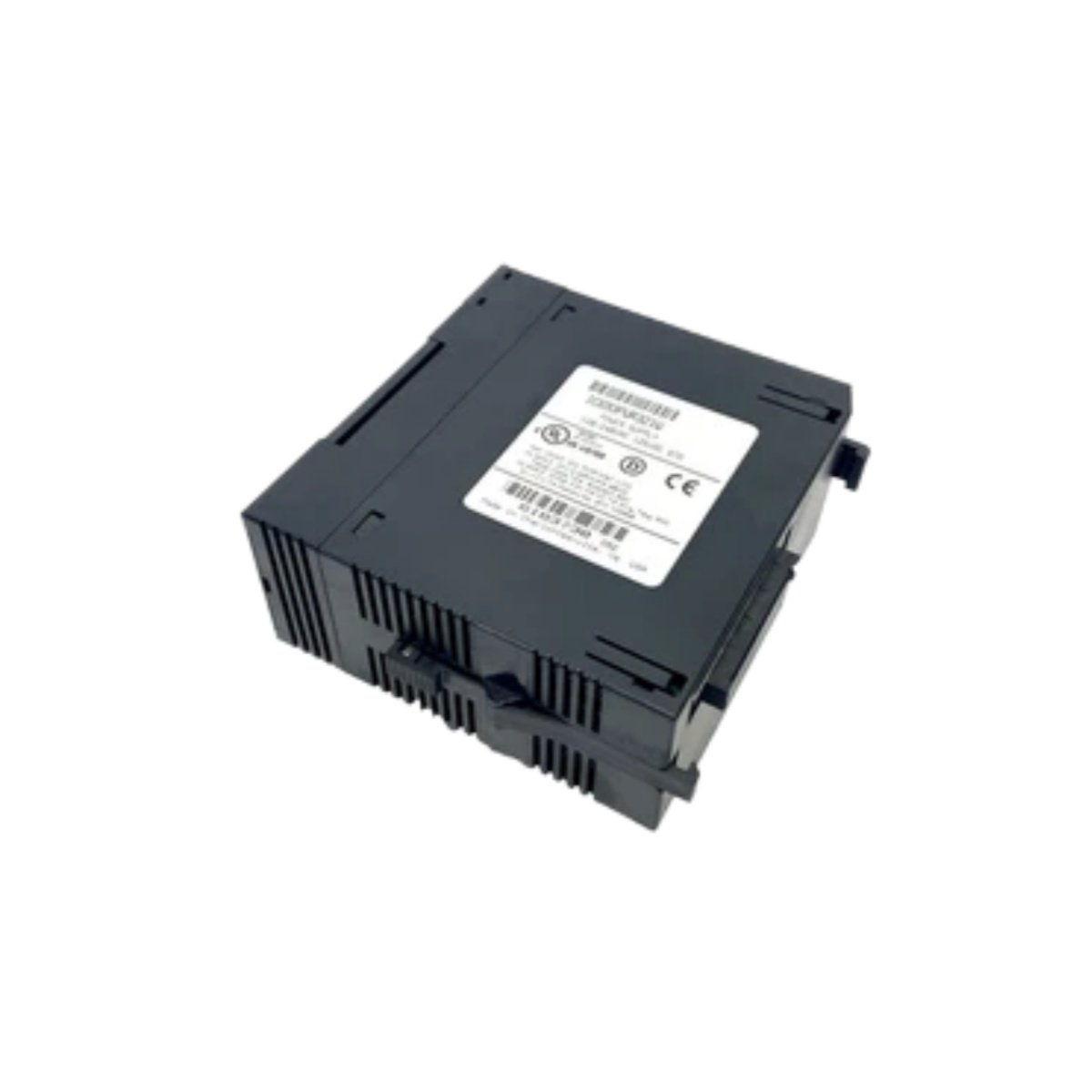

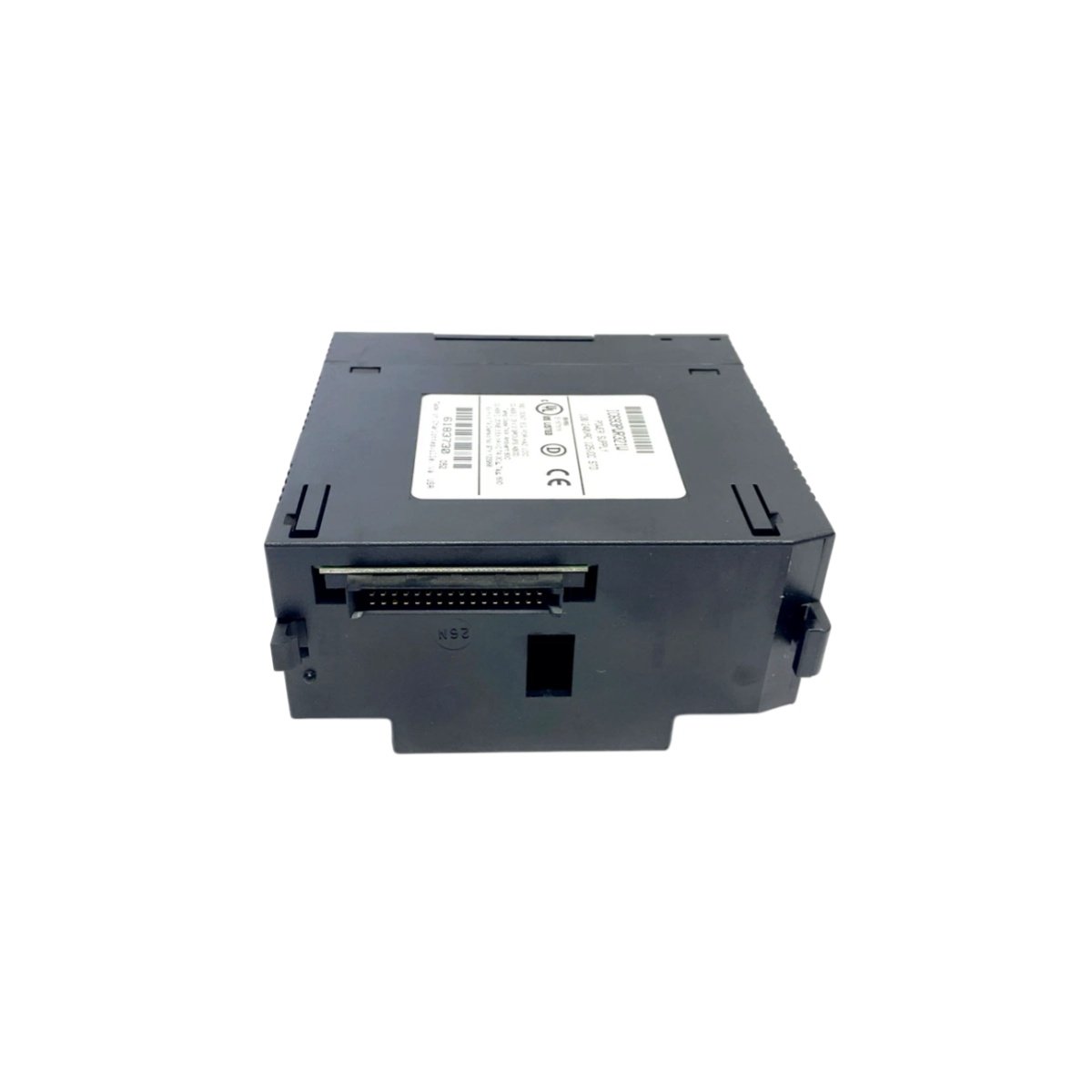

The GE IC693PWR321W serves as a power supply module for the Series 90-30 programmable logic controller platform. This module converts AC input voltage into stable DC power for the CPU and I/O modules. Its design ensures reliable system operation across a wide input voltage range.

Input and Output Specifications

This power supply module accepts a universal AC input voltage from 90 to 264 VAC. A built-in output provides 5 VDC and 24 VDC power to the backplane and field devices. The module delivers up to 30 W of continuous output power. Furthermore, the input range accommodates global power grids without adjustment. Consequently, this power supply supports applications in diverse geographic regions.

Protection and Diagnostic Features

The IC693PWR321W includes overvoltage and short-circuit protection for safe operation. A built-in LED indicator provides clear power status indication. The module also features thermal protection against overheating conditions. Additionally, the power supply incorporates an input fuse for fault isolation. For this reason, this module protects system components from power-related damage.

Physical Specifications and Environmental Ratings

This power supply module mounts on the Series 90-30 rack. Its dimensions fit standard rack slots for straightforward installation. The module includes a terminal block for field wiring connections. Furthermore, it operates reliably from 0 °C to 60 °C ambient temperature. Consequently, this power supply provides a robust solution for Series 90-30 systems.
