Product Overview

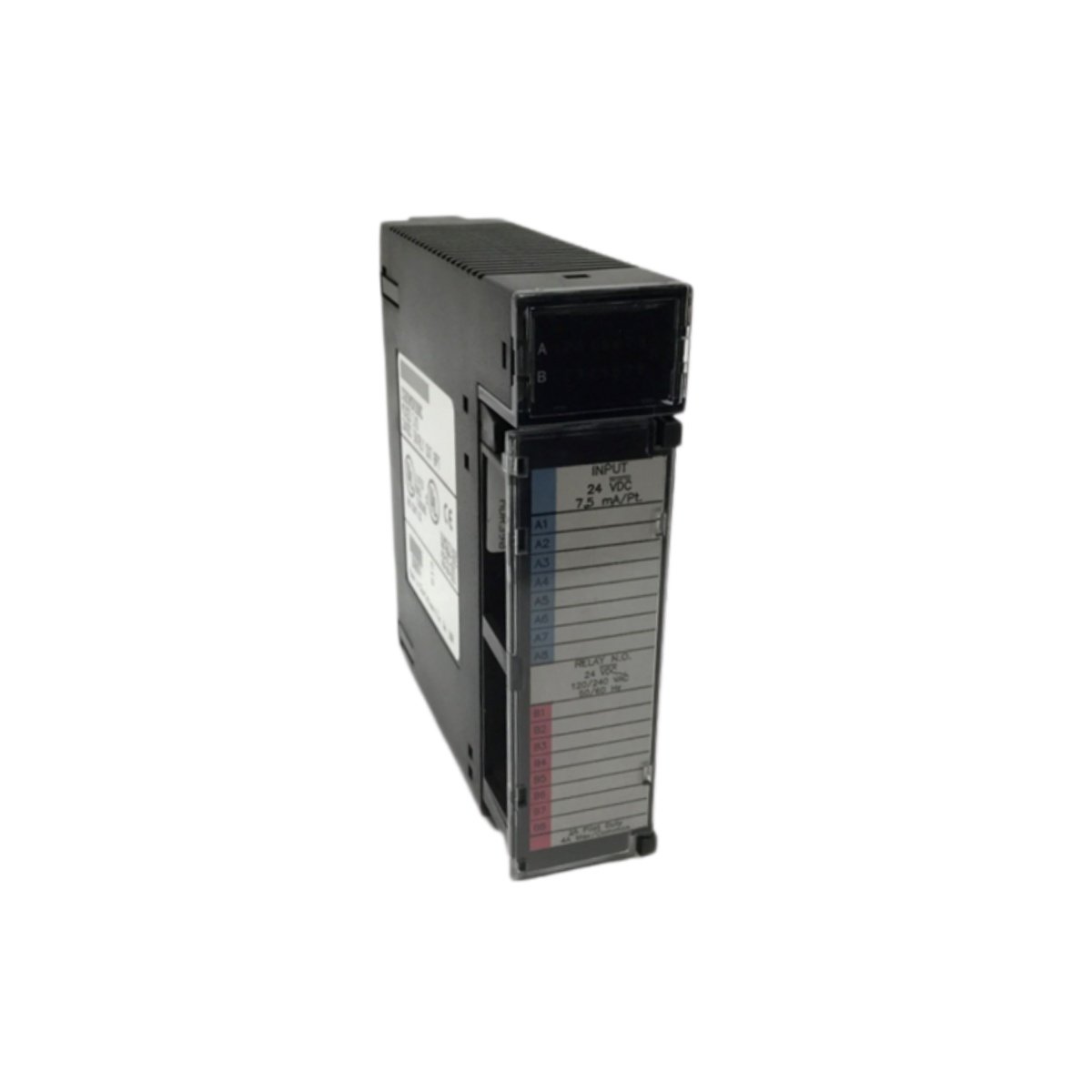

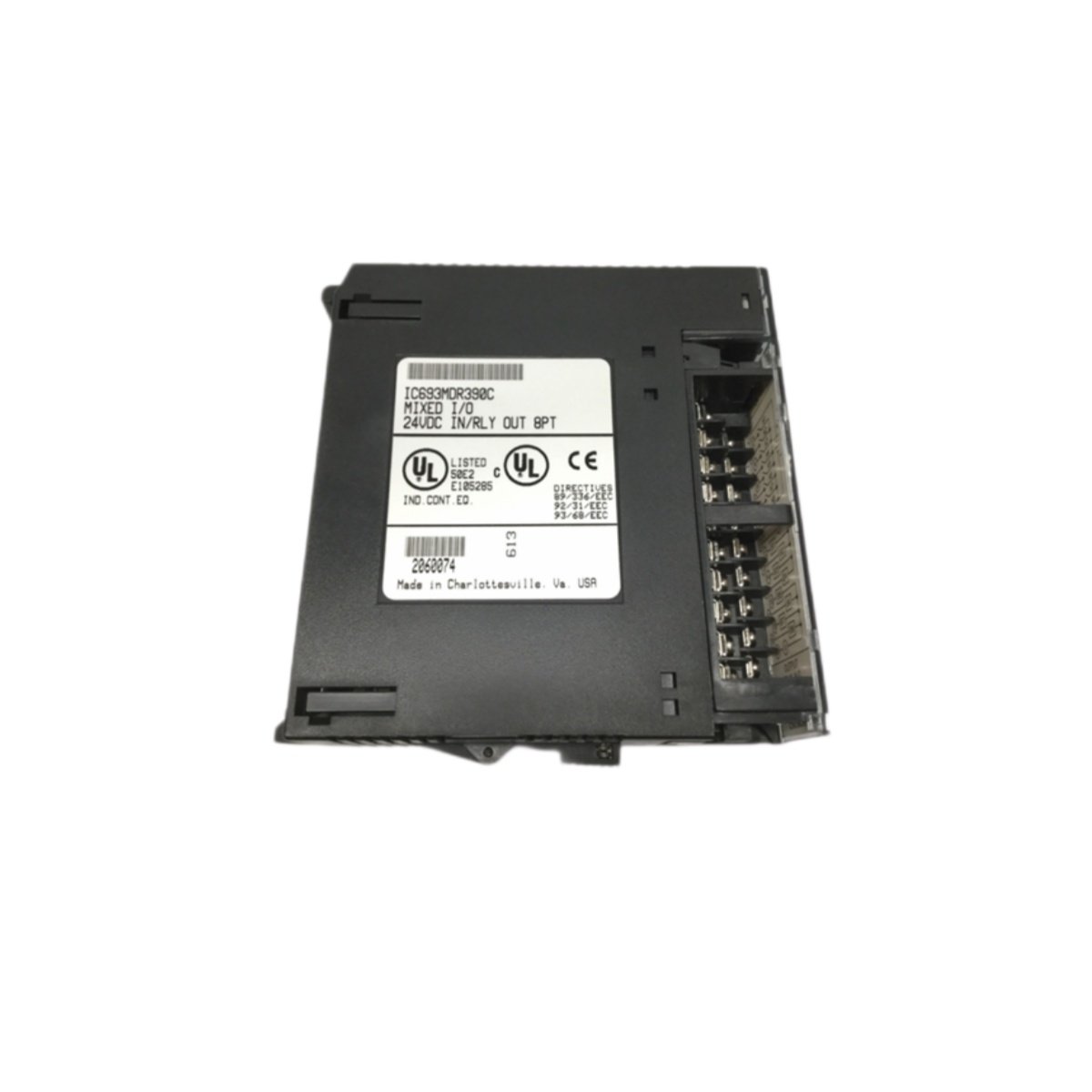

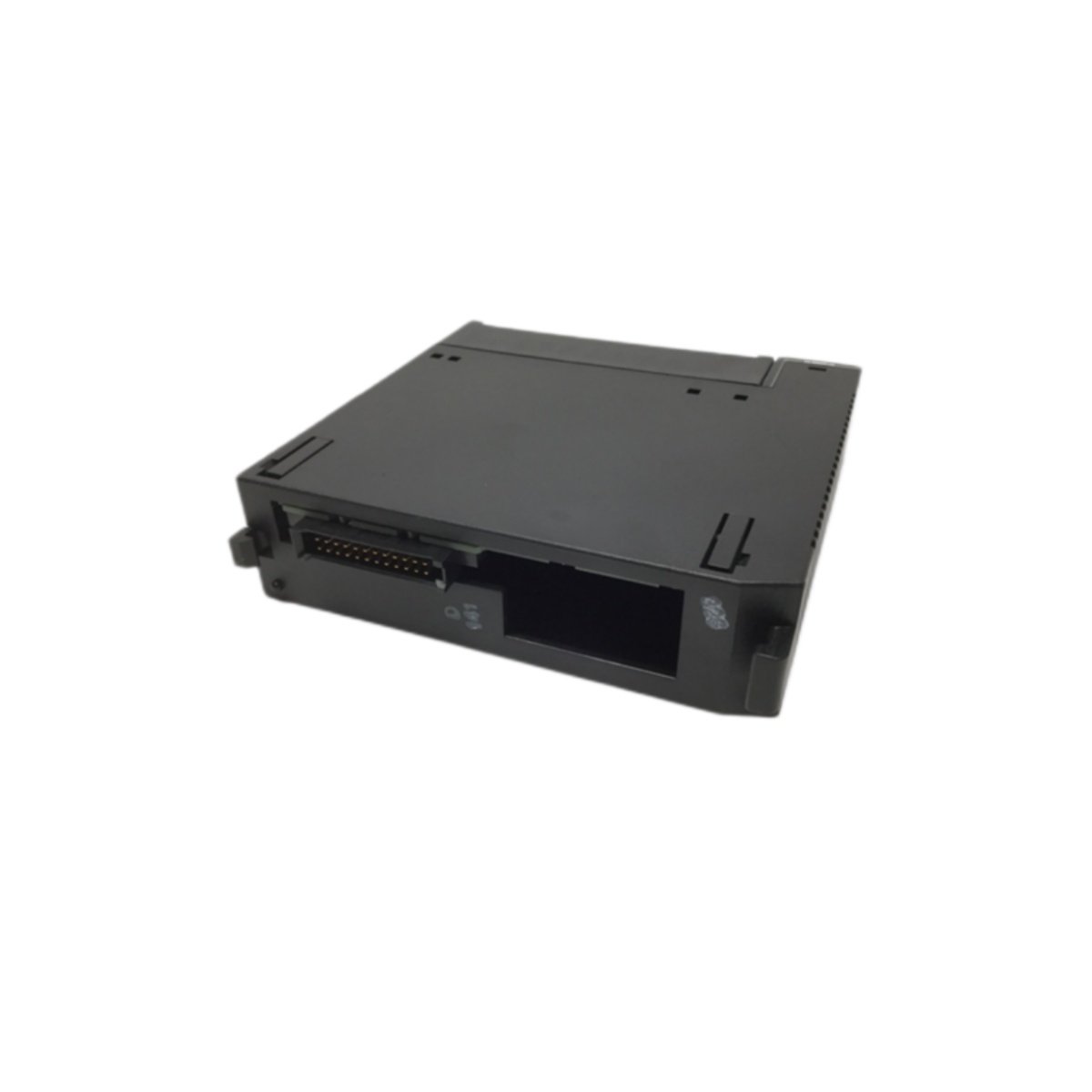

The GE IC693MDR390 combines both digital inputs and relay outputs within a single module for the GE 90-30 PLC system. This mixed I/O unit offers space-efficient control for applications requiring both sensing and actuation. Machine builders rely on this module for driving motors, solenoids, and indicator lamps. The integrated design reduces rack slot requirements and simplifies system architecture.
Technical Specifications
This module features 8 digital inputs and 8 relay outputs in a compact package. The GE IC693MDR390 accepts 24 V DC signals from sensors and pushbuttons. Its relay outputs handle AC and DC loads with substantial current ratings. The unit provides optical isolation between the logic and field circuits.
| Parameter | Specification |
|---|---|
| Product Type | Mixed I/O Module (DC Input / Relay Output) |
| Series Compatibility | GE 90-30 PLC Series |
| Number of Inputs | 8 digital inputs (24 V DC) |
| Input Voltage Range | 10-30 V DC |
| Input Current | 7 mA per channel at 24 V DC |
| Input ON Voltage | > 10 V DC |
| Input OFF Voltage | < 5 V DC |
| Input Response Time | 3 ms typical |
| Number of Outputs | 8 relay outputs (form C contacts) |
| Output Contact Type | Normally open / normally closed |
| Output Switching Voltage | 250 V AC / 30 V DC maximum |
| Output Switching Current | 2 A per channel (resistive) |
| Total Output Current | 8 A maximum |
| Contact Life (Mechanical) | 10 million operations minimum |
| Contact Life (Electrical) | 100,000 operations at rated load |
| Electrical Isolation | 1,500 V AC between field and backplane |
| Power Supply | 5 V DC from backplane |
| Current Consumption (5V) | Maximum 0.10 A |
| Dimensions (W x H x D) | 25 mm x 130 mm x 110 mm |
| Weight | Approximately 0.30 kg |
| Connector Type | 24-pin terminal block (removable) |
| Energy Storage | None (passive I/O circuits) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
Input Characteristics
The GE IC693MDR390 accepts 24 V DC signals from proximity sensors and limit switches. Its RC filtering circuitry eliminates contact bounce effects from mechanical switches. The module’s input LEDs provide immediate visual status indication. Each input channel includes current limiting resistors to protect against overvoltage.
Output Characteristics
This module’s relay outputs switch both AC and DC loads with ease. The GE IC693MDR390 provides 2 A per channel for direct solenoid and contactor control. Its silver-alloy contacts handle high inrush currents without welding. The output LEDs indicate the real-time state of each relay.
Application Scenarios
Packaging lines deploy this module for sensor monitoring and actuator control. It also serves in conveyor systems with proximity detection and motor starting. The GE IC693MDR390 provides efficient mixed I/O for compact machine designs.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 25 × 130 × 110 mm |
