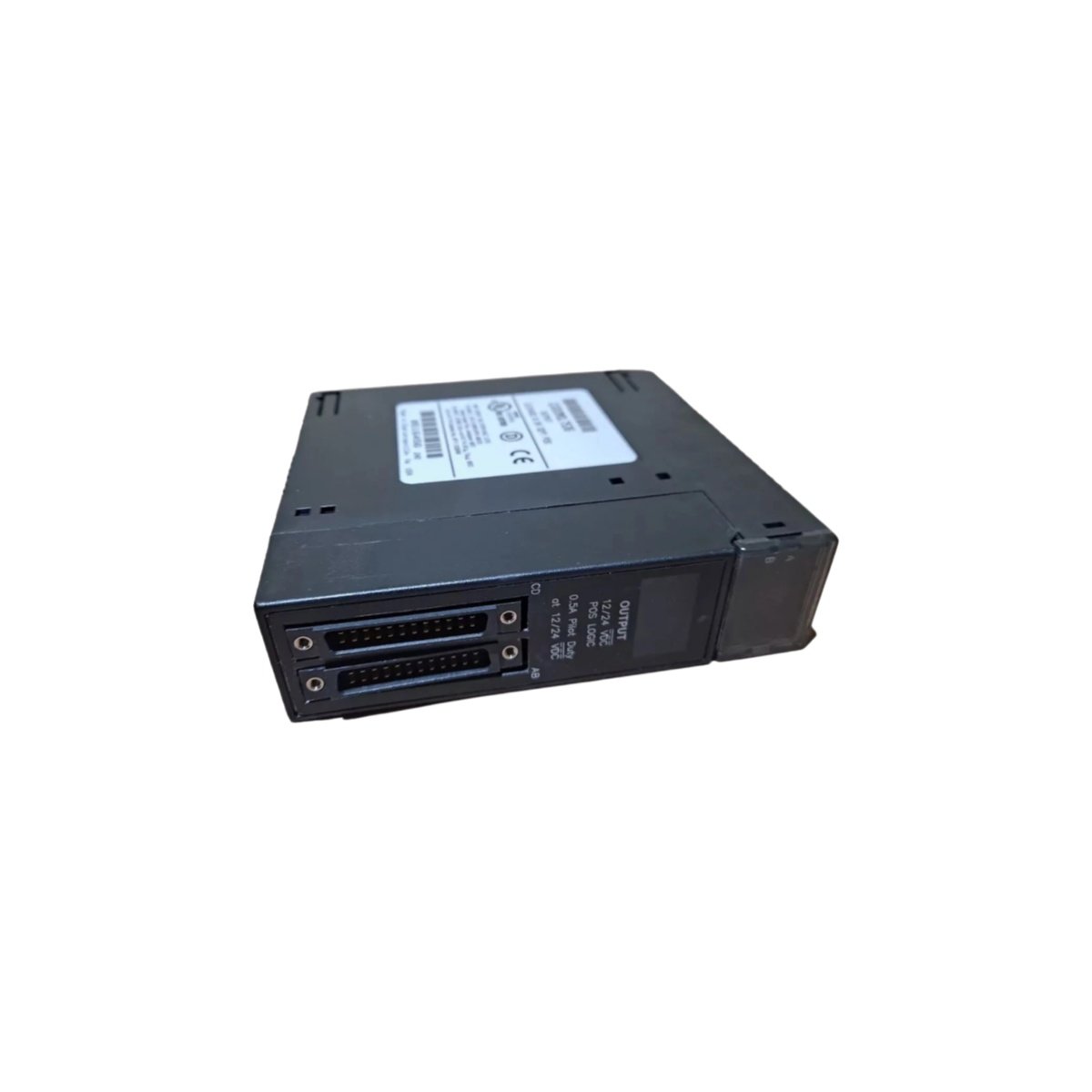

The IC693MDL753G discrete I/O module handles high-density signal switching for GE Series 90-30 PLC systems. This unit combines 32 output points in a single slot format. Engineers rely on it for reliable control of relays, solenoids, and indicator devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete Output Module |
| Compatibility | GE Series 90-30 PLC Systems |
| Output Channels | 32 Discrete Outputs |
| Output Voltage | 12/24 VDC |
| Output Current | 0.5 A Per Point |
| Interface | Backplane Bus Connector, Front Terminal Block |
| Dimensions | 130 mm x 50 mm x 110 mm |
| Weight | Approximately 0.35 kg |
| Component Count | 62 Active Electronic Components |
| Energy Storage | None Required |
| Power Consumption | 5 VDC at 0.7 A |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Output Performance and Density
The module packs 32 discrete output points into one compact slot position. Therefore, it controls many field devices without expanding rack size. Furthermore, each point handles 0.5 A at 12 or 24 VDC. Consequently, it drives relays, solenoids, and pilot lights directly.
Interface and Integration
A backplane connector links the IC693MDL753G to the Series 90-30 CPU rack. As a result, output commands travel through protected internal paths. Additionally, the front terminal block simplifies field wiring and troubleshooting.
Power and Protection
The unit draws 5 VDC at 0.7 A from the system power supply. Moreover, internal clamping protects outputs from inductive voltage spikes. Consequently, connected loads enjoy longer service life.
Installation Notes
Operators insert the module into a standard Series 90-30 rack slot. The single-slot housing conserves chassis space for additional modules. However, users should verify load current totals before commissioning the rack.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
