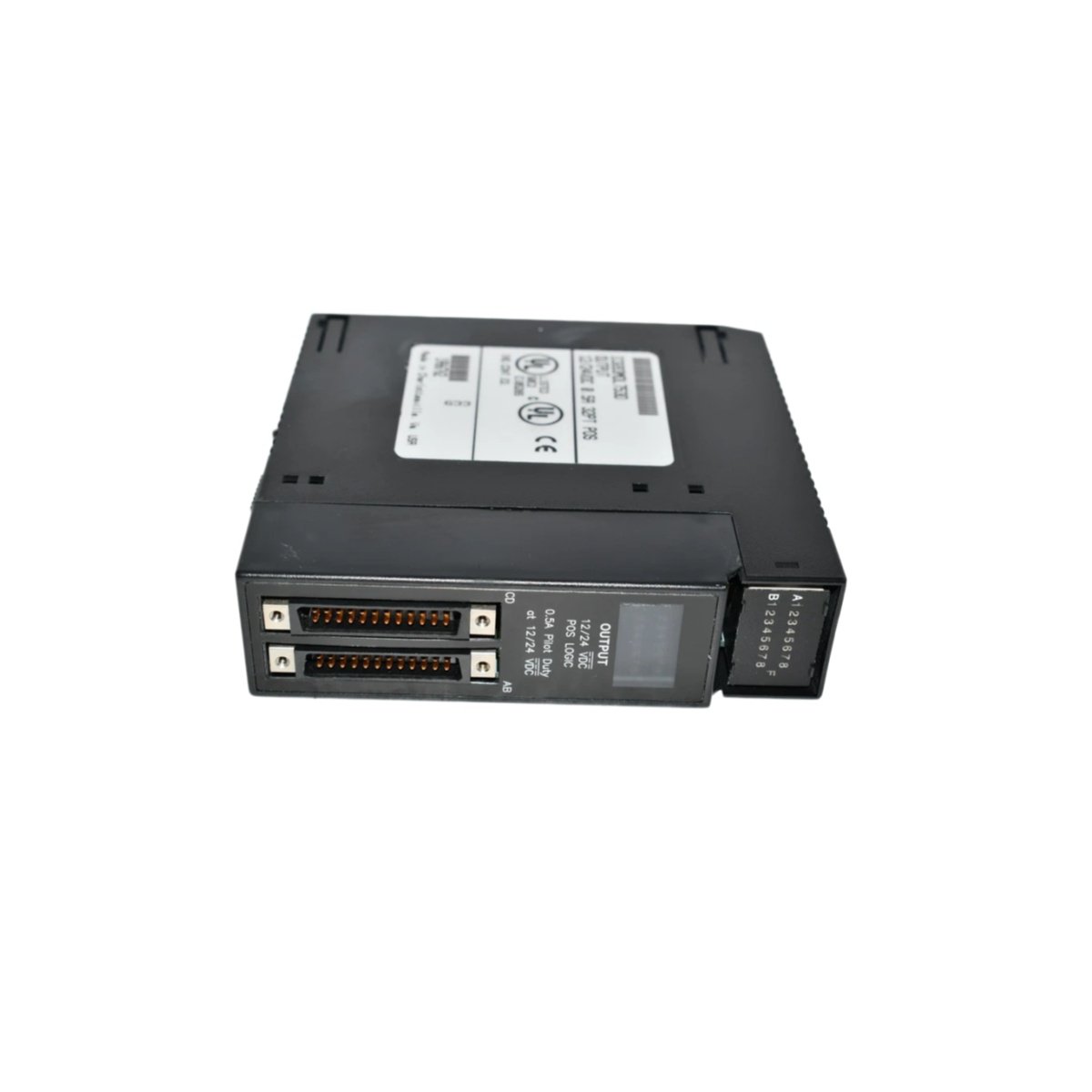

The GE IC693MDL753D positive logic output module delivers reliable control signals to field actuators and devices. This high-density unit manages 32 discrete outputs for comprehensive machine and process control. Its compact housing measures 140 mm in height, 35 mm in width, and 120 mm in depth.

Technical Specifications

Output Capacity and Load Management

The GE IC693MDL753D provides 32 discrete output channels for controlling industrial loads. Each channel delivers 24 V DC at 0.5 A continuous current for driving solenoids, contactors, and lamps. The module handles inrush currents up to 2.0 A for 10 ms during load energization. Users can drive multiple output channels simultaneously within the module’s total power rating.

Response Speed and Switching Performance

This output module achieves rapid response times for time-critical control applications. The ON-to-OFF transition completes in just 1.0 ms for precise de-energization sequences. OFF-to-ON switching occurs within 0.5 ms for immediate actuator response. Such fast switching supports high-speed packaging, sorting, and positioning systems.

Protection Systems and Fault Tolerance

The GE IC693MDL753D incorporates comprehensive protection for reliable operation in harsh environments. Each output includes overcurrent limiting that activates when current exceeds 0.7 A. Short-circuit protection automatically disconnects the affected channel to prevent PCB damage. Thermal shutdown disables all outputs if the module temperature exceeds 85°C.

Power Architecture and Energy Distribution

This module draws 2.1 W from the 5 V backplane supply for logic and isolation circuits. A separate 24 V field supply provides 4.8 W with all outputs energised simultaneously. The split power design isolates control logic from field-side electrical disturbances. This architecture allows the backplane supply to remain stable even during output short circuits.

Backplane Communication and Control Interface

The GE IC693MDL753D connects to the Series 90-30 backplane for high-speed data exchange. The CPU updates output states within one scan cycle of receiving new commands. The module transmits diagnostic data back to the processor for real-time monitoring. This deterministic communication ensures synchronised operation across multiple modules.

Construction and Visual Diagnostics

This module contains 72 components, including power drivers, optocouplers, and protection circuits. A 36-pin spring-clamp connector provides secure field wiring for all 32 channels. Thirty-two front-panel LEDs display the status of each individual output channel. A power LED confirms the presence of both backplane and field supply voltages.

Installation and System Mounting

Mount the GE IC693MDL753D on a standard 35 mm DIN rail using the integrated clip mechanism. Its 35 mm width enables high-density I/O configurations in space-limited cabinets. The spring-clamp terminal accepts wire gauges from 0.2 to 1.5 mm² for reliable terminations. The module locks securely into position with the spring-loaded retaining mechanism.
