Technical Overview

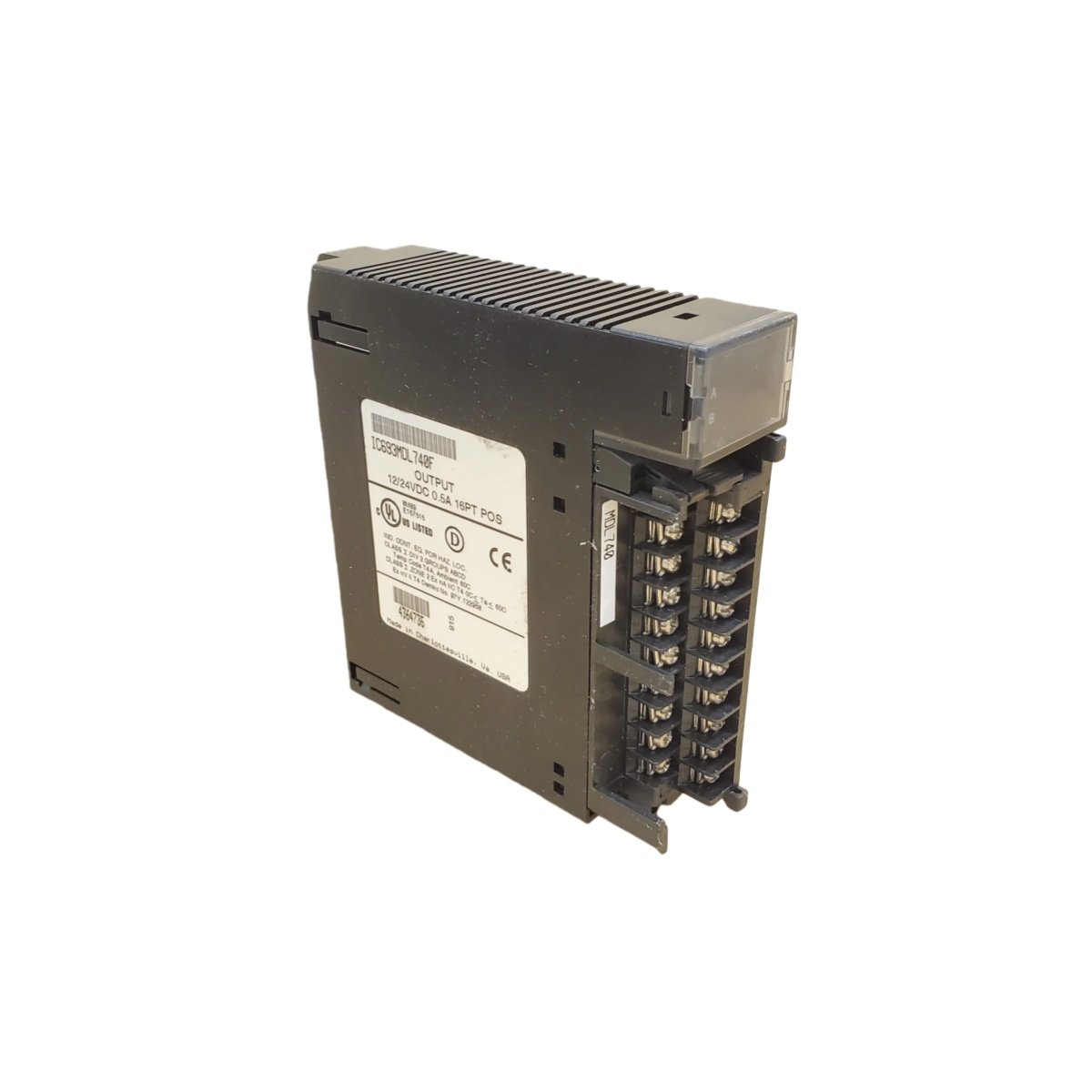

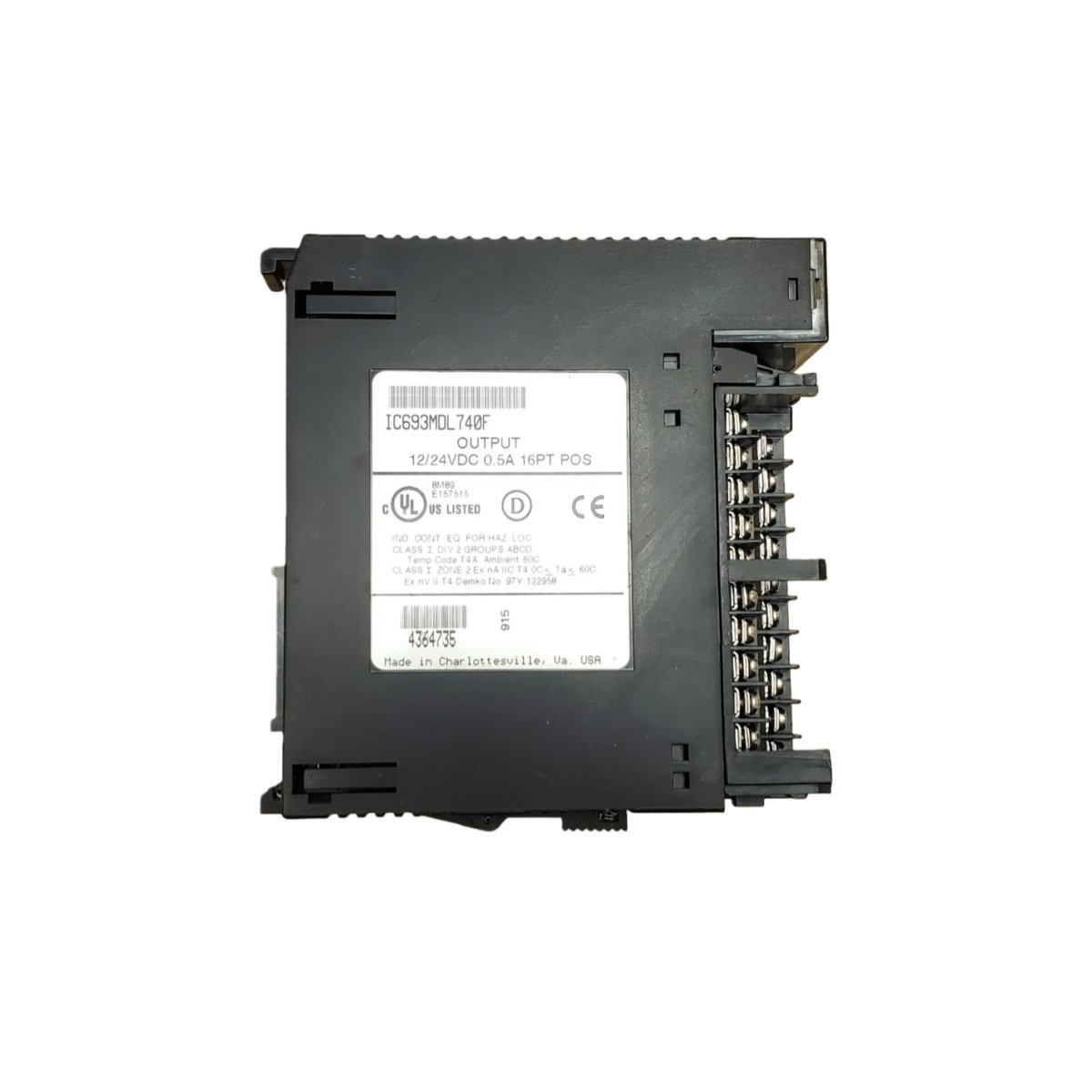

The GE IC693MDL740F is a positive logic DC output module for the GE Fanuc Series 90-30 PLC platform . This unit provides 16 sourcing output channels for controlling field devices such as solenoids, motor starters, and indicator lamps . It sources current directly from the positive power bus to the connected loads . The module divides its 16 outputs into two isolated groups of eight channels each . Each group shares a common output terminal, thereby simplifying field wiring and reducing installation complexity.

Technical Specifications

Key Features

Positive Logic Architecture – This module sources current from the power bus to the load, thereby simplifying integration with standard industrial DC control circuits .

Dual Group Isolation – Two isolated output groups allow independent power feeds or protection schemes, enhancing system resilience .

Individual LED Indicators – Two rows of LEDs (A1–A8 and B1–B8) provide immediate visual status for each output channel .

Solid-State Switching Reliability – The module uses transistor-based output elements instead of mechanical relays, ensuring long life and high endurance for frequent switching applications .

Fast Response Time – The ≤ 2 ms switching speed supports high-speed control tasks in demanding automation workflows .

Applications

The GE IC693MDL740F excels in machine control, conveyor systems, packaging equipment, and material handling applications. It also provides reliable output control for solenoid valves, contactors, and indicator lamps in manufacturing and process automation environments.
