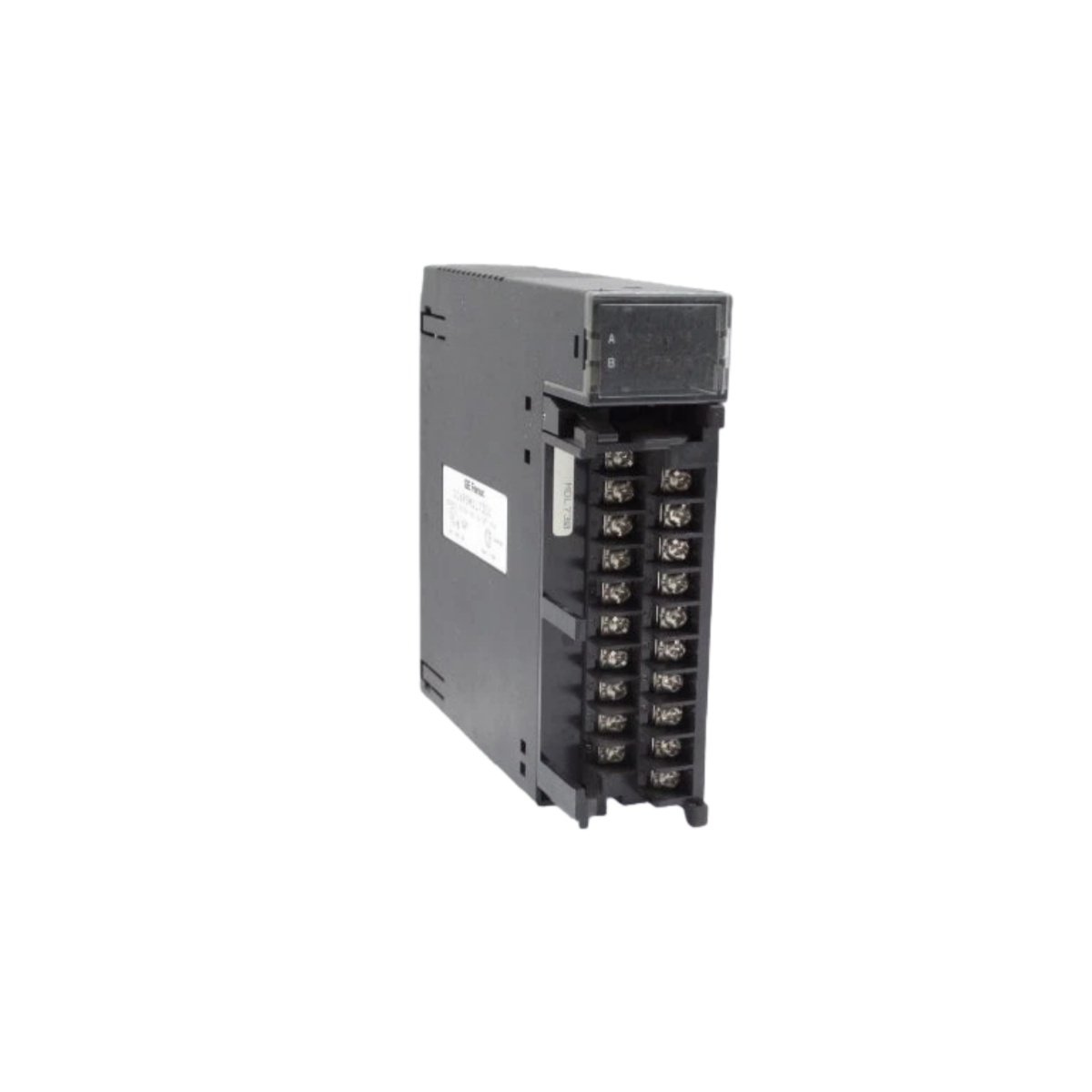

This positive logic output module drives DC loads directly from GE Fanuc Series 90-30 PLC systems. The IC693MDL730 provides 16 discrete output points for controlling solenoids, relays, and indicator lamps. It delivers 24 V DC signals to field devices with reliable switching performance. Machine builders choose this module for its robust output drivers and short-circuit protection. Its compact design occupies a single slot in the Series 90-30 I/O rack.

Technical Specifications Summary

Output Architecture and Channel Configuration

The module features 16 sourcing output channels arranged in two isolated groups. Each group contains 8 channels sharing a common +V terminal. This configuration simplifies wiring for loads with common power returns. The IC693MDL730 delivers 24 V DC output voltage to drive industrial loads. Each channel supplies up to 0.5 amperes of continuous current for reliable operation. The total module current reaches 8 amperes when all outputs energize simultaneously. Each output includes an individual LED indicator for visual status confirmation. These indicators help technicians verify output states without external test equipment.

Robust Output Protection Features

The module incorporates comprehensive protection for outputs and connected devices. Each channel features individual short-circuit current limiting for fault tolerance. This protection prevents damage from wiring errors or load faults. Internal freewheeling diodes handle inductive kickback from relay coils and solenoids. These diodes eliminate the need for external suppression components in most applications. The IC693MDL730 includes thermal protection against excessive power dissipation. An automatic shutdown reduces output current during overtemperature conditions. These protective features enhance system reliability and reduce maintenance costs significantly.

Switching Performance and Response Times

The module responds rapidly to control commands for time-sensitive applications. Turn-on time reaches only 0.5 milliseconds for fast actuation requirements. Turn-off time matches at 0.5 milliseconds for consistent response. These fast switching speeds suit high-speed packaging and material handling equipment. The outputs handle inrush currents up to 2 amperes for 10 milliseconds. This capability accommodates incandescent lamp loads and capacitive startup currents. The IC693MDL730 maintains stable output characteristics across operating temperatures. Switching performance remains consistent regardless of load variations or duty cycles.

Electrical Isolation and Noise Immunity

For system protection, the module provides 1500 V RMS isolation between field and logic. This isolation prevents ground loops from affecting the PLC backplane. It also protects the processor from field-side voltage spikes and transients. The module incorporates optical coupling for signal transfer across the isolation barrier. This design eliminates electrical continuity between field wiring and logic circuits. All outputs feature transient suppression for industrial electromagnetic environments. The IC693MDL730 operates reliably in electrically noisy plant conditions.

Mechanical Construction and Installation

The module occupies one standard slot in the Series 90-30 I/O rack. It measures 110 millimeters in height, 55 millimeters in width, and 110 millimeters in depth. The unit weighs just 0.23 kilograms for easy handling during installation. A removable terminal block accepts 22-14 AWG wire for field connections. The terminal block uses screw-clamp terminations for secure and reliable connections. Power consumption draws only 50 milliamperes from the +5 V DC backplane. The module fits directly into the I/O carrier without special mounting hardware. Installation requires simply inserting the module and tightening the terminal block screws.

Environmental Tolerance and Long-Term Reliability

Industrial environments expose output modules to heat, vibration, and contamination. The IC693MDL730 operates reliably from 0 °C to 60 °C ambient temperatures. Storage conditions from -40 °C to 85 °C protect the module during logistics. Humidity tolerance spans 5% to 95% without condensation affecting performance. The module’s conformal coating protects circuit boards from moisture and dust. These design features ensure consistent operation over the module’s extended service life. Maintenance typically requires only periodic inspection of terminal connections.
