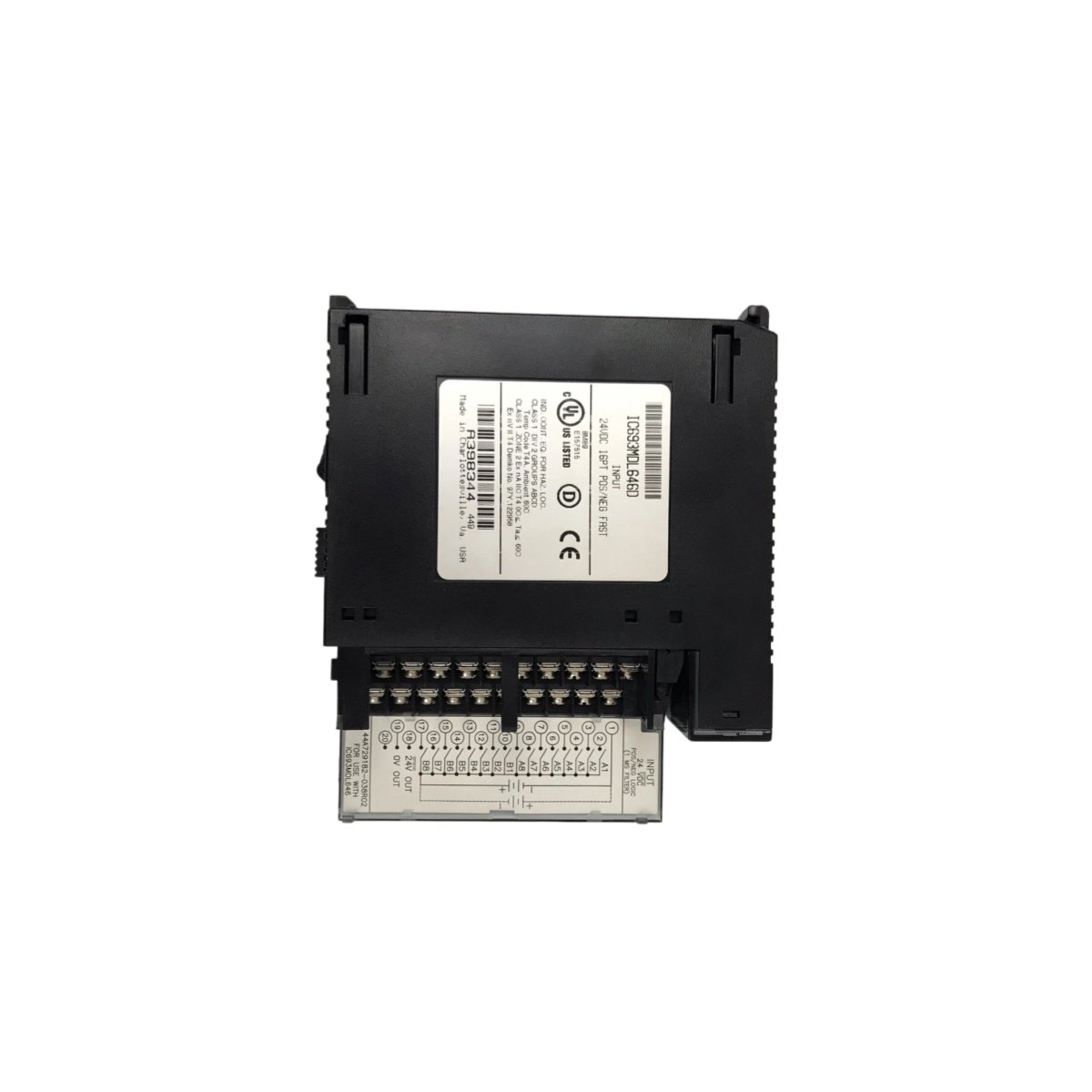

Overview

The IC693MDL646D belongs to the GE Fanuc Series 90-30 family, a line of programmable logic controller modules. Engineers deploy this discrete input module to capture field signals from switches, sensors, and pushbuttons. Consequently, it feeds 24 VDC status data into the PLC backplane for logic processing.

Key Technical Specifications

The IC693MDL646D provides 16 discrete input points in a single-slot package. Moreover, it supports both positive and negative logic configurations for flexible wiring. The table below lists the core parameters.

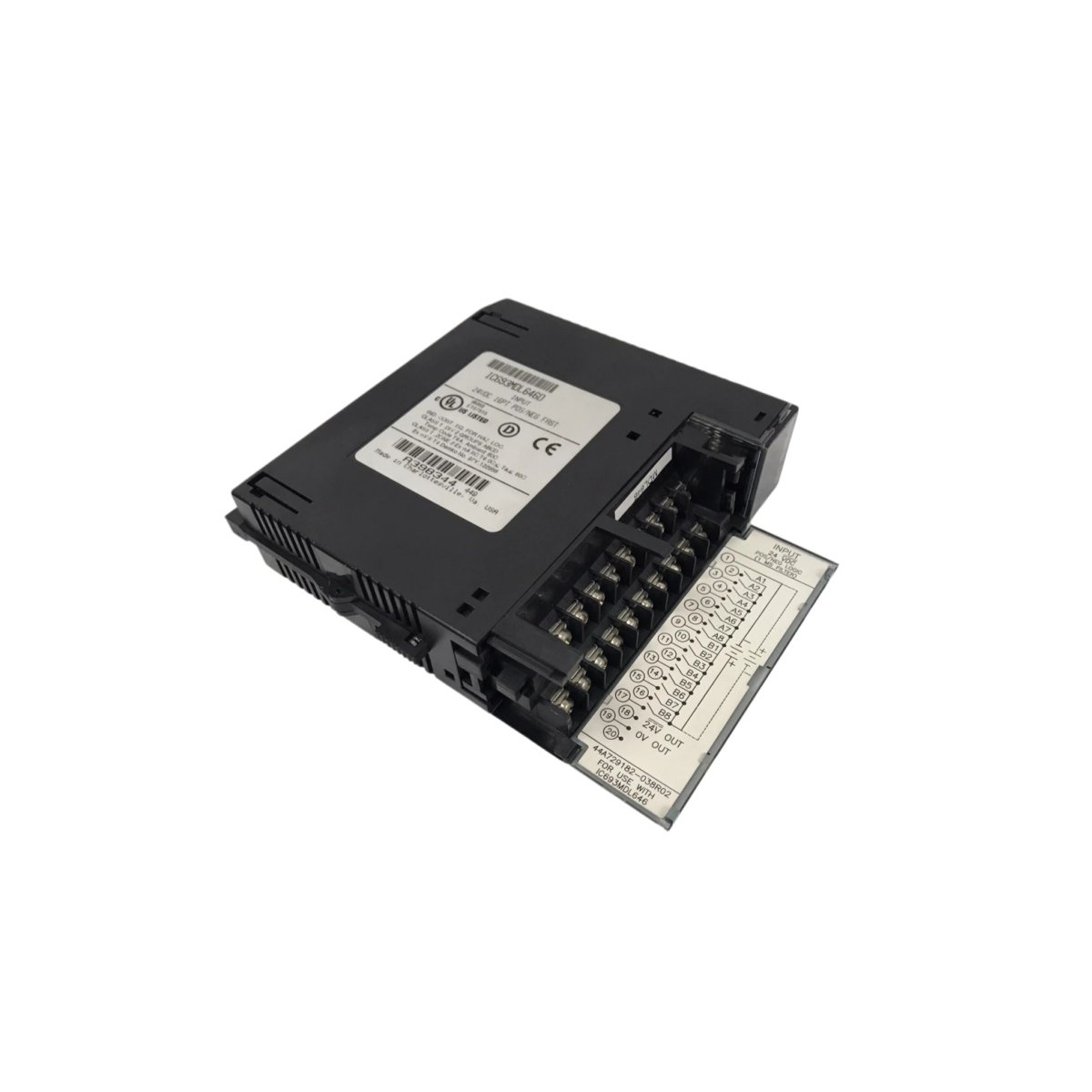

Installation and Interface Details

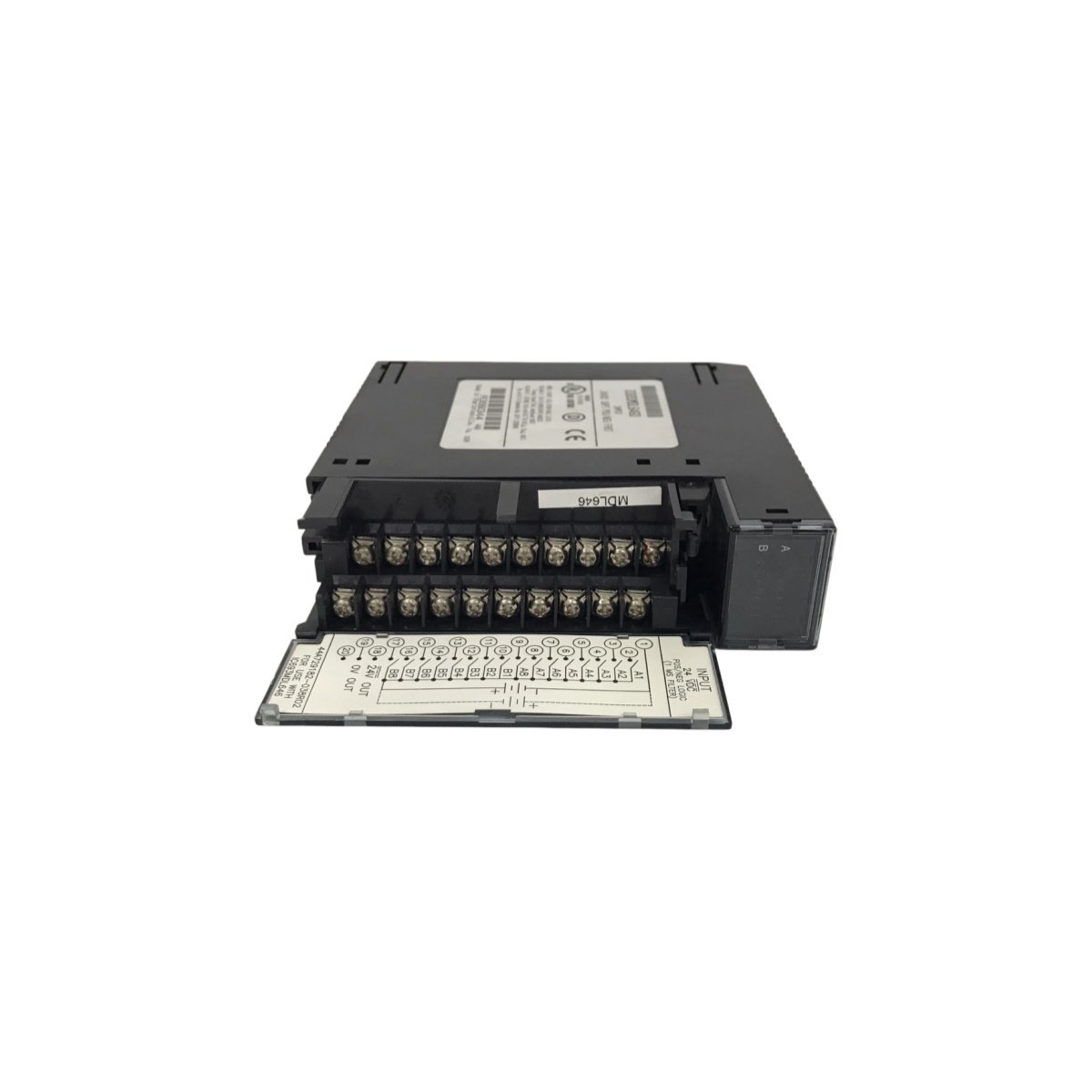

The IC693MDL646D slides into any Series 90-30 rack slot with minimal effort. Field wiring lands on a front-panel terminal strip, which speeds up maintenance. Furthermore, the module draws only 80 mA from the 5 VDC backplane. As a result, technicians reduce power supply sizing and cabinet heat.

Signal Processing and Response

The module detects on-state signals above 11.5 VDC and ignores levels below 5 VDC. Meanwhile, the 7 mA input current keeps field device loading low. Additionally, the 10 ms response time suits most discrete control tasks. Therefore, the module handles limit switches, proximity sensors, and relay contacts reliably.

Environmental and Mechanical Ratings

The enclosure operates from 0 °C to +60 °C in typical plant conditions. Moreover, the sealed housing tolerates 5–95% relative humidity without condensation. The compact footprint of 130 mm × 51 mm × 110 mm fits crowded racks. Consequently, the module suits packaging lines, water treatment plants, and material handling systems.

Why Engineers Choose This Module

This module offers several practical advantages. First, it delivers 16 input points in one slot. Second, it supports both sinking and sourcing wiring schemes. Third, its 1,500 VAC isolation protects the backplane from field surges. Therefore, maintenance teams simplify troubleshooting and reduce spare-part inventory.
