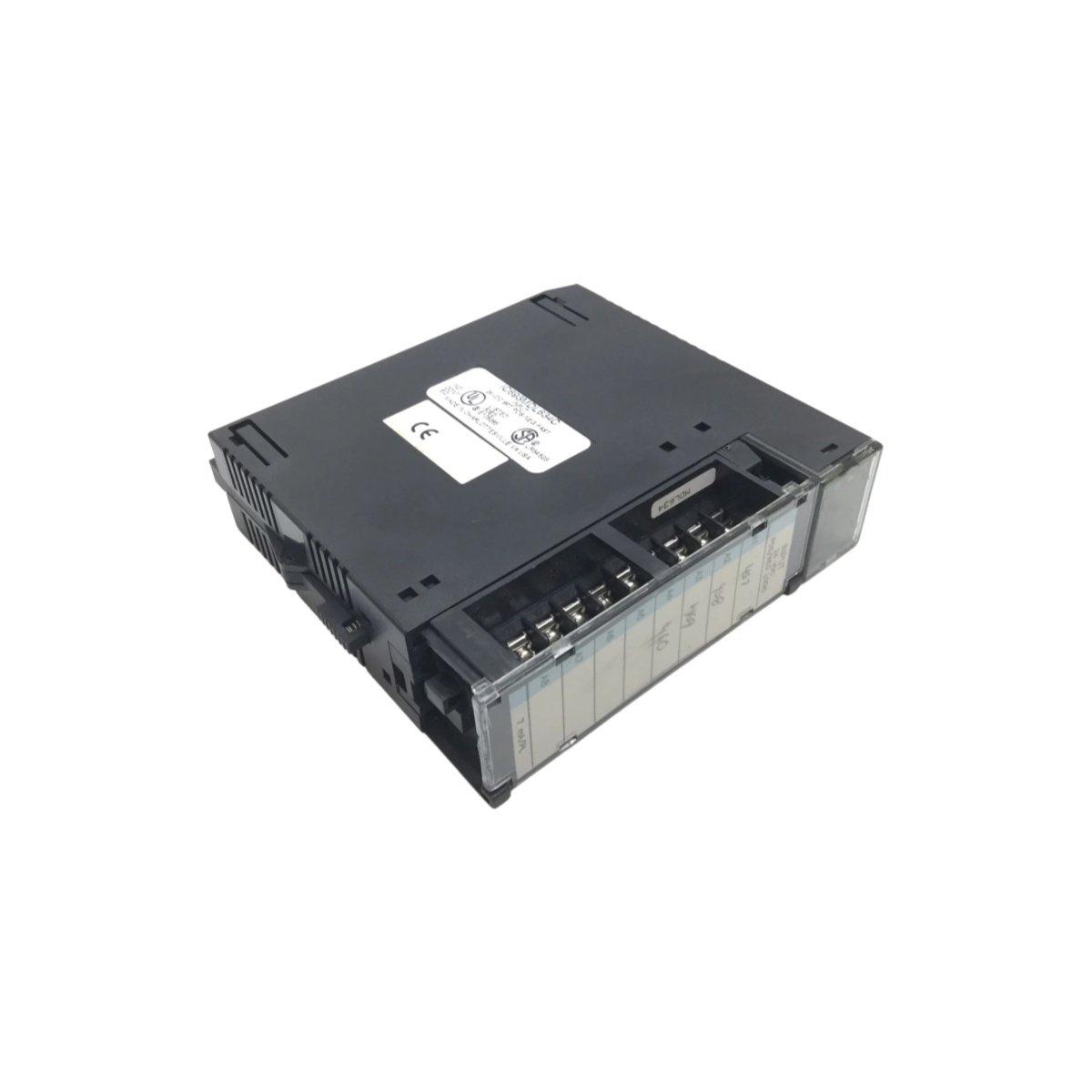

The GE IC693MDL634C digital input module captures discrete field signals within GE Series 90-30 PLC platforms. Engineers install this unit to monitor switch states, relay contacts, and proximity sensors across machine functions. Consequently, it serves manufacturing lines, packaging equipment, and utility control rooms.

Technical Specifications and Hardware Details

This module occupies a single slot inside a compatible Series 90-30 rack. It measures roughly 130 mm high, 50 mm wide, and 120 mm deep, while it weighs about 0.4 kg. Moreover, the front panel carries status LEDs and field wiring terminals.

Functional Capabilities and System Integration

The module reads discrete input signals while it filters noise from field wiring. Meanwhile, the backplane connector links it to the main CPU and system bus. Status LEDs show channel activity, therefore technicians confirm signal presence at a glance.

Additionally, the design supports mixed input configurations across multiple racks. As a result, operators scale systems as production requirements grow. Clear terminal labeling helps technicians trace wiring during troubleshooting. Natural convection cools the module inside standard control cabinets.

Installation and Maintenance Guidelines

Technicians should power down the rack before they insert the IC693MDL634C module. Afterward, verifying terminal connections confirms reliable signal transfer from field devices. Periodic inspection of terminal torque prevents loose contacts and intermittent faults. Finally, consult GE documentation for channel assignments and compatible rack configurations.
