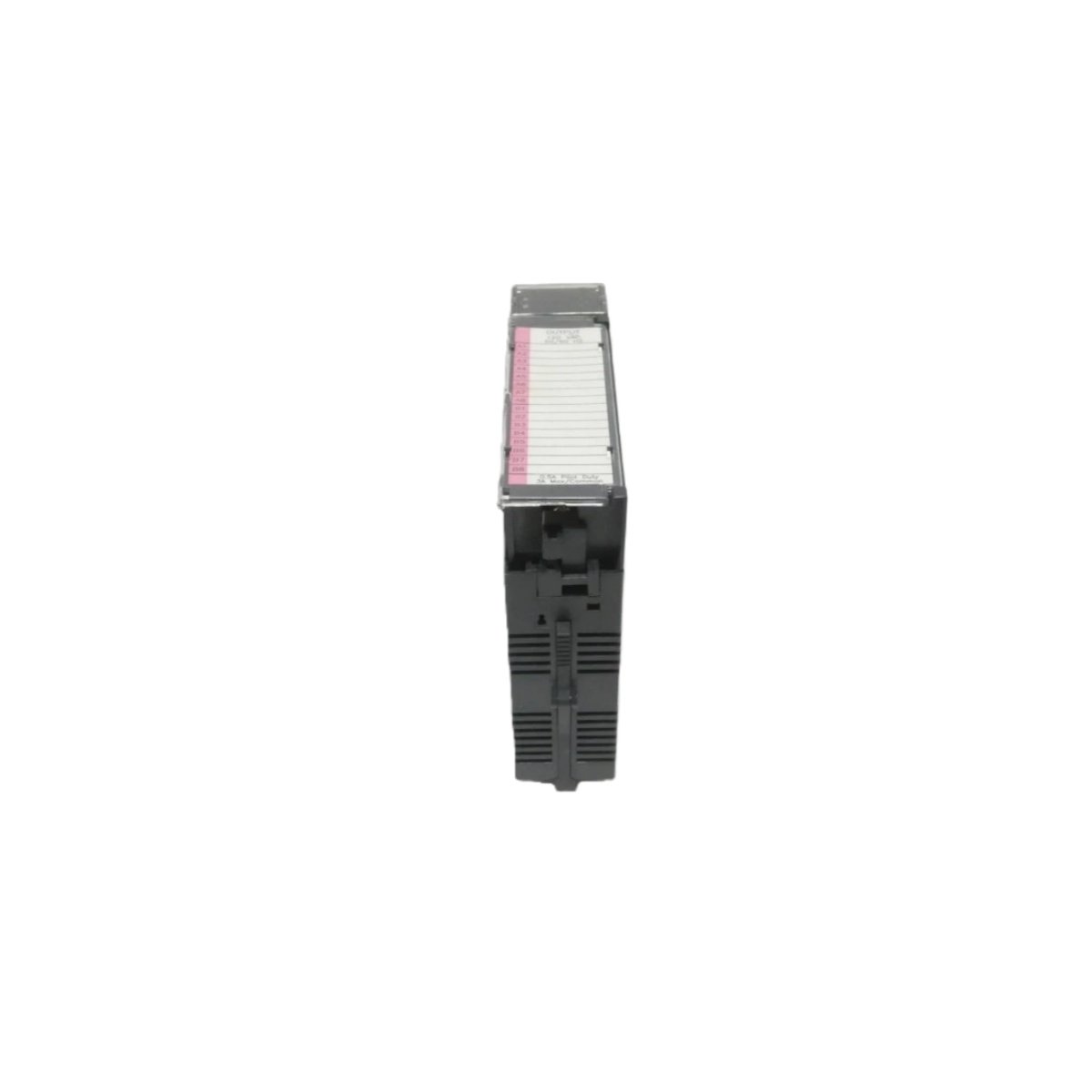

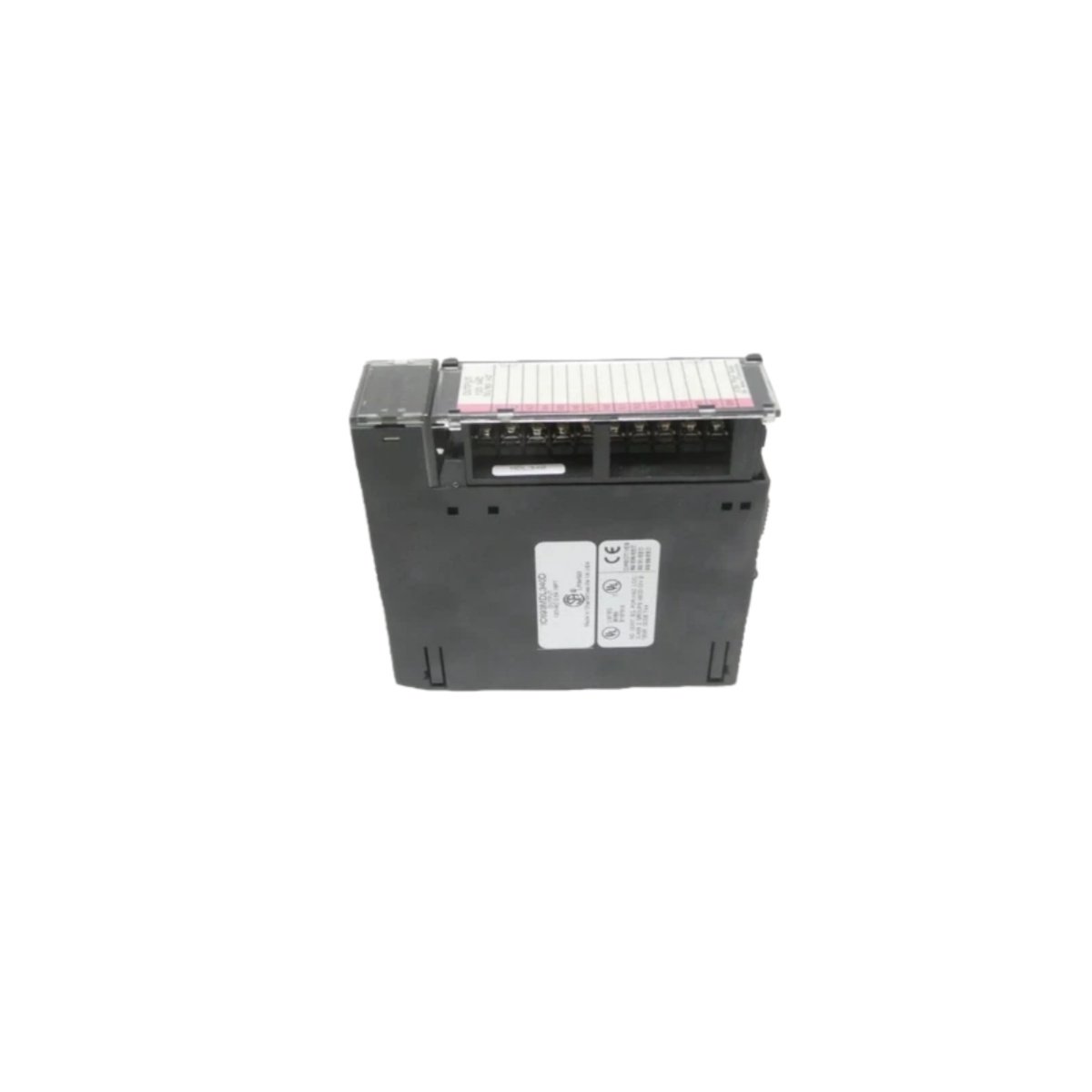

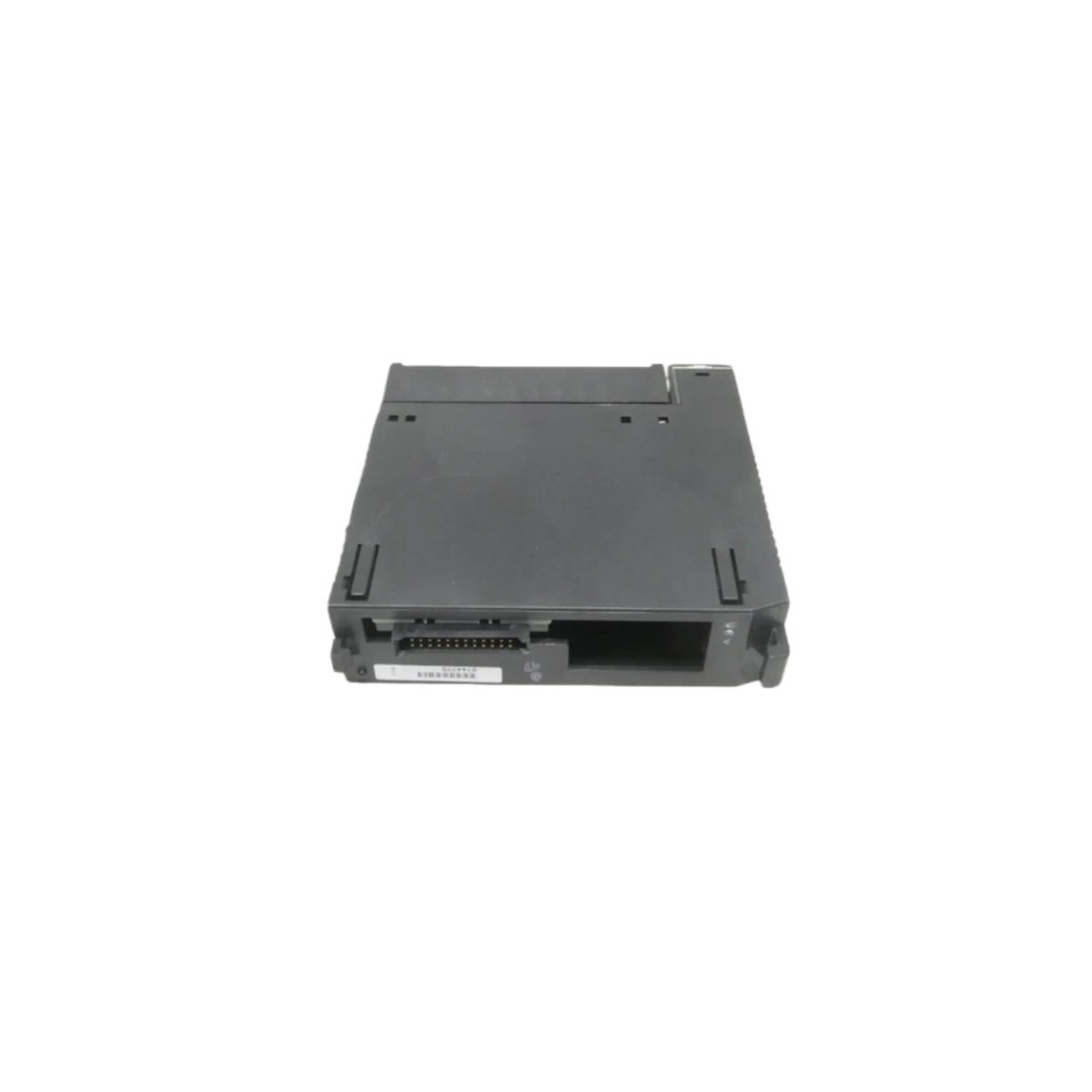

The GE IC693MDL340 discrete output module provides 16 transistor outputs for the Series 90-30 PLC system. This module drives actuators, relays, and indicator lamps directly from the PLC backplane. The unit delivers reliable switching performance with short-circuit protection on every channel.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete output module |
| Compatibility | GE Series 90-30 PLC |
| Number of Outputs | 16 channels |
| Output Voltage | 24V DC (20.4V – 28.8V) |
| Output Current | 0.5A per channel (continuous) |
| Output Type | Transistor (sourcing) |
| Inrush Current | 2A for 10ms (maximum) |
| Switching Frequency | 500 Hz (resistive load) |
| OFF-State Leakage | ≤ 0.1 mA |
| On-State Voltage Drop | ≤ 1.0V at 0.5A |
| Isolation | 500V DC (optocoupler per output group) |
| Dimensions (W x H x D) | 145 x 110 x 45 mm |
| Weight | 0.3 kg |
| Internal Components | 16 x MOSFETs, 4 x driver ICs, 4 x optocouplers, 1 x shift register |
| Bus Connector | 30-pin backplane header |
| Field Terminals | 20-point terminal block (removable) |
| LED Indicators | 16 x green (per channel), 1 x green (power) |
| Protection Features | Short-circuit, overcurrent (1A limit), thermal shutdown |
| Power Supply | 5V DC (backplane), 24V DC (field) |
| Power Consumption | 5V / 180 mA, 24V / 20 mA (no load), 24V / 8A (full load) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Approvals | CE, UL, CSA |
High-Density Output Configuration
The GE IC693MDL340 packs 16 output channels into a compact 145 x 110 x 45 mm housing. This high-density design maximizes I/O capacity within limited cabinet space. Each channel sources 24V DC at 0.5A for driving a wide range of loads. The module handles inrush currents up to 2A for 10ms without tripping protection.
Fast Switching for PWM and Valve Control
This output module achieves switching frequencies up to 500 Hz for resistive loads. This fast response suits pulse-width modulation and proportional valve applications. The MOSFET outputs deliver rapid transitions with minimal on-state voltage drop. The on-state voltage drop remains below 1.0V at full 0.5A current.
Comprehensive Output Protection
Short-circuit protection limits each channel to 1A during fault conditions. Overcurrent protection prevents damage from accidental wiring errors or load faults. Thermal shutdown activates if internal temperatures exceed safe limits. All protection features automatically reset after fault clearance.
Per-Group Optocoupler Isolation
Optocouplers provide 500V DC isolation between the field outputs and the backplane. Four optocoupler groups separate the 16 outputs into isolated banks. This isolation protects the PLC processor from electrical noise and transients. The isolation also prevents ground loops in distributed systems.
Clear Visual Status Indication
Sixteen green LEDs display the real-time status of every output channel. A green power LED confirms the module receives proper 24V DC field supply. Operators can quickly verify output states without external test equipment. The LED indicators greatly simplify troubleshooting during commissioning.
Removable Terminal Block for Easy Wiring
The field wiring connects through a 20-point removable terminal block. This terminal block allows pre-wiring of cables before module installation. Users can replace the module without rewiring the entire system. The terminal block accepts wires from 0.2 mm² to 2.5 mm² for secure connections.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
