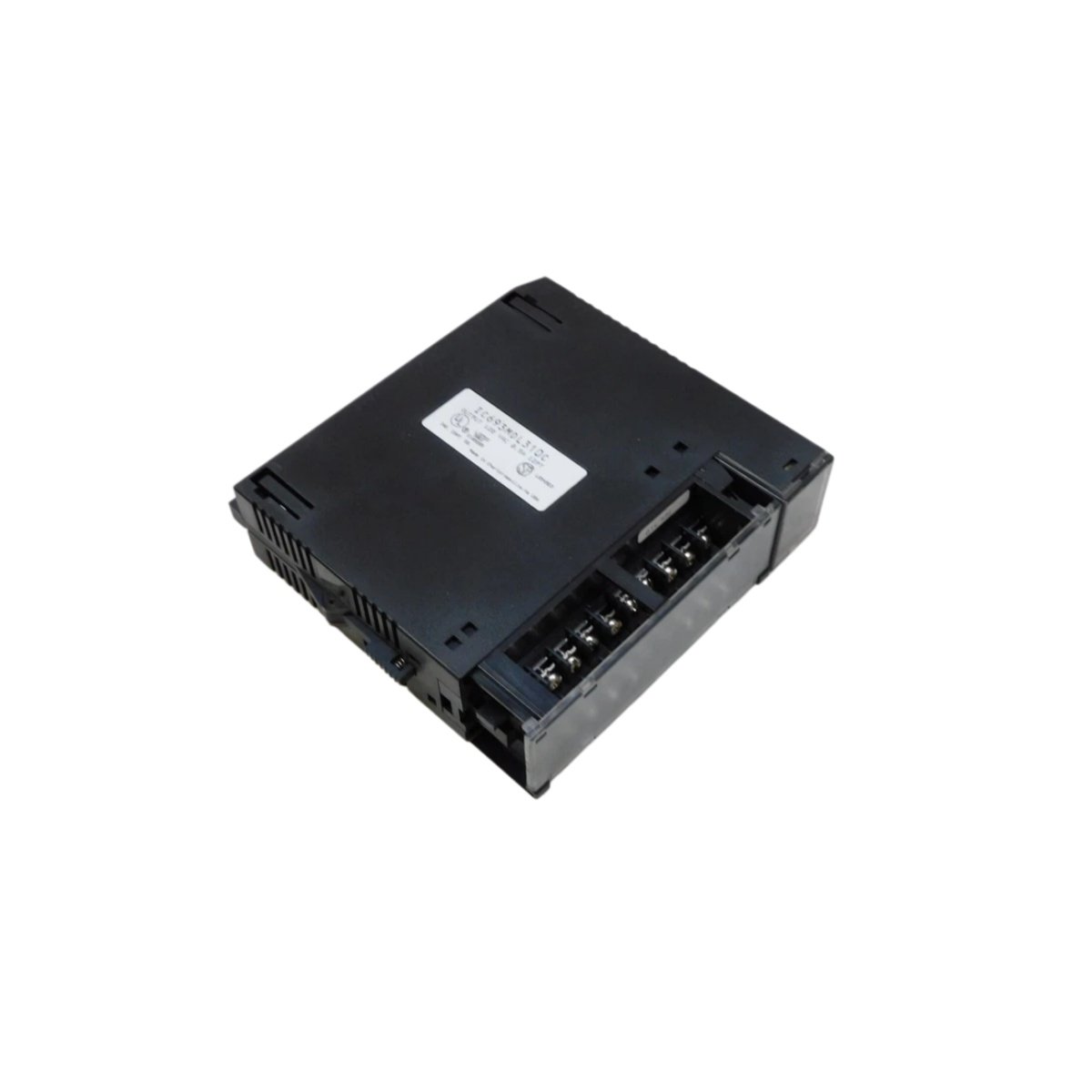

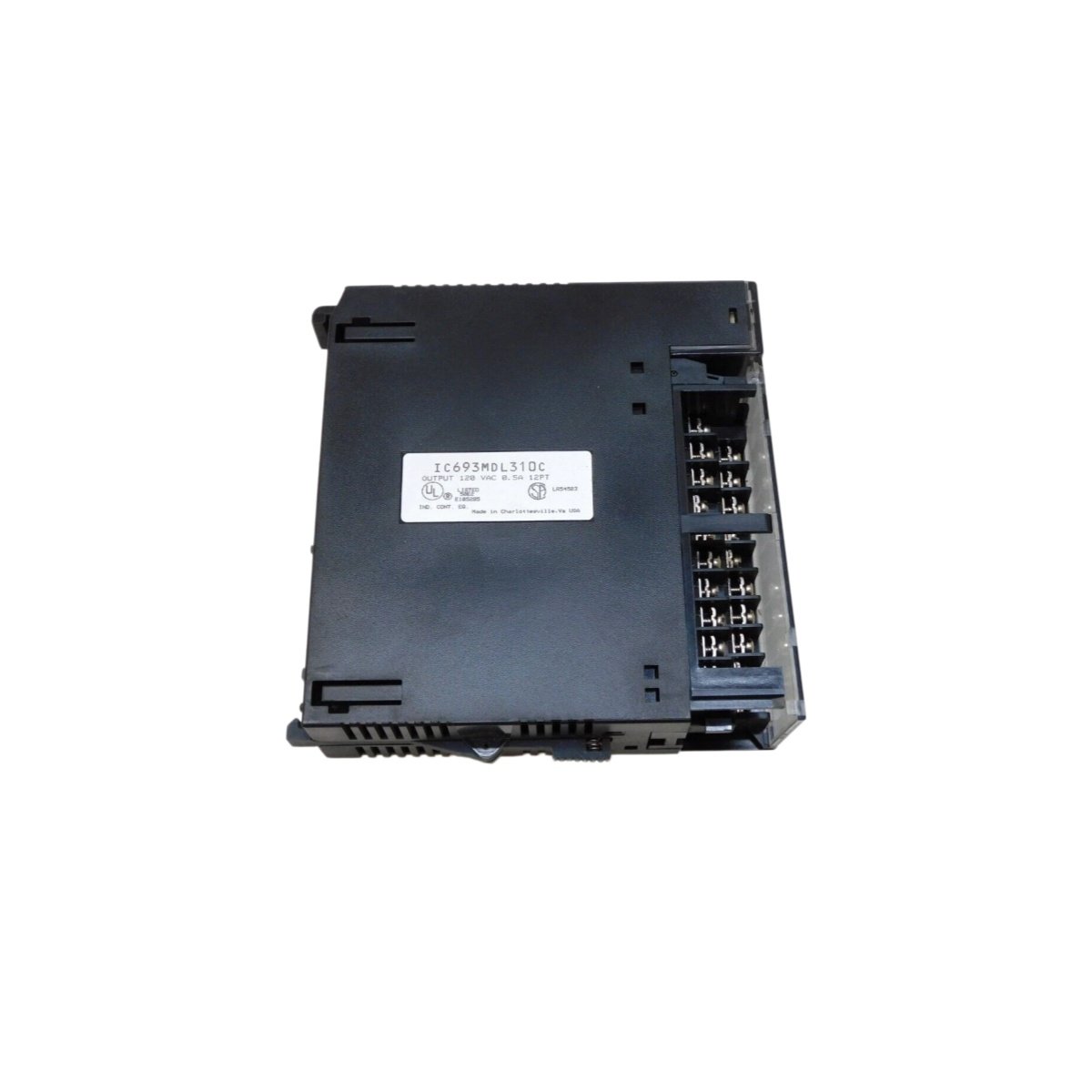

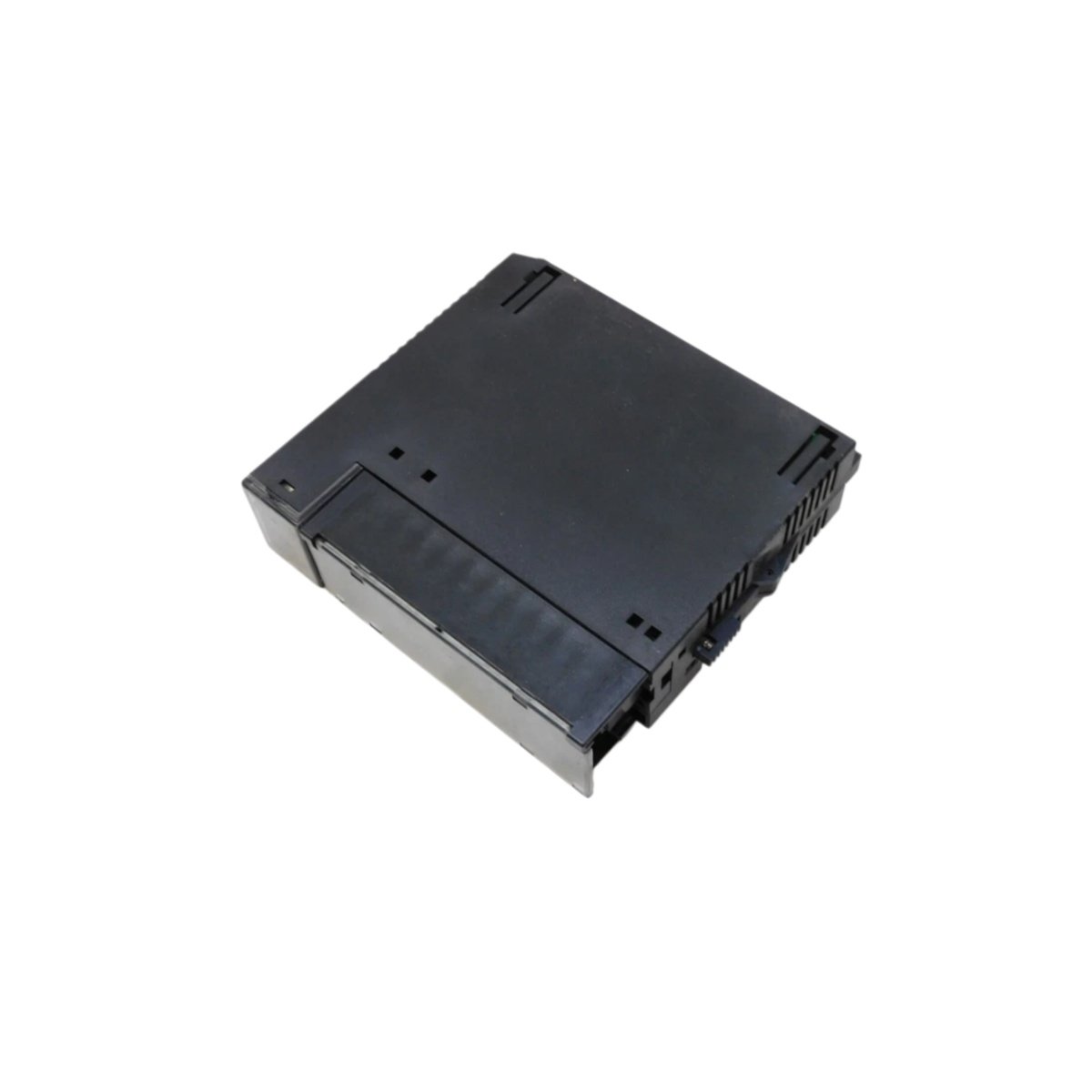

This GE Fanuc output module provides 16 discrete output points for Series 90-30 PLC systems. It sources current directly to field devices such as solenoids, relays, and indicator lamps. Engineers can trust this unit for consistent switching performance in demanding factory environments. Its compact design conserves valuable rack space while delivering substantial output capacity. The module simplifies system design by offering point-by-point fault protection.

Physical Dimensions and Installation Features

The module measures 5.5 inches in height and 2.0 inches in width. Its lightweight construction weighs only 0.55 pounds for easy handling. A rugged plastic housing shields internal circuitry from dust and accidental contact. The unit plugs directly into the backplane via a high-density pin connector. This connection ensures reliable power and communication with the host controller.

Output Channel Specifications and Current Ratings

The module sources 16 outputs with a rating of 0.5 A per point. Each output handles continuous currents up to 0.75 A under specific thermal conditions. The total output current capacity sums to 8 A across all active channels. Every output includes built-in overcurrent protection and thermal shutdown features. These protective measures prevent damage from wiring faults or short circuits.

Power Consumption and Energy Storage Details

The unit draws 90 mA from the +5 VDC backplane supply for logic operations. It also requires an external 24 VDC field supply for output driving. The module consumes minimal power with a dissipation rating of only 3.5 watts. An internal capacitor bank stores transient energy to handle inductive load switching. This energy storage reduces voltage spikes and extends contact life.

Diagnostic Monitoring and Indicator Functions

The front panel features 16 discrete LED indicators for real-time output status. These lights help technicians troubleshoot field wiring without a programming terminal. The module also provides a green “OK” LED to confirm proper backplane communication. Diagnostic logic continuously monitors for short circuits and overload conditions. The module reports any fault directly to the controller for immediate action.

Environmental Resilience and Operating Ranges

The module operates reliably across a temperature span from 0 to 60 degrees Celsius. Its non-condensing humidity tolerance reaches 95% for versatile deployment. The unit resists common industrial contaminants through conformal coating on the PCB. This coating protects sensitive components from moisture and airborne particles. The module meets stringent UL and CSA safety standards for global applications.
