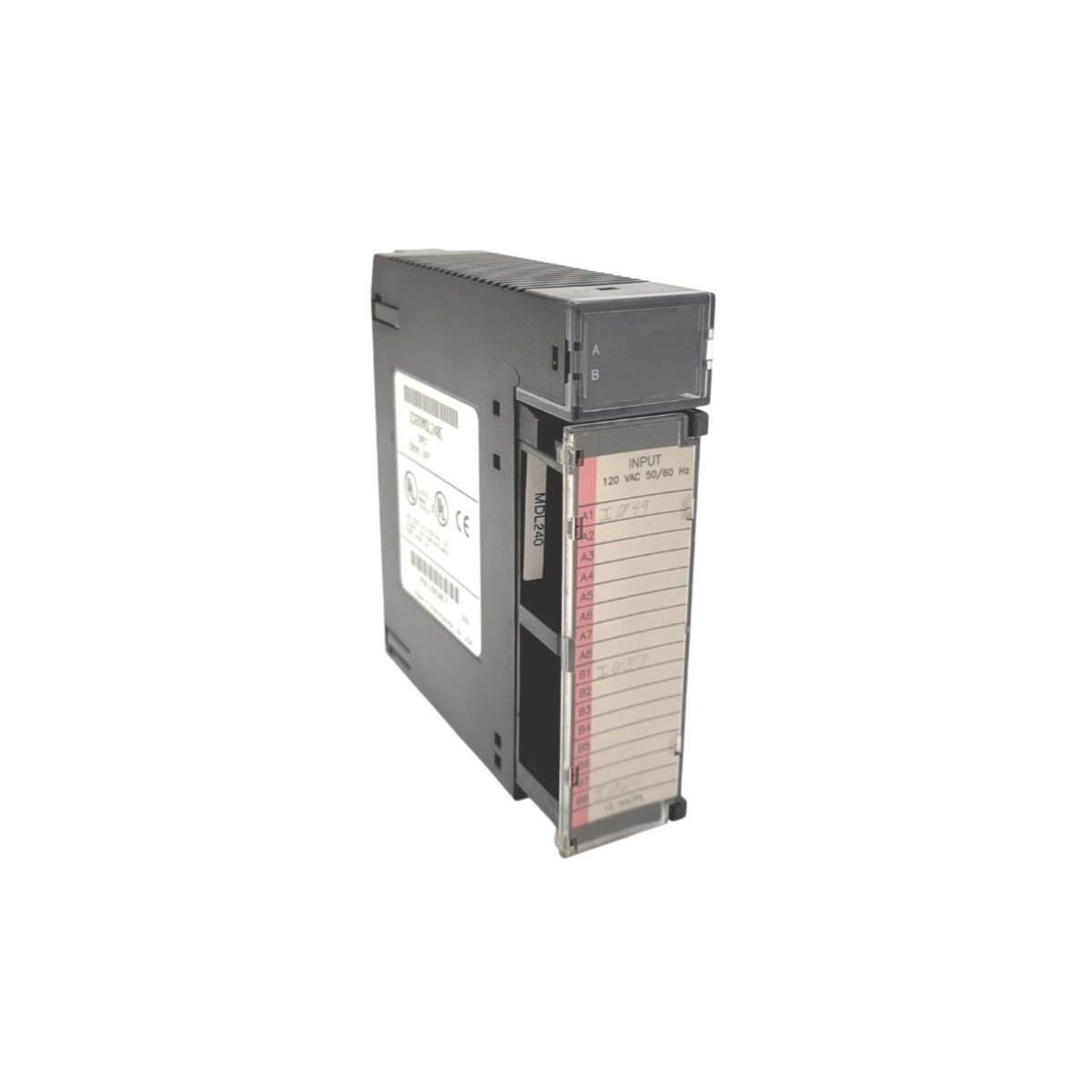

The IC693MDL240E reads AC field signals inside GE Fanuc’s Series 90-30 PLC platform. This module measures roughly 4.9 inches tall, 1.4 inches wide, and 4.5 inches deep. Moreover, it weighs approximately 0.5 pounds, so cabinet space stays efficient. Engineers choose the IC693MDL240E when they need reliable sensing of AC pilot devices and switches.
Technical Specifications and Interface Details
The module accepts sixteen discrete AC input points, and it groups them for efficient field wiring. Specifically, it handles 120 VAC nominal signals with defined logic thresholds. Additionally, the front-mounted terminal block simplifies connections and rapid replacement. Status LEDs reveal per-channel activity during commissioning and troubleshooting.
| Parameter | Specification |
|---|---|
| Module Type | AC Voltage Input |
| Inputs | 16 points |
| Input Voltage | 120 VAC nominal |
| Dimensions | 4.9 x 1.4 x 4.5 in |
| Weight | ~0.5 lbs |
| Interface | Series 90-30 backplane |
| Terminal Block | Front-mounted, removable |
| Indicators | Per-channel status LEDs |
Energy Storage and Signal Conditioning
Internal capacitors on the IC693MDL240E provide local energy storage for clean input thresholds. Consequently, the module rejects electrical noise from motors and contactors nearby. This filtering keeps logic readings stable in electrically busy cabinets. The input stages therefore respond consistently across repeated switching cycles.
Installation and Compatibility Notes
Because the IC693MDL240E fits any Series 90-30 slot, technicians complete installation in minutes. They should verify field voltage before they connect wiring to the terminals. Furthermore, the module integrates smoothly with existing 90-30 control hardware. Always store spare units in anti-static packaging to protect sensitive circuitry.
