Product Overview

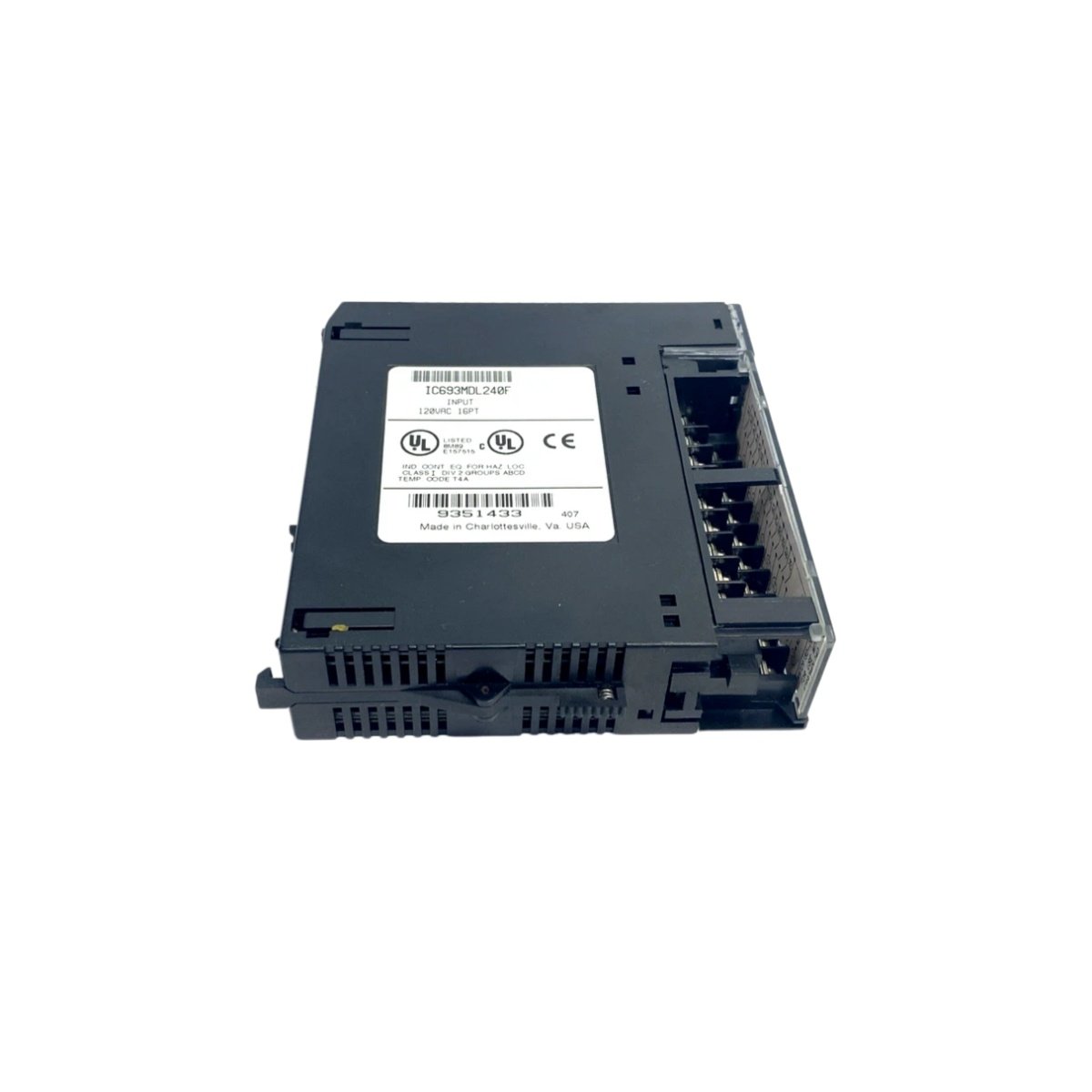

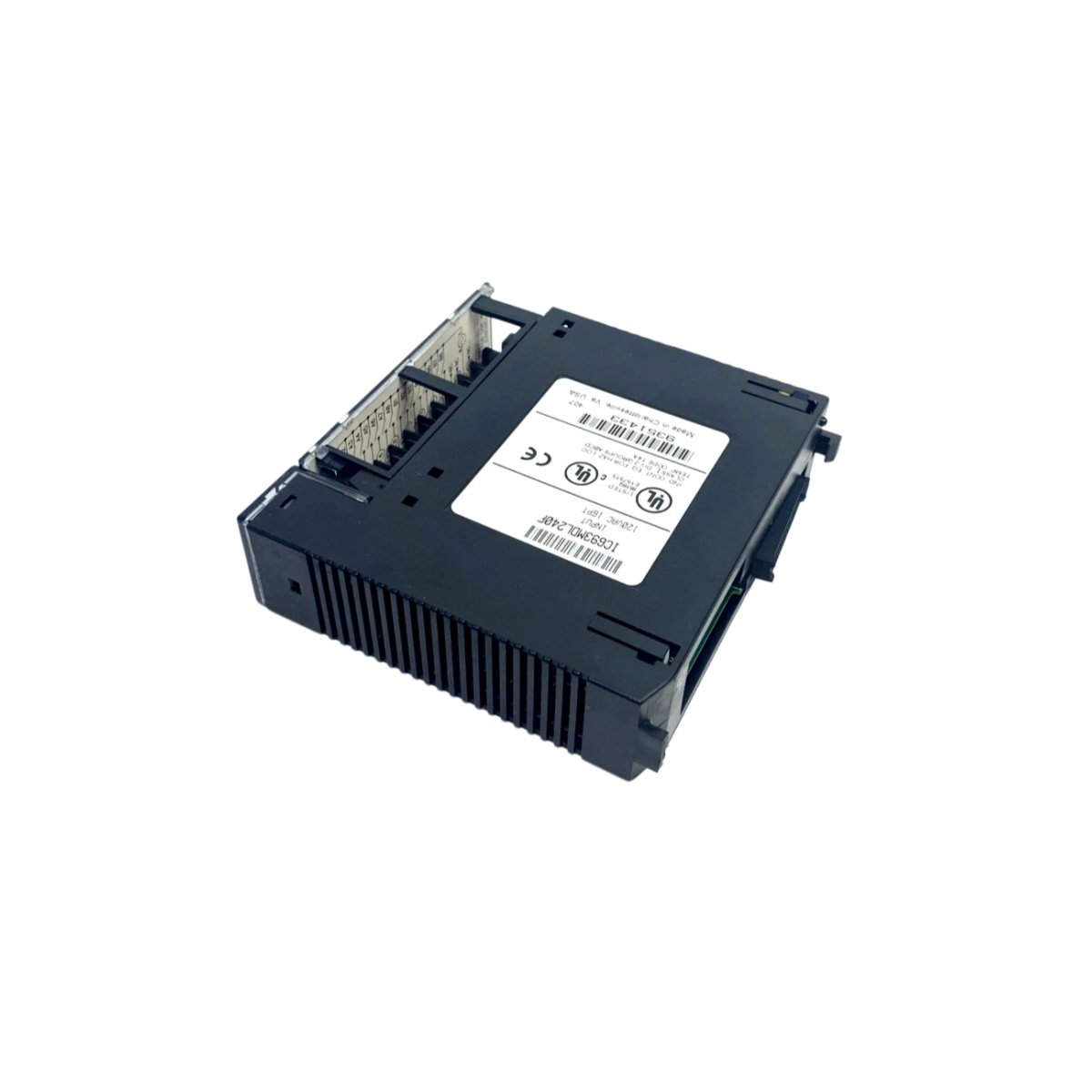

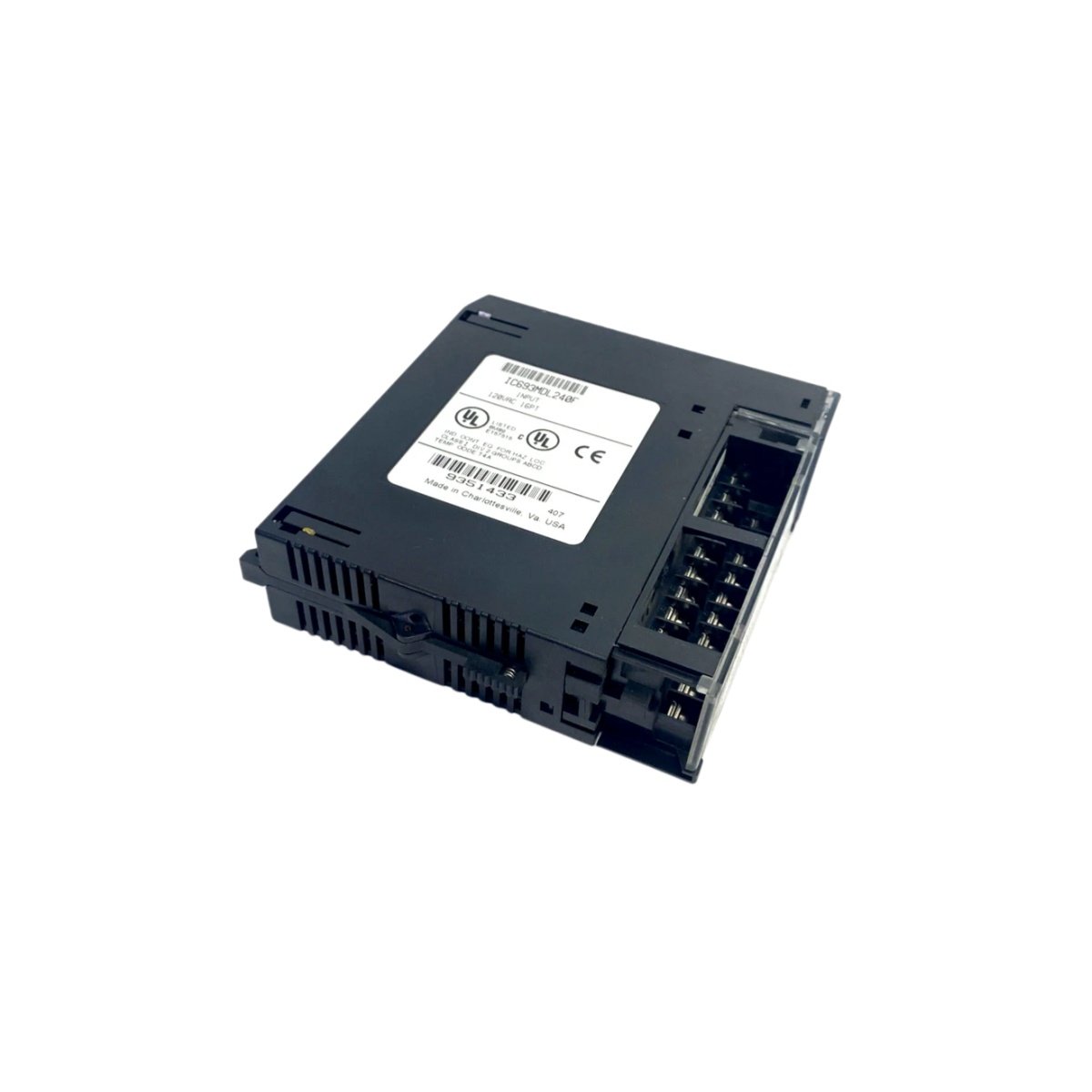

The GE Fanuc IC693MDL240 functions as a 16-point discrete input module for the Series 90-30 PLC system. This module accepts 120 VAC field signals and converts them into logic states for the CPU. Additionally, the IC693MDL240 features reactive (resistor-capacitor) input circuits that effectively reject high-frequency electrical noise .
Technical Specifications
The IC693MDL240 occupies a single slot in any 5-slot or 10-slot baseplate within the Series 90-30 system . This module provides galvanic isolation of 1500 V RMS between the field side and the logic side, protecting the PLC from voltage spikes . Furthermore, the module draws only 90 mA from the 5 V backplane bus when all inputs remain active .
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Product Type | Discrete Input Module |
| System Platform | Series 90-30 PLC |
| Input Points | 16 (one group with single common) |
| Rated Voltage | 120 VAC, 50/60 Hz |
| Input Voltage Range | 0 to 132 VAC |
| On-State Voltage | 74 to 132 VAC (logic 1) |
| Off-State Voltage | 0 to 20 VAC (logic 0) |
| Input Current (Typical) | 12 mA at rated voltage |
| On-State Current | 6 mA minimum |
| Off-State Current | 2.2 mA maximum |
| On Response Time | 30 ms maximum |
| Off Response Time | 45 ms maximum |
| Isolation | 1500 V RMS (field to logic) |
| Backplane Power | 90 mA @ 5 V DC (all inputs on) |
| Operating Temperature | 0°C to 60°C |
| Dimensions | Approx. 28 x 5 x 28 cm |
| Weight | Approx. 0.31 kg |
Key Design Features
The IC693MDL240 includes 16 green LED indicators at the top of the module, arranged in two horizontal rows for clear visual feedback . Each LED corresponds to a specific input point, allowing operators to quickly identify active channels without using a programming terminal. Furthermore, the module features a red color-coded insert on the hinged door, indicating its high-voltage (120 VAC) operation . The input circuits also comply with IEC type 2 standards for compatibility with a wide range of field devices such as pushbuttons, limit switches, and proximity sensors .
Application and Integration
The IC693MDL240 integrates seamlessly into Series 90-30 PLC installations across manufacturing, packaging, and material handling applications. This module directly connects to 120 VAC field devices without requiring intermediate relays or signal conditioners . Therefore, it simplifies system design and reduces overall component costs. Maintenance personnel can rely on the per-point LED indicators for rapid troubleshooting, significantly reducing downtime during fault diagnosis .
Details
| Weight | 0.31 kg |
|---|---|
| Dimensions | 280 × 50 × 280 mm |
