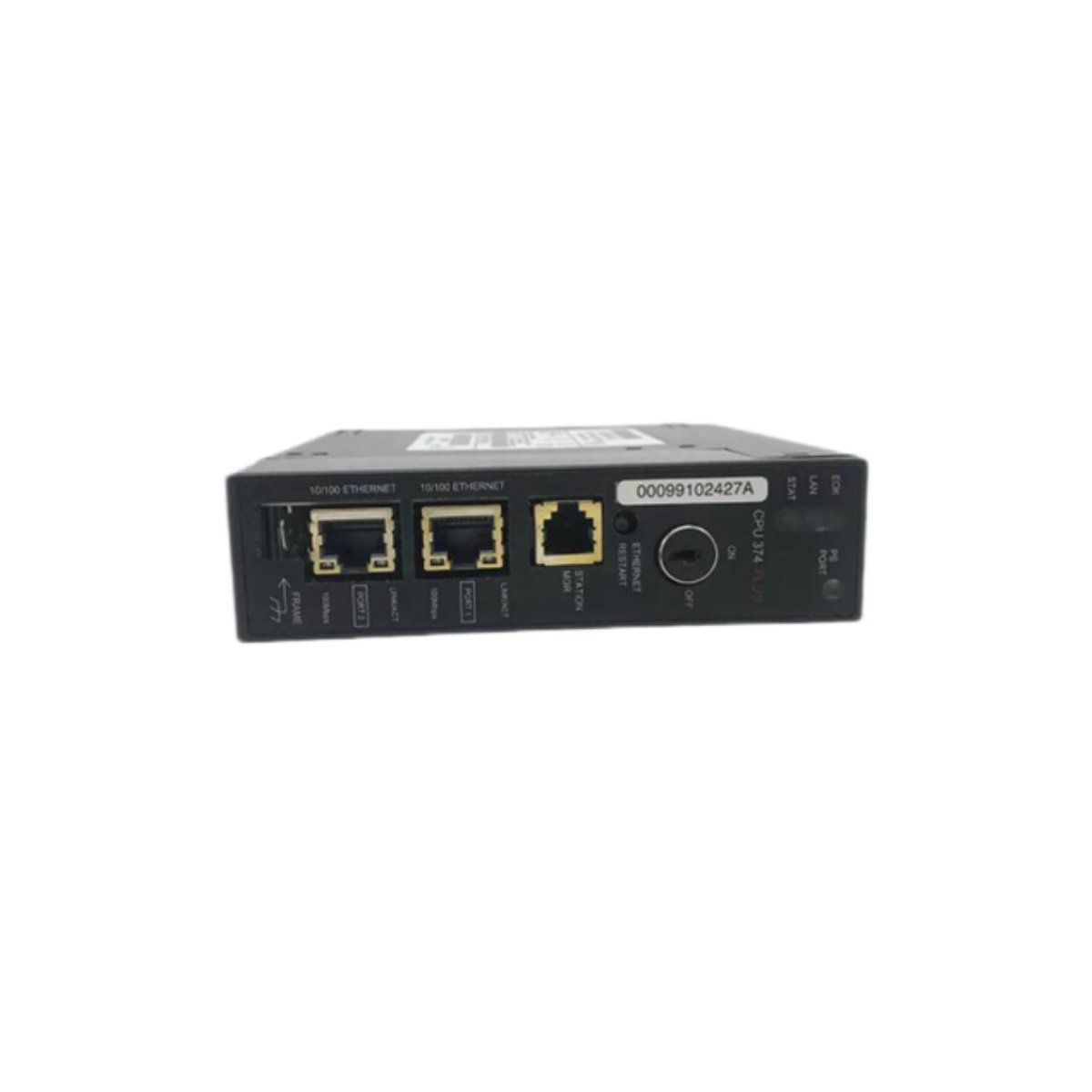

This powerful CPU module serves as the central controller for GE Fanuc Series 90-30 PLC systems. The IC693CPU374-KZ executes complex logic and motion control tasks with exceptional speed and reliability. It supports multiple programming languages and extensive I/O configurations for versatile automation. Control engineers choose this module for demanding applications like packaging, material handling, and process control. Its robust architecture ensures deterministic performance even in the most critical operations.

Technical Specifications Summary

Processing Performance and Execution Efficiency

The module integrates a 56 MHz 32-bit AMD 186 processor for outstanding performance. This processor executes 1000 Boolean instructions in merely 0.2 milliseconds. The IC693CPU374-KZ handles floating-point arithmetic with hardware assistance for precision. It supports 32-bit IEEE format calculations for complex process algorithms. The CPU runs ladder logic, structured text, and C programs simultaneously. Its efficient instruction pipeline minimizes scan times for time-critical applications. Consequently, the module suits high-speed machine control and fast logic processing tasks effectively.

Memory Resources and Data Retention

The module offers comprehensive memory resources for user applications and system data. User program memory provides 80 KB of battery-backed RAM for logic storage. Firmware resides in 512 KB of flash memory for easy field upgrades. Data memory delivers 48 KB for registers, tables, and system variables. A replaceable 3.6 V lithium battery maintains all memory during power outages. This battery provides a minimum of 3 years of memory retention without external power. The IC693CPU374-KZ includes a real-time clock with battery backup for time-stamping. Users can upgrade firmware without losing existing application programs.

Programming Flexibility and Language Support

The CPU supports multiple programming languages for diverse automation requirements. Ladder logic excels at discrete control and relay replacement applications. Structured text handles complex mathematical algorithms and data processing. The module also executes C programs for custom functions and specialized routines. Users can mix languages within the same project for optimal implementation. The development environment includes online editing and powerful debugging capabilities. These features accelerate programming and reduce commissioning time significantly. The IC693CPU374-KZ adapts to various engineering preferences and application complexities.

I/O Capacity and System Scalability

The module manages extensive I/O configurations for large-scale automation systems. It supports up to 2048 digital input/output points across local and remote racks. Local I/O capacity accommodates 512 points directly connected to the CPU. Remote I/O adds 1536 points through expansion racks and distributed networks. The module connects up to 6 expansion racks for system growth and flexibility. The IC693CPU374-KZ maintains deterministic scan performance regardless of I/O count. This scalability protects investment for future plant expansions and machine upgrades. Consequently, it serves both small standalone machines and large distributed systems effectively.

Communication Interfaces and Network Integration

The module provides versatile communication ports for system connectivity. One RS-232 port supports standard SNP protocol for programming and HMI connections. An RS-485 port enables SNP-X protocol for multidrop networks with multiple devices. The IC693CPU374-KZ also supports MODBUS protocols for third-party integration. These communication options ensure compatibility with HMIs, SCADA, and other systems. Front-panel LEDs indicate processor status, communication activity, and fault conditions. This connectivity simplifies integration into both new and existing automation architectures.

Mechanical Construction and Environmental Specifications

This single-slot CPU module features a compact form factor for efficient cabinet space. It measures 110 millimeters high, 55 millimeters wide, and 110 millimeters deep. The unit weighs 0.3 kilograms with its robust metal housing. Power consumption draws 600 milliamperes from the +5 V DC backplane supply. Operating temperature spans 0 °C to 60 °C for control room environments. Storage temperatures from -40 °C to 85 °C protect the module during shipping. Humidity tolerance covers 5% to 95% without condensation affecting performance. The module’s durable construction ensures reliable operation throughout its extended service life.
