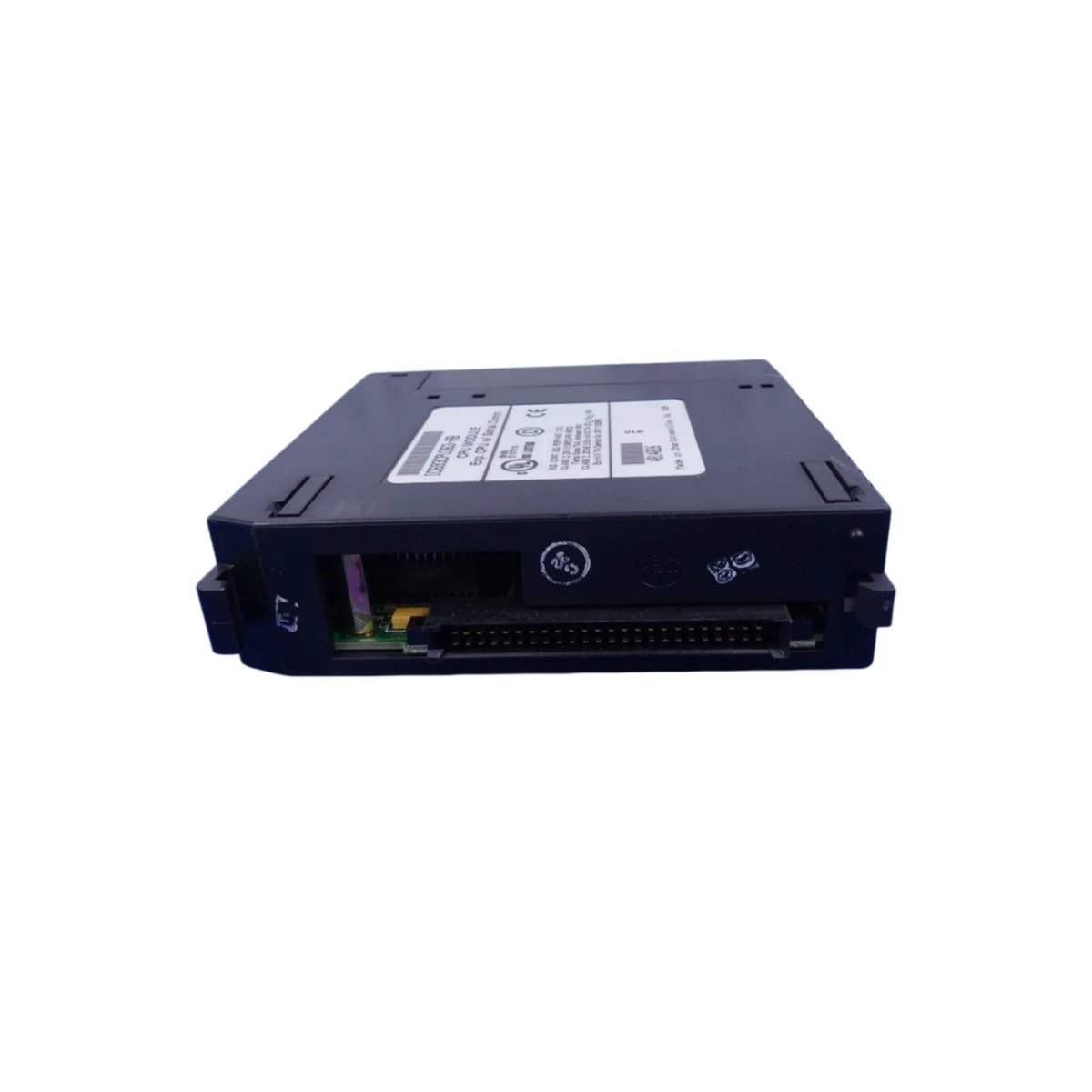

The IC693CPU363-AB processor module powers logic execution for GE Series 90-30 PLC systems. This CPU combines program memory, built-in communication ports, and high-speed scanning. Engineers depend on it for responsive control across manufacturing and process lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Processor Module |
| Compatibility | GE Series 90-30 PLC Systems |
| Processor | 32-Bit Microprocessor |
| Program Memory | 240 KB User Logic |
| Built-In Ports | Serial Port, SNP and Modbus Protocols |
| Interface | Backplane Bus Connector |
| Dimensions | 130 mm x 50 mm x 110 mm |
| Weight | Approximately 0.42 kg |
| Component Count | 58 Active Electronic Components |
| Energy Storage | 3.0 V Lithium Backup Battery |
| Power Consumption | 5 VDC at 1.0 A |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Processing and Memory Architecture
The module runs a 32-bit microprocessor with 240 KB of user logic space. Therefore, it executes large ladder programs at fast scan rates. Furthermore, the expanded memory supports complex sequencing and data handling tasks. Consequently, one CPU covers demanding control applications.
Communication and Interface
A built-in serial port supports SNP and Modbus protocols for data exchange. Moreover, the backplane bus links the IC693CPU363-AB to local I/O modules. As a result, scan cycles stay deterministic across the entire rack.
Power and Backup
The unit draws 5 VDC at 1.0 A from the system power supply. Additionally, a 3.0 V lithium battery preserves program memory during outages. Consequently, technicians avoid reloading logic after brief interruptions.
Installation Notes
Operators insert the module into a standard Series 90-30 rack slot. The compact housing occupies one slot, conserving valuable chassis space. However, users should confirm firmware revision before commissioning the system.
