Processing Core and System Architecture

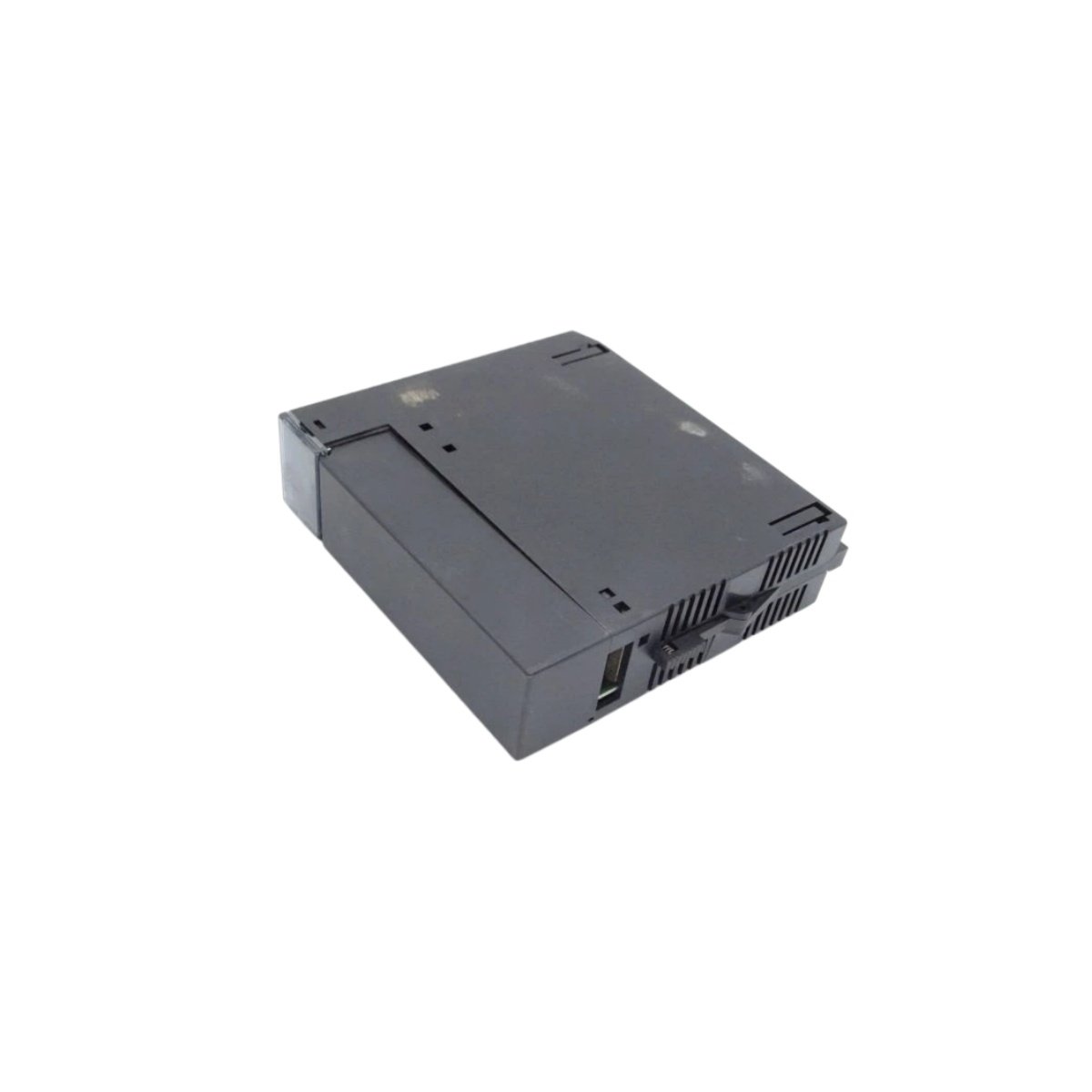

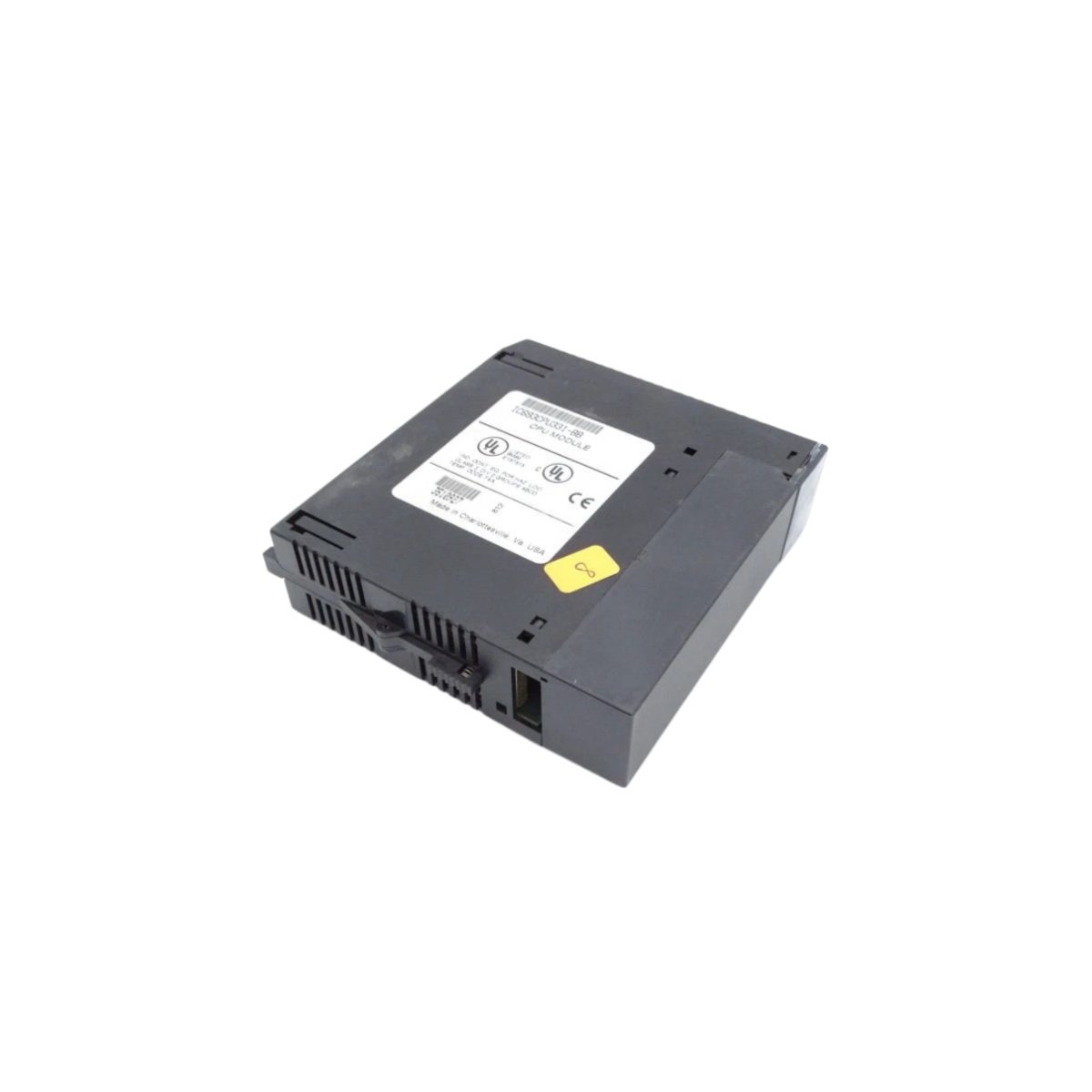

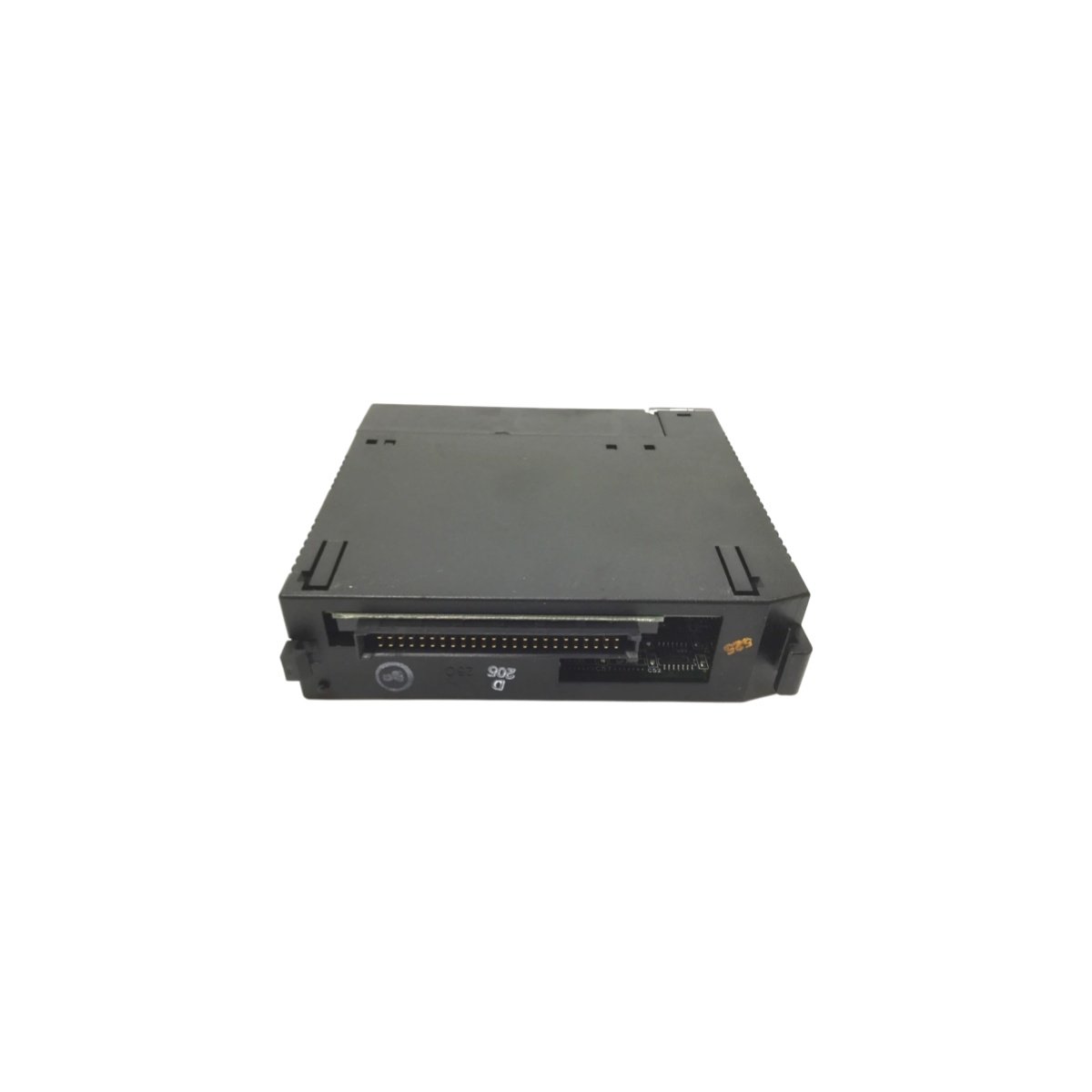

This CPU module serves as the central controller for GE Series 90-30 PLC systems. It executes user logic and manages all I/O data processing operations. The module features a 16-bit microprocessor with a robust instruction set. It also includes 128 KB of user memory for application program storage. Consequently, this processor handles medium-scale automation tasks with efficiency and reliability.

Technical Specifications

Processing Capability and Memory Architecture

The IC693CPU331 executes ladder logic and structured programming languages with deterministic scan times. Its 128 KB of battery-backed RAM retains user program during power failures. A separate flash memory stores the program permanently for safe recovery. The module supports up to 1024 input and output registers for discrete control. Additionally, 4096 analog registers accommodate complex process control requirements.

Communication Interfaces and Connectivity

Two built-in serial ports support RS-232 and RS-485 communication protocols. These ports connect to programming terminals, HMIs, and other serial devices. The module supports SNP, SNP-X, and Modbus RTU protocols for flexibility. An optional Ethernet interface provides connectivity to plant networks. This enables data exchange with supervisory control and SCADA systems.

I/O Management and Expansion Capability

This CPU manages up to 4096 discrete I/O points across local and remote racks. It supports up to five expansion racks with ten slots each. The module automatically configures I/O addressing during power-up. A dedicated I/O bus handles high-speed data transfer between racks. This scalability suits both small and medium-sized automation applications.

Scan Cycle and Real-Time Performance

The module completes a typical scan cycle in approximately 1 ms per kilobyte of logic. It executes input scanning, logic execution, and output updates sequentially. A watchdog timer monitors the scan cycle for abnormal delays. The real-time clock provides accurate time-stamping for event recording. This predictable performance ensures reliable process control.

Power Requirements and Battery Backup

The CPU draws 650 mA from the 5 VDC backplane supply during operation. A replaceable 3 V lithium battery preserves memory and clock during power outages. This battery provides up to 5 years of backup under typical conditions. Total power dissipation reaches 7.5 W at maximum processing load. Ensure proper ventilation for stable thermal performance.

Installation and Configuration Procedure

Insert the CPU into slot zero of the main PLC rack. Push firmly until it seats properly in the backplane connector. Secure the module using the retaining screws on top and bottom. Connect programming cables to the serial ports as needed. Apply power and configure the module using the programming software.

Environmental Durability and Maintenance

The module operates reliably from 0°C to +60°C in industrial environments. It withstands humidity between 5% and 95% without condensation. The PCB features conformal coating for moisture and dust resistance. Replace the backup battery every 3–5 years for data retention. Maintain a backup copy of the application program externally.
