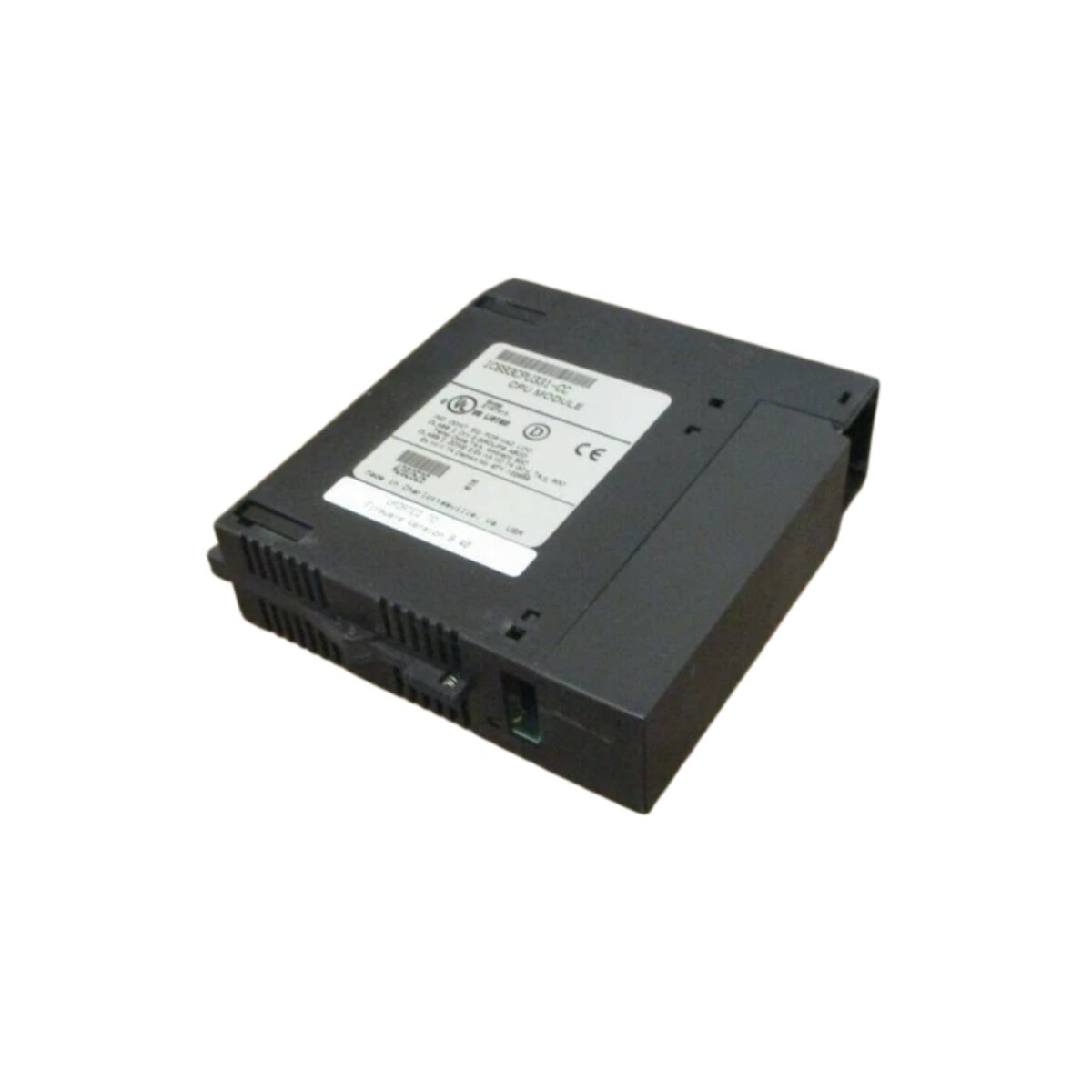

The IC693CPU331-CC controls logic execution inside GE Fanuc’s Series 90-30 PLC platform from a single slot. This CPU module measures roughly 4.9 inches tall, 1.4 inches wide, and 4.5 inches deep. Moreover, it weighs approximately 0.5 pounds, so cabinet space stays efficient. Engineers choose the IC693CPU331-CC when they need capable processing without sacrificing rack positions.
Technical Specifications and Interface Details
The module runs ladder logic programs and therefore manages discrete and analog control tasks. Specifically, it provides 16 KB of user memory for program storage. Additionally, an integrated serial port supports programming and Modbus communication. The backplane connector links the CPU to all installed I/O modules.
| Parameter | Specification |
|---|---|
| Module Type | Single Slot CPU |
| User Memory | 16 KB |
| Dimensions | 4.9 x 1.4 x 4.5 in |
| Weight | ~0.5 lbs |
| Interface | Series 90-30 backplane |
| Serial Port | Programming and Modbus |
| Mounting | Single Series 90-30 slot |
| Indicators | Run, fault, and communication LEDs |
Energy Storage and Program Retention
A backup battery on the IC693CPU331-CC preserves application code during power interruptions. Consequently, the CPU resumes operation without reloading programs from external media. Internal capacitors further stabilize logic voltage across brief supply dips. This buffering therefore protects critical control sequences in continuous production environments.
Installation and Compatibility Notes
Because the IC693CPU331-CC fits any Series 90-30 slot, technicians complete installation in minutes. They should confirm firmware revisions before they deploy updated applications. Furthermore, the CPU accepts expansion modules for added I/O capacity. Always store spare units in anti-static packaging to protect sensitive circuitry.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
