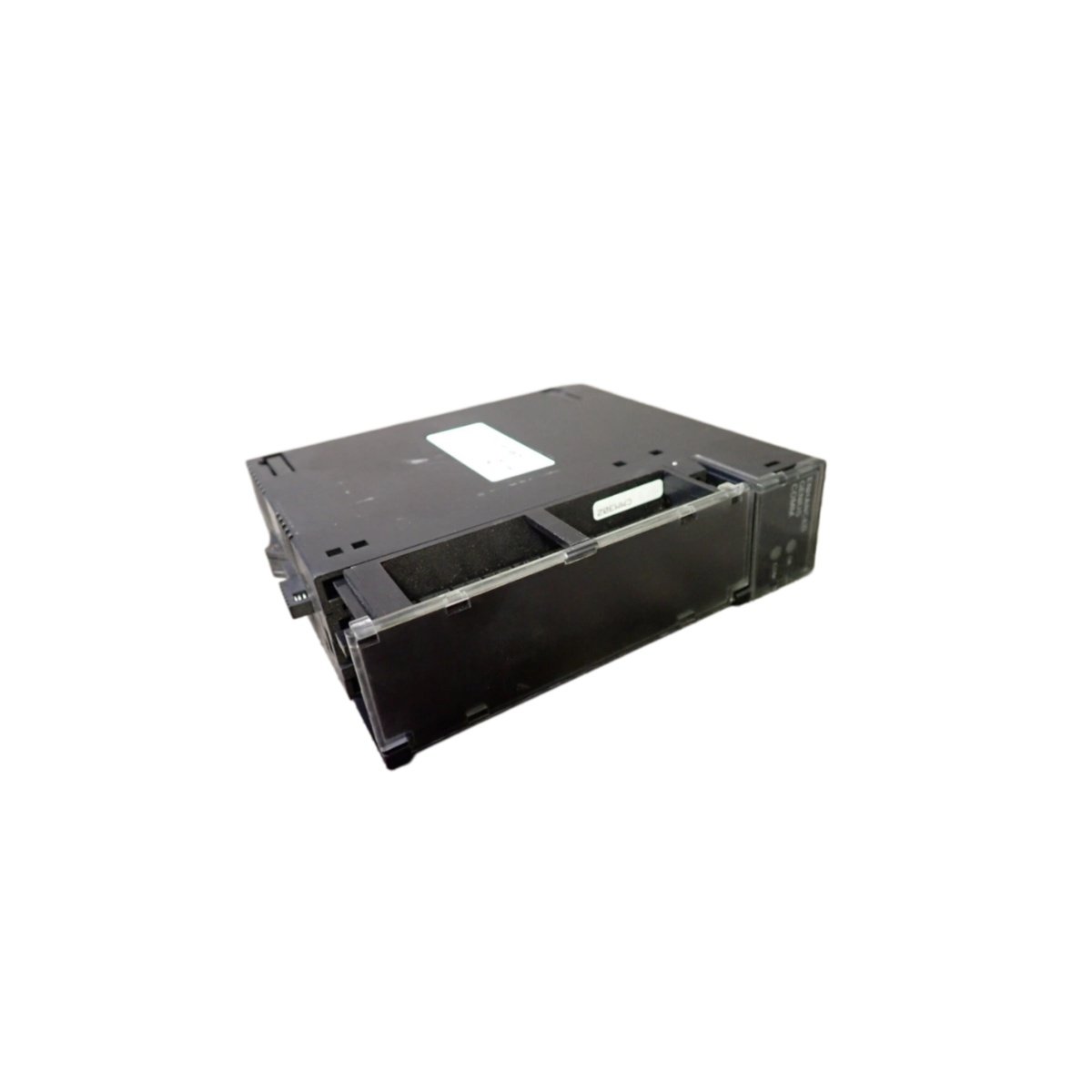

The GE IC693CMM302B Genius communication module links Series 90-30 PLC systems to Genius I/O networks. Engineers install this unit to exchange data between controllers and distributed field devices. Consequently, it serves manufacturing lines, water treatment plants, and process control operations.

Technical Specifications and Hardware Details

This module occupies a single slot inside a compatible Series 90-30 rack. It measures roughly 130 mm high, 50 mm wide, and 120 mm deep, while it weighs about 0.4 kg. Moreover, the front panel carries status LEDs and a Genius bus connector.

Functional Capabilities and System Integration

The module manages Genius bus traffic while it exchanges data with remote I/O blocks. Meanwhile, the backplane connector links it to the main CPU and control bus. Status LEDs show network activity, therefore technicians confirm communication health at a glance.

Additionally, the design supports redundant cable paths for critical processes. As a result, plant operators reduce downtime risks from cable breaks. Clear connector labeling helps technicians trace wiring during troubleshooting. Natural convection cools the module inside standard control cabinets.

Installation and Maintenance Guidelines

Technicians should power down the rack before they insert the IC693CMM302B module. Afterward, verifying bus connections confirms reliable communication with remote devices. Periodic inspection of cable terminations prevents loose contacts and network faults. Finally, consult GE documentation for baud rate settings and compatible Genius configurations.
