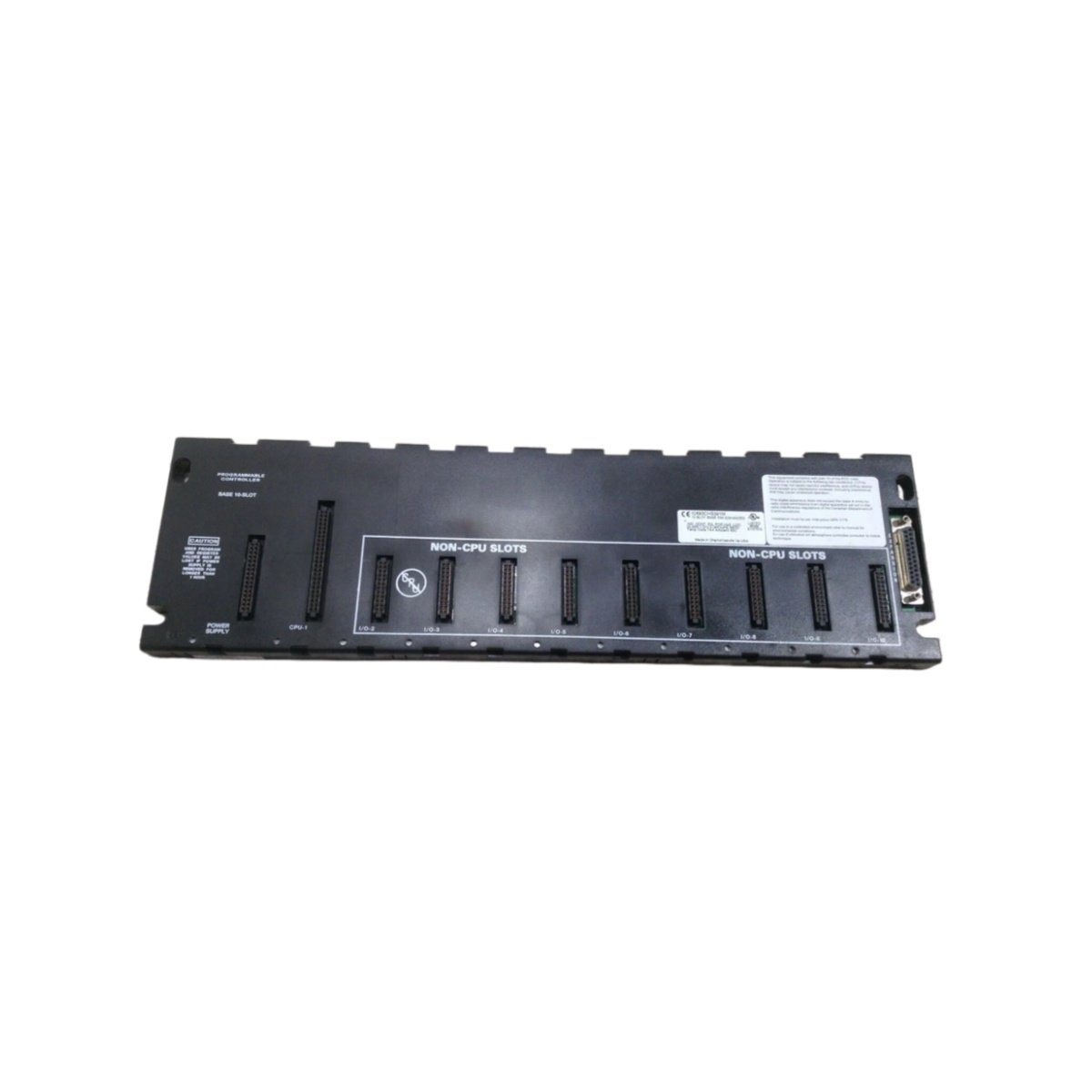

The IC693CHS391M 10 slot CPU module base holds and connects modules within GE Series 90-30 PLC systems. This rack provides backplane communication and mounting positions for the CPU and I/O cards. Engineers rely on it for organized, expandable control panel layouts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | CPU Module Base Rack |
| Compatibility | GE Series 90-30 PLC Systems |
| Slot Count | 10 Module Slots |
| Interface | Backplane Bus, Module Connectors |
| Mounting | Panel Mount, DIN Rail Compatible |
| Dimensions | 500 mm x 130 mm x 120 mm |
| Weight | Approximately 1.90 kg |
| Component Count | 34 Passive and Active Components |
| Energy Storage | None Required |
| Power Consumption | 5 VDC Backplane Distribution |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Rack Architecture and Slot Layout
The base offers 10 slots for CPU, I/O, and communication modules. Therefore, it supports medium-sized control systems in one compact frame. Furthermore, the backplane distributes power and data across every slot position. Consequently, modules communicate without external wiring between positions.
Interface and Integration
Backplane connectors link each module to the IC693CHS391M through guided slot contacts. As a result, installation and replacement happen quickly without special tools. Additionally, the rack accepts standard Series 90-30 power supplies and option cards.
Power and Environmental Ratings
The backplane distributes 5 VDC to installed modules from the system supply. Moreover, the rack operates from 0°C to 60°C inside industrial control cabinets. Consequently, it suits most factory floor environments.
Installation Notes
Operators mount the base onto a panel or DIN rail with adequate clearance. The rigid frame tolerates vibration common to machining and process equipment. However, users should verify total power load before populating all 10 slots.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
