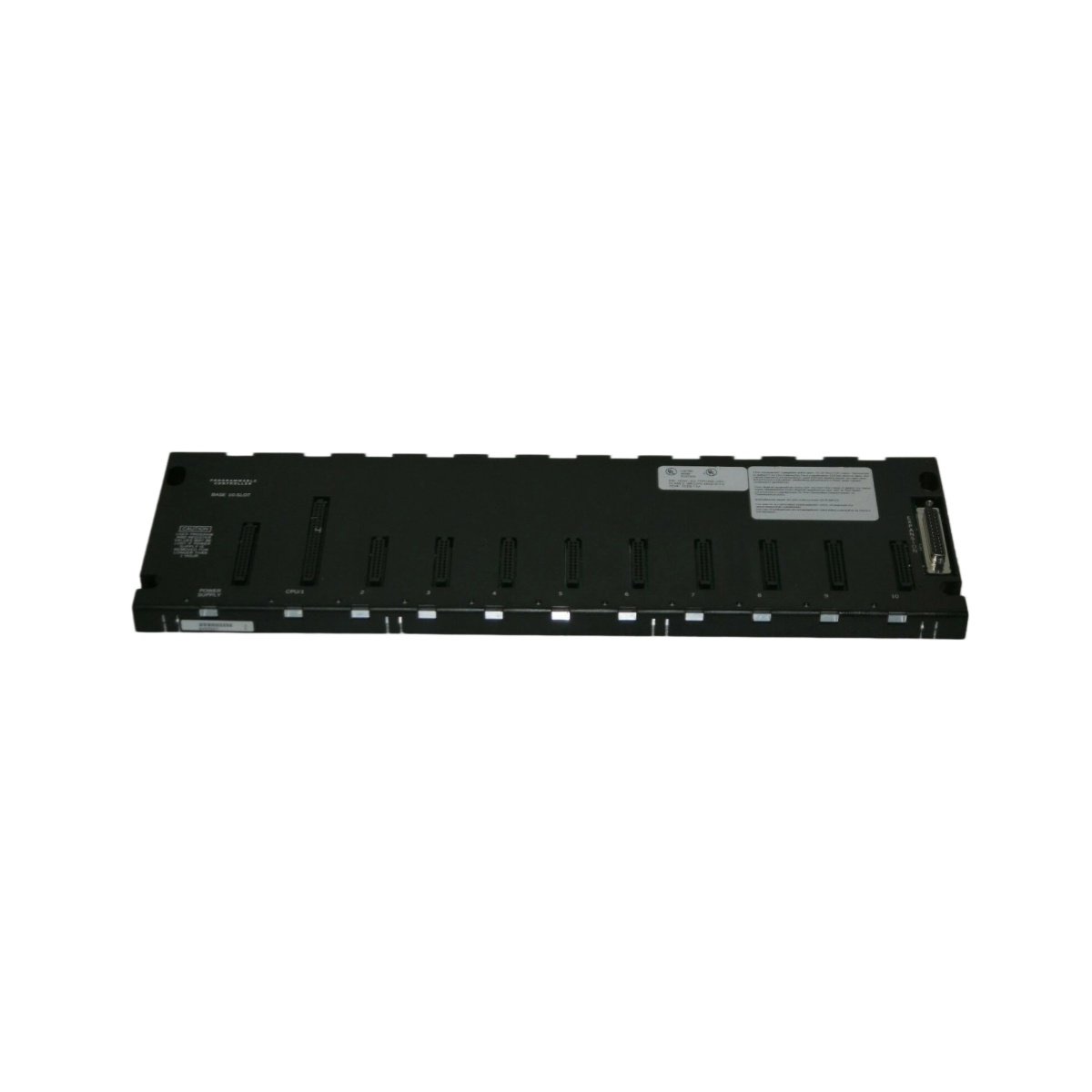

The GE IC693CHS391E ten-slot CPU module base provides a sturdy mounting platform within GE’s Series 90-30 PLC family. Engineers choose this rack for organizing CPU, power supply, and I/O modules in one chassis. Consequently, it serves manufacturing lines, water treatment plants, and process control operations.

Technical Specifications and Hardware Details

This base offers ten slots and accepts a CPU, power supply, and multiple I/O modules. It measures roughly 305 mm wide, 145 mm high, and 130 mm deep, while it weighs about 1.5 kg. Moreover, the chassis supports panel mounting through pre-drilled flanges.

Functional Capabilities and System Integration

The backplane routes power while it carries data between the CPU and each I/O module. Meanwhile, the rigid frame holds modules firmly against vibration and mechanical stress. Keyed slots guide installation, therefore technicians avoid incorrect module placement.

Additionally, the design allows expansion through additional racks and cables. As a result, installers scale systems without replacing the original chassis. Clear slot numbering helps operators identify module positions during troubleshooting. The open architecture also supports natural convection cooling.

Installation and Maintenance Guidelines

Technicians should secure the base to a flat panel before they insert modules. Afterward, verifying backplane connections confirms reliable communication across the rack. Periodic inspection of mounting screws prevents loosening from machine vibration. Finally, consult GE documentation for slot assignments and wiring diagrams.
