Precision Motion Control for Series 90-30 PLCs

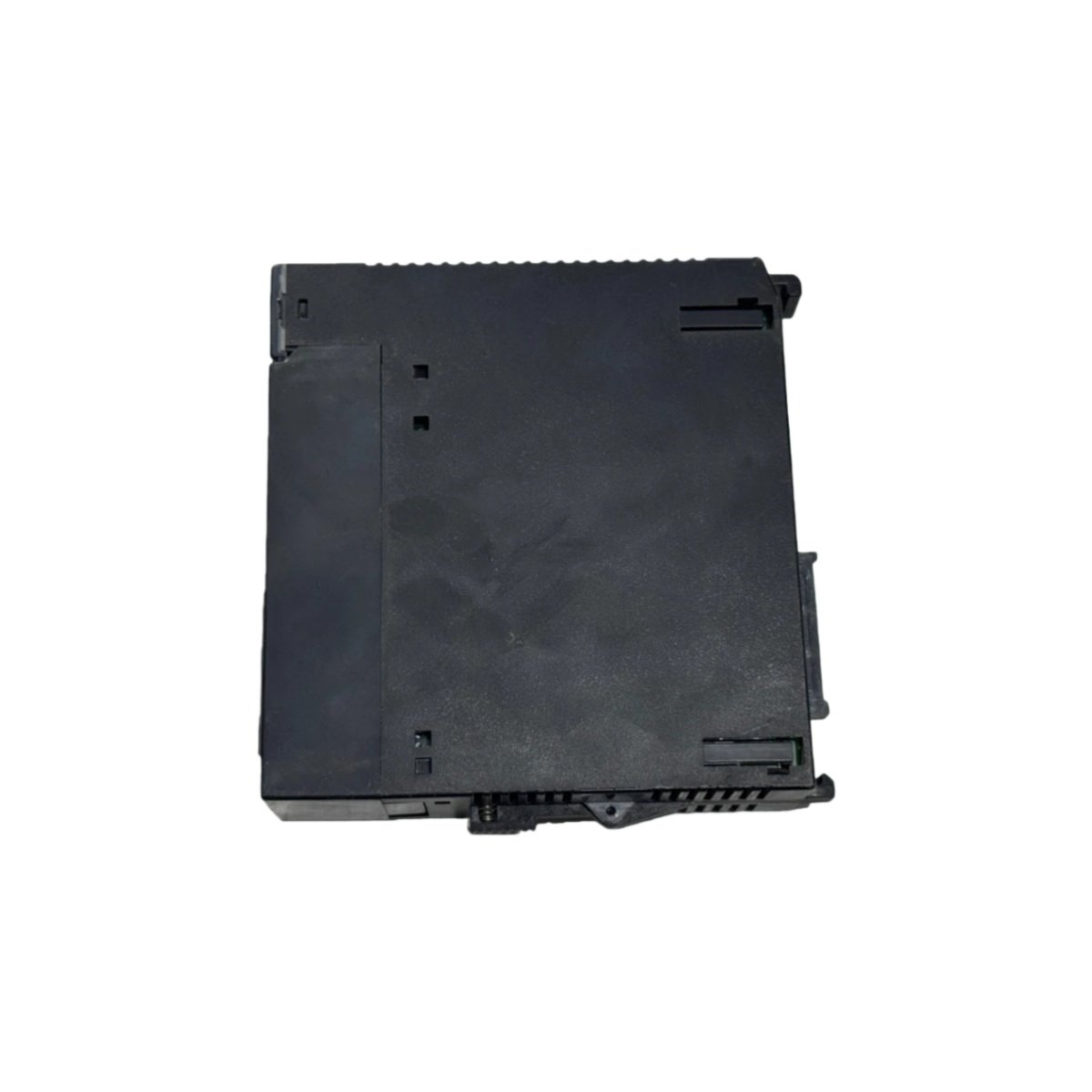

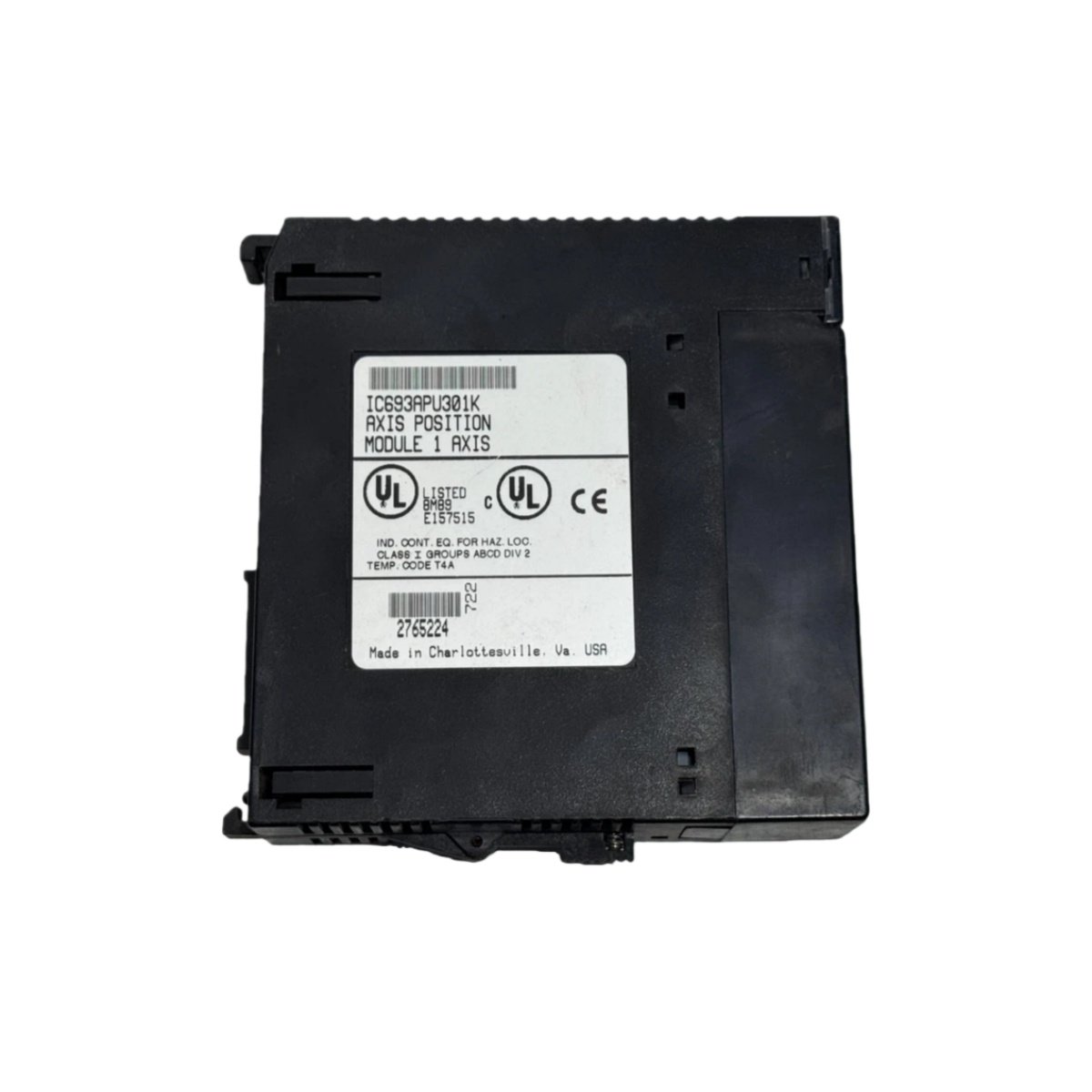

The GE IC693APU301 Motion Mate Axis Positioning Module (APM) delivers precise single-axis servo control for the Series 90-30 platform. This module integrates high-performance motion logic directly with the PLC system, streamlining machine coordination. Factory automation applications benefit from this module’s 1 ms servo update rate and flexible operating modes .

Technical Specifications and Control Features

This single-slot module supports standard and follower modes for versatile motion tasks, with the follower mode enabling electronic gearing for master/slave synchronization . Dedicated 24-pin and 25-pin connectors interface with servo drives . Furthermore, you can install this module in any Series 90-30 CPU, expansion, or remote baseplate .

Design and System Integration

The GE IC693APU301 combines high-speed motion control with PLC logic-solving in one integrated package . A dedicated processor handles all direct communications to the drive and machine, while the PLC automatically transfers data between its tables and the module . Furthermore, the module allows storage of up to ten motion programs internally .

Operating Modes and Applications

The standard mode enables users to blend high-performance motion control with PLC logic functions . The follower mode provides electronic gearing for continuous master/slave applications. Users can select the desired mode by configuring a setup parameter within the Logicmaster 90-30 Configuration software . Consequently, this module suits pick-and-place systems, conveyor indexing, and precision cutting equipment.

Installation and Configuration

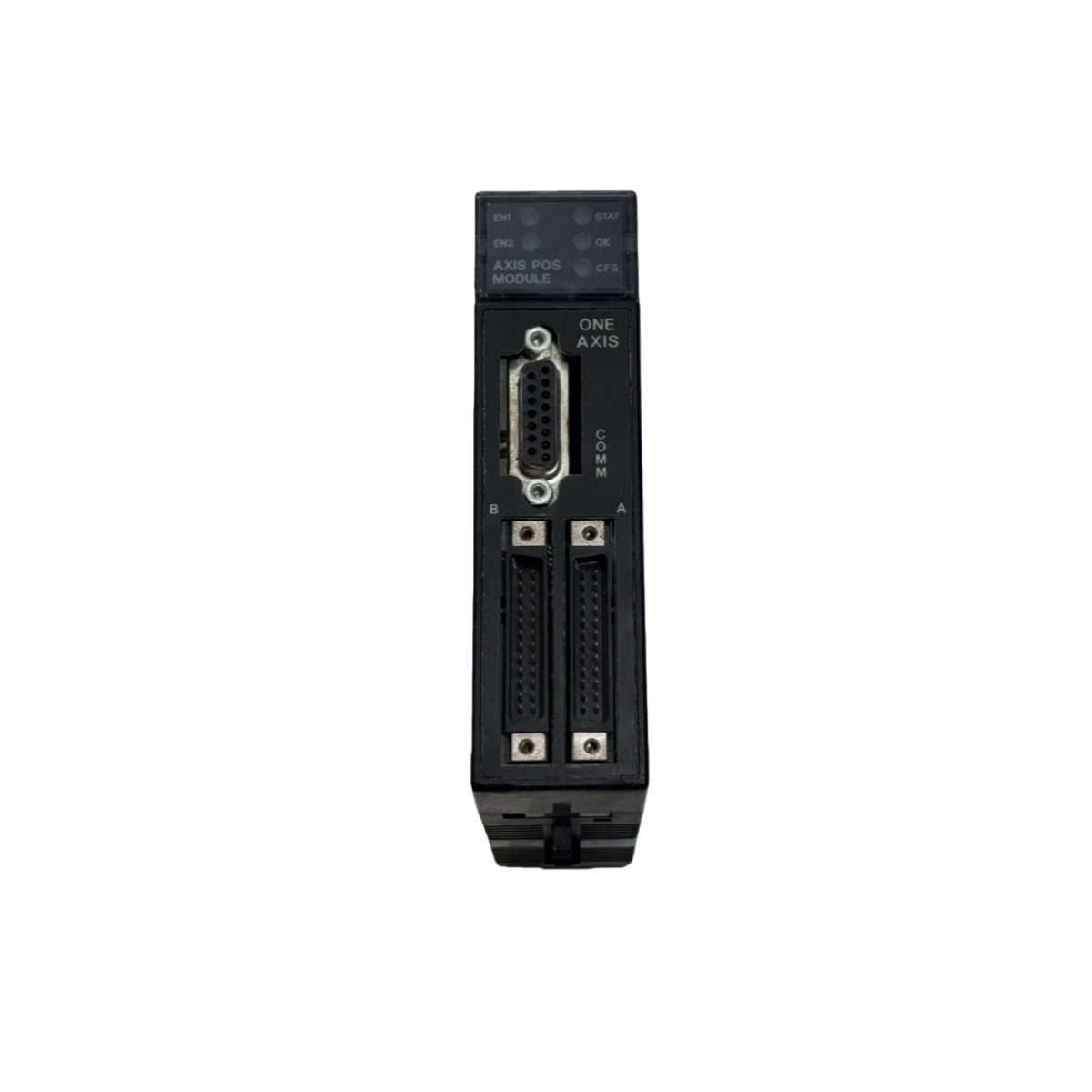

You can install this module in any Series 90-30 CPU, expansion, or remote baseplate slot . VersaPro software facilitates user-friendly configuration and program creation for the APM . The module’s LED indicators (EN1, EN2, STST, OK, CFG) provide clear visual feedback for diagnostics and operational status .
