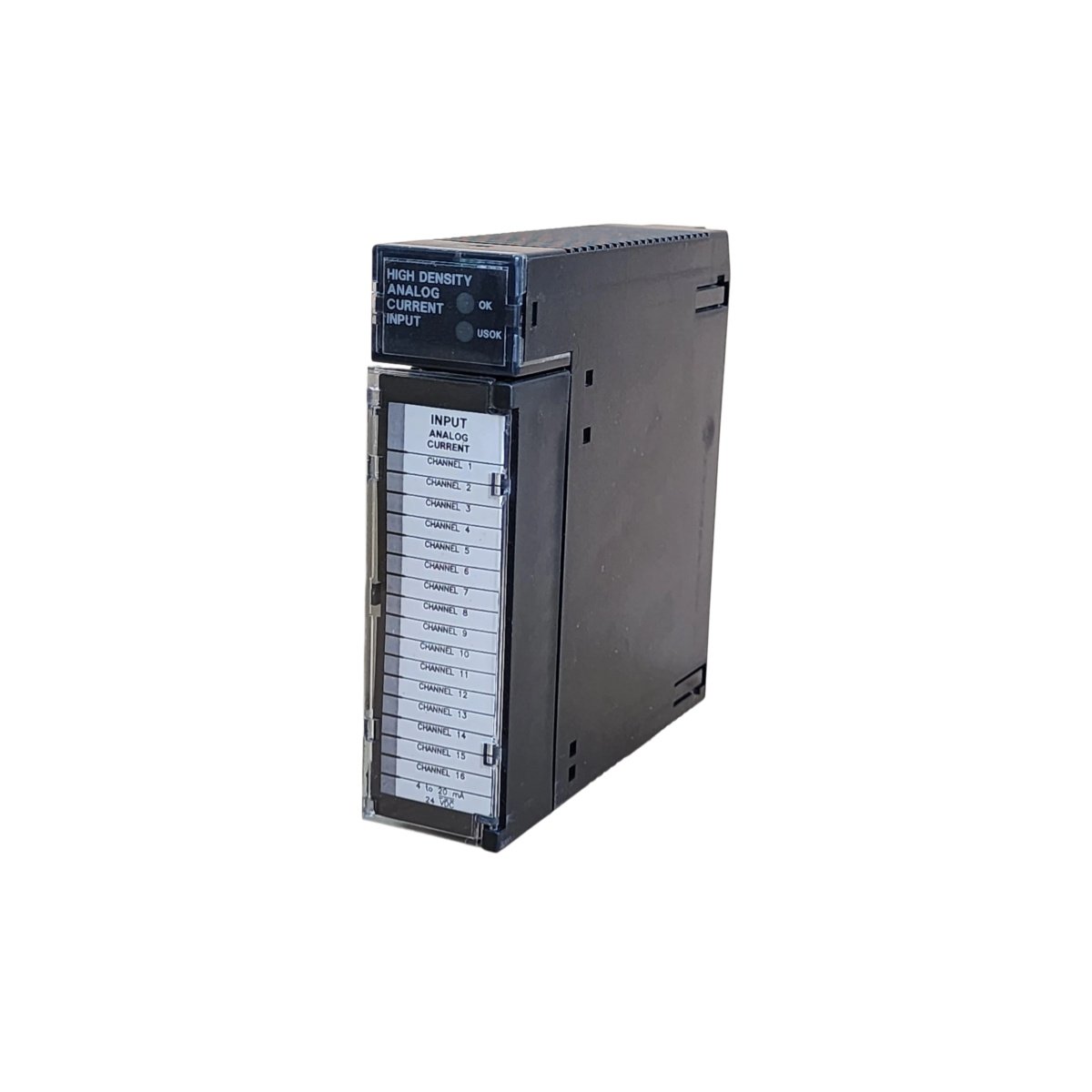

The IC693ALG223C captures analog current signals inside GE Fanuc’s Series 90-30 PLC platform. This module measures roughly 4.9 inches tall, 1.4 inches wide, and 4.5 inches deep. Moreover, it weighs approximately 0.5 pounds, so cabinet space stays efficient. Engineers choose the IC693ALG223C when they need accurate loop readings from field transmitters.
Technical Specifications and Interface Details
The module provides sixteen single-ended input channels, and each channel accepts current loops. Specifically, operators can configure 4–20 mA and 0–20 mA ranges through software settings. Additionally, 12-bit resolution maintains accurate readings across the full span. A front-mounted terminal block speeds up field wiring and diagnostics.
| Parameter | Specification |
|---|---|
| Module Type | Analog Current Input |
| Channels | 16 single-ended inputs |
| Input Ranges | 4–20 mA, 0–20 mA |
| Resolution | 12-bit |
| Dimensions | 4.9 x 1.4 x 4.5 in |
| Weight | ~0.5 lbs |
| Interface | Series 90-30 backplane |
| Terminal Block | Front-mounted, removable |
Energy Storage and Measurement Stability
Internal capacitors on the IC693ALG223C provide local energy storage for clean reference voltages. Consequently, the module suppresses noise and holds accuracy during supply fluctuations. This buffering supports reliable data acquisition in electrically noisy plants. The design also minimizes channel-to-channel crosstalk.
Installation and Compatibility Notes
Because the IC693ALG223C slides directly into any Series 90-30 slot, commissioning stays quick. The module communicates with the CPU through the high-speed backplane bus. Furthermore, LED indicators reveal module health and fault conditions. Technicians can therefore troubleshoot wiring issues without extra test equipment.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
