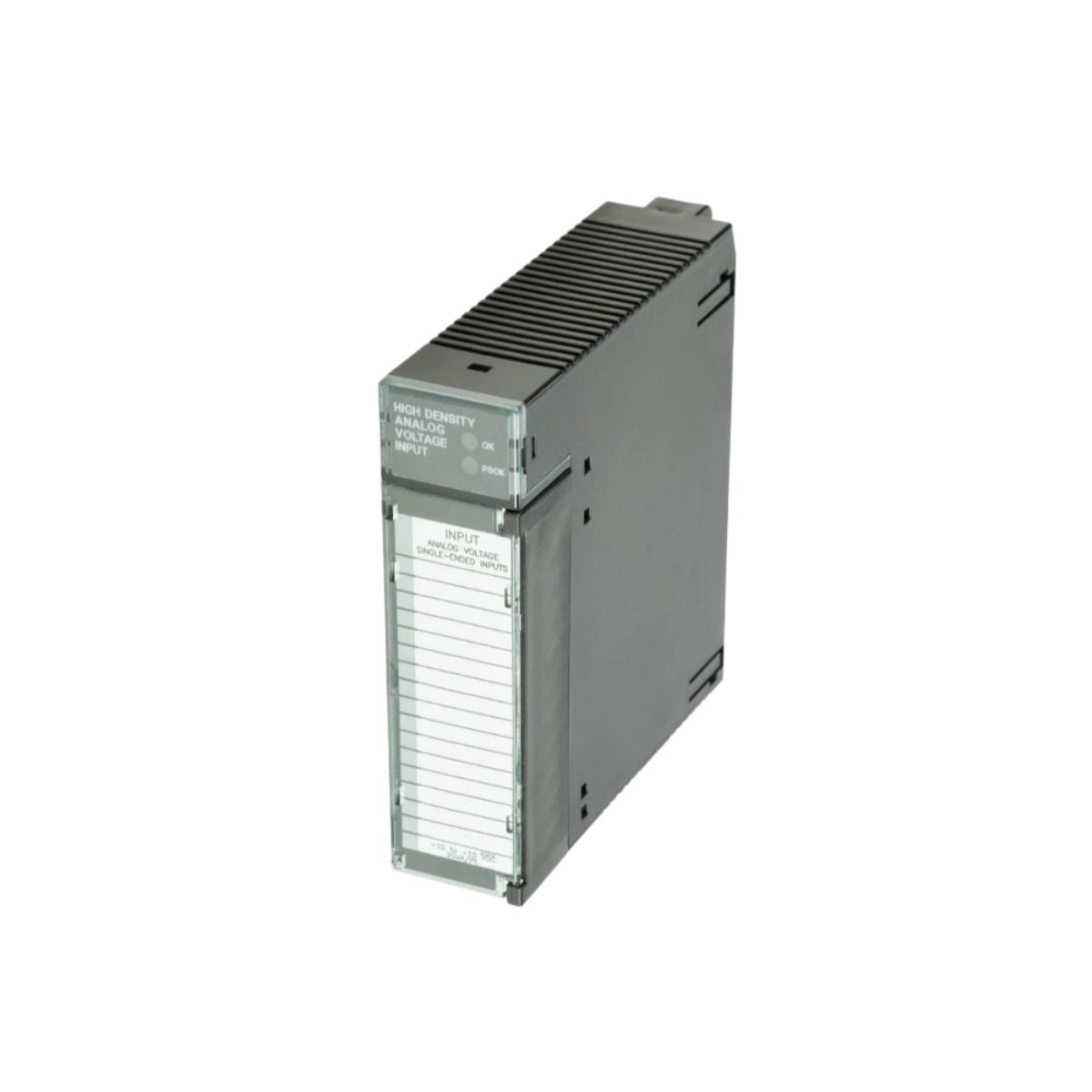

The IC693ALG222-HB delivers high-density analog input capability within GE Fanuc’s Series 90-30 PLC family. This single-slot module measures approximately 4.9 inches tall, 1.4 inches wide, and 4.5 inches deep. Moreover, it weighs roughly 0.5 pounds, which suits compact control cabinets. Engineers specify the IC693ALG222-HB when they need many analog points in limited rack space.
Technical Specifications and Interface Details
The module provides sixteen single-ended input channels, and each channel accepts voltage or current signals. Specifically, operators can configure 0–10 V, ±10 V, 4–20 mA, and 0–20 mA ranges. Additionally, 12-bit resolution maintains accurate readings across the full span. A front-mounted terminal block speeds up field wiring and diagnostics.
| Parameter | Specification |
|---|---|
| Module Type | High-Density Analog Input |
| Channels | 16 single-ended inputs |
| Input Ranges | 0–10 V, ±10 V, 4–20 mA, 0–20 mA |
| Resolution | 12-bit |
| Dimensions | 4.9 x 1.4 x 4.5 in |
| Weight | ~0.5 lbs |
| Interface | Series 90-30 backplane |
| Terminal Block | Front-mounted, removable |
| Power | 5 VDC from backplane |
Energy Storage and Measurement Stability
Internal capacitors on the IC693ALG222-HB provide local energy storage for clean reference voltages. Consequently, the module suppresses noise and holds accuracy during supply fluctuations. This buffering supports reliable data acquisition in electrically noisy plants. The design also minimizes channel-to-channel crosstalk.
Installation and Compatibility Notes
Because the IC693ALG222-HB slides directly into any Series 90-30 slot, commissioning stays quick. The module communicates with the CPU through the high-speed backplane bus. Furthermore, LED indicators reveal module health and fault conditions. Technicians can therefore troubleshoot wiring issues without extra test equipment.
