I/O modules

This analog input module converts current signals from field sensors into digital data for the PLC. It provides four isolated channels for connecting transmitters and other 4-20mA devices. Engineers choose this module for precise process monitoring in chemical plants and refineries. Its high resolution and optical isolation ensure accurate measurements in noisy industrial environments.

Input Architecture and Signal Conditioning

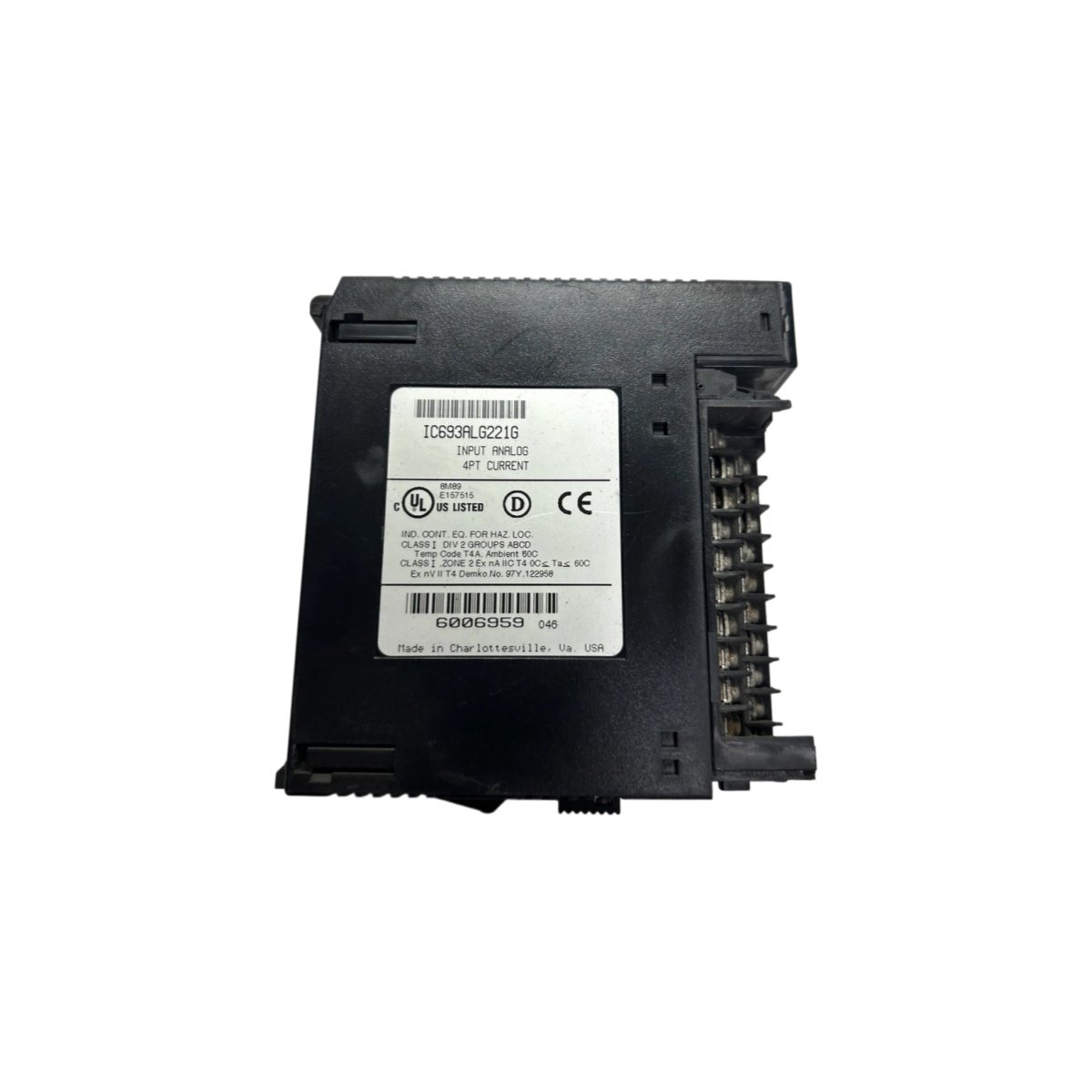

The GE IC693ALG221G offers four analog input channels with 12-bit resolution. Each channel accepts 4 to 20 mA current signals from transmitters and sensors. The module provides loop power for two-wire transmitters, simplifying field wiring. It stores calibration parameters in internal EEPROM for long-term stability. Furthermore, optical isolation between input channels prevents ground loop interference.

Electrical Specifications and Input Ranges

The GE IC693ALG221G operates with analog input voltages ranging from 0 to 10 V or 4 to 20 mA. A/D conversion time takes 15 milliseconds per channel for efficient scanning. The overall input accuracy reaches ±0.1% of full scale at 25°C. The module draws 300 mA from the backplane at 5 VDC for internal logic. Additionally, the input impedance measures 100Ω for current and 100kΩ for voltage, ensuring minimal signal loading.

Key Technical Specifications

The table below summarizes the critical parameters for the GE IC693ALG221G.

Installation and System Integration

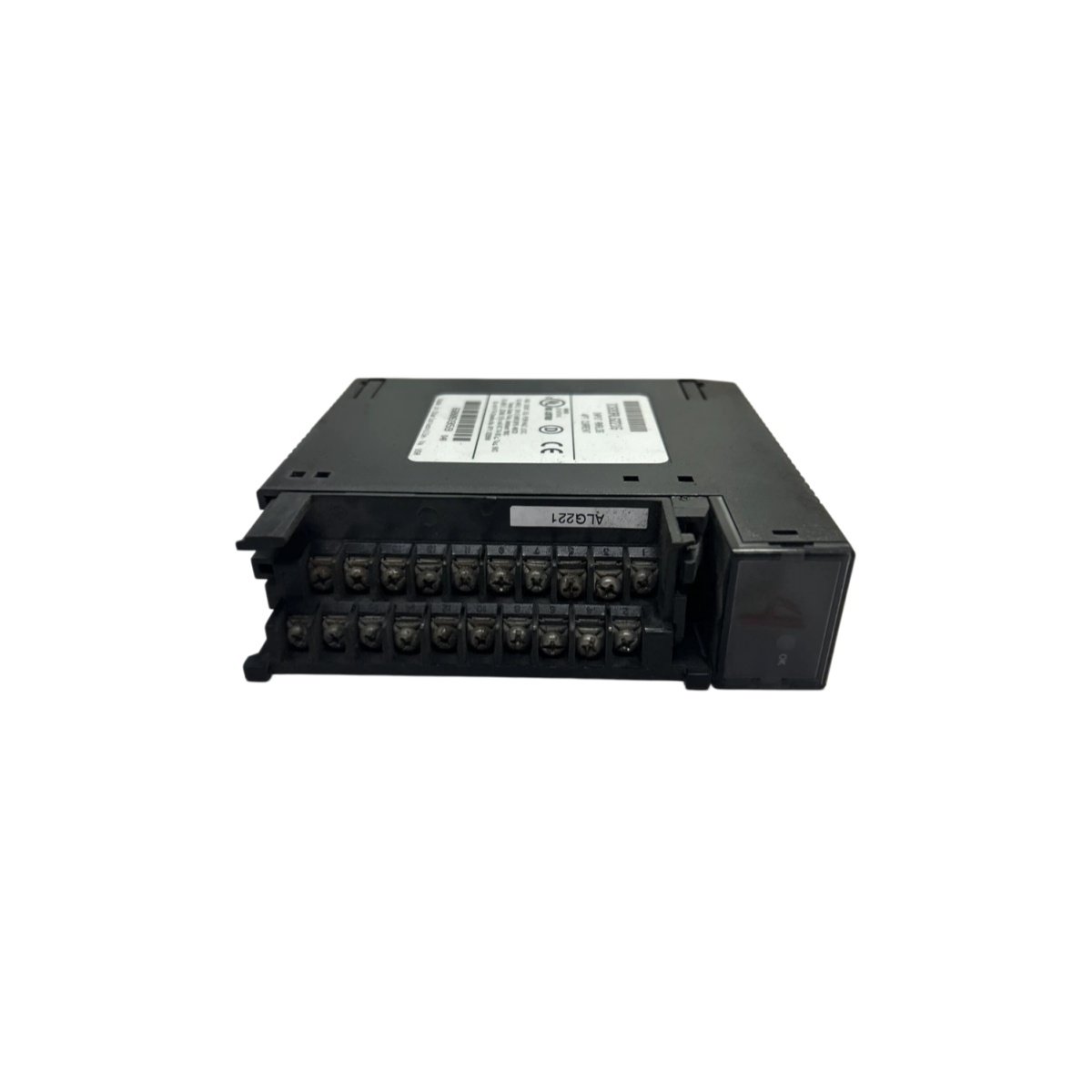

This module installs in any I/O slot of a Series 90-30 PLC baseplate. The user configures each input channel independently through the programming software. Field wiring connects to removable terminal blocks for quick installation. Moreover, the module supports direct connection to 2-wire transmitters with loop power. Therefore, engineers can deploy this module for pressure, temperature, and flow monitoring applications.
