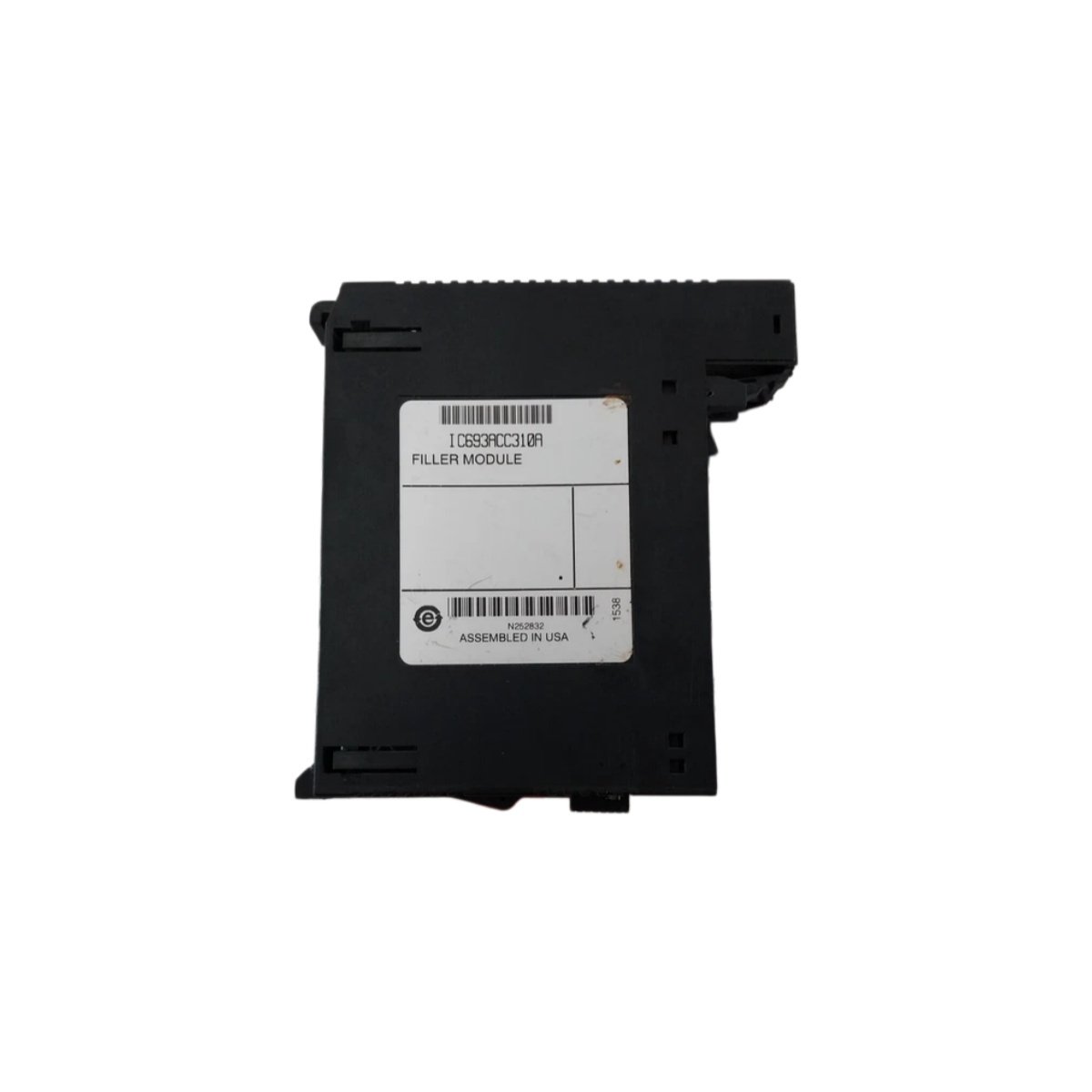

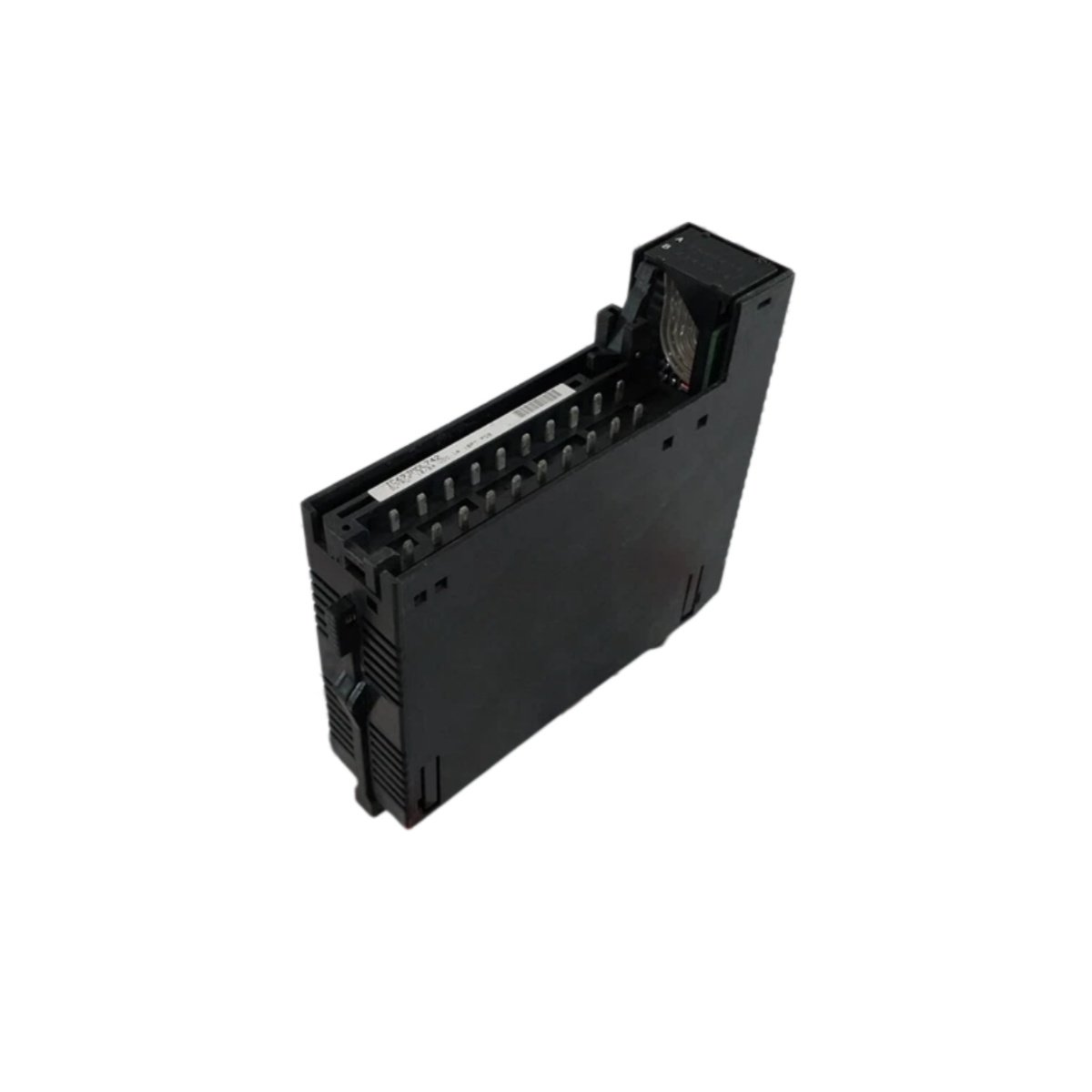

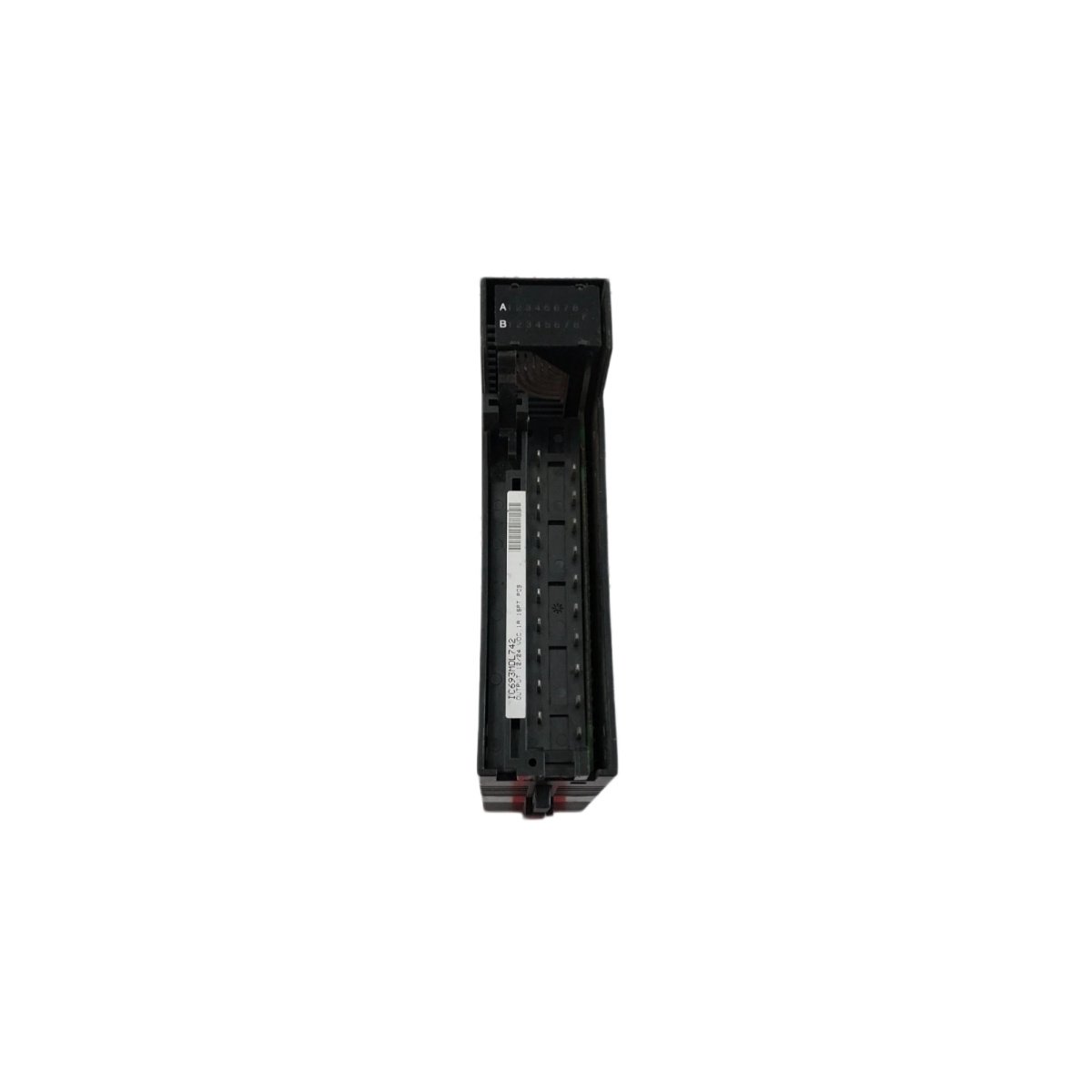

The GE IC693ACC310A blank filler module serves a critical role in maintaining proper airflow within Series 90-30 PLC systems. This simple yet essential component occupies unused I/O slots in the rack, preventing dust and debris from entering the chassis. The filler module also ensures consistent cooling across all occupied slots, protecting sensitive electronics from localized overheating. Unlike other modules, the GE IC693ACC310A contains no active electronic components or circuitry. It functions purely as a mechanical placeholder for empty rack positions. This design approach makes the filler module exceptionally reliable and maintenance-free throughout its service life.

Physical Specifications and Installation Requirements

The GE IC693ACC310A features a compact design with a black plastic faceplate that matches standard Series 90-30 modules. The faceplate measures 5.0 inches in height and 2.0 inches in width, occupying a single slot position. The total depth reaches 4.5 inches when fully seated in the rack. This module weighs approximately 0.4 pounds, making it one of the lightest components in the Series 90-30 family. A simple latch mechanism secures the module firmly to the rack without requiring special tools. The IC693ACC310A comes with a single plastic injection-molded housing that contains no internal boards or connectors. Its construction uses fire-retardant materials meeting UL 94V-0 standards for industrial safety.

The blank module does not draw any power from the backplane, leaving full capacity for active modules. This characteristic allows the system to maximize available power for CPUs, communication processors, and I/O modules. The module’s solid construction withstands typical industrial vibration and shock environments. Installation takes only seconds, requiring a simple insertion and latch engagement. The GE IC693ACC310A also fits seamlessly with both standard and extended temperature range racks.

Functional Benefits and System Integration

Using the GE IC693ACC310A in every empty slot significantly improves overall system reliability and lifespan. The filler module creates consistent impedance across the backplane, reducing electrical noise that could affect adjacent modules. It also prevents accidental contact with exposed backplane connectors during maintenance operations. The IC693ACC310A helps maintain the electromagnetic compatibility (EMC) performance specified for the complete system. Its solid faceplate provides a professional, uniform appearance across the entire rack. The module supports all Series 90-30 rack configurations from five to ten slots, from baseplates to expansion units.

Complete Technical Specifications

Conclusion

The GE IC693ACC310A provides essential slot protection for every Series 90-30 PLC system. This filler module offers a simple, cost-effective solution for maintaining system integrity and performance. Using blank modules in all empty slots prevents cooling problems and improves overall system longevity. The IC693ACC310A remains a valuable inventory item for any facility maintaining Series 90-30 equipment. This passive component plays an active role in preserving your automation investment.
