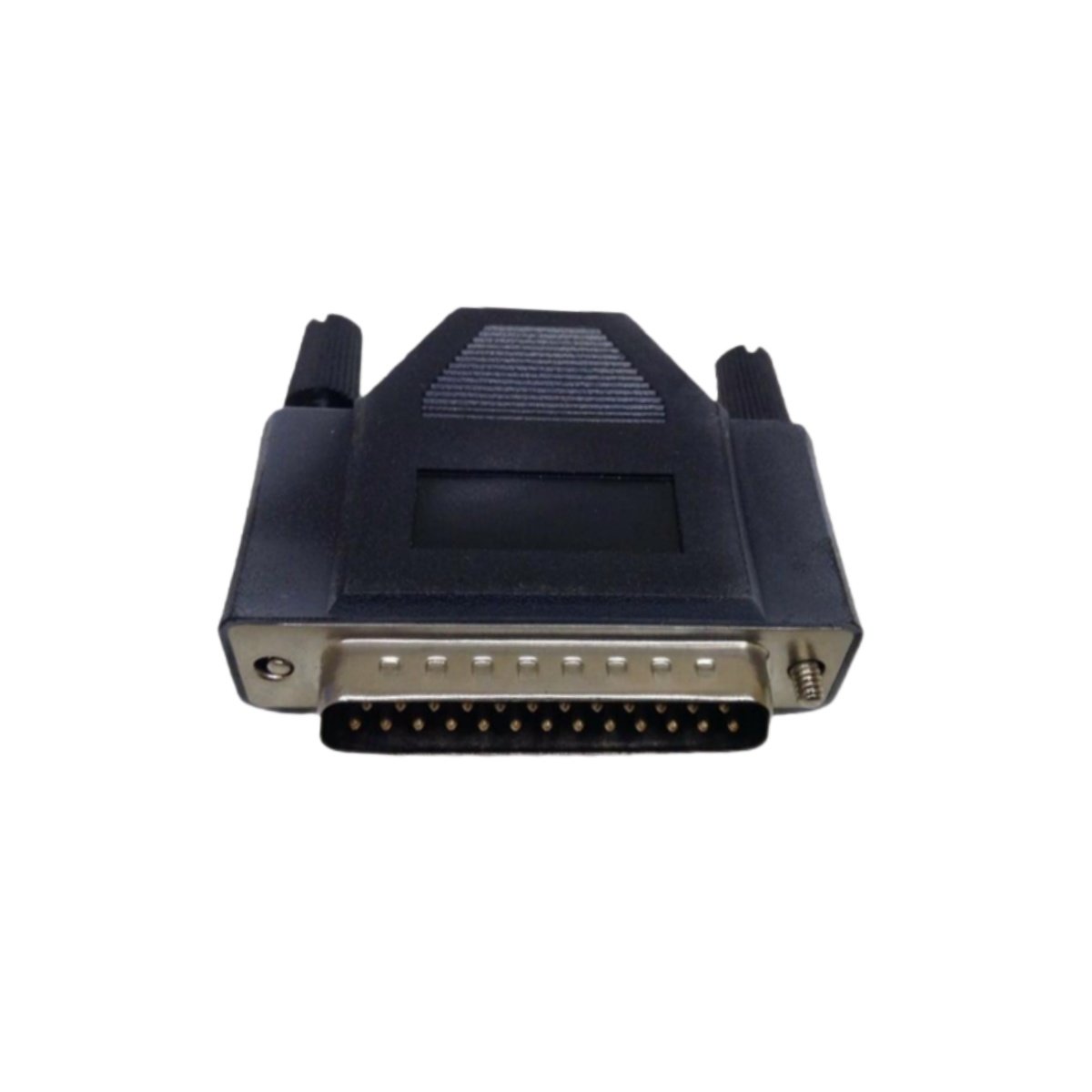

The GE IC693ACC307 I/O Bus Expansion Terminator provides reliable bus termination for GE Series 90-30 automation systems. Its compact design, precise electrical characteristics, and stable signal management help engineers maintain accurate communication across expanded I/O configurations.
Product Overview
The IC693ACC307 manages end-of-bus signal conditions and supports proper communication between connected expansion modules. Furthermore, the terminator improves system stability by reducing signal reflections across extended I/O bus connections. Its simple installation process also helps technicians complete control system expansion efficiently while minimizing configuration errors.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GE Automation |
| Model | IC693ACC307 |
| Product Category | I/O Bus Expansion Terminator |
| Compatible Platform | GE Series 90-30 PLC System |
| Function | Expansion Bus Signal Termination |
| Connector Type | Expansion Bus Connector |
| Bus Interface | Series 90-30 Expansion I/O Bus |
| Installation Method | Direct Rack or Expansion Cable Connection |
| Dimensions | Approximately 40 × 25 × 20 mm |
| Weight | Approximately 0.05 kg |
| Internal Components | Termination Resistors, Connector Assembly, Protective Circuit Components |
| Energy Storage | Passive Component Design Without Energy Storage Unit |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95%, Non-condensing |
| Electrical Design | Passive Signal Conditioning Circuit |
Performance Advantages
The GE IC693ACC307 ensures stable expansion bus communication while supporting reliable data transmission between connected PLC modules. In addition, the passive termination design improves signal quality without requiring external power sources or additional configuration settings. Engineers also benefit from the compact structure because it simplifies installation within limited control cabinet spaces.
Industrial Applications
The IC693ACC307 supports factory automation, machine control, packaging systems, and production equipment using Series 90-30 PLC architectures. Moreover, it works with expansion racks and remote I/O arrangements to maintain consistent communication throughout larger automation networks. This capability helps operators improve system reliability while supporting flexible control system layouts.
Why Choose GE IC693ACC307
GE Automation designs the IC693ACC307 to provide dependable bus termination, easy integration, and long-term electrical stability for industrial control systems. Therefore, engineers can expand PLC configurations confidently while maintaining accurate communication performance across connected modules. Its compact size, passive operation, and reliable signal management make it an essential accessory for Series 90-30 automation applications.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
