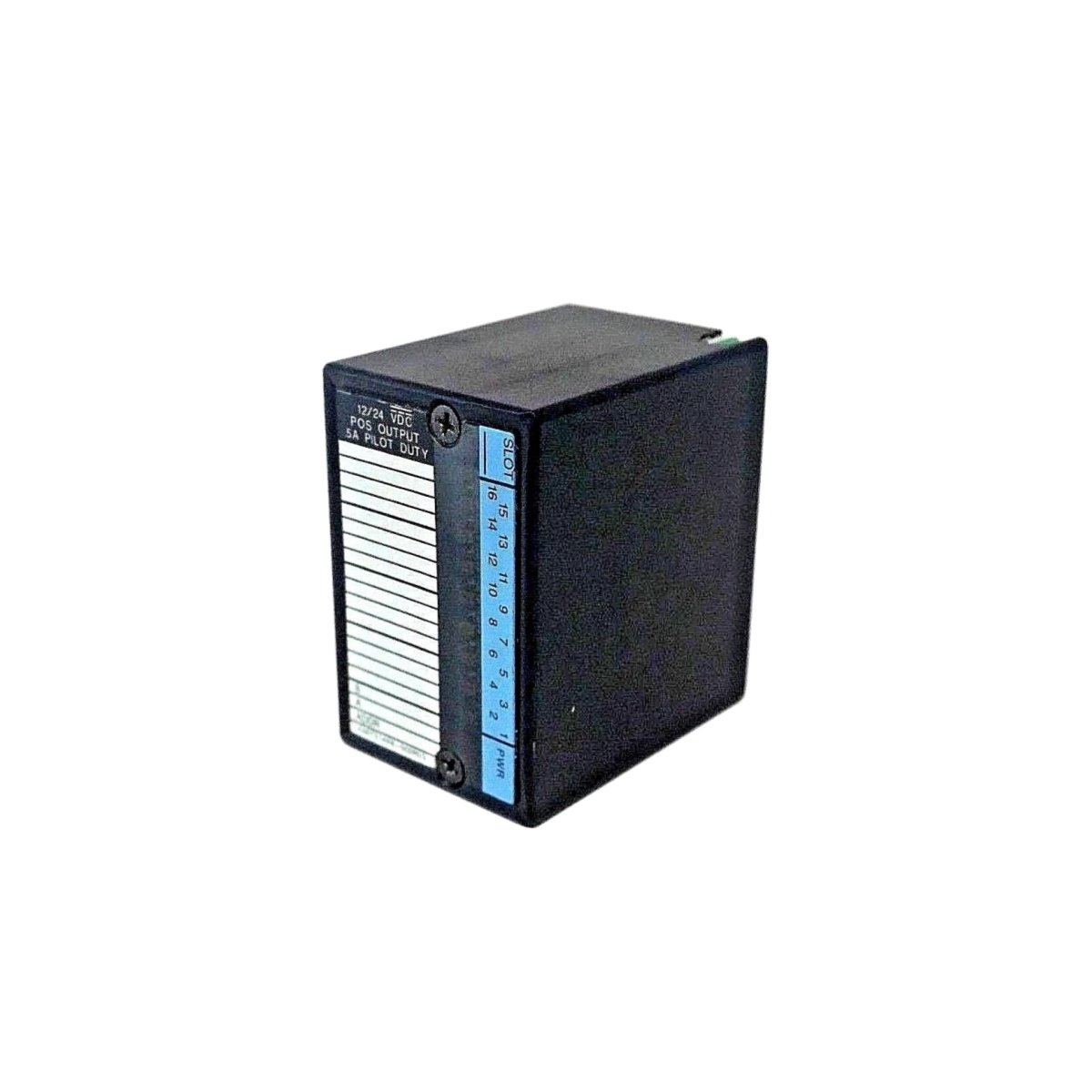

The IC670MDL740B belongs to the GE Fanuc Field Control family, a line of distributed I/O modules for harsh environments. Engineers deploy this discrete output module to drive solenoids, relays, and indicator lamps in the field. Consequently, it delivers reliable switching without a central control cabinet nearby.

Key Technical Specifications

The IC670MDL740B provides 16 discrete output points with high-side switching. Moreover, it mounts directly on a Field Control base for remote installation. The table below lists the core parameters.

Installation and Interface Details

The module snaps onto a Field Control base, which carries the field wiring. Wiring then lands on removable terminal strips, which speed up commissioning. Furthermore, the module tolerates –40 °C to +70 °C, so it suits remote mounting outdoors. As a result, technicians shorten cable runs and cut installation costs.

Signal Processing and Switching

Each output delivers 0.5 A at 24 VDC for driving industrial loads. Meanwhile, the high-side sourcing design simplifies wiring to field devices. Additionally, the 1 ms response time suits fast sequencing tasks. Therefore, the module handles valve solenoids, indicator lamps, and small relays reliably.

Environmental and Mechanical Ratings

The enclosure operates from –40 °C to +70 °C in demanding plant conditions. Moreover, the sealed housing tolerates 5–95% relative humidity without condensation. The compact footprint of 150 mm × 70 mm × 100 mm fits tight field enclosures. Consequently, the module suits oil fields, water treatment plants, and conveyor systems.

Why Engineers Choose This Module

This module offers several practical advantages. First, it delivers 16 outputs in a rugged field-mount package. Second, it survives extreme temperatures without extra heating. Third, its 1,500 VAC isolation protects the bus from field surges. Therefore, maintenance teams simplify troubleshooting and reduce spare-part inventory.
