I/O modules

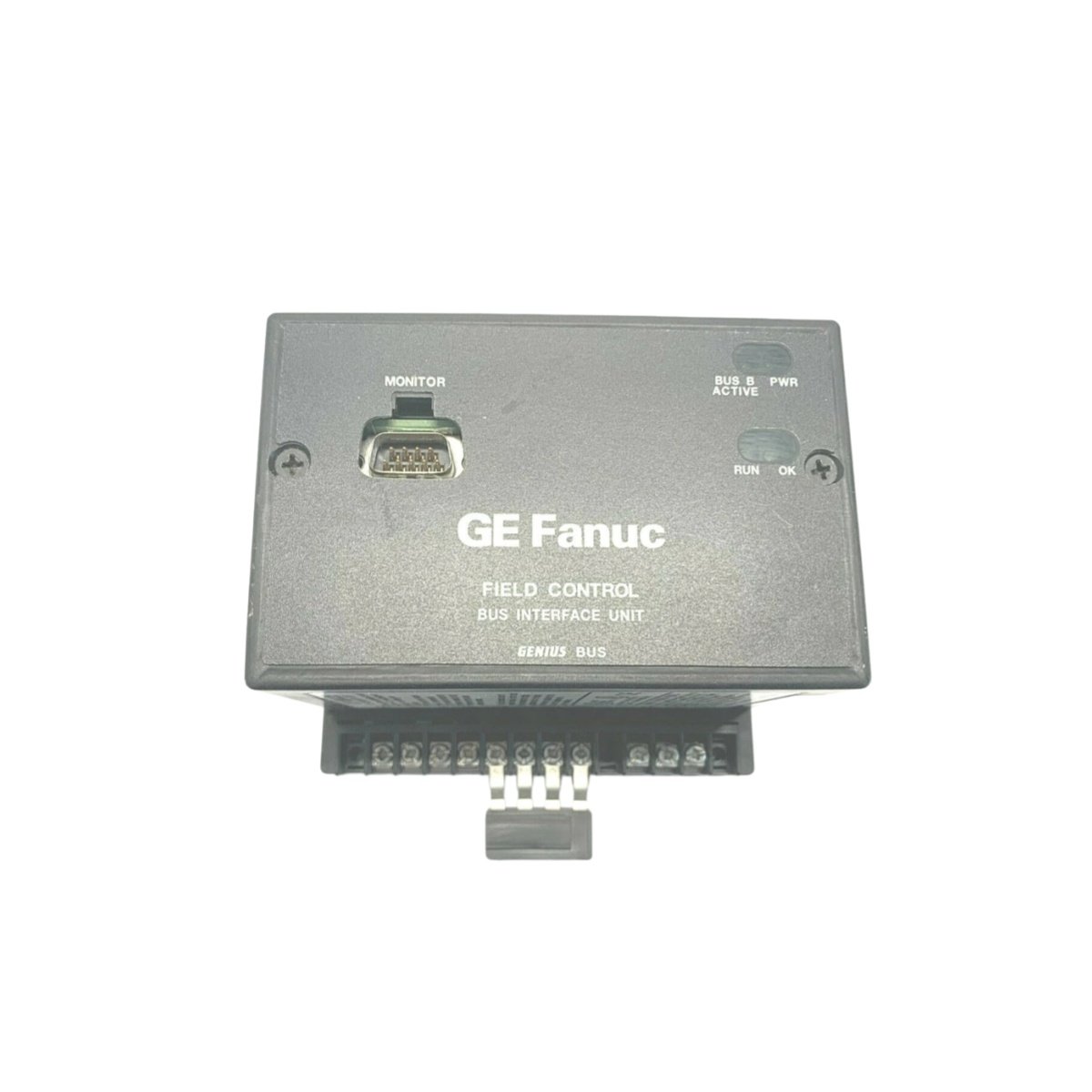

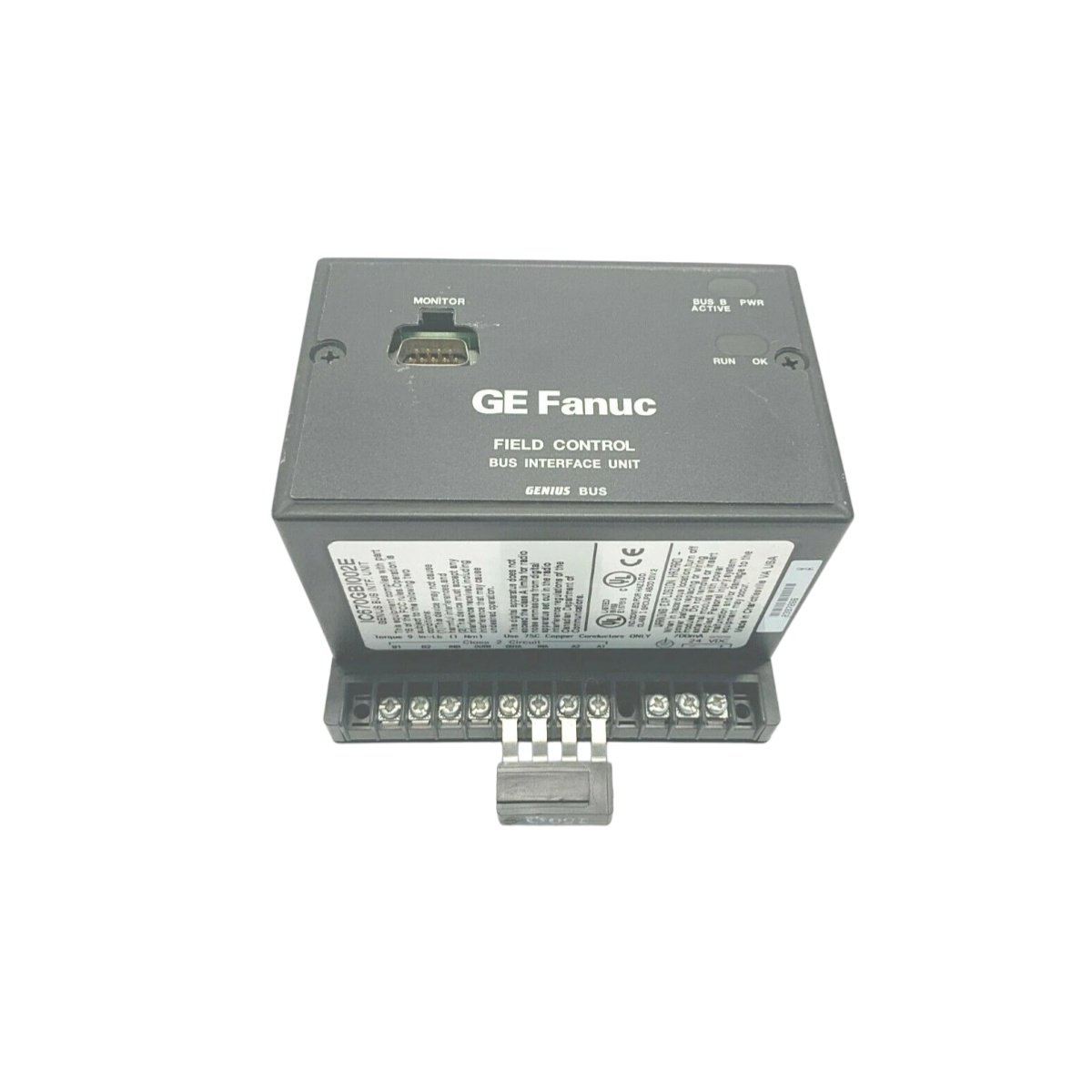

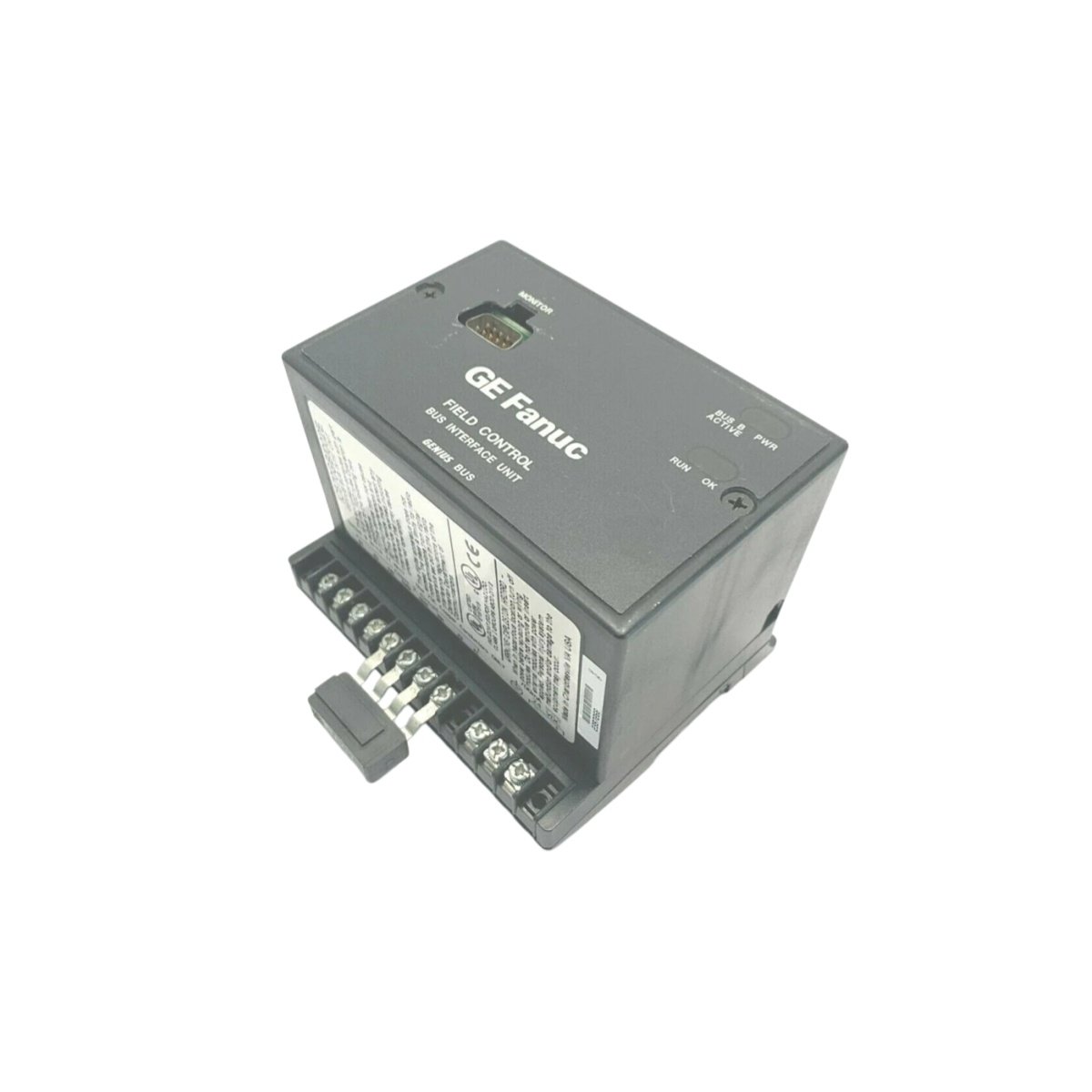

The IC670GBI002E serves as a Genius bus interface unit within GE Field Control distributed I/O systems. This module manages communication between the host controller and remote I/O blocks in the field. Consequently, engineers gain a dependable network link for distributed automation architectures.

Technical Specifications Overview

The IC670GBI002E combines a compact module body with rugged industrial construction. Moreover, its parameter set helps engineers plan network topology and cable routing accurately.

Interface and Network Communication Details

The IC670GBI002E links remote I/O blocks through a dedicated Genius bus port. Therefore, it exchanges process data quickly with the host controller. The interface unit manages polling and error detection across the network segment. In addition, the module draws 24 V DC directly from the cabinet supply.

Physical Characteristics and Installation

This interface unit measures roughly 150 mm wide and 100 mm high. Furthermore, its 50 mm depth suits compact cabinet layouts. The IC670GBI002E weighs about 0.4 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the mounting tabs, then secure the housing with retaining screws.

Operational Role and Maintenance

Engineers apply the IC670GBI002E for remote I/O coordination and distributed control tasks. Meanwhile, front-panel LEDs show live bus status during troubleshooting. The unit holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the cabinet supply for power.
