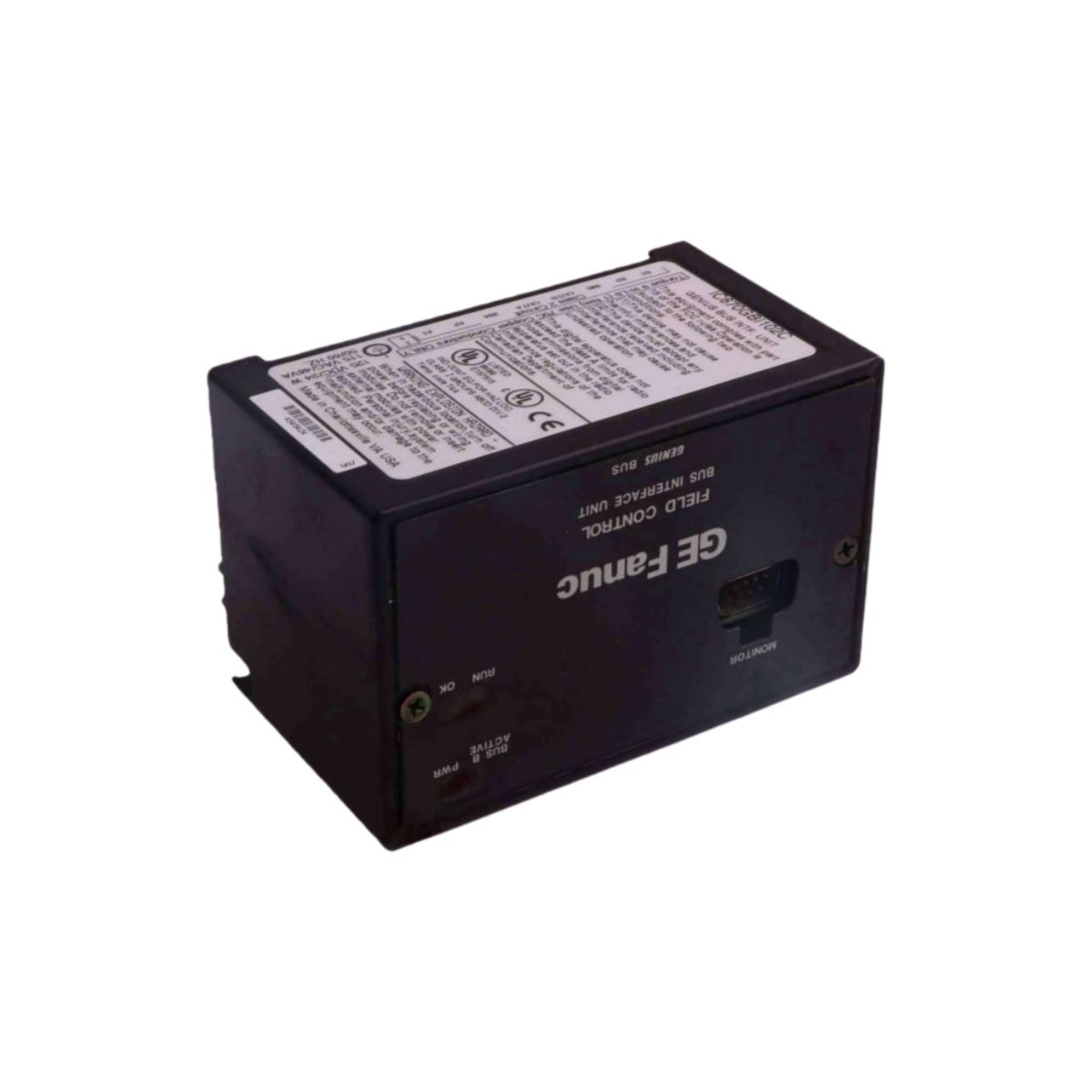

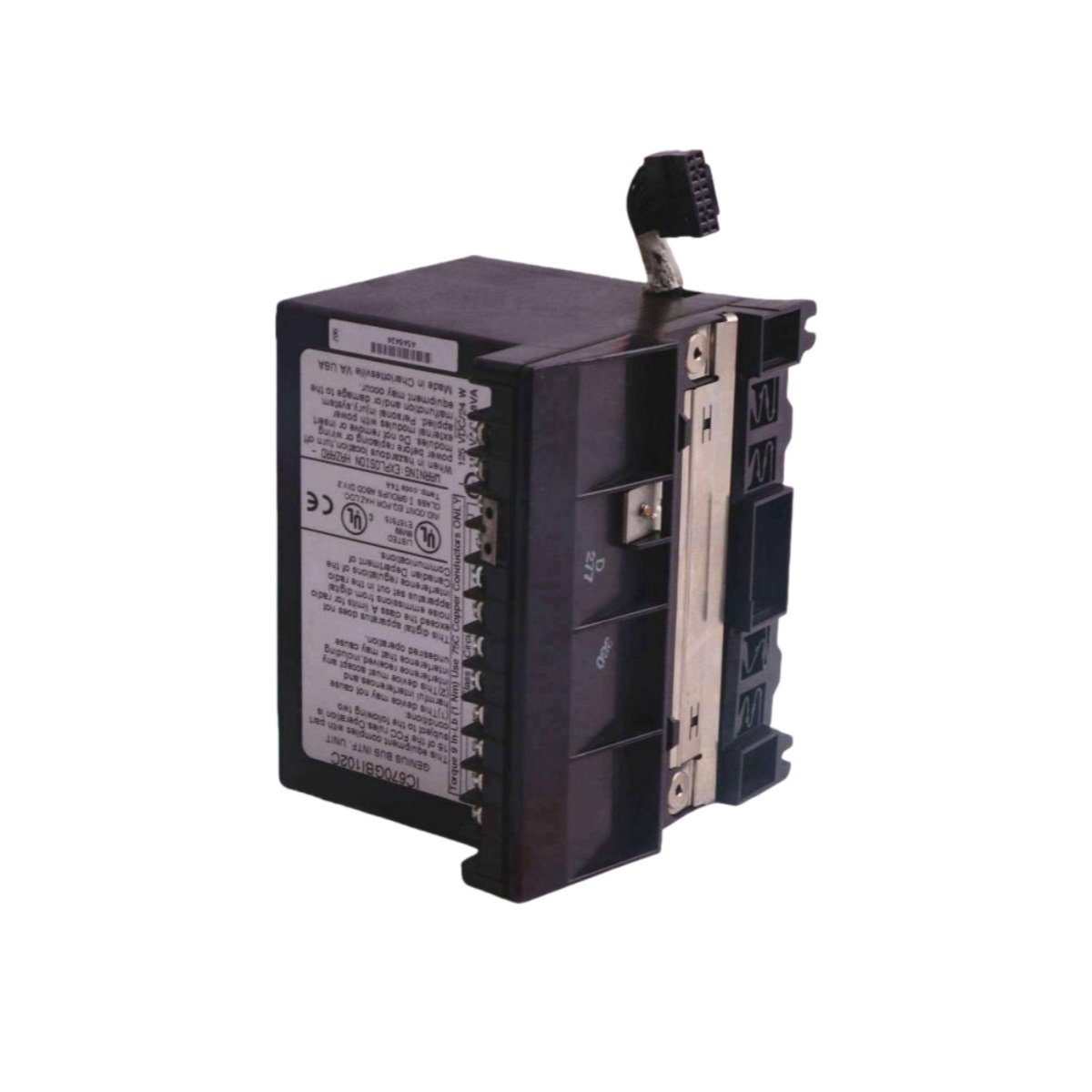

This bus interface unit connects field devices to the Genius I/O communication network. It acts as a gateway between remote I/O blocks and the host controller. The IC670GBI002 supports both Genius and serial communication protocols for flexible integration.

Core Communication Specifications

The unit supports data rates of 153.6 kbps and 38.4 kbps on the Genius bus. It handles up to 32 I/O blocks per communication scan cycle. Furthermore, the device manages both global data transfers and peer-to-peer messaging efficiently. It provides a built-in RS-232 port for local configuration and diagnostic access. The module automatically detects network baud rates and adjusts its timing accordingly.

Connectivity and Interface Features

The front panel includes a 15-pin D-sub connector for the Genius bus connection. This connector carries both shielded twisted-pair signals and power to remote devices. Additionally, the IC670GBI002 features a 9-pin RS-232 port for programming and monitoring tasks. Two LED indicators display communication status and power condition clearly. Engineers can access network statistics through the serial port using standard terminal software.

Energy Storage and Fault Resilience

An onboard capacitor bank stores 15 joules of backup energy for orderly shutdown procedures. This storage maintains network configuration data for approximately 30 minutes. Consequently, the unit retains its address and baud rate settings during temporary power loss. The module also includes a watchdog timer that resets the unit in case of communication lock-up.

Mechanical Specifications and Environmental Ratings

The unit measures 14.5 x 12.0 x 6.5 centimeters and weighs approximately 600 grams. Its compact module design fits neatly inside standard GE control enclosures. The operating temperature range spans -10°C to +55°C with 95% non-condensing humidity tolerance. Moreover, the IC670GBI002 mounts on a standard DIN rail for quick and secure installation.

Technical Parameters Summary

System Integration and Application Areas

This interface unit integrates with GE’s Series 90-30 and VersaMax control platforms. It simplifies network expansion by acting as a gateway to Genius I/O blocks. The unit’s peer-to-peer messaging enables direct data exchange between remote devices. Applications such as automotive assembly, material conveying, and packaging machinery benefit from its versatility.

Summary

The IC670GBI002 offers a dependable network interface for GE Genius-based automation systems. Its robust communication, diagnostic access, and compact footprint suit diverse applications. This unit provides an effective bridge between controllers and field I/O devices.
