Robust I/O Termination for Genius Systems

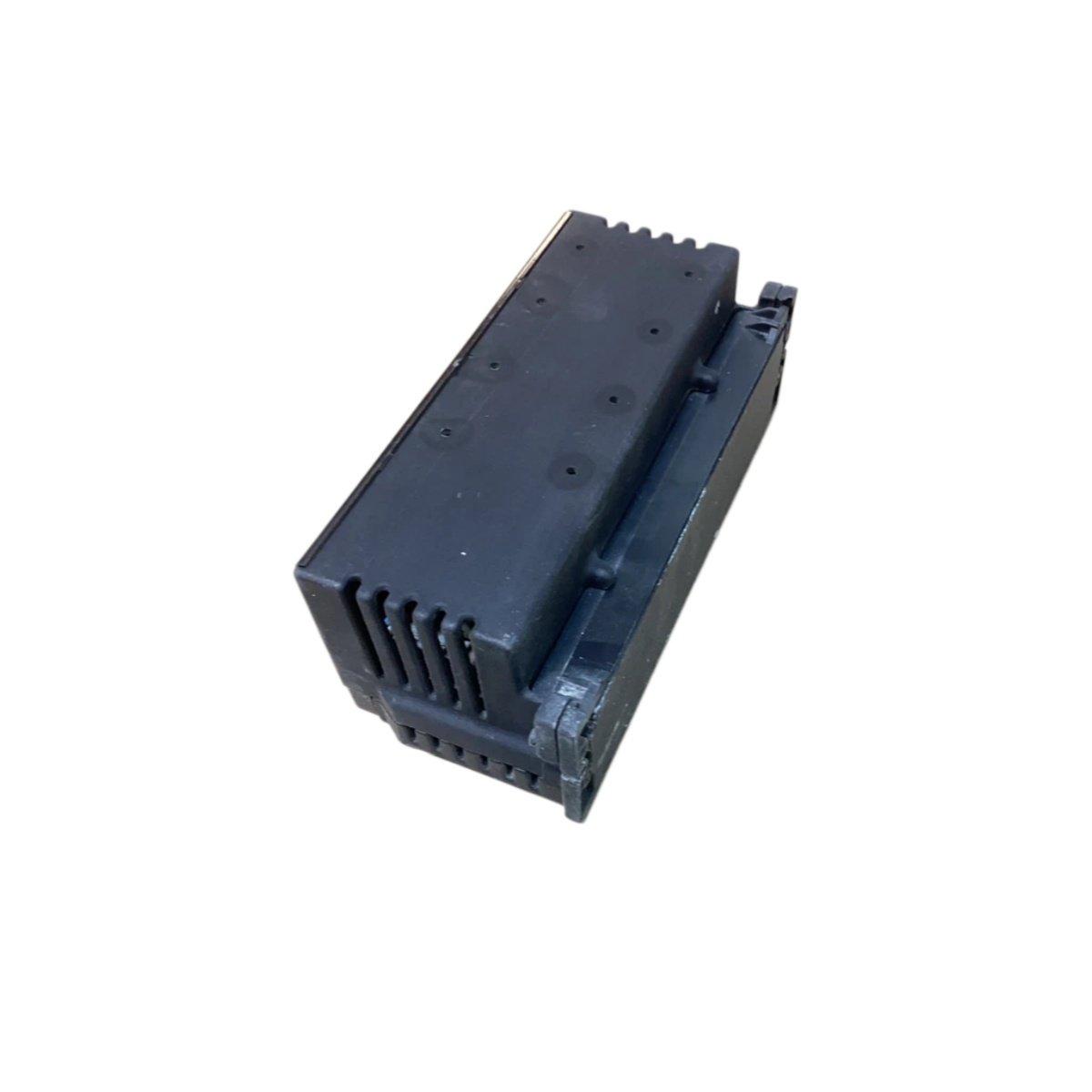

This terminal assembly provides a secure and organized interface for field wiring in the Genius I/O family. It serves as the physical connection point between the I/O module and field devices . Its principal function is to provide a secure, organized, and easily serviceable point for all field terminations . It supports the IC660BBD021 basic 24 V DC 8-channel I/O block . The assembly’s robust design reduces installation time and improves wire management significantly. This terminal block is compatible with I/O blocks and simplifies maintenance.

Technical Specifications and Physical Attributes

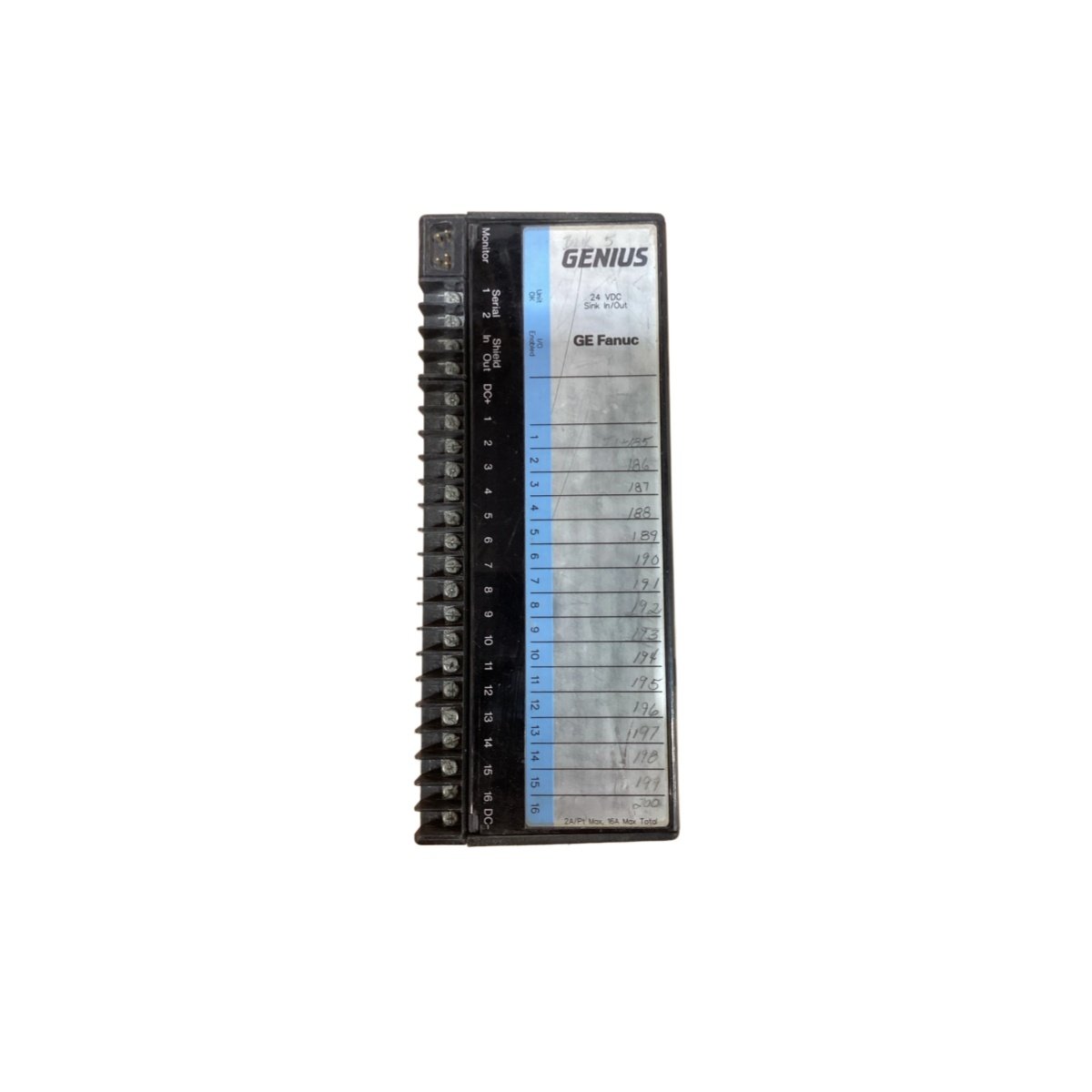

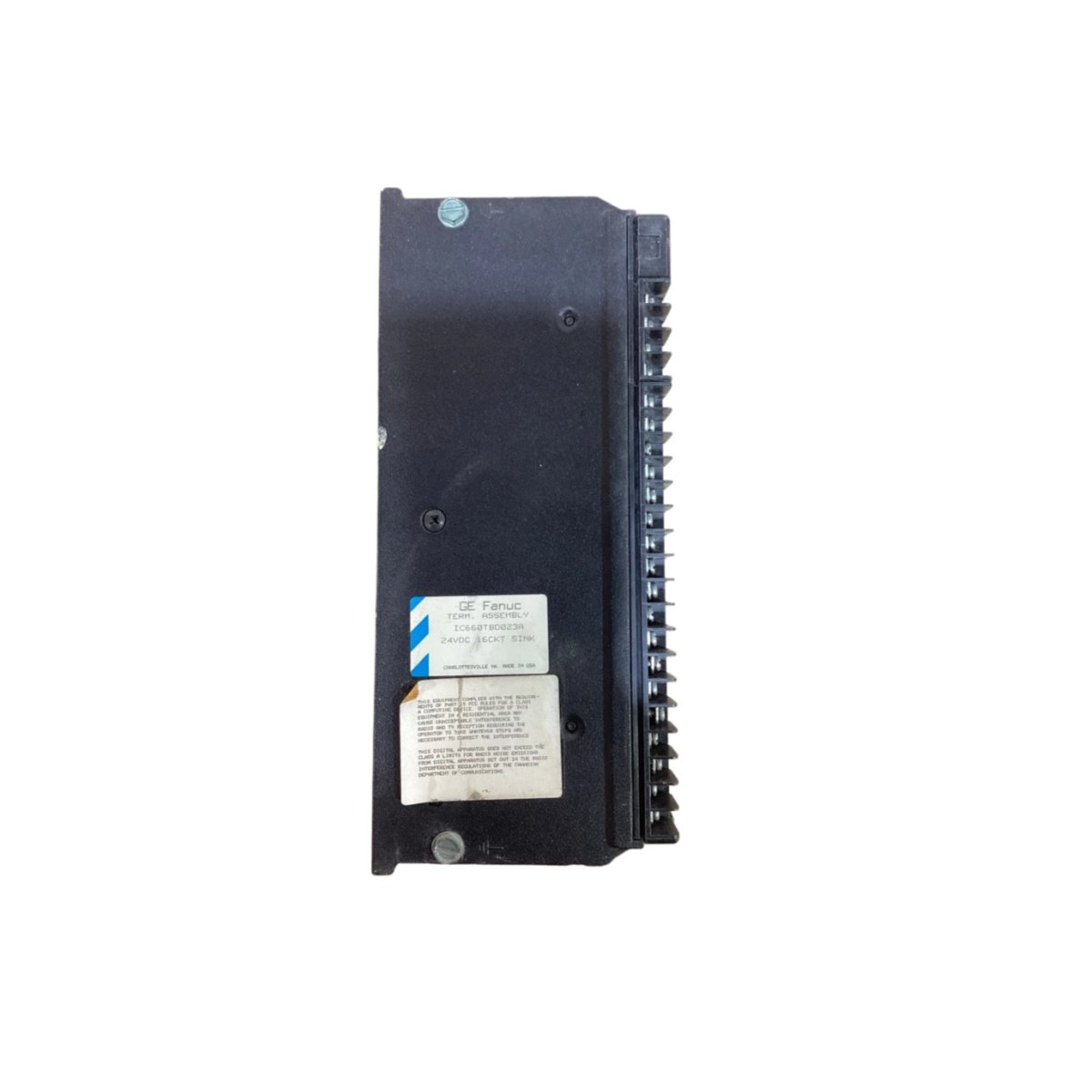

The IC660TBD023 measures approximately 125 mm in height, 90 mm in width, and 40 mm in depth. It uses screw-type terminals for secure and reliable field connections. The unit weighs about 0.3 kg . It features clearly marked terminal points and color-coded hardware for wiring verification . Its design allows for the direct insertion of a single 24 V DC source and 8 discrete I/O channels . The unit is available in a gray housing and has an IP20 protection rating.

Installation and Application Guidance

First, mount the IC660TBD023 securely on a DIN rail or flat surface. Then, connect the field wires to the screw terminals according to the wiring diagram. For the I/O block, attach the male connector to the terminal assembly. The IC660TBD023 helps reduce wiring errors and simplifies troubleshooting in panel installations. This assembly is a perfect fit for applications in material handling, packaging, and simple process control.
