Product Overview

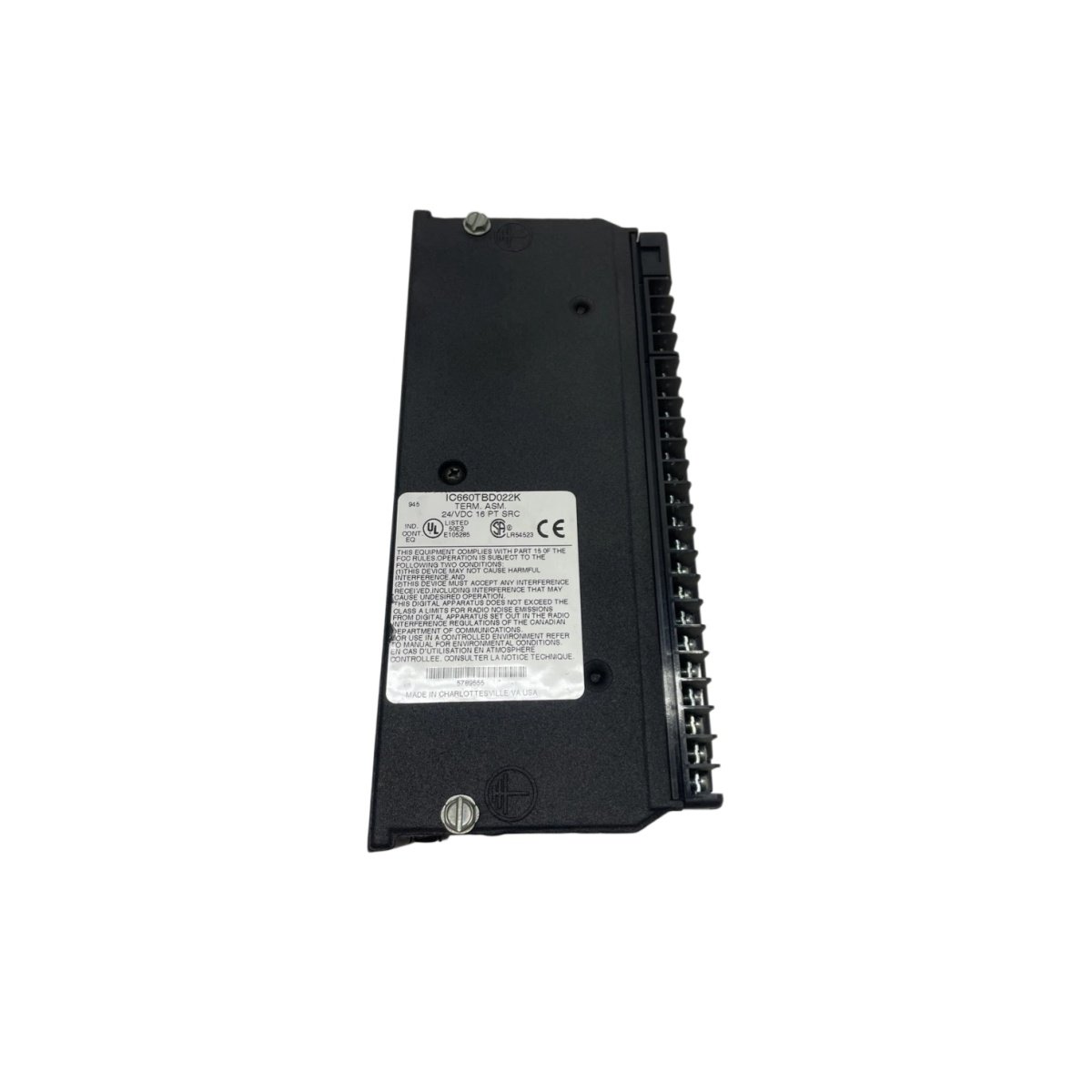

The GE IC660TBD022 terminal assembly provides a robust interconnection solution for the Genius I/O system. This field-ready module simplifies wiring between field devices and the controller. It supports high-density discrete and analog signal terminations for industrial automation applications. This assembly features a rugged thermoplastic housing and screw-type compression terminals for secure connections.

Technical Specifications

Key Design Features

This terminal assembly measures 11.2 centimeters in width and weighs only 0.23 kilograms. Its compact dimensions allow for space-efficient mounting inside control cabinets. The screw-type terminals accept wire gauges from 14 to 22 AWG, providing flexibility for various field wiring needs. Each of the 20 terminal positions handles up to 10 amperes continuously at 250 volts AC. The housing utilizes flame-retardant, high-strength thermoplastic, which offers excellent resistance to industrial contaminants.

Installation and Integration

Installation requires a standard DIN-rail mounting or panel mount bracket, depending on the cabinet layout. The GE IC660TBD022 aligns seamlessly with the Genius I/O block interface. You connect field devices directly to the labeled terminal points using solid or stranded copper conductors. This assembly simplifies troubleshooting due to its clearly marked terminal numbering and removable wire covers. It offers a practical solution for centralizing I/O connections in distributed control architectures.

Application Context

Industrial facilities often use this terminal assembly with PLC and DCS systems. It excels in environments requiring reliable discrete signal marshalling, such as conveyor controls and pump monitoring. This unit also supports analog signal transmission for temperature and pressure transducers. Its straightforward design reduces installation time and future maintenance efforts.

Environmental Durability

This assembly operates reliably within a 0°C to +60°C ambient temperature range. Its robust construction withstands humidity levels up to 95% non-condensing. The enclosure meets UL 508 and CSA 22.2 safety standards, ensuring compliance in North American industrial settings. Therefore, it suits harsh factory floor conditions without compromising signal integrity.
