Product Overview

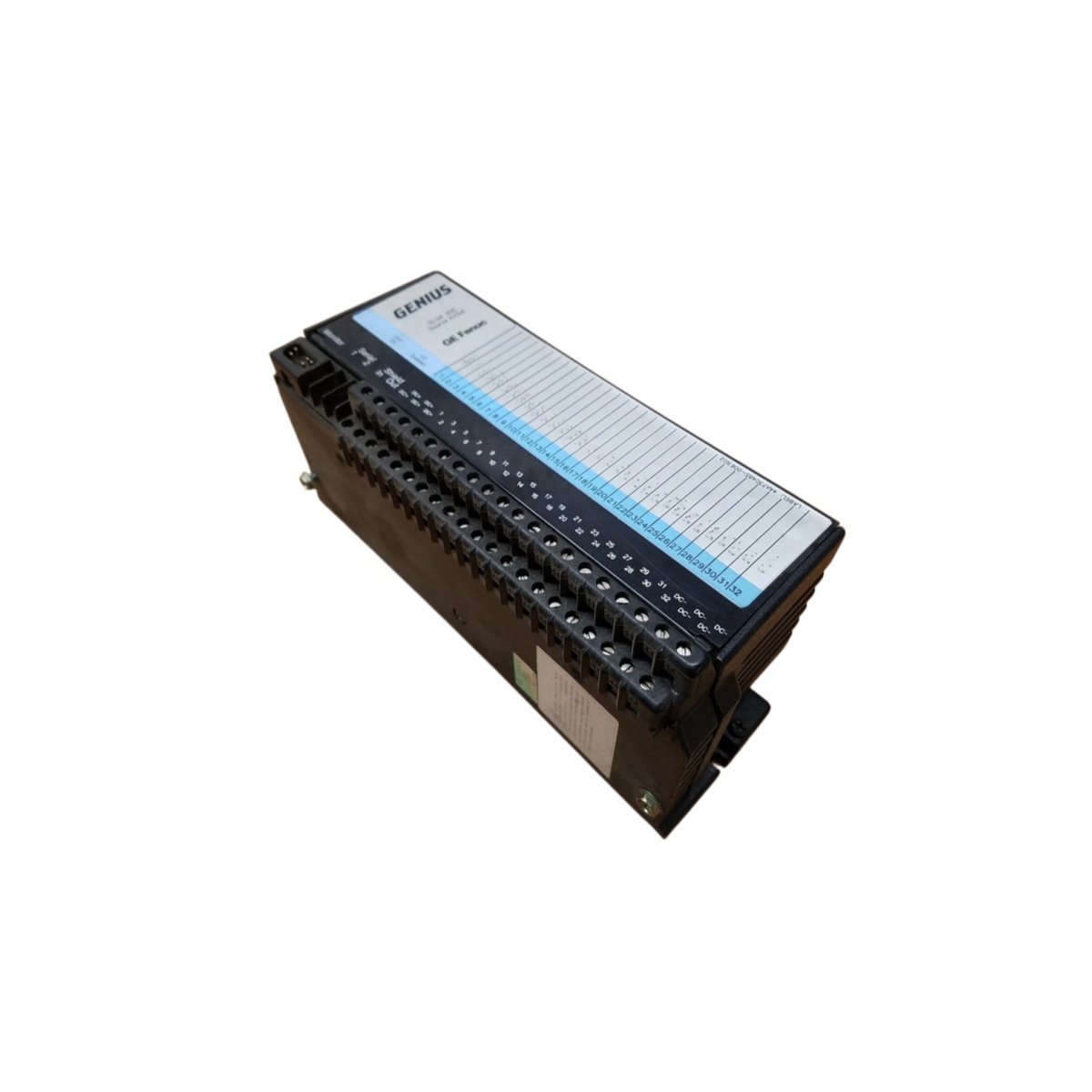

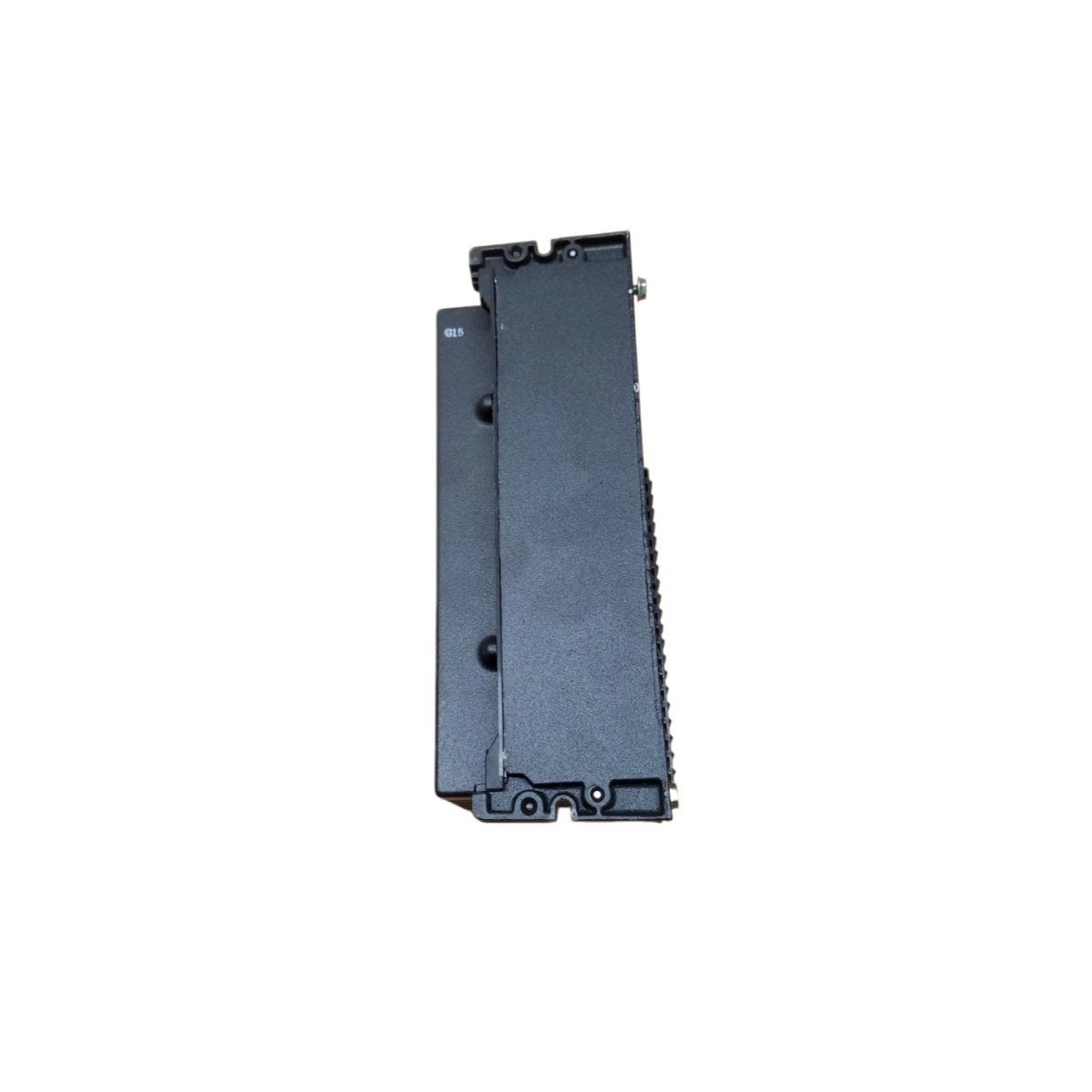

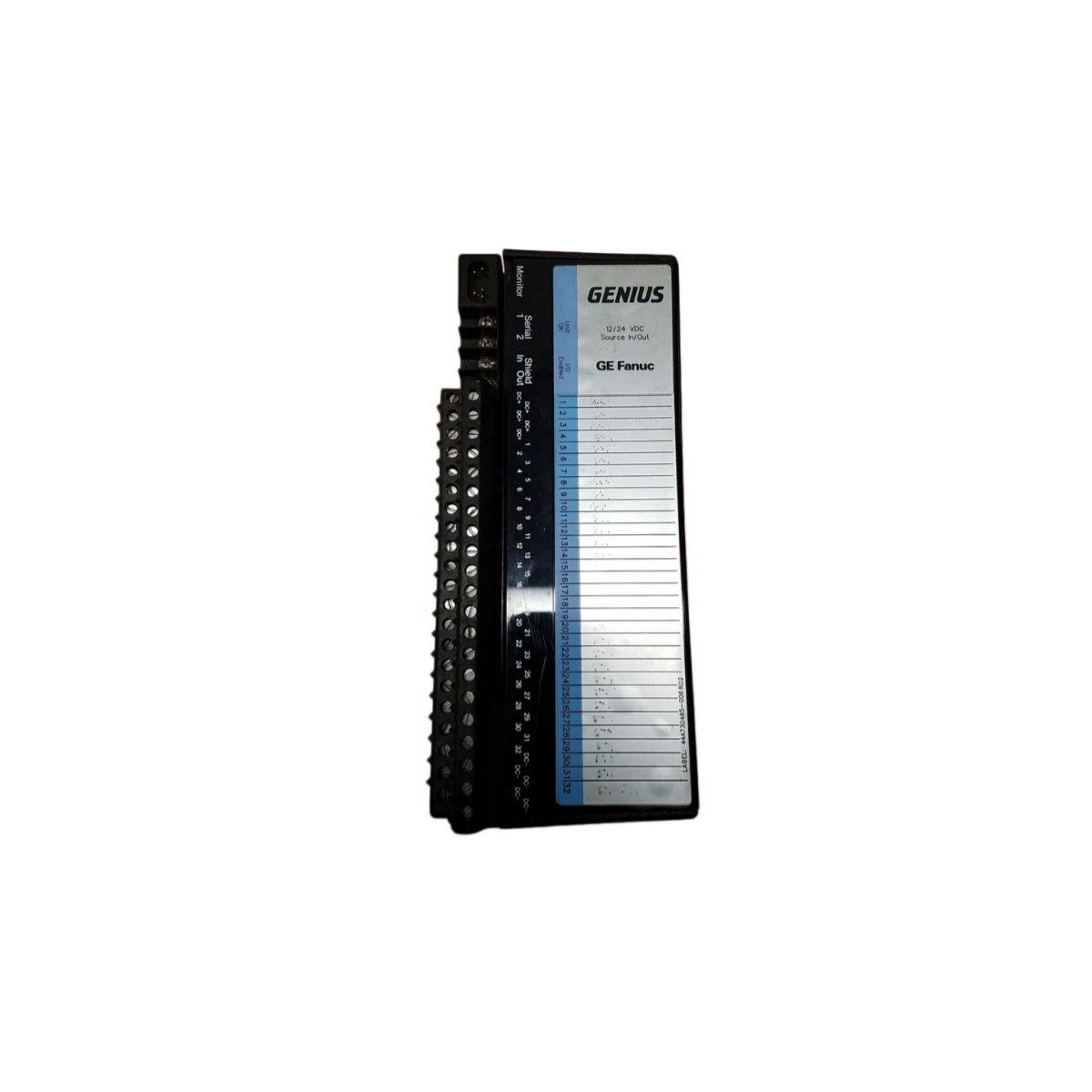

The GE Fanuc IC660TBD021 functions as a block-style terminal assembly for the Genius I/O system. This component provides a termination point for connecting field wiring to a bus interface unit. Furthermore, the IC660TBD021 supports a wide range of analog and discrete I/O modules for flexible system configurations.
Technical Specifications
The IC660TBD021 features a robust design, similar to the IC660TBD024 analog block terminal assemblies. This terminal assembly directly connects field devices to compatible Genius I/O modules. Users must verify compatibility when using this block in Genius applications.
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Product Type | Terminal Assembly (Block Style) |
| System Series | Genius I/O |
| Wire Termination | Screw-type terminal blocks |
| Supported Modules | Compatible Genius I/O modules |
| Termination Points | Multiple positions (field wiring) |
| Mounting | Directly onto I/O blocks |
| Protection | Overcurrent protection (varies by module) |
| Operating Temperature | 0°C to 60°C |
| Origin | USA |
Key Design Features
The IC660TBD021 employs screw-type clamping connections for secure and reliable wire termination. Its block-style design allows for rapid installation and straightforward field maintenance. Additionally, the assembly supports various wire sizes for flexible field wiring.
Application and Integration
The IC660TBD021 integrates with Genius I/O fieldbus systems in GE Fanuc PLC installations across diverse industries. This terminal assembly serves as a critical interface between logic controllers and field instrumentation such as sensors and actuators. Consequently, it provides secure and organized connections that simplify troubleshooting and maintenance tasks.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 110 × 70 × 30 mm |
