Product Overview

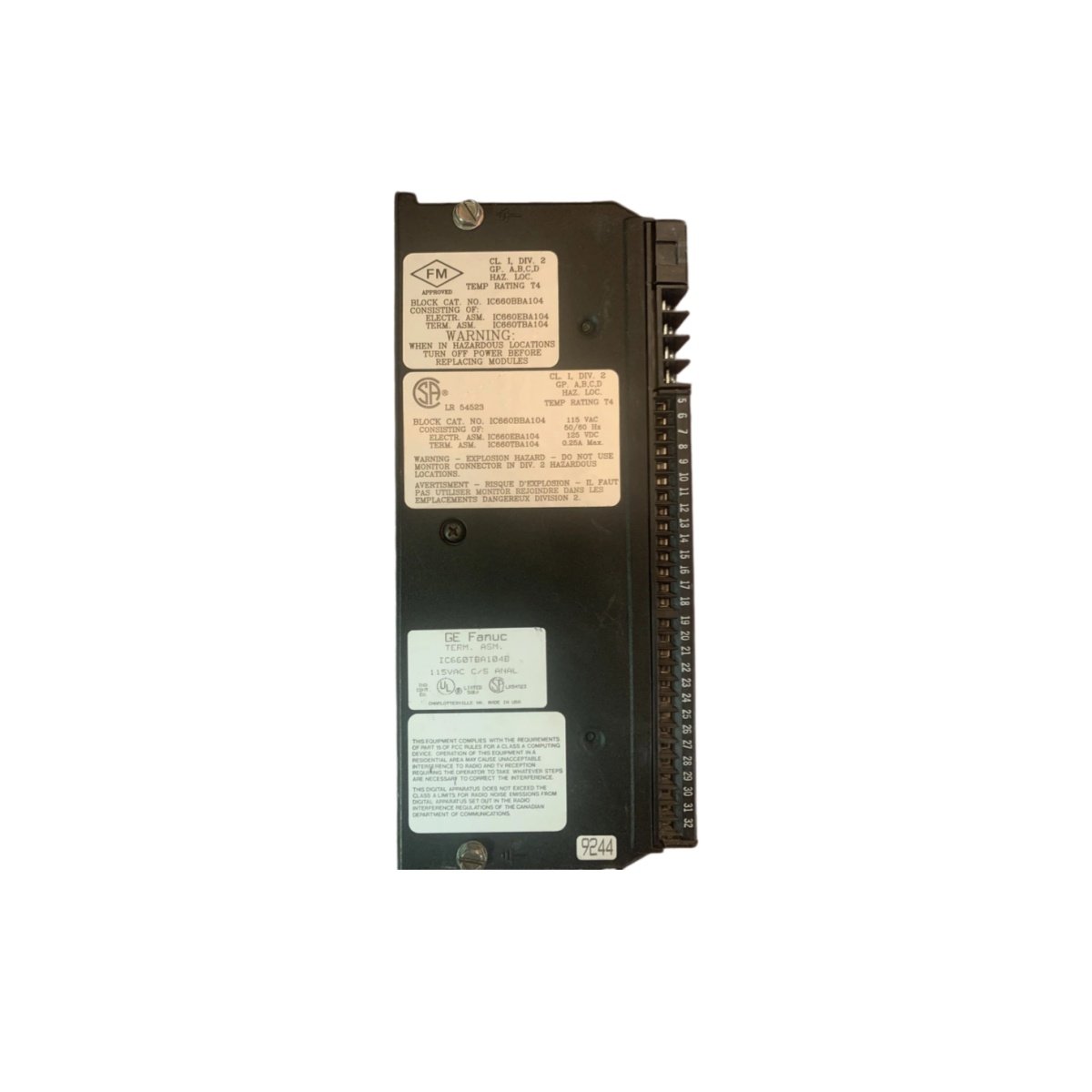

The GE IC660TBA104 terminal assembly provides a structured wiring interface for the Genius I/O product family. This unit consolidates field device connections into a single, organized termination point. It works directly with the corresponding I/O block to simplify cabinet installation and maintenance. The assembly features clearly labeled terminal positions for rapid identification during troubleshooting.

Technical Specifications

Mechanical Construction and Mounting

This terminal assembly measures 10.8 centimeters in width and weighs just 0.20 kilograms. Its compact footprint conserves valuable space inside crowded control enclosures. The housing uses high-impact thermoplastic that resists cracking and chemical exposure. You can mount this unit directly onto a standard DIN rail or use the optional panel-mounting brackets.

Connection Interface and Wiring

The GE IC660TBA104 offers twenty screw-type terminals arranged in two rows for easy access. Each terminal accepts solid or stranded copper wires from 14 to 22 AWG. The clamping mechanism ensures gas-tight connections that resist vibration-induced loosening. A removable cover protects the wiring area while allowing visual inspection of termination integrity.

Electrical Performance and Safety

This assembly handles continuous currents up to 10 amperes per terminal at 300 volts AC. The terminal block design maintains low contact resistance throughout its operational life. Creepage and clearance distances comply with IEC 60664-1 standards for reinforced insulation. Furthermore, the unit includes integrated strain relief features to prevent wire pull-out stress.

Integration with Genius I/O Systems

The GE IC660TBA104 directly interfaces with the I/O block via a keyed ribbon cable connection. This design prevents incorrect mating and ensures reliable signal transfer between field devices and the controller. You can use this assembly with both discrete and analog I/O modules in the Genius family. Its straightforward wiring scheme reduces commissioning time for new installations significantly.

Environmental Suitability

This terminal assembly operates reliably across a 0°C to 60°C ambient temperature range. It withstands relative humidity levels up to 95% without condensation issues. The enclosure carries UL 508 and CSA C22.2 approvals for industrial control equipment. Consequently, this unit performs well in manufacturing plants, water treatment facilities, and material handling systems.

Application Versatility

Field engineers commonly use this assembly for terminating sensors, actuators, and operator panel signals. It supports both AC and DC control circuits within its voltage rating limits. This unit also serves as an effective junction point for distributed I/O topologies. Its simple design makes it suitable for both new machinery builds and retrofit projects.
