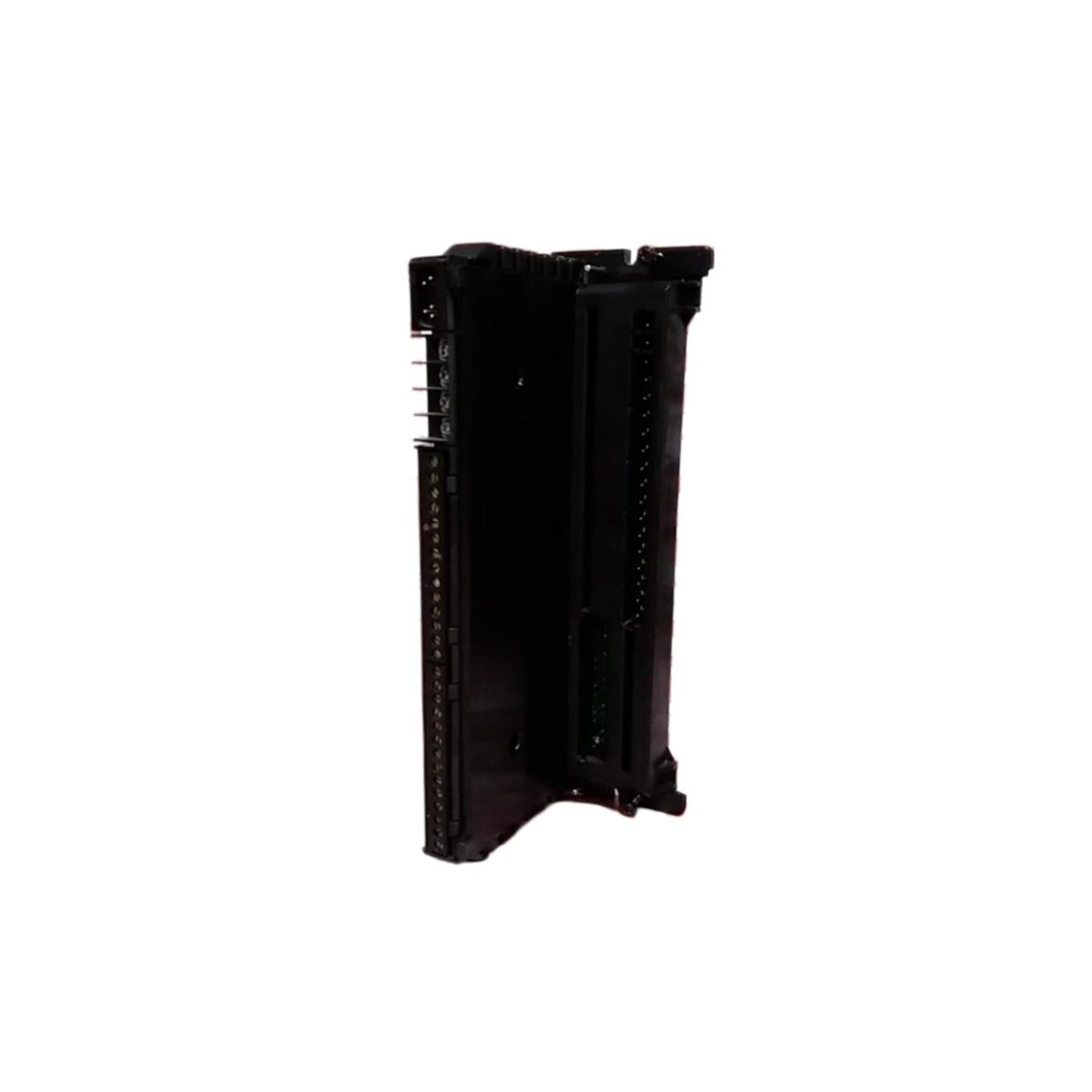

The IC660TBA024 belongs to the GE Fanuc Genius I/O family, a line of distributed I/O terminal bases. Engineers deploy this terminal assembly as the wiring foundation for Genius I/O electronics modules. Consequently, it carries field signals between external devices and the plug-in electronics block.

Key Technical Specifications

The IC660TBA024 provides 24 terminal points for field wiring connections. Moreover, it accepts Genius I/O electronics assemblies to form a complete field station. The table below lists the core parameters.

Installation and Interface Details

The assembly mounts on a panel or DIN rail inside a field enclosure. Field wiring lands on 24 removable screw terminals, which speed up commissioning. Furthermore, the base accepts a Genius electronics module that handles signal processing. As a result, technicians replace electronics without disturbing field wiring.

Wiring and Signal Routing

The screw terminals accept wire gauges from 14 to 22 AWG. Meanwhile, clear terminal labeling reduces wiring errors during installation. Additionally, the removable design allows pre-wiring before module installation. Therefore, the assembly simplifies maintenance and shortens commissioning time.

Environmental and Mechanical Ratings

The enclosure operates from 0 °C to +60 °C in typical plant conditions. Moreover, the sealed housing tolerates 5–95% relative humidity without condensation. The compact footprint of 216 mm × 89 mm × 70 mm fits crowded cabinets. Consequently, the assembly suits steel mills, petrochemical plants, and power stations.

Why Engineers Choose This Assembly

This assembly offers several practical advantages. First, it separates field wiring from sensitive electronics. Second, removable terminals speed up module replacement. Third, its Genius bus compatibility cuts wiring costs significantly. Therefore, maintenance teams simplify troubleshooting and reduce spare-part inventory.
